MATLAB | 面积图、饼状图、水平柱状图的斜线填充(阴影填充)
没想到叭，阴影柱状图仅仅一天就迎来了(1.5.1)版本，已经支持水平柱状图绘制！！同时本人又连夜赶制了另外两款相关的阴影图绘制函数：
来来来，后文马上介绍一下这三款函数。
另：代码开发基于
polyshape对象，阴影柱状图绘制函数理论上需要至少R2017b及之后版本才能使用(越新越好)。(polyshape yyds)
区域填充函数
先讲解此函数如何使用，再在此部分最后给出完整代码：
基本使用
设置为角度为pi/3，80根线条进行填充：
t=0:.01:2*pi; X=cos(t); Y=sin(t); plot(X,Y,'LineWidth',2); hold on;axis equal shadowFill(X,Y,pi/3,80);- 1
- 2
- 3
- 4
- 5
- 6
- 7
绘制阴影面积图
t=0:.01:2*pi; y=sin(t); plot(t,y,'LineWidth',2); hold on;axis equal shadowFill(t,y,pi/4,80);- 1
- 2
- 3
- 4
- 5
- 6
绘制两函数中间区域
这个就比较复杂了，给个例子：
t=-.1:.01:pi/2; y1=sin(t).*2; y2=t.^2; hold on plot(t,y1,'LineWidth',2); plot(t,y2,'LineWidth',2); diffy=y1-y2; tpos=find(diffy>=0); T=[t(tpos(1):tpos(end)),t(tpos(end):-1:tpos(1))]; Y=[y1(tpos(1):tpos(end)),y2(tpos(end):-1:tpos(1))]; shadowFill(T,Y,pi/5,70);- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
设置填充颜色和格式
t=-.1:.01:pi/2; y1=sin(t).*2; y2=t.^2; hold on plot(t,y1,'LineWidth',2); plot(t,y2,'LineWidth',2); diffy=y1-y2; tpos=find(diffy>=0); T=[t(tpos(1):tpos(end)),t(tpos(end):-1:tpos(1))]; Y=[y1(tpos(1):tpos(end)),y2(tpos(end):-1:tpos(1))]; shadowFill(T,Y,pi/5,70,'LineStyle',':','Color',[.2,.2,.9]);- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
工具函数完整代码
function SF=shadowFill(X,Y,theta,num,varargin) % @author : slandarer % gzh : slandarer随笔 if theta>pi/2||theta<-pi/2 error('Inner theta should be in range of [-pi/2,pi/2]'); end % 基础属性获取 ax=gca;hold on; try pshape=polyshape(X,Y); catch end XYmin=[min(X),min(Y)]; XYmax=[max(X),max(Y)]; diffY=max(Y)-min(Y); % 获取阴影线数值 if abs(theta)<eps YY=linspace(XYmin(2),XYmax(2),num); tXX=zeros(3,num);tYY=zeros(3,num); for i=1:num [in,~]=intersect(pshape,[XYmin(1),YY(i);XYmax(2),YY(i)]); if ~isempty(in) tXX(:,i)=[in(1,1);in(end,1);nan]; tYY(:,i)=[in(1,2);in(end,2);nan]; else tXX(:,i)=[nan;nan;nan]; tYY(:,i)=[nan;nan;nan]; end end else cott=cot(theta); XX1=linspace(XYmin(1)-cott.*diffY,XYmax(1),num); XX2=linspace(XYmin(1),XYmax(1)+cott.*diffY,num); tXX=zeros(3,num);tYY=zeros(3,num); for i=1:num [in,~]=intersect(pshape,[XX1(i),XYmin(2);XX2(i),XYmax(2)]); if ~isempty(in) tXX(:,i)=[in(1,1);in(end,1);nan]; tYY(:,i)=[in(1,2);in(end,2);nan]; else tXX(:,i)=[nan;nan;nan]; tYY(:,i)=[nan;nan;nan]; end end end % 绘制阴影 SF=plot(ax,tXX(:),tYY(:),'LineWidth',.5,'Color',[0,0,0],varargin{:},'Tag','shadowFill'); end- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
阴影饼状图
阴影有：
\,/,_,|,+,x,.,w,k,g
十种格式，可以自己都试一下：基本使用
X=[1 3 0.5 2.5 2]; SP=shadowPie(X,'ShadowType',{'/','.','|','+','x'}); SP=SP.draw();- 1
- 2
- 3
- 4
带偏移饼图
X=[1 3 0.5 2.5 2]; explode=[0 1 0 5 0]; SP=shadowPie(X,explode,'ShadowType',{'/','.','|','+','x'}); SP=SP.draw();- 1
- 2
- 3
- 4
- 5
添加图例
X=[1 3 0.5 2.5 2]; explode=[0 1 0 5 0]; SP=shadowPie(X,explode,'ShadowType',{'/','.','|','+','x'}); SP=SP.draw(); SP.legend({'AAA','BBB','CCC','DDD','EEE'},'FontSize',13,'FontName','Cambria');- 1
- 2
- 3
- 4
- 5
- 6
- 7
图例可能会被标签信息挡住，可以自行拖拽图例到其他位置：
基本修饰
阴影、柱状图框、图例框分别具有
pieShadow,pieBox,lgdBox的标签，使用findobj获取对象并循环修饰即可，不过为了绘制更好看，部分阴影使用plot绘制部分则是使用scatter绘制，因此阴影修饰时要用if先检测一下格式，给个示例：X=[1 3 0.5 2.5 2]; explode=[0 1 0 5 0]; SP=shadowPie(X,explode,'ShadowType',{'/','.','|','+','x'}); SP=SP.draw(); SP.legend({'AAA','BBB','CCC','DDD','EEE'},'FontSize',13,'FontName','Cambria'); % 修饰文字 textHdl=findobj('Tag','pieText'); for i=1:length(textHdl) textHdl(i).FontName='Cambria'; textHdl(i).FontSize=14; textHdl(i).Color=[0,0,.8]; end % 修饰阴影变成红色并加粗 shadowHdl=findobj('Tag','pieShadow'); for i=1:length(shadowHdl) if isa(shadowHdl(i),'matlab.graphics.chart.primitive.Line') shadowHdl(i).Color=[.8,.6,.6]; shadowHdl(i).LineWidth=1; else shadowHdl(i).MarkerFaceColor=[.8,.6,.6]; shadowHdl(i).SizeData=5; end end- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27

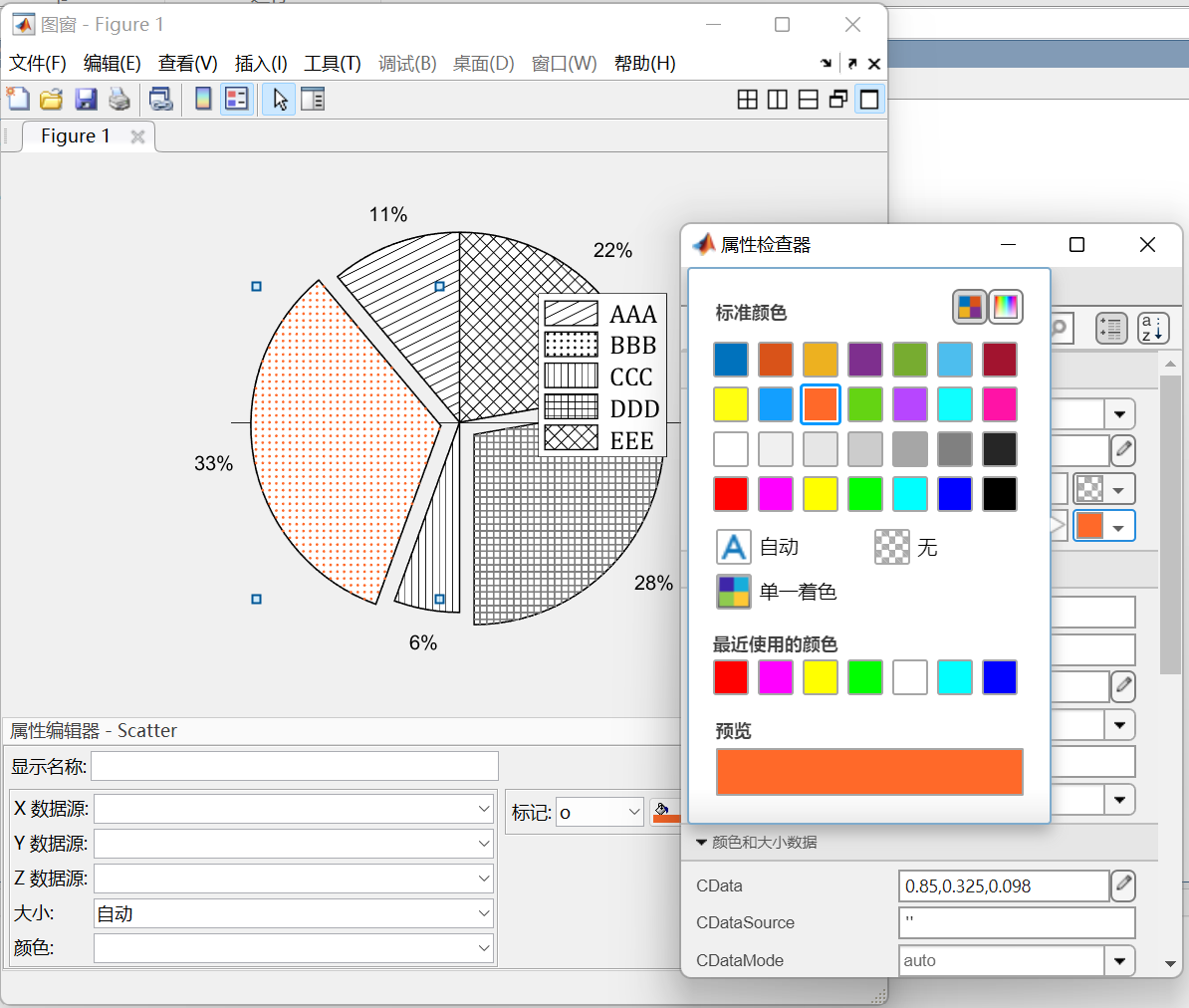

光看上面代码大佬们应该就已经懂了咋用，如果比较小白，可以直接使用MATLAB自带的属性修饰器：
点击：查看->属性编辑器
点击选中对象即可立即修饰颜色、粗细等各种格式：
工具函数完整代码
classdef shadowPie % @author : slandarer % gzh : slandarer随笔 properties ax,XData,num shadowTypeList={'\','/','_','|','+','x','.','w','k','g'} shadowType % 阴影类型 otherProp % 其他初始属性 oriPieHdl % 原始图形句柄 newPieHdl pshapeHdl % polyshape图形句柄 lineNum=85 % 阴影基础线数量 oriLegend;XYRate;nonePieHdl lL_X1;lL_X2;cL_X1;cL_X2;hL_X1;hL_X2;XMesh;YMesh end methods function obj=shadowPie(varargin) % 基础属性设置 obj.XData=varargin{1};varargin(1)=[]; if any(strcmpi('shadowType',varargin)) tind=find(strcmpi('shadowType',varargin)); obj.shadowType=varargin{tind+1}; varargin([tind,tind+1])=[]; else obj.shadowType=obj.shadowTypeList; end if any(strcmpi('lineNum',varargin)) tind=find(strcmpi('lineNum',varargin)); obj.lineNum=varargin{tind+1}; varargin([tind,tind+1])=[]; end obj.otherProp=varargin; obj.num=length(obj.XData); help shadowPie end function obj=draw(obj) % 基础绘图 obj.oriPieHdl=pie(obj.XData,obj.otherProp{:}); obj.ax=gca;hold(obj.ax,'on'); % 一些基础线 obj.lL_X1=linspace(-1.5-6,1.5,obj.lineNum); obj.lL_X2=linspace(-1.5,1.5+6,obj.lineNum); obj.cL_X1=linspace(-1.5-3,1.5,obj.lineNum); obj.cL_X2=linspace(-1.5,1.5+3,obj.lineNum); obj.hL_X1=linspace(-1.5,1.5,obj.lineNum); obj.hL_X2=linspace(-1.5,1.5,obj.lineNum); [obj.XMesh,obj.YMesh]=meshgrid(linspace(-1.5,1.5,obj.lineNum)); n=1; for i=1:length(obj.oriPieHdl) if isa(obj.oriPieHdl(i),'matlab.graphics.primitive.Patch') obj.newPieHdl(n)=obj.oriPieHdl(i); obj.oriPieHdl(i).Tag='pieBox'; n=n+1; else obj.oriPieHdl(i).Tag='pieText'; end end n=1; for i=1:length(obj.oriPieHdl) if isa(obj.oriPieHdl(i),'matlab.graphics.primitive.Patch') obj.oriPieHdl(i).FaceColor=[1,1,1]; obj.oriPieHdl(i).LineWidth=.8; tPolyPhape=polyshape(obj.oriPieHdl(i).XData,obj.oriPieHdl(i).YData); tType=mod(n-1,length(obj.shadowType))+1; switch obj.shadowType{tType} case '\' tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[obj.lL_X1(k),1.5;obj.lL_X2(k),-1.5]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end plot(tXX(:),tYY(:),'Color',[0,0,0],'LineWidth',.5,'Tag','pieShadow') case '/' tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[obj.lL_X1(k),-1.5;obj.lL_X2(k),1.5]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end plot(tXX(:),tYY(:),'Color',[0,0,0],'LineWidth',.5,'Tag','pieShadow') case '_' tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[-1.5,obj.hL_X1(k);1.5,obj.hL_X2(k)]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end plot(tXX(:),tYY(:),'Color',[0,0,0],'LineWidth',.5,'Tag','pieShadow') case '|' tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[obj.hL_X1(k),-1.5;obj.hL_X2(k),1.5]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end plot(tXX(:),tYY(:),'Color',[0,0,0],'LineWidth',.5,'Tag','pieShadow') case '+' tXX1=zeros([3,obj.lineNum]);tYY1=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[-1.5,obj.hL_X1(k);1.5,obj.hL_X2(k)]); if ~isempty(in) tXX1(:,k)=[in(1,1);in(end,1);nan]; tYY1(:,k)=[in(1,2);in(end,2);nan]; else tXX1(:,k)=[nan;nan;nan]; tYY1(:,k)=[nan;nan;nan]; end end tXX2=zeros([3,obj.lineNum]);tYY2=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[obj.hL_X1(k),-1.5;obj.hL_X2(k),1.5]); if ~isempty(in) tXX2(:,k)=[in(1,1);in(end,1);nan]; tYY2(:,k)=[in(1,2);in(end,2);nan]; else tXX2(:,k)=[nan;nan;nan]; tYY2(:,k)=[nan;nan;nan]; end end plot([tXX1(:);nan;tXX2(:)],[tYY1(:);nan;tYY2(:)],'Color',[0,0,0],'LineWidth',.5,'Tag','pieShadow') case 'x' tXX1=zeros([3,obj.lineNum]);tYY1=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[obj.cL_X1(k),1.5;obj.cL_X2(k),-1.5]); if ~isempty(in) tXX1(:,k)=[in(1,1);in(end,1);nan]; tYY1(:,k)=[in(1,2);in(end,2);nan]; else tXX1(:,k)=[nan;nan;nan]; tYY1(:,k)=[nan;nan;nan]; end end tXX2=zeros([3,obj.lineNum]);tYY2=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[obj.cL_X1(k),-1.5;obj.cL_X2(k),1.5]); if ~isempty(in) tXX2(:,k)=[in(1,1);in(end,1);nan]; tYY2(:,k)=[in(1,2);in(end,2);nan]; else tXX2(:,k)=[nan;nan;nan]; tYY2(:,k)=[nan;nan;nan]; end end plot([tXX1(:);nan;tXX2(:)],[tYY1(:);nan;tYY2(:)],'Color',[0,0,0],'LineWidth',.5,'Tag','pieShadow') case '.' tXX=obj.XMesh(:);tYY=obj.YMesh(:); tbool=isinterior(tPolyPhape,tXX(:),tYY(:)); scatter(tXX(tbool),tYY(tbool),2,'filled','o','MarkerEdgeColor','none','MarkerFaceColor',[0,0,0],'Tag','pieShadow') case 'w' obj.oriPieHdl(i).FaceColor=[1,1,1]; case 'k' obj.oriPieHdl(i).FaceColor=[0,0,0]; case 'g' obj.oriPieHdl(i).FaceColor=[.5,.5,.5]; end n=n+1; end end end function obj=legend(obj,cellStr,varargin) obj.nonePieHdl=pie(obj.XData,obj.otherProp{:}); nn=1; for n=1:length(obj.nonePieHdl) if isa(obj.nonePieHdl(n),'matlab.graphics.primitive.Patch') obj.nonePieHdl(n).FaceColor='none'; obj.nonePieHdl(n).EdgeColor='none'; newNonePieHdl(nn)=obj.nonePieHdl(n); nn=nn+1; else obj.nonePieHdl(n).Visible='off'; end end obj.oriLegend=legend(newNonePieHdl,cellStr,varargin{:}); obj.oriLegend.AutoUpdate='off'; obj.oriLegend.Box='off'; obj.ax.XLim=obj.ax.XLim; obj.ax.YLim=obj.ax.YLim; % 框重定位 tlgdPos=obj.oriLegend.Position; taxPos=obj.ax.Position; taxXLim=obj.ax.XLim; taxYLim=obj.ax.YLim; tfigRate=obj.ax.Parent.Position(3:4); tfigRate=tfigRate.*taxPos(3:4);tfigRate=tfigRate./min(tfigRate); taxXLim=taxXLim.*tfigRate(1); taxYLim=taxYLim.*tfigRate(2); tXYMin=(tlgdPos(1:2)-taxPos(1:2))./taxPos(3:4).*[diff(taxXLim),diff(taxYLim)]+[taxXLim(1),taxYLim(1)]; tXYMax=(tlgdPos(1:2)+tlgdPos(3:4)-taxPos(1:2))./taxPos(3:4).*[diff(taxXLim),diff(taxYLim)]+[taxXLim(1),taxYLim(1)]; boxHdl=fill([tXYMin(1),tXYMax(1),tXYMax(1),tXYMin(1)],[tXYMin(2),tXYMin(2),tXYMax(2),tXYMax(2)],[1,1,1],'Tag','lgdBox'); for n=1:length((obj.newPieHdl)) ttType=mod(n-1,length(obj.shadowType))+1; squareHdl(n)=fill([0,0,0],[0,0,0],[1,1,1],'EdgeColor',[0,0,0],'LineWidth',.7,'Tag','pieBox'); if strcmp(obj.shadowType{ttType},'.') lgdLineHdl(n)=scatter(0,0,2,'filled','o','MarkerEdgeColor','none','MarkerFaceColor',[0,0,0],'Tag','pieShadow'); else lgdLineHdl(n)=plot(0,0,'Color',[0,0,0],'LineWidth',.5,'Tag','barBox','Tag','pieShadow'); end end moveLgd() set(obj.ax.Parent,'WindowButtonMotionFcn',@moveLgd); function moveLgd(~,~) % 框重定位 lgdPos=obj.oriLegend.Position; axPos=obj.ax.Position; axXLim=obj.ax.XLim; axYLim=obj.ax.YLim; figRate=obj.ax.Parent.Position(3:4); figRate=figRate.*axPos(3:4);figRate=figRate./min(figRate); axXLim=axXLim.*figRate(1); axYLim=axYLim.*figRate(2); XYMin=(lgdPos(1:2)-axPos(1:2))./axPos(3:4).*[diff(axXLim),diff(axYLim)]+[axXLim(1),axYLim(1)]; XYMax=(lgdPos(1:2)+lgdPos(3:4)-axPos(1:2))./axPos(3:4).*[diff(axXLim),diff(axYLim)]+[axXLim(1),axYLim(1)]; boxHdl.XData=[XYMin(1),XYMax(1),XYMax(1),XYMin(1)]; boxHdl.YData=[XYMin(2),XYMin(2),XYMax(2),XYMax(2)]; Y=XYMin(2)+(XYMax(2)-XYMin(2)).*linspace(1/length(obj.newPieHdl)/2+1/50,1-1/length(obj.newPieHdl)/2-1/50,length(obj.newPieHdl)); obj.XYRate=diff(obj.ax.YLim)./diff(obj.ax.XLim); PBA=obj.ax.PlotBoxAspectRatio(2)./obj.ax.PlotBoxAspectRatio(1)./0.7896; Y=fliplr(Y); for i=1:length((obj.newPieHdl)) tX=XYMin(1)+(XYMax(2)-XYMin(2))./2./length(obj.newPieHdl).*[1/10,.95,.95,1/10].*(PBA./obj.XYRate.*3); tY=Y(i)+0.75.*[-1,-1,1,1].*(XYMax(2)-XYMin(2))./2./length(obj.newPieHdl); squareHdl(i).XData=tX; squareHdl(i).YData=tY; tPolyPhape=polyshape(tX,tY); tType=mod(i-1,length(obj.shadowType))+1; switch obj.shadowType{tType} case '\' tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[obj.lL_X1(k),1.5;obj.lL_X2(k),-1.5]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end lgdLineHdl(i).XData=tXX(:); lgdLineHdl(i).YData=tYY(:); case '/' tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[obj.lL_X1(k),-1.5;obj.lL_X2(k),1.5]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end lgdLineHdl(i).XData=tXX(:); lgdLineHdl(i).YData=tYY(:); case '_' tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[-1.5,obj.hL_X1(k);1.5,obj.hL_X2(k)]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end lgdLineHdl(i).XData=tXX(:); lgdLineHdl(i).YData=tYY(:); case '|' tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[obj.hL_X1(k),-1.5;obj.hL_X2(k),1.5]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end lgdLineHdl(i).XData=tXX(:); lgdLineHdl(i).YData=tYY(:); case '+' tXX1=zeros([3,obj.lineNum]);tYY1=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[-1.5,obj.hL_X1(k);1.5,obj.hL_X2(k)]); if ~isempty(in) tXX1(:,k)=[in(1,1);in(end,1);nan]; tYY1(:,k)=[in(1,2);in(end,2);nan]; else tXX1(:,k)=[nan;nan;nan]; tYY1(:,k)=[nan;nan;nan]; end end tXX2=zeros([3,obj.lineNum]);tYY2=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[obj.hL_X1(k),-1.5;obj.hL_X2(k),1.5]); if ~isempty(in) tXX2(:,k)=[in(1,1);in(end,1);nan]; tYY2(:,k)=[in(1,2);in(end,2);nan]; else tXX2(:,k)=[nan;nan;nan]; tYY2(:,k)=[nan;nan;nan]; end end lgdLineHdl(i).XData=[tXX1(:);nan;tXX2(:)]; lgdLineHdl(i).YData=[tYY1(:);nan;tYY2(:)]; case 'x' tXX1=zeros([3,obj.lineNum]);tYY1=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[obj.cL_X1(k),1.5;obj.cL_X2(k),-1.5]); if ~isempty(in) tXX1(:,k)=[in(1,1);in(end,1);nan]; tYY1(:,k)=[in(1,2);in(end,2);nan]; else tXX1(:,k)=[nan;nan;nan]; tYY1(:,k)=[nan;nan;nan]; end end tXX2=zeros([3,obj.lineNum]);tYY2=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[obj.cL_X1(k),-1.5;obj.cL_X2(k),1.5]); if ~isempty(in) tXX2(:,k)=[in(1,1);in(end,1);nan]; tYY2(:,k)=[in(1,2);in(end,2);nan]; else tXX2(:,k)=[nan;nan;nan]; tYY2(:,k)=[nan;nan;nan]; end end lgdLineHdl(i).XData=[tXX1(:);nan;tXX2(:)]; lgdLineHdl(i).YData=[tYY1(:);nan;tYY2(:)]; case '.' tXX=obj.XMesh(:);tYY=obj.YMesh(:); tbool=isinterior(tPolyPhape,tXX(:),tYY(:)); lgdLineHdl(i).XData=tXX(tbool); lgdLineHdl(i).YData=tYY(tbool); case 'w' squareHdl(i).FaceColor=[1,1,1]; case 'k' squareHdl(i).FaceColor=[0,0,0]; case 'g' squareHdl(i).FaceColor=[.5,.5,.5]; end end end end end end- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 139
- 140
- 141
- 142
- 143
- 144
- 145
- 146
- 147
- 148
- 149
- 150
- 151
- 152
- 153
- 154
- 155
- 156
- 157
- 158
- 159
- 160
- 161
- 162
- 163
- 164
- 165
- 166
- 167
- 168
- 169
- 170
- 171
- 172
- 173
- 174
- 175
- 176
- 177
- 178
- 179
- 180
- 181
- 182
- 183
- 184
- 185
- 186
- 187
- 188
- 189
- 190
- 191
- 192
- 193
- 194
- 195
- 196
- 197
- 198
- 199
- 200
- 201
- 202
- 203
- 204
- 205
- 206
- 207
- 208
- 209
- 210
- 211
- 212
- 213
- 214
- 215
- 216
- 217
- 218
- 219
- 220
- 221
- 222
- 223
- 224
- 225
- 226
- 227
- 228
- 229
- 230
- 231
- 232
- 233
- 234
- 235
- 236
- 237
- 238
- 239
- 240
- 241
- 242
- 243
- 244
- 245
- 246
- 247
- 248
- 249
- 250
- 251
- 252
- 253
- 254
- 255
- 256
- 257
- 258
- 259
- 260
- 261
- 262
- 263
- 264
- 265
- 266
- 267
- 268
- 269
- 270
- 271
- 272
- 273
- 274
- 275
- 276
- 277
- 278
- 279
- 280
- 281
- 282
- 283
- 284
- 285
- 286
- 287
- 288
- 289
- 290
- 291
- 292
- 293
- 294
- 295
- 296
- 297
- 298
- 299
- 300
- 301
- 302
- 303
- 304
- 305
- 306
- 307
- 308
- 309
- 310
- 311
- 312
- 313
- 314
- 315
- 316
- 317
- 318
- 319
- 320
- 321
- 322
- 323
- 324
- 325
- 326
- 327
- 328
- 329
- 330
- 331
- 332
- 333
- 334
- 335
- 336
- 337
- 338
- 339
- 340
- 341
- 342
- 343
- 344
- 345
- 346
- 347
- 348
- 349
- 350
- 351
- 352
- 353
- 354
- 355
- 356
- 357
- 358
- 359
- 360
- 361
- 362
- 363
- 364
- 365
- 366
- 367
- 368
- 369
- 370
- 371
- 372
- 373
- 374
- 375
- 376
- 377
- 378
- 379
- 380
- 381
- 382
- 383
- 384
- 385
- 386
- 387
- 388
- 389
- 390
- 391
- 392
- 393
未经允许本代码请勿作商业用途，引用的话可以引用我file exchange上的链接，可使用如下格式：
Zhaoxu Liu (2022). pie with shadow 阴影饼图 (https://www.mathworks.com/matlabcentral/fileexchange/117045-pie-with-shadow), MATLAB Central File Exchange. 检索来源 2022/9/1.
若转载请保留以上file exchange链接及本文链接！！！
水平阴影柱状图
绘图方式基本和这篇所示一模一样:
https://blog.csdn.net/slandarer/article/details/126641909

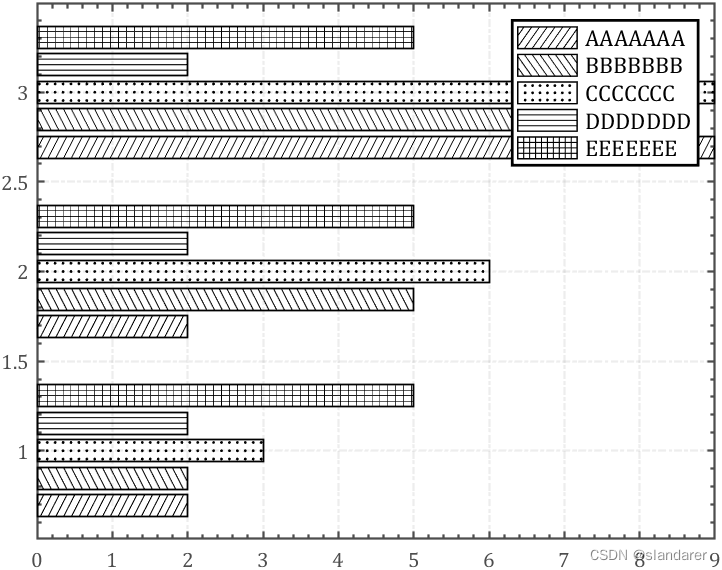

水平柱状图示例
只需要将
'Horizontal'属性设置为,'on'即可：基本使用：
y=[2 2 3 2 5; 2 5 6 2 5; 9 8 9 2 5]; SH=shadowHist(y,'ShadowType',{'/','\','.','x','|'},'Horizontal','on'); SH=SH.draw();- 1
- 2
- 3
- 4
含负值：
y=[2 2 -3 -2 -5; -2 -5 6 2 5; 9 8 9 2 5]; SH=shadowHist(y,'ShadowType',{'/','\','.','x','|'},'Horizontal','on'); SH=SH.draw();- 1
- 2
- 3
- 4
堆叠：
y=[2 2 -3 -2 -5; -2 -5 6 2 5; 9 8 9 2 5; -3 -5 6 2 5; 4 8 5 2 5]; SH=shadowHist(y,'ShadowType',{'/','\','.','x','|'},'stacked','Horizontal','on'); SH=SH.draw();- 1
- 2
- 3
- 4
添加图例：
y=[2 2 3 2 5; 2 5 6 2 5; 9 8 9 2 5]; SH=shadowHist(y,'ShadowType',{'/','\','.','_','+'},'Horizontal','on'); SH=SH.draw(); SH=SH.legend({'AAAAAAA','BBBBBBB','CCCCCCC','DDDDDDD','EEEEEEE'},'FontName','Arial','FontSize',11);- 1
- 2
- 3
- 4
- 5
全部阴影格式：
y=[2 2 3 2 5 4 2 2 2 1;2 2 3 2 5 4 2 4 3 6]; SH=shadowHist(y,'ShadowType',{'/','\','x','.','_','|','+','w','k','g'},'Horizontal','on'); SH=SH.draw(); SH=SH.legend({'A','B','C','D','E','F','G','H','I','J'});- 1
- 2
- 3
- 4
- 5
工具函数完整代码
classdef shadowHist % @author : slandarer % gzh : slandarer随笔 % 使用示例： % ========================================================================= % y=[2 2 3 2 5; 2 5 6 2 5; 9 8 9 2 5]; % % SH=shadowHist(y,'ShadowType',{'/','\','.','x','|'}); % SH=SH.draw(); properties ax % 绘图坐标区域 YData % 数值矩阵 shadowTypeList={'\','/','_','|','+','x','.','w','k','g'} shadowType % 阴影类型 otherProp % 其他初始属性 oriBarHdl % 原始图形句柄 newBarHdl pshapeHdl % polyshape图形句柄 groupNum % 组数 classNum % 类数 YEndMat % 末端y值 maxY % 最大Y值 minY=0 % 最小Y值 diffY % Y值之差 BarW % 宽度 YSep1 % linspace(obj.minY,obj.maxY+.02.*obj.diffY,obj.lineNum) YSep2 XMean % 每组柱状图每个柱子的中心位置 lineNum=90 % 阴影基础线数量 XYRate SHLegend oriLegend end methods function obj=shadowHist(varargin) % 基础属性设置 if isa(varargin{1},'matlab.graphics.axis.Axes') obj.ax=varargin{1};varargin(1)=[]; else obj.ax=gca; end hold(obj.ax,'on'); obj.YData=varargin{1};varargin(1)=[]; if any(strcmpi('shadowType',varargin)) tind=find(strcmpi('shadowType',varargin)); obj.shadowType=varargin{tind+1}; varargin([tind,tind+1])=[]; else obj.shadowType=obj.shadowTypeList; end obj.otherProp=varargin; help shadowHist end function obj=draw(obj) % 基础绘图 obj.oriBarHdl=bar(obj.ax,obj.YData,obj.otherProp{:},'Tag','barBox'); obj.XYRate=diff(obj.ax.YLim)./diff(obj.ax.XLim); % 更多属性获取 obj.YEndMat=zeros([length(obj.oriBarHdl),length(obj.oriBarHdl(1).XData)]); for i=1:length(obj.oriBarHdl) obj.YEndMat(i,:)=obj.oriBarHdl(i).YEndPoints; end obj.maxY=max(obj.YEndMat,[],[1,2]); obj.minY=min(0,min(obj.YEndMat,[],[1,2])); obj.diffY=obj.maxY-obj.minY; obj.classNum=length(obj.oriBarHdl); obj.groupNum=length(obj.oriBarHdl(1).XData); % 计算柱状图宽度和位置 % obj.XMean=linspace(-obj.classNum+1,obj.classNum-1,obj.classNum)./(3+2*obj.classNum); for i=1:obj.classNum obj.XMean(i)=obj.oriBarHdl(i).XEndPoints(1)-1; end tXMean=[obj.XMean,1];obj.BarW=(tXMean(2)-tXMean(1))./2.*obj.oriBarHdl(1).BarWidth; if strcmp(obj.oriBarHdl(1).BarLayout,'stacked') obj.BarW=1./2.*obj.oriBarHdl(1).BarWidth; end % if strcmp(obj.oriBarHdl(1).Horizontal,'on') % YY1=linspace(obj.oriBarHdl(1).XEndPoints(1),obj.oriBarHdl(end).XEndPoints(end)+2*obj.BarW,obj.lineNum)'; % YY2=linspace(obj.oriBarHdl(1).XEndPoints(1)-2*obj.BarW,obj.oriBarHdl(end).XEndPoints(end),obj.lineNum)'; % obj.YSep1=YY1(1)-YY2(2);obj.YSep2=YY1(2)-YY1(1); % else YY1=linspace(obj.minY,obj.maxY+.02.*obj.diffY,obj.lineNum)'; YY2=linspace(obj.minY-.02.*obj.diffY,obj.maxY,obj.lineNum)'; obj.YSep1=YY1(1)-YY2(2);obj.YSep2=YY1(2)-YY1(1); % end % 循环绘制阴影 for i=1:obj.classNum obj.oriBarHdl(i).FaceColor='none'; obj.oriBarHdl(i).LineWidth=.8; if strcmp(obj.oriBarHdl(1).BarLayout,'stacked') obj.oriBarHdl(i).LineWidth=.8; end tType=mod(i-1,length(obj.shadowType))+1; switch obj.shadowType{tType} case 'w',obj.oriBarHdl(i).FaceColor=[1,1,1]; case 'k',obj.oriBarHdl(i).FaceColor=[0,0,0]; case 'g',obj.oriBarHdl(i).FaceColor=[.5,.5,.5]; end for j=1:obj.groupNum tX=[-1,1,1,-1].*obj.BarW+obj.XMean(i)+j; tY=[obj.oriBarHdl(i).YEndPoints(j)-obj.oriBarHdl(i).YData(j),... obj.oriBarHdl(i).YEndPoints(j)-obj.oriBarHdl(i).YData(j),... obj.oriBarHdl(i).YEndPoints(j),... obj.oriBarHdl(i).YEndPoints(j)]; if strcmp(obj.oriBarHdl(1).Horizontal,'on') tPolyPhape=polyshape(tY,tX); else tPolyPhape=polyshape(tX,tY); end switch obj.shadowType{tType} case '\' if strcmp(obj.oriBarHdl(1).Horizontal,'on') YY1=-1.2.*ones([obj.lineNum,1]).*obj.BarW+obj.XMean(i)+j; YY2=1.2.*ones([obj.lineNum,1]).*obj.BarW+obj.XMean(i)+j; XX1=linspace(obj.minY,obj.maxY+.02.*obj.diffY,obj.lineNum)'; XX2=linspace(obj.minY-.02.*obj.diffY,obj.maxY,obj.lineNum)'; tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); else XX1=-1.2.*ones([obj.lineNum,1]).*obj.BarW+obj.XMean(i)+j; XX2=1.2.*ones([obj.lineNum,1]).*obj.BarW+obj.XMean(i)+j; YY1=linspace(obj.minY,obj.maxY+.02.*obj.diffY,obj.lineNum)'; YY2=linspace(obj.minY-.02.*obj.diffY,obj.maxY,obj.lineNum)'; tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); end for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[XX1(k),YY1(k);XX2(k),YY2(k)]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end plot(tXX(:),tYY(:),'Color',[0,0,0],'LineWidth',.5,'Tag','barShadow') case '/' if strcmp(obj.oriBarHdl(1).Horizontal,'on') YY1=-1.2.*ones([obj.lineNum,1]).*obj.BarW+obj.XMean(i)+j; YY2=1.2.*ones([obj.lineNum,1]).*obj.BarW+obj.XMean(i)+j; XX1=linspace(obj.minY-.02.*obj.diffY,obj.maxY,obj.lineNum)'; XX2=linspace(obj.minY,obj.maxY+.02.*obj.diffY,obj.lineNum)'; tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); else XX1=-1.2.*ones([obj.lineNum,1]).*obj.BarW+obj.XMean(i)+j; XX2=1.2.*ones([obj.lineNum,1]).*obj.BarW+obj.XMean(i)+j; YY1=linspace(obj.minY-.02.*obj.diffY,obj.maxY,obj.lineNum)'; YY2=linspace(obj.minY,obj.maxY+.02.*obj.diffY,obj.lineNum)'; tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); end for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[XX1(k),YY1(k);XX2(k),YY2(k)]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end plot(tXX(:),tYY(:),'Color',[0,0,0],'LineWidth',.5,'Tag','barShadow') case '_' if strcmp(obj.oriBarHdl(1).Horizontal,'on') tXX=linspace(tX(1),tX(2),5); if strcmp(obj.oriBarHdl(1).BarLayout,'stacked') tXX=linspace(tX(1),tX(2),9); end tXX=tXX(2:end-1); tYY=[tY(2),tY(3),nan]'; tXX=repmat(tXX,[length(tYY),1]); tYY=repmat(tYY,[1,size(tXX,2)]); plot(tYY(:),tXX(:),'Color',[0,0,0],'LineWidth',.5,'Tag','barShadow') else tXX=[tX(1),tX(2),nan]; tYY=linspace(obj.minY-.02.*obj.diffY,obj.maxY+.02.*obj.diffY,obj.lineNum)'; tYY(tYY>=max(tY))=[];tYY(tYY<=min(tY))=[]; tXX=repmat(tXX,[length(tYY),1])'; tYY=repmat(tYY,[1,size(tXX,1)])'; plot(tXX(:),tYY(:),'Color',[0,0,0],'LineWidth',.5,'Tag','barShadow') end case '|' if strcmp(obj.oriBarHdl(1).Horizontal,'on') tXX=[tX(1),tX(2),nan]; tYY=linspace(obj.minY-.02.*obj.diffY,obj.maxY+.02.*obj.diffY,obj.lineNum)'; tYY(tYY>=max(tY))=[];tYY(tYY<=min(tY))=[]; tXX=repmat(tXX,[length(tYY),1])'; tYY=repmat(tYY,[1,size(tXX,1)])'; plot(tYY(:),tXX(:),'Color',[0,0,0],'LineWidth',.5,'Tag','barShadow') else tXX=linspace(tX(1),tX(2),5); if strcmp(obj.oriBarHdl(1).BarLayout,'stacked') tXX=linspace(tX(1),tX(2),9); end tXX=tXX(2:end-1); tYY=[tY(2),tY(3),nan]'; tXX=repmat(tXX,[length(tYY),1]); tYY=repmat(tYY,[1,size(tXX,2)]); plot(tXX(:),tYY(:),'Color',[0,0,0],'LineWidth',.5,'Tag','barShadow') end case '+' tXX=[tX(1),tX(2),nan]; tYY=linspace(obj.minY-.02.*obj.diffY,obj.maxY+.02.*obj.diffY,obj.lineNum)'; tYY(tYY>=max(tY))=[];tYY(tYY<=min(tY))=[]; tXX1=repmat(tXX,[length(tYY),1])'; tYY1=repmat(tYY,[1,size(tXX1,1)])'; tXX=linspace(tX(1),tX(2),5); if strcmp(obj.oriBarHdl(1).BarLayout,'stacked') tXX=linspace(tX(1),tX(2),9); end tXX=tXX(2:end-1); tYY=[tY(2),tY(3),nan]'; tXX2=repmat(tXX,[length(tYY),1]); tYY2=repmat(tYY,[1,size(tXX2,2)]); if strcmp(obj.oriBarHdl(1).Horizontal,'on') plot([tYY1(:);nan;tYY2(:)],[tXX1(:);nan;tXX2(:)],'Color',[0,0,0],'LineWidth',.5,'Tag','barShadow') else plot([tXX1(:);nan;tXX2(:)],[tYY1(:);nan;tYY2(:)],'Color',[0,0,0],'LineWidth',.5,'Tag','barShadow') end case 'x' if strcmp(obj.oriBarHdl(1).Horizontal,'on') YY1=-1.2.*ones([obj.lineNum,1]).*obj.BarW+obj.XMean(i)+j; YY2=1.2.*ones([obj.lineNum,1]).*obj.BarW+obj.XMean(i)+j; XX1=linspace(obj.minY-obj.BarW.*2.4./obj.XYRate,obj.maxY,obj.lineNum)'; XX2=XX1+obj.BarW.*2.4./obj.XYRate; else XX1=-1.2.*ones([obj.lineNum,1]).*obj.BarW+obj.XMean(i)+j; XX2=1.2.*ones([obj.lineNum,1]).*obj.BarW+obj.XMean(i)+j; YY1=linspace(obj.minY-obj.BarW.*2.4.*obj.XYRate,obj.maxY,obj.lineNum)'; YY2=YY1+obj.BarW.*2.4.*obj.XYRate; end tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[XX1(k),YY1(k);XX2(k),YY2(k)]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end;tXX1=tXX(:);tYY1=tYY(:); if strcmp(obj.oriBarHdl(1).Horizontal,'on') XX1=linspace(obj.minY,obj.maxY+obj.BarW.*2.4./obj.XYRate,obj.lineNum)'; XX2=XX1-obj.BarW.*2.4./obj.XYRate; else YY1=linspace(obj.minY,obj.maxY+obj.BarW.*2.4.*obj.XYRate,obj.lineNum)'; YY2=YY1-obj.BarW.*2.4.*obj.XYRate; end tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); for k=1:obj.lineNum [in,~]=intersect(tPolyPhape,[XX1(k),YY1(k);XX2(k),YY2(k)]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end;tXX2=tXX(:);tYY2=tYY(:); plot([tXX1(:);nan;tXX2(:)],[tYY1(:);nan;tYY2(:)],'Color',[0,0,0],'LineWidth',.5,'Tag','barShadow') case '.' tXX=linspace(tX(1)+obj.BarW./4,tX(2)-obj.BarW./4,3); if strcmp(obj.oriBarHdl(1).BarLayout,'stacked') tXX=linspace(tX(1)+obj.BarW./8,tX(2)-obj.BarW./8,9); end tYY=linspace(obj.minY-.02.*obj.diffY,obj.maxY+.02.*obj.diffY,obj.lineNum)'; tYY(tYY>=max(tY))=[];tYY(tYY<=min(tY))=[]; tXX=repmat(tXX,[length(tYY),1]); tYY=repmat(tYY,[1,size(tXX,2)]); if strcmp(obj.oriBarHdl(1).Horizontal,'on') scatter(tYY(:),tXX(:),2,'filled','o','MarkerEdgeColor','none','MarkerFaceColor',[0,0,0],'Tag','barShadow') else scatter(tXX(:),tYY(:),2,'filled','o','MarkerEdgeColor','none','MarkerFaceColor',[0,0,0],'Tag','barShadow') end end end end end function obj=legend(obj,cellStr,varargin) obj.newBarHdl=bar(obj.ax,obj.YData,obj.otherProp{:},'FaceColor','none','EdgeColor','none'); obj.oriLegend=legend(obj.newBarHdl,cellStr,varargin{:}); obj.oriLegend.AutoUpdate='off'; obj.oriLegend.Box='off'; obj.ax.XLim=obj.ax.XLim; obj.ax.YLim=obj.ax.YLim; tXYMin=(obj.oriLegend.Position(1:2)-obj.ax.Position(1:2))./obj.ax.Position(3:4).*[diff(obj.ax.XLim),diff(obj.ax.YLim)]+[obj.ax.XLim(1),obj.ax.YLim(1)]; tXYMax=(obj.oriLegend.Position(1:2)+obj.oriLegend.Position(3:4)-obj.ax.Position(1:2))./obj.ax.Position(3:4).*[diff(obj.ax.XLim),diff(obj.ax.YLim)]+[obj.ax.XLim(1),obj.ax.YLim(1)]; boxHdl=fill([tXYMin(1),tXYMax(1),tXYMax(1),tXYMin(1)],[tXYMin(2),tXYMin(2),tXYMax(2),tXYMax(2)],[1,1,1],'Tag','lgdBox'); for n=1:length((obj.oriBarHdl)) ttType=mod(n-1,length(obj.shadowType))+1; squareHdl(n)=fill([0,0,0],[0,0,0],[1,1,1],'EdgeColor',[0,0,0],'LineWidth',.7,'Tag','barBox'); if strcmp(obj.shadowType{ttType},'.') lgdLineHdl(n)=scatter(0,0,2,'filled','o','MarkerEdgeColor','none','MarkerFaceColor',[0,0,0],'Tag','barShadow'); else lgdLineHdl(n)=plot(0,0,'Color',[0,0,0],'LineWidth',.5,'Tag','barBox','Tag','barShadow'); end end moveLgd() set(obj.ax.Parent,'WindowButtonMotionFcn',@moveLgd); function moveLgd(~,~) XYMin=(obj.oriLegend.Position(1:2)-obj.ax.Position(1:2))./obj.ax.Position(3:4).*[diff(obj.ax.XLim),diff(obj.ax.YLim)]+[obj.ax.XLim(1),obj.ax.YLim(1)]; XYMax=(obj.oriLegend.Position(1:2)+obj.oriLegend.Position(3:4)-obj.ax.Position(1:2))./obj.ax.Position(3:4).*[diff(obj.ax.XLim),diff(obj.ax.YLim)]+[obj.ax.XLim(1),obj.ax.YLim(1)]; boxHdl.XData=[XYMin(1),XYMax(1),XYMax(1),XYMin(1)]; boxHdl.YData=[XYMin(2),XYMin(2),XYMax(2),XYMax(2)]; Y=XYMin(2)+(XYMax(2)-XYMin(2)).*linspace(1/length(obj.newBarHdl)/2+1/50,1-1/length(obj.newBarHdl)/2-1/50,length(obj.newBarHdl)); obj.XYRate=diff(obj.ax.YLim)./diff(obj.ax.XLim); PBA=obj.ax.PlotBoxAspectRatio(2)./obj.ax.PlotBoxAspectRatio(1)./0.7896; Y=fliplr(Y); for i=1:length((obj.oriBarHdl)) tX=XYMin(1)+(XYMax(2)-XYMin(2))./2./length(obj.newBarHdl).*[1/10,1.18,1.18,1/10].*(PBA./obj.XYRate.*3); tY=Y(i)+0.75.*[-1,-1,1,1].*(XYMax(2)-XYMin(2))./2./length(obj.newBarHdl); squareHdl(i).XData=tX; squareHdl(i).YData=tY; tPolyPhape=polyshape(tX,tY); tType=mod(i-1,length(obj.shadowType))+1; switch obj.shadowType{tType} case '\' if strcmp(obj.oriBarHdl(1).Horizontal,'on') XX1=((-25:1:25).*obj.YSep2-obj.YSep1+tX(1))'; XX2=((-25:1:25).*obj.YSep2+obj.YSep1+tX(2))'; YY1=ones([51,1]).*(tY(2)-0.2.*(tY(3)-tY(2))./obj.XYRate./obj.XYRate); YY2=ones([51,1]).*(tY(3)+0.2.*(tY(3)-tY(2))./obj.XYRate./obj.XYRate); else XX1=ones([51,1]).*(tX(1)-.2.*(tX(2)-tX(1))); XX2=ones([51,1]).*(tX(2)+.2.*(tX(2)-tX(1))); YY1=((-25:1:25).*obj.YSep2+obj.YSep1+Y(i))'; YY2=((-25:1:25).*obj.YSep2-obj.YSep1+Y(i))'; end tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); for k=1:51 [in,~]=intersect(tPolyPhape,[XX1(k),YY1(k);XX2(k),YY2(k)]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end lgdLineHdl(i).XData=tXX(:)'; lgdLineHdl(i).YData=tYY(:)'; case '/' if strcmp(obj.oriBarHdl(1).Horizontal,'on') XX1=((-25:1:25).*obj.YSep2+obj.YSep1+tX(2))'; XX2=((-25:1:25).*obj.YSep2-obj.YSep1+tX(1))'; YY1=ones([51,1]).*(tY(2)-0.2.*(tY(3)-tY(2))./obj.XYRate./obj.XYRate); YY2=ones([51,1]).*(tY(3)+0.2.*(tY(3)-tY(2))./obj.XYRate./obj.XYRate); else XX1=ones([51,1]).*(tX(1)-.2.*(tX(2)-tX(1))); XX2=ones([51,1]).*(tX(2)+.2.*(tX(2)-tX(1))); YY1=((-25:1:25).*obj.YSep2-obj.YSep1+Y(i))'; YY2=((-25:1:25).*obj.YSep2+obj.YSep1+Y(i))'; end tXX=zeros([3,obj.lineNum]);tYY=zeros([3,obj.lineNum]); for k=1:51 [in,~]=intersect(tPolyPhape,[XX1(k),YY1(k);XX2(k),YY2(k)]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end lgdLineHdl(i).XData=tXX(:); lgdLineHdl(i).YData=tYY(:); case '_' tXX=[tX(1),tX(2),nan]; tYY=linspace(tY(2),tY(3),5)';tYY=tYY(2:4); tXX=repmat(tXX,[length(tYY),1])'; tYY=repmat(tYY,[1,size(tXX,1)])'; lgdLineHdl(i).XData=tXX(:); lgdLineHdl(i).YData=tYY(:); case '|' tXX=linspace(tX(1),tX(2),11);tXX=tXX(2:end-1); tYY=[tY(2),tY(3),nan]'; tXX=repmat(tXX,[length(tYY),1]); tYY=repmat(tYY,[1,size(tXX,2)]); lgdLineHdl(i).XData=tXX(:); lgdLineHdl(i).YData=tYY(:); case '+' tXX=[tX(1),tX(2),nan]; tYY=linspace(tY(2),tY(3),5)';tYY=tYY(2:4); tXX1=repmat(tXX,[length(tYY),1])'; tYY1=repmat(tYY,[1,size(tXX1,1)])'; tXX=linspace(tX(1),tX(2),11);tXX=tXX(2:end-1); tYY=[tY(2),tY(3),nan]'; tXX2=repmat(tXX,[length(tYY),1]); tYY2=repmat(tYY,[1,size(tXX2,2)]); lgdLineHdl(i).XData=[tXX1(:);nan;tXX2(:)]; lgdLineHdl(i).YData=[tYY1(:);nan;tYY2(:)]; case 'x' if strcmp(obj.oriBarHdl(1).Horizontal,'on') XX1=((-25:1:25).*obj.YSep2-obj.YSep1+tX(1))'; XX2=XX1+((tY(3)+0.2.*(tY(3)-tY(2))./obj.XYRate)-(tY(2)-0.2.*(tY(3)-tY(2))./obj.XYRate))./obj.XYRate; YY1=ones([51,1]).*(tY(2)-0.2.*(tY(3)-tY(2))./obj.XYRate); YY2=ones([51,1]).*(tY(3)+0.2.*(tY(3)-tY(2))./obj.XYRate); else XX1=ones([51,1]).*(tX(1)-.2.*(tX(2)-tX(1))); XX2=ones([51,1]).*(tX(2)+.2.*(tX(2)-tX(1))); YY1=((-25:1:25).*obj.YSep2-obj.YSep1+Y(i))'; YY2=YY1+(tX(2)-tX(1)+.4.*(tX(2)-tX(1))).*obj.XYRate; end tXX=zeros([3,51]);tYY=zeros([3,51]); for k=1:51 [in,~]=intersect(tPolyPhape,[XX1(k),YY1(k);XX2(k),YY2(k)]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end;tXX1=tXX(:);tYY1=tYY(:); if strcmp(obj.oriBarHdl(1).Horizontal,'on') XX1=((-25:1:25).*obj.YSep2+obj.YSep1+tX(2))'; XX2=XX1-((tY(3)+0.2.*(tY(3)-tY(2))./obj.XYRate)-(tY(2)-0.2.*(tY(3)-tY(2))./obj.XYRate))./obj.XYRate; else YY2=((-25:1:25).*obj.YSep2-obj.YSep1+Y(i))'; YY1=YY2+(tX(2)-tX(1)+.4.*(tX(2)-tX(1))).*obj.XYRate; end tXX=zeros([3,51]);tYY=zeros([3,51]); for k=1:51 [in,~]=intersect(tPolyPhape,[XX1(k),YY1(k);XX2(k),YY2(k)]); if ~isempty(in) tXX(:,k)=[in(1,1);in(end,1);nan]; tYY(:,k)=[in(1,2);in(end,2);nan]; else tXX(:,k)=[nan;nan;nan]; tYY(:,k)=[nan;nan;nan]; end end;tXX2=tXX(:);tYY2=tYY(:); lgdLineHdl(i).XData=[tXX1(:);nan;tXX2(:)]; lgdLineHdl(i).YData=[tYY1(:);nan;tYY2(:)]; case '.' tXX=linspace(tX(1),tX(2),9); tYY=linspace(tY(2)+(tY(3)-tY(2))/6,tY(3)-(tY(3)-tY(2))/6,3)'; tXX(1)=[];tXX(end)=[]; tXX=repmat(tXX,[length(tYY),1]); tYY=repmat(tYY,[1,size(tXX,2)]); lgdLineHdl(i).XData=tXX(:); lgdLineHdl(i).YData=tYY(:); case 'w' squareHdl(i).FaceColor=[1,1,1]; case 'k' squareHdl(i).FaceColor=[0,0,0]; case 'g' squareHdl(i).FaceColor=[.5,.5,.5]; end end end end end % @author : slandarer % gzh : slandarer随笔 end- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 139
- 140
- 141
- 142
- 143
- 144
- 145
- 146
- 147
- 148
- 149
- 150
- 151
- 152
- 153
- 154
- 155
- 156
- 157
- 158
- 159
- 160
- 161
- 162
- 163
- 164
- 165
- 166
- 167
- 168
- 169
- 170
- 171
- 172
- 173
- 174
- 175
- 176
- 177
- 178
- 179
- 180
- 181
- 182
- 183
- 184
- 185
- 186
- 187
- 188
- 189
- 190
- 191
- 192
- 193
- 194
- 195
- 196
- 197
- 198
- 199
- 200
- 201
- 202
- 203
- 204
- 205
- 206
- 207
- 208
- 209
- 210
- 211
- 212
- 213
- 214
- 215
- 216
- 217
- 218
- 219
- 220
- 221
- 222
- 223
- 224
- 225
- 226
- 227
- 228
- 229
- 230
- 231
- 232
- 233
- 234
- 235
- 236
- 237
- 238
- 239
- 240
- 241
- 242
- 243
- 244
- 245
- 246
- 247
- 248
- 249
- 250
- 251
- 252
- 253
- 254
- 255
- 256
- 257
- 258
- 259
- 260
- 261
- 262
- 263
- 264
- 265
- 266
- 267
- 268
- 269
- 270
- 271
- 272
- 273
- 274
- 275
- 276
- 277
- 278
- 279
- 280
- 281
- 282
- 283
- 284
- 285
- 286
- 287
- 288
- 289
- 290
- 291
- 292
- 293
- 294
- 295
- 296
- 297
- 298
- 299
- 300
- 301
- 302
- 303
- 304
- 305
- 306
- 307
- 308
- 309
- 310
- 311
- 312
- 313
- 314
- 315
- 316
- 317
- 318
- 319
- 320
- 321
- 322
- 323
- 324
- 325
- 326
- 327
- 328
- 329
- 330
- 331
- 332
- 333
- 334
- 335
- 336
- 337
- 338
- 339
- 340
- 341
- 342
- 343
- 344
- 345
- 346
- 347
- 348
- 349
- 350
- 351
- 352
- 353
- 354
- 355
- 356
- 357
- 358
- 359
- 360
- 361
- 362
- 363
- 364
- 365
- 366
- 367
- 368
- 369
- 370
- 371
- 372
- 373
- 374
- 375
- 376
- 377
- 378
- 379
- 380
- 381
- 382
- 383
- 384
- 385
- 386
- 387
- 388
- 389
- 390
- 391
- 392
- 393
- 394
- 395
- 396
- 397
- 398
- 399
- 400
- 401
- 402
- 403
- 404
- 405
- 406
- 407
- 408
- 409
- 410
- 411
- 412
- 413
- 414
- 415
- 416
- 417
- 418
- 419
- 420
- 421
- 422
- 423
- 424
- 425
- 426
- 427
- 428
- 429
- 430
- 431
- 432
- 433
- 434
- 435
- 436
- 437
- 438
- 439
- 440
- 441
- 442
- 443
- 444
- 445
- 446
- 447
- 448
- 449
- 450
- 451
- 452
- 453
- 454
- 455
- 456
- 457
- 458
- 459
- 460
- 461
- 462
- 463
- 464
- 465
- 466
- 467
- 468
- 469
- 470
未经允许本代码请勿作商业用途，引用的话可以引用我file exchange上的链接，可使用如下格式：
Zhaoxu Liu (2022). Histogram with shadow 阴影柱状图 (https://www.mathworks.com/matlabcentral/fileexchange/117005-histogram-with-shadow), MATLAB Central File Exchange. 检索来源 2022/9/1.
若转载请保留以上file exchange链接及本文链接！！！
完
以上全部文件获取，
链接：https://pan.baidu.com/s/1VGTCgcdlwdwm6P7mS1GrKg?pwd=slan提取码：slan
-
相关阅读:
12 正太总体参数的假设检验
对比学习损失篇，从L-softmax到AM-softmax到circle-loss到PCCL
.net8 blazor auto模式很爽（五）读取sqlite并显示（2）
scanf导致程序运行时出现stack smashing
CentOS 软件包 rpm 管理学习笔记
LeetCode 热题 HOT 100 第八十天 494. 目标和 中等题 用python3求解
C++ 多态
线性代数笔记：三阶矩阵的特征值计算
【云原生之Docker实战】使用docker部署PicUploader图床工具
《Aerosol and Air Quality Research》期刊介绍（SCI 3区）
- 原文地址：https://blog.csdn.net/slandarer/article/details/126654191
