warm up lr scheduler

1. 使用原理

预热学习率调整策略就是在模型训练初期，将学习率调低，随着训练 epoch 的增加，lr 逐渐增大，等 lr 上升到预先设定的学习率时，再接着使用其他学习率调整策略 (如，StepLR、MultiStepLR、CosineAnnealingLR 等) 对学习率进行调整。

2. 使用优势

模型刚开始训练时，由于它的权重是随机初始化的，如果选择一个较大的学习率，可能会使损失严重震荡，但如果选择预热学习率的调整策略，就可以使得刚模型在开始训练的几个 epoch 内学习率较小，等模型相对稳定后再选择预先设定的学习率进行训练，使得模型收敛速度变得更快，效果也更好。

3. 代码实例

代码链接：https://github.com/ildoonet/pytorch-gradual-warmup-lr

参数

optimizer：损失函数优化器，如：SGD、Adam等

multiplier：tar_lr = base_lr * multiplier，base_lr 是在实例化优化器时定义的，如：

optimizer = torch.optim.SGD(model.parameters(), lr=0.1)，0.1 就是 base_lr

total_epoch：到达 tar_lr 需要的 epoch 数

after_scheduler：到达 tar_lr 之后的学习率调整策略，即预热结束后的学习率调整策略

预热学习率调整策略定义如下：

from torch.optim.lr_scheduler import _LRScheduler
from torch.optim.lr_scheduler import ReduceLROnPlateau


class GradualWarmupScheduler(_LRScheduler):
    """ Gradually warm-up(increasing) learning rate in optimizer.
    Proposed in 'Accurate, Large Minibatch SGD: Training ImageNet in 1 Hour'.
    Args:
        optimizer (Optimizer): Wrapped optimizer.
        multiplier: target learning rate = base lr * multiplier if multiplier > 1.0. if multiplier = 1.0, lr starts from 0 and ends up with the base_lr.
        total_epoch: target learning rate is reached at total_epoch, gradually
        after_scheduler: after target_epoch, use this scheduler(eg. ReduceLROnPlateau)
    """

    def __init__(self, optimizer, multiplier, total_epoch, after_scheduler=None):
        self.multiplier = multiplier
        if self.multiplier < 1.:
            raise ValueError('multiplier should be greater thant or equal to 1.')
        self.total_epoch = total_epoch
        self.after_scheduler = after_scheduler
        self.finished = False
        super(GradualWarmupScheduler, self).__init__(optimizer)

    def get_lr(self):
        if self.last_epoch > self.total_epoch:
            if self.after_scheduler:
                if not self.finished:
                    self.after_scheduler.base_lrs = [base_lr * self.multiplier for base_lr in self.base_lrs]
                    self.finished = True
                return self.after_scheduler.get_last_lr()
            return [base_lr * self.multiplier for base_lr in self.base_lrs]

        if self.multiplier == 1.0:
            return [base_lr * (float(self.last_epoch) / self.total_epoch) for base_lr in self.base_lrs]
        else:
            return [base_lr * ((self.multiplier - 1.) * self.last_epoch / self.total_epoch + 1.) for base_lr in self.base_lrs]

    def step_ReduceLROnPlateau(self, metrics, epoch=None):
        if epoch is None:
            epoch = self.last_epoch + 1
        self.last_epoch = epoch if epoch != 0 else 1  # ReduceLROnPlateau is called at the end of epoch, whereas others are called at beginning
        if self.last_epoch <= self.total_epoch:
            warmup_lr = [base_lr * ((self.multiplier - 1.) * self.last_epoch / self.total_epoch + 1.) for base_lr in self.base_lrs]
            for param_group, lr in zip(self.optimizer.param_groups, warmup_lr):
                param_group['lr'] = lr
        else:
            if epoch is None:
                self.after_scheduler.step(metrics, None)
            else:
                self.after_scheduler.step(metrics, epoch - self.total_epoch)

    def step(self, epoch=None, metrics=None):
        if type(self.after_scheduler) != ReduceLROnPlateau:
            if self.finished and self.after_scheduler:
                if epoch is None:
                    self.after_scheduler.step(None)
                else:
                    self.after_scheduler.step(epoch - self.total_epoch)
                self._last_lr = self.after_scheduler.get_last_lr()
            else:
                return super(GradualWarmupScheduler, self).step(epoch)
        else:
            self.step_ReduceLROnPlateau(metrics, epoch)

预热学习率调整策略的使用示例如下：

import torch
from torch.optim.lr_scheduler import *
import torch.nn as nn
from torchvision.models import resnet50
import matplotlib.pyplot as plt
from lr_scheduler.scheduler import GradualWarmupScheduler


model = resnet50(False)
optimizer = torch.optim.SGD(model.parameters(), lr=0.2)

scheduler1 = LambdaLR(optimizer=optimizer, lr_lambda=lambda epoch: 0.95 ** epoch)
scheduler2 = StepLR(optimizer, step_size=10, gamma=0.1)
scheduler3 = MultiStepLR(optimizer, milestones=[5,10,15,20,25], gamma=0.1)
scheduler4 = ExponentialLR(optimizer, gamma=0.8)
scheduler5 = CosineAnnealingLR(optimizer,T_max=5,eta_min=0.05)
scheduler6 = CyclicLR(optimizer, base_lr=0.01, max_lr=0.2, step_size_up=10, step_size_down=5)
scheduler7 = CosineAnnealingWarmRestarts(optimizer, T_0=5, T_mult=2, eta_min=0.01)
scheduler8 = GradualWarmupScheduler(optimizer, 1, 5, scheduler2)

plt.figure()
max_epoch = 30
cur_lr_list = []
for epoch in range(max_epoch):
    optimizer.step()
    scheduler8.step()
    cur_lr = optimizer.param_groups[-1]['lr']
    cur_lr_list.append(cur_lr)
    print('Current lr:', cur_lr)
x_list = list(range(len(cur_lr_list)))
plt.plot(x_list, cur_lr_list)
plt.show()

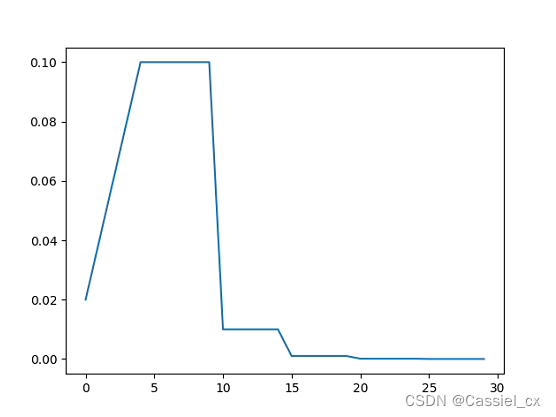

plt.savefig('D:/lr_scheduler_learning/gradualwarmupscheduler.png')

w/o warm up

w/ warm up
