Service详解
Service详解
一. Service介绍
- 在kubernetes中，pod是应用程序的载体，可以通过pod的ip来访问应用程序，但是pod的ip地址不是固定的，意味着不方便直接采用pod的ip对服务进行访问
- 为了解决这个问题，kubernetes提供了Service资源，Service会对提供同一个服务的多个pod进行聚合，并且提供一个统一的入口地址。
- 通过访问Service的入口地址就能访问到后面的pod服务。
- 通过deploy创建有标签的pod，又通过标签选择器来控制pod，service通过标签选择器来选择有相同类型标签的pod
- Service在很多情况下只是一个概念，真正起作用的其实是kube-proxy服务进程，每个Node节点上都运行着一个kube-proxy服务进程
- 当创建Service的时候会通过api-server向etcd写入创建的service的信息，而kube-proxy会基于监听的机制发现这种Service的变动，然后它会将最新的Service信息转换成对应的访问规则。
- 首先要创建service，向apiserver发起请求，apiserver向etcd写入信息，kube-proxy发现apiserver向etcd写入信息，kube-proxy向node节点写规则
## 10.97.97.97:80 是service提供的访问入口 ## 当访问这个入口的时候，可以发现后面有三个pod的服务在等待调用， ## kube-#proxy会基于rr（轮询）的策略，将请求分发到其中一个pod上去 ## 这个规则会同时在集群内的所有节点上都生成，所以在任何一个节点上访问都可以。 [root@node1 ~]# ipvsadm -Ln IP Virtual Server version 1.2.1 (size=4096) Prot LocalAddress:Port Scheduler Flags -> RemoteAddress:Port Forward Weight ActiveConn InActConn TCP 10.97.97.97:80 rr -> 10.244.1.39:80 Masq 1 0 0 -> 10.244.1.40:80 Masq 1 0 0 -> 10.244.2.33:80 Masq 1 0 0- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
1. kube-proxy目前支持三种工作模式
1.1 userspace 模式
- 用户空间模式下，kube-proxy会为每一个Service创建一个监听端口，发向Cluster IP的请求被Iptables规则重定向到kube-proxy监听的端口上，kube-proxy根据LB算法选择一个提供服务的Pod并和其建立链接，以将请求转发到Pod上。
- 该模式下，kube-proxy充当了一个四层负责均衡器的角色。
- 由于kube-proxy运行在userspace中，在进行转发处理时会增加内核和用户空间之间的数据拷贝，虽然比较稳定，但是效率比较低。
- apiserver告诉kube-proxy要创建service，kube-proxy通过集群IP加规则，去访问，转发到pod上去
1.2 iptables 模式
-
iptables模式下，kube-proxy为service后端的每个Pod创建对应的iptables规则，直接将发向Cluster IP的请求重定向到一个Pod IP。
-
该模式下kube-proxy不承担四层负责均衡器的角色，只负责创建iptables规则。
-
该模式的优点是较userspace模式效率更高，但不能提供灵活的LB策略，当后端Pod不可用时也无法进行重试。

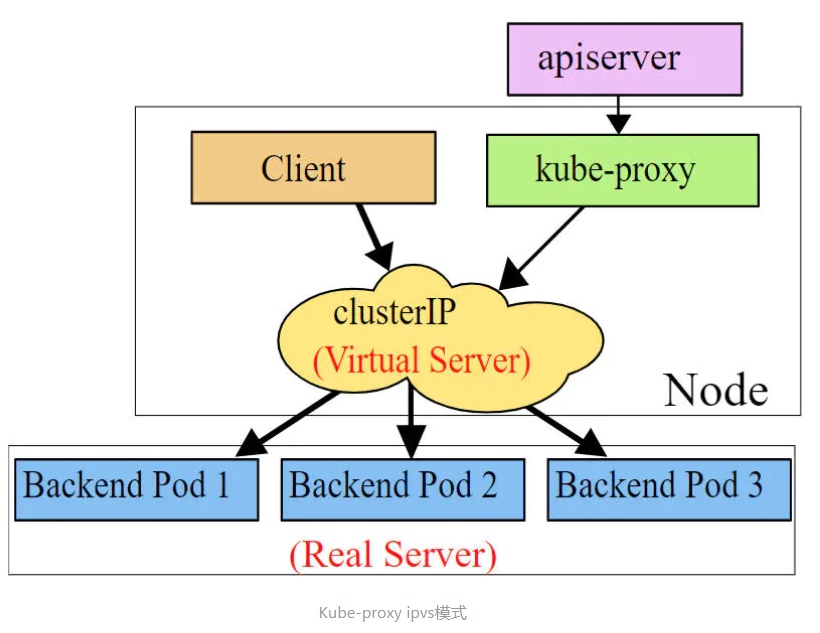

1.3 ipvs 模式
- ipvs模式和iptables类似，kube-proxy监控Pod的变化并创建相应的ipvs规则。
- ipvs相对iptables转发效率更高，ipvs支持更多的LB算法。
# 此模式必须安装ipvs内核模块，否则会降级为iptables [root@k8s-master ~]# kubectl api-resources|grep cm configmaps cm v1 true ConfigMap cm 配置管理器/配置映射 # 开启ipvs，# 修改mode: "ipvs" [root@k8s-master ~]# kubectl edit configmaps kube-proxy -n kube-system configmap/kube-proxy edited [root@k8s-master ~]# mode: "ipvs" 查看标签：k8s-app=kube-proxy [root@k8s-master ~]# kubectl get pods -n kube-system --show-labels|grep k8s-app=kube-proxy kube-proxy-65lcn 1/1 Running 12 (64m ago) 9d controller-revision-hash=dd4c999cf,k8s-app=kube-proxy,pod-template-generation=1 kube-proxy-lw4z2 1/1 Running 12 (63m ago) 8d controller-revision-hash=dd4c999cf,k8s-app=kube-proxy,pod-template-generation=1 kube-proxy-zskvf 1/1 Running 13 (63m ago) 8d controller-revision-hash=dd4c999cf,k8s-app=kube-proxy,pod-template-generation=1 [root@k8s-master ~]# [root@k8s-master ~]# kubectl delete pod -l k8s-app=kube-proxy -n kube-system pod "kube-proxy-65lcn" deleted pod "kube-proxy-lw4z2" deleted pod "kube-proxy-zskvf" deleted [root@k8s-node1 ~]# ipvsadm -Ln IP Virtual Server version 1.2.1 (size=4096) Prot LocalAddress:Port Scheduler Flags -> RemoteAddress:Port Forward Weight ActiveConn InActConn TCP 172.17.0.1:30514 rr TCP 172.17.0.1:31876 rr TCP 192.168.232.132:30514 rr TCP 192.168.232.132:31876 rr TCP 10.96.0.1:443 rr -> 192.168.232.128:6443 Masq 1 0 0 TCP 10.96.0.10:53 rr -> 10.244.0.26:53 Masq 1 0 0 -> 10.244.0.27:53 Masq 1 0 0 TCP 10.96.0.10:9153 rr -> 10.244.0.26:9153 Masq 1 0 0 -> 10.244.0.27:9153 Masq 1 0 0 TCP 10.99.32.163:80 rr TCP 10.111.65.78:80 rr TCP 10.244.1.0:30514 rr TCP 10.244.1.0:31876 rr UDP 10.96.0.10:53 rr -> 10.244.0.26:53 Masq 1 0 0 -> 10.244.0.27:53 Masq 1 0 0 [root@k8s-node1 ~]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
二. Service类型
1. Service的资源清单文件
kind: Service # 资源类型 apiVersion: v1 # 资源版本 metadata: # 元数据 name: service # 资源名称 namespace: dev # 命名空间 spec: # 描述 selector: # 标签选择器，用于确定当前service代理哪些pod app: nginx type: # Service类型，指定service的访问方式 clusterIP: # 虚拟服务的ip地址 sessionAffinity: # session亲和性，支持ClientIP、None两个选项 ports: # 端口信息 - protocol: TCP port: 3017 # service端口 targetPort: 5003 # pod端口 nodePort: 31122 # 主机端口- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- ClusterIP：默认值，它是Kubernetes系统自动分配的虚拟IP，只能在集群内部访问
- NodePort：将Service通过指定的Node上的端口暴露给外部，通过此方法，就可以在集群外部访问服务
- LoadBalancer：使用外接负载均衡器完成到服务的负载分发，注意此模式需要外部云环境支持
- 自己在外搭建lb
- [外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-qVNBBlrn-1663253772842)(C:/Users/Administrator/AppData/Roaming/Typora/typora-user-images/image-20220915174454779.png)]
- ExternalName： 把集群外部的服务引入集群内部，直接使用
三. Service使用
1. 实验环境准备
-
在使用service之前，首先利用Deployment创建出3个pod，注意要为pod设置
app=nginx-pod的标签 -
创建文件
[root@k8s-master manifest]# cat deployment.yaml apiVersion: apps/v1 kind: Deployment metadata: name: pc-deployment namespace: dev spec: replicas: 3 selector: matchLabels: app: nginx-pod template: metadata: labels: app: nginx-pod spec: containers: - name: nginx image: nginx:1.17.1 ports: - containerPort: 80 [root@k8s-master manifest]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 运行
[root@k8s-master manifest]# kubectl apply -f deployment.yaml deployment.apps/pc-deployment created [root@k8s-master manifest]# # 查看pod详情 [root@k8s-master manifest]# kubectl get -f deployment.yaml NAME READY UP-TO-DATE AVAILABLE AGE pc-deployment 3/3 3 3 17s [root@k8s-master manifest]# kubectl get -f deployment.yaml -o wide NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR pc-deployment 3/3 3 3 36s nginx nginx:1.17.1 app=nginx-pod [root@k8s-master manifest]# [root@k8s-master manifest]# kubectl get pods -n dev -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES pc-deployment-66d5c85c96-6qj82 1/1 Running 0 61s 10.244.2.114 k8s-node2 <none> <none> pc-deployment-66d5c85c96-dc7gr 1/1 Running 0 61s 10.244.1.100 k8s-node1 <none> <none> pc-deployment-66d5c85c96-v8829 1/1 Running 0 61s 10.244.2.113 k8s-node2 <none> <none> [root@k8s-master manifest]# # 为了方便后面的测试，修改下三台nginx的 [root@k8s-master ~]# kubectl exec -itn dev pc-deployment-66d5c85c96-6qj82 -- /bin/sh # echo "page 111" > /usr/share/nginx/html/index.html # exit [root@k8s-master ~]# kubectl exec -itn dev pc-deployment-66d5c85c96-dc7gr -- /bin/sh # echo "page 222" > /usr/share/nginx/html/index.html # exit [root@k8s-master ~]# kubectl exec -itn dev pc-deployment-66d5c85c96-v8829 -- /bin/sh # echo "page 333" > /usr/share/nginx/html/index.html # exit [root@k8s-master ~]# #修改完毕之后，访问测试 [root@k8s-master ~]# curl 10.244.2.114 page 111 [root@k8s-master ~]# curl 10.244.1.100 page 222 [root@k8s-master ~]# curl 10.244.2.113 page 333 [root@k8s-master ~]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
2. ClusterIP类型的Service
- 创建service文件
[root@k8s-master manifest]# cat service-clusterip.yaml apiVersion: v1 kind: Service metadata: name: service-clusterip namespace: dev spec: selector: app: nginx-pod type: ClusterIP ports: - port: 80 # Service端口 targetPort: 80 # pod端口 [root@k8s-master manifest]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 运行service
# 创建service [root@k8s-master manifest]# kubectl apply -f service-clusterip.yaml service/service-clusterip created [root@k8s-master manifest]# # 查看service [root@k8s-master manifest]# kubectl get -f service-clusterip.yaml NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service-clusterip ClusterIP 10.98.207.217 <none> 80/TCP 20s [root@k8s-master manifest]# kubectl get svc -n dev -o wide NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR service-clusterip ClusterIP 10.98.207.217 <none> 80/TCP 40s app=nginx-pod [root@k8s-master manifest]# # 查看service的详细信息 # 在这里有一个Endpoints列表，里面就是当前service可以负载到的服务入口 [root@k8s-master manifest]# kubectl describe svc service-clusterip -n dev Name: service-clusterip Namespace: dev Labels: <none> Annotations: <none> Selector: app=nginx-pod Type: ClusterIP IP Family Policy: SingleStack IP Families: IPv4 IP: 10.98.207.217 IPs: 10.98.207.217 Port: <unset> 80/TCP TargetPort: 80/TCP Endpoints: 10.244.1.100:80,10.244.2.113:80,10.244.2.114:80//这几个ip后端的rs或者pod所拥有的ip，这些ip会发生变化，重建pod Session Affinity: None Events: <none> [root@k8s-master manifest]# # 查看ipvs的映射规则 [root@k8s-master ~]# ipvsadm -Ln IP Virtual Server version 1.2.1 (size=4096) Prot LocalAddress:Port Scheduler Flags -> RemoteAddress:Port Forward Weight ActiveConn InActConn TCP 10.98.207.217:80 rr -> 10.244.1.100:80 Masq 1 0 0 -> 10.244.2.113:80 Masq 1 0 0 -> 10.244.2.114:80 Masq 1 0 0 # 访问 10.98.207.217:80 观察效果 [root@k8s-master manifest]# kubectl get svc -n dev -o wide NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR service-clusterip ClusterIP 10.98.207.217 <none> 80/TCP 95s app=nginx-pod [root@k8s-master manifest]# curl 10.98.207.217 page 111 [root@k8s-master manifest]# curl 10.98.207.217 page 333 [root@k8s-master manifest]# curl 10.98.207.217 page 222 [root@k8s-master manifest]# curl 10.98.207.217 page 111 [root@k8s-master manifest]# curl 10.98.207.217 page 333 [root@k8s-master manifest]# curl 10.98.207.217 page 222 [root@k8s-master manifest]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
3. Endpoint
-
Endpoint是kubernetes中的一个资源对象，存储在etcd中，用来记录一个service对应的所有pod的访问地址，它是根据service配置文件中selector描述产生的。
-
一个Service由一组Pod组成，这些Pod通过Endpoints暴露出来，Endpoints是实现实际服务的端点集合。
-
service和pod之间的联系是通过endpoints实现的
-
Endpoint就像rs,会随着pod的变化而变化，service会读取endpoint的信息
[root@k8s-master ~]# kubectl get endpoints -n dev -o wide NAME ENDPOINTS AGE service-clusterip 10.244.1.100:80,10.244.2.113:80,10.244.2.114:80 17m [root@k8s-master ~]#- 1
- 2
- 3
- 4
4. 负载分发策略
-
对Service的访问被分发到了后端的Pod上去，目前kubernetes提供了两种负载分发策略：
- 如果不定义，默认使用kube-proxy的策略，比如随机、轮询
- 基于客户端地址的会话保持模式，即来自同一个客户端发起的所有请求都会转发到固定的一个Pod上
-
此模式可以使在spec中添加
sessionAffinity:ClientIP选项 -
sessionAffinity 会话亲和，会话保持
# 查看ipvs的映射规则【rr 轮询】 grep -A 3 过滤下面3行 [root@k8s-master manifest]# ipvsadm -Ln|grep -A 3 '10.98.207.217' TCP 10.98.207.217:80 rr -> 10.244.1.100:80 Masq 1 0 0 -> 10.244.2.113:80 Masq 1 0 0 -> 10.244.2.114:80 Masq 1 0 0 [root@k8s-master manifest]# # 循环访问测试 [root@k8s-master ~]# while true;do curl 10.98.207.217:80; sleep 2; done; page 111 page 333 page 222 page 111 page 333 page 222 page 111 ^C [root@k8s-master ~]# # 修改分发策略----sessionAffinity:ClientIP [root@k8s-master manifest]# cat service-clusterip.yaml apiVersion: v1 kind: Service metadata: name: service-clusterip namespace: dev spec: sessionAffinity: ClientIP selector: app: nginx-pod type: ClusterIP ports: - port: 80 # Service端口 targetPort: 80 # pod端口 [root@k8s-master manifest]# [root@k8s-master manifest]# kubectl delete -f service-clusterip.yaml service "service-clusterip" deleted [root@k8s-master manifest]# kubectl apply -f service-clusterip.yaml service/service-clusterip created [root@k8s-master manifest]# # 查看ipvs规则【persistent 代表持久】 [root@k8s-master manifest]# kubectl get svc -n dev NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service-clusterip ClusterIP 10.111.98.171 <none> 80/TCP 55s [root@k8s-master manifest]# ipvsadm -Ln|grep -A 3 '10.111.98.171' TCP 10.111.98.171:80 rr persistent 10800 -> 10.244.1.100:80 Masq 1 0 0 -> 10.244.2.113:80 Masq 1 0 0 -> 10.244.2.114:80 Masq 1 0 0 [root@k8s-master manifest]# # 循环访问测试 [root@k8s-master ~]# while true;do curl 10.111.98.171; sleep 2; done;page 111 page 111 page 111 page 111 ^C [root@k8s-master ~]# [root@k8s-master manifest]# ipvsadm -Ln|grep -A 3 '10.111.98.171' TCP 10.111.98.171:80 rr persistent 10800 -> 10.244.1.100:80 Masq 1 0 0 -> 10.244.2.113:80 Masq 1 0 0 -> 10.244.2.114:80 Masq 1 0 11 [root@k8s-master manifest]# # 删除service [root@k8s-master manifest]# kubectl delete -f service-clusterip.yaml service "service-clusterip" deleted- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
5. HeadLiness类型的Service
- 在某些场景中，开发人员可能不想使用Service提供的负载均衡功能，而希望自己来控制负载均衡策略
- 针对这种情况，kubernetes提供了HeadLiness Service，这类Service不会分配Cluster IP，如果想要访问service，只能通过service的域名进行查询。
5.1 创建service-headliness.yaml
[root@k8s-master manifest]# cat service-headliness.yaml apiVersion: v1 kind: Service metadata: name: service-headliness namespace: dev spec: selector: app: nginx-pod clusterIP: None # 将clusterIP设置为None，即可创建headliness Service,自动分配 type: ClusterIP ports: - port: 80 targetPort: 80 [root@k8s-master manifest]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 运行
# 创建service [root@k8s-master manifest]# kubectl apply -f service-headliness.yaml service/service-headliness created [root@k8s-master manifest]# # 获取service， 发现CLUSTER-IP未分配 [root@k8s-master manifest]# kubectl get svc service-headliness -n dev -o wide NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR service-headliness ClusterIP None <none> 80/TCP 28s app=nginx-pod [root@k8s-master manifest]# kubectl get -f service-headliness.yamlNAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service-headliness ClusterIP None <none> 80/TCP 35s [root@k8s-master manifest]# # 查看service详情 [root@k8s-master manifest]# kubectl describe svc service-headliness -n dev Name: service-headliness Namespace: dev Labels: <none> Annotations: <none> Selector: app=nginx-pod Type: ClusterIP IP Family Policy: SingleStack IP Families: IPv4 IP: None IPs: None Port: <unset> 80/TCP TargetPort: 80/TCP Endpoints: 10.244.1.100:80,10.244.2.113:80,10.244.2.114:80 Session Affinity: None Events: <none> [root@k8s-master manifest]# # 查看域名的解析情况 [root@k8s-master ~]# kubectl get pods -n dev NAME READY STATUS RESTARTS AGE pc-deployment-66d5c85c96-6qj82 1/1 Running 0 59m pc-deployment-66d5c85c96-dc7gr 1/1 Running 0 59m pc-deployment-66d5c85c96-v8829 1/1 Running 0 59m [root@k8s-master ~]# kubectl exec -itn dev pc-deployment-66d5c85c96-6qj82 -- /bin/sh # cat /etc/resolv.conf search dev.svc.cluster.local svc.cluster.local cluster.local nameserver 10.96.0.10 options ndots:5 # 没有dig命令- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 没有dig命令，新增一个pod
[root@k8s-master manifest]# cat deployment.yaml apiVersion: apps/v1 kind: Deployment metadata: name: pc-deployment namespace: dev spec: replicas: 3 selector: matchLabels: app: nginx-pod template: metadata: labels: app: nginx-pod spec: containers: - name: b1 image: busybox:latest command: ["/bin/sleep","6000"] - name: nginx image: nginx:1.17.1 ports: - containerPort: 80 [root@k8s-master manifest]# [root@k8s-master manifest]# kubectl apply -f deployment.yaml deployment.apps/pc-deployment created [root@k8s-master manifest]# kubectl get pods -n dev NAME READY STATUS RESTARTS AGE pc-deployment-854fc846fb-2h9h9 2/2 Running 0 18s pc-deployment-854fc846fb-4skbc 2/2 Running 0 18s pc-deployment-854fc846fb-6r8rl 2/2 Running 0 18s [root@k8s-master manifest]# kubectl get -f deployment.yaml NAME READY UP-TO-DATE AVAILABLE AGE pc-deployment 3/3 3 3 21s [root@k8s-master manifest]# [root@k8s-master manifest]# cat service-headliness.yaml apiVersion: v1 kind: Service metadata: name: service-headliness namespace: dev spec: selector: app: nginx-pod clusterIP: None # 将clusterIP设置为None，即可创建headliness Service type: ClusterIP ports: - port: 80 targetPort: 80 [root@k8s-master manifest]# kubectl apply -f service-headliness.yaml service/service-headliness created [root@k8s-master manifest]# [root@k8s-master manifest]# kubectl exec -itn dev pc-deployment-854fc846fb-2h9h9 -c b1 -- /bin/sh / # cat /etc/resolv.confsearch dev.svc.cluster.local svc.cluster.local cluster.local nameserver 10.96.0.10 options ndots:5 / # nslookup service-headliness.dev.svc.cluster.local Server: 10.96.0.10 Address: 10.96.0.10:53 *** Can't find service-headliness.dev.svc.cluster.local: No answer / #- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
6. NodePort类型的Service
- 在之前的样例中，创建的Service的ip地址只有集群内部才可以访问
- 如果希望将Service暴露给集群外部使用，那么就要使用到另外一种类型的Service，称为NodePort类型。

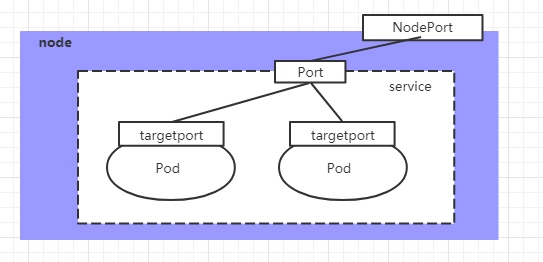

- NodePort的工作原理其实就是将service的端口映射到Node的一个端口上，然后就可以通过
NodeIp:NodePort来访问service了。
6.1 创建service-nodeport.yaml
[root@k8s-master manifest]# cat service-nodeport.yaml apiVersion: v1 kind: Service metadata: name: service-nodeport namespace: dev spec: selector: app: nginx-pod type: NodePort # service类型 ports: - port: 80 nodePort: 30002 # 指定绑定的node的端口(默认的取值范围是：30000-32767), 如果不指定，会默认分配 targetPort: 80- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 运行service
# 创建service [root@k8s-master manifest]# kubectl apply -f service-nodeport.yaml service/service-nodeport created # 查看service [root@k8s-master manifest]# kubectl get -f service-nodeport.yaml NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service-nodeport NodePort 10.110.181.129 <none> 80:30002/TCP 9s [root@k8s-master manifest]# kubectl get -f service-nodeport.yaml -o wide NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR service-nodeport NodePort 10.110.181.129 <none> 80:30002/TCP 52s app=nginx-pod [root@k8s-master manifest]# # 接下来可以通过电脑主机的浏览器去访问集群中任意一个nodeip的30002端口，即可访问到pod- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 访问：http://192.168.232.128:30002/
![[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-MmKsq5V6-1663253772844)(C:/Users/Administrator/AppData/Roaming/Typora/typora-user-images/image-20220915205931550.png)]](https://1000bd.com/contentImg/2023/11/09/013356432.png)
7. LoadBalancer类型的Service
- LoadBalancer和NodePort很相似，目的都是向外部暴露一个端口
- 区别在于LoadBalancer会在集群的外部再来做一个负载均衡设备，而这个设备需要外部环境支持的，外部服务发送到这个设备上的请求，会被设备负载之后转发到集群中。
- LB：lvs，nginx，haproxy
- 用户通过vip访问到负载均衡设备，lb设备转发到节点端口号上去，service在转发到目标的设备上去。

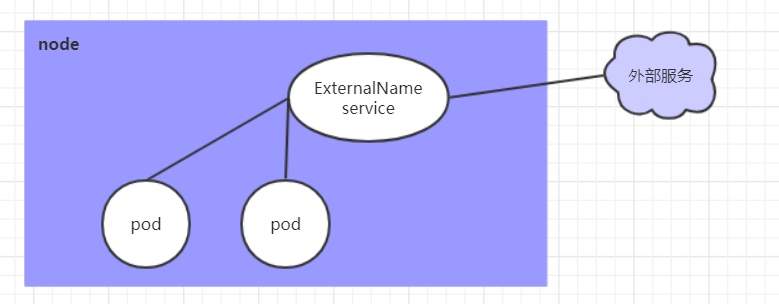

8. ExternalName类型的Service
- ExternalName类型的Service用于引入集群外部的服务
- 它通过
externalName属性指定外部一个服务的地址，然后在集群内部访问此service就可以访问到外部的服务了。
8.1 创建service-externalname.yaml
[root@k8s-master manifest]# cat service-externalname.yaml apiVersion: v1 kind: Service metadata: name: service-externalname namespace: dev spec: type: ExternalName # service类型 externalName: www.baidu.com #改成ip地址也可以 [root@k8s-master manifest]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 运行
# 创建service [root@k8s-master manifest]# kubectl apply -f service-externalname.yaml service/service-externalname created [root@k8s-master manifest]# kubectl get -f service-externalname.yaml -o wide NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR service-externalname ExternalName <none> www.baidu.com <none> 31s <none> # 域名解析 # 域名解析 [root@k8s-master01 ~]# dig @10.96.0.10 service-externalname.dev.svc.cluster.local service-externalname.dev.svc.cluster.local. 30 IN CNAME www.baidu.com. www.baidu.com. 30 IN CNAME www.a.shifen.com. www.a.shifen.com. 30 IN A 39.156.66.18 www.a.shifen.com. 30 IN A 39.156.66.14- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
四. Ingress介绍
1. Service对集群之外暴露服务的主要方式有两种
- NotePort
- LoadBalancer
1.1 两种方式的缺点：
- NodePort方式的缺点是会占用很多集群机器的端口，那么当集群服务变多的时候，这个缺点就愈发明显（集群服务变多，使用的端口号也变多，导致端口号不够用）
- LB方式的缺点是每个service需要一个LB，浪费、麻烦，并且需要kubernetes之外设备的支持
1.2 基于这种现状，kubernetes提供了Ingress资源对象，Ingress只需要一个NodePort或者一个LB就可以满足暴露多个Service的需求
- 工作机制大致如下图表示：
-
客户端通过访问ingress访问service，客户端访问ingress，ingress转发到service
-
实际上，Ingress相当于一个7层的负载均衡器，是kubernetes对反向代理的一个抽象
-
它的工作原理类似于Nginx，可以理解成在Ingress里建立诸多映射规则，Ingress Controller通过监听这些配置规则并转化成Nginx的反向代理配置 , 然后对外部提供服务
-
在这里有两个核心概念：
- ingress：kubernetes中的一个对象，作用是定义请求如何转发到service的规则
- ingress controller（ingress 控制器）：具体实现反向代理及负载均衡的程序，对ingress定义的规则进行解析，根据配置的规则来实现请求转发，实现方式有很多，比如Nginx, Contour, Haproxy等等
-

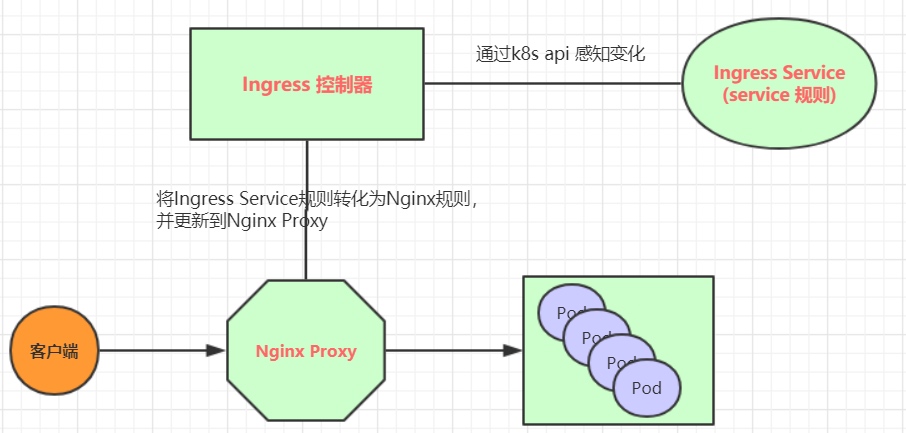

Ingress（以Nginx为例）的工作原理如下：
- 用户编写Ingress规则，说明哪个域名对应kubernetes集群中的哪个Service
- Ingress控制器动态感知Ingress服务规则的变化，然后生成一段对应的Nginx反向代理配置
- Ingress控制器会将生成的Nginx配置写入到一个运行着的Nginx服务中，并动态更新
- 到此为止，其实真正在工作的就是一个Nginx了，内部配置了用户定义的请求转发规则
- ingress service写规则，控制器通过k8s api感知规则，通过规则转发到nginx的代理（pod，做负载均衡的），nginx代理通过service转发到后端的pod
2. Ingress使用
2.1 环境准备
2.1.1 搭建ingress环境
# 创建文件夹 [root@k8s-master ~]# mkdir ingress-controller [root@k8s-master ~]# cd ingress-controller # 获取ingress-nginx，本次案例使用的是1.31版本 # 修改deploy.yaml文件中的仓库 # 修改quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.30.0 # 为dyrnq/ingress-nginx-controller:v1.3.1 [root@k8s-master ingress-controller]# grep image deploy.yaml image: dyrnq/ingress-nginx-controller:v1.3.1 imagePullPolicy: IfNotPresent image: dyrnq/kube-webhook-certgen:v1.3.0 imagePullPolicy: IfNotPresent image: dyrnq/kube-webhook-certgen:v1.3.0 imagePullPolicy: IfNotPresent [root@k8s-master ingress-controller]# # 创建ingress-nginx [root@k8s-master ingress-controller]# kubectl apply -f deploy.yaml # 查看ingress-nginx [root@k8s-master ~]# kubectl get pods -n ingress-nginx NAME READY STATUS RESTARTS AGE ingress-nginx-admission-create-zrp92 0/1 Completed 0 49s ingress-nginx-admission-patch-s2fj5 0/1 Completed 0 49s ingress-nginx-controller-5dbc974cb-frg8k 1/1 Running 0 49s # 查看service [root@k8s-master ingress-controller]# kubectl get svc -n ingress-nginxNAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE ingress-nginx-controller NodePort 10.98.68.101 <none> 80:31313/TCP,443:32641/TCP 44s ingress-nginx-controller-admission ClusterIP 10.99.52.229 <none> 443/TCP 44s [root@k8s-master ingress-controller]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 文件如下
[root@k8s-master ~]# cat ingress-controller/deploy.yaml apiVersion: v1 kind: Namespace metadata: labels: app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx name: ingress-nginx --- apiVersion: v1 automountServiceAccountToken: true kind: ServiceAccount metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx namespace: ingress-nginx --- apiVersion: v1 kind: ServiceAccount metadata: labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-admission namespace: ingress-nginx --- apiVersion: rbac.authorization.k8s.io/v1 kind: Role metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx namespace: ingress-nginx rules: - apiGroups: - "" resources: - namespaces verbs: - get - apiGroups: - "" resources: - configmaps - pods - secrets - endpoints verbs: - get - list - watch - apiGroups: - "" resources: - services verbs: - get - list - watch - apiGroups: - networking.k8s.io resources: - ingresses verbs: - get - list - watch - apiGroups: - networking.k8s.io resources: - ingresses/status verbs: - update - apiGroups: - networking.k8s.io resources: - ingressclasses verbs: - get - list - watch - apiGroups: - "" resourceNames: - ingress-controller-leader resources: - configmaps verbs: - get - update - apiGroups: - "" resources: - configmaps verbs: - create - apiGroups: - coordination.k8s.io resourceNames: - ingress-controller-leader resources: - leases verbs: - get - update - apiGroups: - coordination.k8s.io resources: - leases verbs: - create - apiGroups: - "" resources: - events verbs: - create - patch --- apiVersion: rbac.authorization.k8s.io/v1 kind: Role metadata: labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-admission namespace: ingress-nginx rules: - apiGroups: - "" resources: - secrets verbs: - get - create --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRole metadata: labels: app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx rules: - apiGroups: - "" resources: - configmaps - endpoints - nodes - pods - secrets - namespaces verbs: - list - watch - apiGroups: - coordination.k8s.io resources: - leases verbs: - list - watch - apiGroups: - "" resources: - nodes verbs: - get - apiGroups: - "" resources: - services verbs: - get - list - watch - apiGroups: - networking.k8s.io resources: - ingresses verbs: - get - list - watch - apiGroups: - "" resources: - events verbs: - create - patch - apiGroups: - networking.k8s.io resources: - ingresses/status verbs: - update - apiGroups: - networking.k8s.io resources: - ingressclasses verbs: - get - list - watch --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRole metadata: labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-admission rules: - apiGroups: - admissionregistration.k8s.io resources: - validatingwebhookconfigurations verbs: - get - update --- apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx namespace: ingress-nginx roleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: ingress-nginx subjects: - kind: ServiceAccount name: ingress-nginx namespace: ingress-nginx --- apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-admission namespace: ingress-nginx roleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: ingress-nginx-admission subjects: - kind: ServiceAccount name: ingress-nginx-admission namespace: ingress-nginx --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: labels: app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: ingress-nginx subjects: - kind: ServiceAccount name: ingress-nginx namespace: ingress-nginx --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-admission roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: ingress-nginx-admission subjects: - kind: ServiceAccount name: ingress-nginx-admission namespace: ingress-nginx --- apiVersion: v1 data: allow-snippet-annotations: "true" kind: ConfigMap metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-controller namespace: ingress-nginx --- apiVersion: v1 kind: Service metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-controller namespace: ingress-nginx spec: externalTrafficPolicy: Local ipFamilies: - IPv4 ipFamilyPolicy: SingleStack ports: - appProtocol: http name: http port: 80 protocol: TCP targetPort: http - appProtocol: https name: https port: 443 protocol: TCP targetPort: https selector: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx type: NodePort --- apiVersion: v1 kind: Service metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-controller-admission namespace: ingress-nginx spec: ports: - appProtocol: https name: https-webhook port: 443 targetPort: webhook selector: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx type: ClusterIP --- apiVersion: apps/v1 kind: Deployment metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-controller namespace: ingress-nginx spec: minReadySeconds: 0 revisionHistoryLimit: 10 selector: matchLabels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx template: metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx spec: containers: - args: - /nginx-ingress-controller - --publish-service=$(POD_NAMESPACE)/ingress-nginx-controller - --election-id=ingress-controller-leader - --controller-class=k8s.io/ingress-nginx - --ingress-class=nginx - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller - --validating-webhook=:8443 - --validating-webhook-certificate=/usr/local/certificates/cert - --validating-webhook-key=/usr/local/certificates/key env: - name: POD_NAME valueFrom: fieldRef: fieldPath: metadata.name - name: POD_NAMESPACE valueFrom: fieldRef: fieldPath: metadata.namespace - name: LD_PRELOAD value: /usr/local/lib/libmimalloc.so image: dyrnq/ingress-nginx-controller:v1.3.1 imagePullPolicy: IfNotPresent lifecycle: preStop: exec: command: - /wait-shutdown livenessProbe: failureThreshold: 5 httpGet: path: /healthz port: 10254 scheme: HTTP initialDelaySeconds: 10 periodSeconds: 10 successThreshold: 1 timeoutSeconds: 1 name: controller ports: - containerPort: 80 name: http protocol: TCP - containerPort: 443 name: https protocol: TCP - containerPort: 8443 name: webhook protocol: TCP readinessProbe: failureThreshold: 3 httpGet: path: /healthz port: 10254 scheme: HTTP initialDelaySeconds: 10 periodSeconds: 10 successThreshold: 1 timeoutSeconds: 1 resources: requests: cpu: 100m memory: 90Mi securityContext: allowPrivilegeEscalation: true capabilities: add: - NET_BIND_SERVICE drop: - ALL runAsUser: 101 volumeMounts: - mountPath: /usr/local/certificates/ name: webhook-cert readOnly: true dnsPolicy: ClusterFirst nodeSelector: kubernetes.io/os: linux serviceAccountName: ingress-nginx terminationGracePeriodSeconds: 300 volumes: - name: webhook-cert secret: secretName: ingress-nginx-admission --- apiVersion: batch/v1 kind: Job metadata: labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-admission-create namespace: ingress-nginx spec: template: metadata: labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-admission-create spec: containers: - args: - create - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc - --namespace=$(POD_NAMESPACE) - --secret-name=ingress-nginx-admission env: - name: POD_NAMESPACE valueFrom: fieldRef: fieldPath: metadata.namespace image: dyrnq/kube-webhook-certgen:v1.3.0 imagePullPolicy: IfNotPresent name: create securityContext: allowPrivilegeEscalation: false nodeSelector: kubernetes.io/os: linux restartPolicy: OnFailure securityContext: fsGroup: 2000 runAsNonRoot: true runAsUser: 2000 serviceAccountName: ingress-nginx-admission --- apiVersion: batch/v1 kind: Job metadata: labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-admission-patch namespace: ingress-nginx spec: template: metadata: labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-admission-patch spec: containers: - args: - patch - --webhook-name=ingress-nginx-admission - --namespace=$(POD_NAMESPACE) - --patch-mutating=false - --secret-name=ingress-nginx-admission - --patch-failure-policy=Fail env: - name: POD_NAMESPACE valueFrom: fieldRef: fieldPath: metadata.namespace image: dyrnq/kube-webhook-certgen:v1.3.0 imagePullPolicy: IfNotPresent name: patch securityContext: allowPrivilegeEscalation: false nodeSelector: kubernetes.io/os: linux restartPolicy: OnFailure securityContext: fsGroup: 2000 runAsNonRoot: true runAsUser: 2000 serviceAccountName: ingress-nginx-admission --- apiVersion: networking.k8s.io/v1 kind: IngressClass metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: nginx spec: controller: k8s.io/ingress-nginx --- apiVersion: admissionregistration.k8s.io/v1 kind: ValidatingWebhookConfiguration metadata: labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.3.1 name: ingress-nginx-admission webhooks: - admissionReviewVersions: - v1 clientConfig: service: name: ingress-nginx-controller-admission namespace: ingress-nginx path: /networking/v1/ingresses failurePolicy: Fail matchPolicy: Equivalent name: validate.nginx.ingress.kubernetes.io rules: - apiGroups: - networking.k8s.io apiVersions: - v1 operations: - CREATE - UPDATE resources: - ingresses sideEffects: None- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 139
- 140
- 141
- 142
- 143
- 144
- 145
- 146
- 147
- 148
- 149
- 150
- 151
- 152
- 153
- 154
- 155
- 156
- 157
- 158
- 159
- 160
- 161
- 162
- 163
- 164
- 165
- 166
- 167
- 168
- 169
- 170
- 171
- 172
- 173
- 174
- 175
- 176
- 177
- 178
- 179
- 180
- 181
- 182
- 183
- 184
- 185
- 186
- 187
- 188
- 189
- 190
- 191
- 192
- 193
- 194
- 195
- 196
- 197
- 198
- 199
- 200
- 201
- 202
- 203
- 204
- 205
- 206
- 207
- 208
- 209
- 210
- 211
- 212
- 213
- 214
- 215
- 216
- 217
- 218
- 219
- 220
- 221
- 222
- 223
- 224
- 225
- 226
- 227
- 228
- 229
- 230
- 231
- 232
- 233
- 234
- 235
- 236
- 237
- 238
- 239
- 240
- 241
- 242
- 243
- 244
- 245
- 246
- 247
- 248
- 249
- 250
- 251
- 252
- 253
- 254
- 255
- 256
- 257
- 258
- 259
- 260
- 261
- 262
- 263
- 264
- 265
- 266
- 267
- 268
- 269
- 270
- 271
- 272
- 273
- 274
- 275
- 276
- 277
- 278
- 279
- 280
- 281
- 282
- 283
- 284
- 285
- 286
- 287
- 288
- 289
- 290
- 291
- 292
- 293
- 294
- 295
- 296
- 297
- 298
- 299
- 300
- 301
- 302
- 303
- 304
- 305
- 306
- 307
- 308
- 309
- 310
- 311
- 312
- 313
- 314
- 315
- 316
- 317
- 318
- 319
- 320
- 321
- 322
- 323
- 324
- 325
- 326
- 327
- 328
- 329
- 330
- 331
- 332
- 333
- 334
- 335
- 336
- 337
- 338
- 339
- 340
- 341
- 342
- 343
- 344
- 345
- 346
- 347
- 348
- 349
- 350
- 351
- 352
- 353
- 354
- 355
- 356
- 357
- 358
- 359
- 360
- 361
- 362
- 363
- 364
- 365
- 366
- 367
- 368
- 369
- 370
- 371
- 372
- 373
- 374
- 375
- 376
- 377
- 378
- 379
- 380
- 381
- 382
- 383
- 384
- 385
- 386
- 387
- 388
- 389
- 390
- 391
- 392
- 393
- 394
- 395
- 396
- 397
- 398
- 399
- 400
- 401
- 402
- 403
- 404
- 405
- 406
- 407
- 408
- 409
- 410
- 411
- 412
- 413
- 414
- 415
- 416
- 417
- 418
- 419
- 420
- 421
- 422
- 423
- 424
- 425
- 426
- 427
- 428
- 429
- 430
- 431
- 432
- 433
- 434
- 435
- 436
- 437
- 438
- 439
- 440
- 441
- 442
- 443
- 444
- 445
- 446
- 447
- 448
- 449
- 450
- 451
- 452
- 453
- 454
- 455
- 456
- 457
- 458
- 459
- 460
- 461
- 462
- 463
- 464
- 465
- 466
- 467
- 468
- 469
- 470
- 471
- 472
- 473
- 474
- 475
- 476
- 477
- 478
- 479
- 480
- 481
- 482
- 483
- 484
- 485
- 486
- 487
- 488
- 489
- 490
- 491
- 492
- 493
- 494
- 495
- 496
- 497
- 498
- 499
- 500
- 501
- 502
- 503
- 504
- 505
- 506
- 507
- 508
- 509
- 510
- 511
- 512
- 513
- 514
- 515
- 516
- 517
- 518
- 519
- 520
- 521
- 522
- 523
- 524
- 525
- 526
- 527
- 528
- 529
- 530
- 531
- 532
- 533
- 534
- 535
- 536
- 537
- 538
- 539
- 540
- 541
- 542
- 543
- 544
- 545
- 546
- 547
- 548
- 549
- 550
- 551
- 552
- 553
- 554
- 555
- 556
- 557
- 558
- 559
- 560
- 561
- 562
- 563
- 564
- 565
- 566
- 567
- 568
- 569
- 570
- 571
- 572
- 573
- 574
- 575
- 576
- 577
- 578
- 579
- 580
- 581
- 582
- 583
- 584
- 585
- 586
- 587
- 588
- 589
- 590
- 591
- 592
- 593
- 594
- 595
- 596
- 597
- 598
- 599
- 600
- 601
- 602
- 603
- 604
- 605
- 606
- 607
- 608
- 609
- 610
- 611
- 612
- 613
- 614
- 615
- 616
- 617
- 618
- 619
- 620
- 621
- 622
- 623
- 624
- 625
- 626
- 627
- 628
- 629
- 630
- 631
- 632
- 633
- 634
- 635
- 636
- 637
- 638
- 639
- 640
- 641
- 642
- 643
2.1.2 准备service和pod
- 创建tomcat-nginx.yaml
[root@k8s-master ingress-controller]# cat tomcat-nginx.yaml apiVersion: apps/v1 kind: Deployment metadata: name: nginx-deployment namespace: dev spec: replicas: 3 selector: matchLabels: app: nginx-pod template: metadata: labels: app: nginx-pod spec: containers: - name: nginx image: nginx:1.17.1 ports: - containerPort: 80 --- apiVersion: apps/v1 kind: Deployment metadata: name: tomcat-deployment namespace: dev spec: replicas: 3 selector: matchLabels: app: tomcat-pod template: metadata: labels: app: tomcat-pod spec: containers: - name: tomcat image: tomcat:8.5-jre10-slim ports: - containerPort: 8080 --- apiVersion: v1 kind: Service metadata: name: nginx-service namespace: dev spec: selector: app: nginx-pod type: ClusterIP ports: - port: 80 targetPort: 80 --- apiVersion: v1 kind: Service metadata: name: tomcat-service namespace: dev spec: selector: app: tomcat-pod type: ClusterIP ports: - port: 8080 targetPort: 8080 [root@k8s-master ingress-controller]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 运行
# 创建 [root@k8s-master ingress-controller]# kubectl apply -f tomcat-nginx.yaml deployment.apps/nginx-deployment created deployment.apps/tomcat-deployment created service/nginx-service created service/tomcat-service created [root@k8s-master ingress-controller]# # 查看 [root@k8s-master ingress-controller]# kubectl get svc -n devNAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE nginx-service ClusterIP 10.100.3.46 <none> 80/TCP 74s tomcat-service ClusterIP 10.100.176.2 <none> 8080/TCP 74s [root@k8s-master ingress-controller]# kubectl get -f tomcat-nginx.yaml NAME READY UP-TO-DATE AVAILABLE AGE deployment.apps/nginx-deployment 3/3 3 3 83s deployment.apps/tomcat-deployment 3/3 3 3 83s NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/nginx-service ClusterIP 10.100.3.46 <none> 80/TCP 83s service/tomcat-service ClusterIP 10.100.176.2 <none> 8080/TCP 83s [root@k8s-master ingress-controller]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
3. Http代理
- 创建ingress-http.yaml
[root@k8s-master ingress-controller]# cat ingress-http.yaml apiVersion: networking.k8s.io/v1 kind: Ingress metadata: name: ingress-http namespace: dev spec: rules: - host: nginx.mushuang.com http: paths: - path: / pathType: Prefix backend: service: name: nginx-service port: number: 80 - host: tomcat.mushuang.com http: paths: - path: / pathType: Prefix backend: service: name: tomcat-service port: number: 8080 [root@k8s-master ingress-controller]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 运行
# 创建 [root@k8s-master ingress-controller]# kubectl apply -f ingress-http.yaml ingress.networking.k8s.io/ingress-http created # 查看 [root@k8s-master ingress-controller]# kubectl get -f ingress-http.yaml NAME CLASS HOSTS ADDRESS PORTS AGE ingress-http <none> nginx.mushuang.com,tomcat.mushuang.com 80 7s [root@k8s-master ingress-controller]# kubectl get ing ingress-http -n dev NAME CLASS HOSTS ADDRESS PORTS AGE ingress-http <none> nginx.mushuang.com,tomcat.mushuang.com 80 2m8s [root@k8s-master ingress-controller]# # 查看详情 [root@k8s-master ingress-controller]# kubectl describe ing ingress-http -n dev Name: ingress-http Labels: <none> Namespace: dev Address: Ingress Class: <none> Default backend: <default> Rules: Host Path Backends ---- ---- -------- nginx.mushuang.com / nginx-service:80 (10.244.1.117:80,10.244.2.131:80,10.244.2.133:80) tomcat.mushuang.com / tomcat-service:8080 (10.244.1.115:8080,10.244.1.116:8080,10.244.2.132:8080) Annotations: <none> Events: <none> [root@k8s-master ingress-controller]# # 接下来,在本地电脑上配置host文件,解析上面的两个域名到192.168.232.128(master)上 # 然后,就可以分别访问tomcat.mushuang.com:32240 和 nginx.mushuang.com:32240 查看效果了- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
4. Https代理
- 创建证书
# 生成证书 [root@k8s-master ~]# mkdir crt [root@k8s-master ~]# cd crt/ [root@k8s-master crt]# openssl req -x509 -sha256 -nodes -days 365 -newkey rsa:2048 -keyout tls.key -out tls.crt -subj "/C=CN/ST=HB/L=WH/O=nginx/CN=mushuang.com" Generating a RSA private key ...................+++++ ................................................+++++ writing new private key to 'tls.key' ----- # 创建密钥 [root@k8s-master crt]# kubectl create secret tls tls-secret --key tls.key --cert tls.crt secret/tls-secret created [root@k8s-master crt]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
-
相关阅读:
C++阶段03笔记01【内存分区模型、引用、函数提高】
【Docker】安装及相关的命令
【Redis】哨兵
final的练习
客户端负载均衡_什么是负载均衡
Redis入门到通关之Redis数据结构-List篇
【JavaWeb·3】Servlet+JDBC实现对数据库内数据增删改查
我的创作纪念日
TexFormula2Word: 将Latex公式转换为MathML的Chrome扩展
《C语言》22-23第一学期后十周教学计划（谭浩强第五版）
- 原文地址：https://blog.csdn.net/mushuangpanny/article/details/126881368
