Linux 内核段符号简介
一、内核段简介
内核代码段的起始地址 _text ：
cat /proc/kallsyms | grep '\<_text\>'- 1
内核代码段的结束地址 _etext：
cat /proc/kallsyms | grep '\<_etext\>'- 1
内核代码段的大小：
size = _etext - _text- 1
/proc/kallsyms中的符号从 _text到 _etext 都是 T 和 t 类型：
"T/t" ：The symbol is in the text (code) section.- 1
也会有少量的 W/w符号："W/w" The symbol is a weak symbol that has not been specifically tagged as a weak object symbol.- 1
_etext - _text之间的W/w符号都是weak text symbol。
可以看到下面的符号位于_etext - _text之间，也是代码段符号，只不过是weak text symbol。
从/proc/kcore中也可以看到内核段，其起始地址与_text一样，但大小却大于上述的 size = _etext - _text，该内核段除了有内核代码段还有内核其他数据。
从_etext开始都是内核的其他的一些符号：
比如只读数据符号："R/r" The symbol is in a read only data section- 1
将上述 _text + memsize = 0xffffffff81000000 + 0x0000000001411000 = 0xffffffff82411000
内核段的最后是BSS data section。"B/b" The symbol is in the BSS data section. This section typically contains zero-initialized or uninitialized data, although the exact behavior is system dependent.- 1
0xffffffff82411000就是内核段的结尾，对于/proc/kallsyms中的符号，从0xffffffff82411000之后就是模块的符号，因此模块的符号地址一定大于内核段的符号。
二、内核段符号顺序
从内核段开始即内核代码段起始地址_text（T） 到 _end（B） 到内核段结尾，符号都是依次递增，从小到大排列。
内核段中的大致存放顺序：
"T/t" -> "R/r" -> "D/d" -> "B/b"- 1
即：内核代码段 ，内核只读数据段，内核数据段，内核BSS段。这些相同的符号类型都是在同一块区域，地址大小依次递增。
同时对应的内核代码段 ，内核只读数据段，内核数据段，内核BSS段在物理内存上的布局也是这样：
centos 7（3.10.0） 的内核只读数据段，内核数据段在物理内存上布局合在一起：

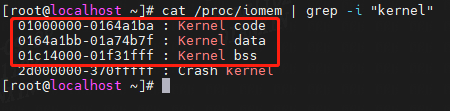

/proc/iomem是整个系统物理地址空间的映射文件。
ubuntu 20.04 (5.15.0)：
以下都是指内核段的虚拟地址空间布局：
（1）内核代码段：static inline int init_kernel_text(unsigned long addr) { if (addr >= (unsigned long)_sinittext && addr <= (unsigned long)_einittext) return 1; return 0; } int core_kernel_text(unsigned long addr) { if (addr >= (unsigned long)_stext && addr <= (unsigned long)_etext) return 1; if (system_state == SYSTEM_BOOTING && init_kernel_text(addr)) return 1; return 0; }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
"T/t" The symbol is in the text (code) section.- 1
备注：有些地址有多个符号，比如上述的 0xffffffff81000000，有_text 和 startup_64。当我们求内核代码段中函数的大小时，就可以用上下两条记录的地址值相减，就可以求出内核函数的大小，当然要考虑到有些地址有多个符号的情况。
此方法只适用求内核代码段函数的大小，不适求模块函数的大小。（2）内核notes
内核代码段和内核只读数据段直接还有一小块 notes 代码段，这一小部分也属于代码段，内核正常运行时并不会调用这部分代码段。ffffffff9d77c25f T _etext ffffffff9d77c260 T __start_notes ffffffff9d77c3dc T __stop_notes ffffffff9d77c3e0 R __start___ex_table ffffffff9d77e430 R __start___mc_table ffffffff9d77e430 R __stop___ex_table- 1
- 2
- 3
- 4
- 5
- 6
（3）内核只读数据段：
"R/r" The symbol is in a read only data section- 1
当我们求内核数据段中数据的大小时，可以用上下两条记录的地址值相减，就可以求出内核数据的大小，比如系统调用表：ffffffffad4028f0 r __func__.50507 ffffffffad402910 r __func__.50517 ffffffffad402940 R sys_call_table ffffffffad4033a0 r __func__.37275 ffffffffad4033b2 r str__vsyscall__trace_system_name ffffffffad4033c0 r setup_data_attr_group- 1
- 2
- 3
- 4
- 5
- 6
(ffffffffad4033a0 - ffffffffad402940) = 0xa60 = 2656- 1
即系统调用表的大小是2656字节
2656 / 8 = 332- 1
系统调用表数组中的成员数量是332，即该版本系统调用的数目是332。
（4）内核数据段：
/** * core_kernel_data - tell if addr points to kernel data * @addr: address to test * * Returns true if @addr passed in is from the core kernel data * section. * * Note: On some archs it may return true for core RODATA, and false * for others. But will always be true for core RW data. */ int core_kernel_data(unsigned long addr) { if (addr >= (unsigned long)_sdata && addr < (unsigned long)_edata) return 1; return 0; }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
"D/d" The symbol is in the initialized data section.- 1
（5）内核BSS段："B/b" The symbol is in the BSS data section. This section typically contains zero-initialized or uninitialized data, although the exact behavior is system dependent.- 1
（6）
其中"D/d" -> “B/b” 之间有一部分内核启动时，内核退出时所用到的代码段，内核正常运行后，不会在调用这一部分内核代码段。
这一部分也属于内核段，并且属于内核代码段，但是这部分是内核启动，内核退出时用到的代码段，内核正常运行时并不会调用，这部分内核代码段没有在 _text 到 _etext 之间。_sinittext到_einittext是内核初始化时运行的代码，内核正常运行时并不会调用。
system_state == SYSTEM_BOOTING- 1
/* Values used for system_state */ extern enum system_states { SYSTEM_BOOTING, SYSTEM_RUNNING, SYSTEM_HALT, SYSTEM_POWER_OFF, SYSTEM_RESTART, } system_state;- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
static inline int init_kernel_text(unsigned long addr) { if (addr >= (unsigned long)_sinittext && addr <= (unsigned long)_einittext) return 1; return 0; } int core_kernel_text(unsigned long addr) { if (addr >= (unsigned long)_stext && addr <= (unsigned long)_etext) return 1; if ( && init_kernel_text(addr)) return 1; return 0; }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
ffffffff9dd68000 D __init_begin ffffffff9dd68000 D __per_cpu_load ffffffff9dd85000 T early_idt_handler_array ffffffff9dd85000 T _sinittext ffffffff9dd85120 t early_idt_handler_common ffffffff9dd851d7 t is_nmi ffffffff9dd851f0 T startup_xen ffffffff9dd85205 t copy_bootdata ffffffff9dd853c1 t reset_early_page_tables ffffffff9dd85496 T __early_make_pgtable ffffffff9dd856e8 T early_make_pgtable ffffffff9dd8570b T x86_64_start_reservations ffffffff9dd85731 T x86_64_start_kernel ffffffff9dd858a8 T reserve_ebda_region ffffffff9dd85904 t set_reset_devices ffffffff9dd85919 t debug_kernel ffffffff9dd8592b t quiet_kernel ffffffff9dd8593d t init_setup ffffffff9dd85965 t rdinit_setup ffffffff9dd8598d t loglevel ffffffff9dd859e1 t do_early_param ffffffff9dd85a6f t initcall_blacklist ffffffff9dd85b1f t repair_env_string ffffffff9dd85b7b t unknown_bootoption ffffffff9dd85d04 T parse_early_options ffffffff9dd85d2c T parse_early_param ffffffff9dd85d69 W smp_setup_processor_id ffffffff9dd85d6f W thread_info_cache_init ffffffff9dd85d7b T start_kernel ffffffff9dd861e7 t kernel_init_freeable ffffffff9dd86406 T load_default_modules ffffffff9dd86411 t rootwait_setup ....... ffffffff8a7eea46 t packet_init ffffffff8a7eea88 t wireless_nlevent_init ffffffff8a7eeac1 T netlbl_netlink_init ffffffff8a7eeade t netlbl_init ffffffff8a7eeb61 T netlbl_domhsh_init ffffffff8a7eec18 T netlbl_mgmt_genl_init ffffffff8a7eec2a T netlbl_unlabel_genl_init ffffffff8a7eec3c T netlbl_unlabel_init ffffffff8a7eed03 T netlbl_unlabel_defconf ffffffff8a7eed9d T netlbl_cipsov4_genl_init ffffffff8a7eedaf t dcbnl_init ffffffff8a7eedfc T net_sysctl_init ffffffff8a7eee4b t mpls_gso_init ffffffff8a7eee79 T _einittext ...... ffffffff9df3be81 t nvmem_exit ffffffff9df3be93 t vmd_drv_exit ffffffff9df3bea5 t sock_diag_exit ffffffff9df3beb7 t exit_cgroup_netprio ffffffff9df3bf1d t exit_cgroup_cls ffffffff9df3bf3b t xt_fini ffffffff9df3bf59 t tcpudp_mt_exit ffffffff9df3bf70 t ipv4_netfilter_fini ffffffff9df3bf82 t cubictcp_unregister ffffffff9df3bf94 t xfrm_user_exit ffffffff9df3bfb2 t af_unix_exit ffffffff9df3bfda t inet6_exit ffffffff9df3c0b8 t packet_exit ffffffff9df3c0ec t dcbnl_exit ffffffff9df3c162 t mpls_gso_exit ffffffff9df3d000 R __smp_locks ffffffff9df3d000 R __init_end ffffffff9df44000 D in_suspend ffffffff9df44000 D __nosave_begin ffffffff9df44000 R __smp_locks_end ffffffff9df45000 B empty_zero_page ffffffff9df45000 B __bss_start ffffffff9df45000 D __nosave_end ffffffff9df46000 b dummy_mapping ffffffff9df47000 b level3_user_vsyscall ffffffff9df48000 B idt_table ffffffff9df49000 B debug_idt_table ffffffff9df4a000 B trace_idt_table ffffffff9df4b000 b bm_pte ffffffff9df4c000 B initcall_debug ffffffff9df4c004 B reset_devices ffffffff9df4c008 B saved_command_line ffffffff9df4c020 b msgbuf- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
（7）
通过读取vmlinux文件也可以发现，vmlinux 内核镜像 除了 _text到 _etext 这一块代码段之外，还有几块代码段：[root@localhost ~]# readelf -S vmlinux There are 36 section headers, starting at offset 0x13451a0: Section Headers: [Nr] Name Type Address Offset Size EntSize Flags Link Info Align [ 0] NULL 0000000000000000 00000000 0000000000000000 0000000000000000 0 0 0 [ 1] .text PROGBITS ffffffff81000000 00200000 000000000077c25f 0000000000000000 AX 0 0 4096 [ 2] .notes NOTE ffffffff8177c260 0097c260 000000000000017c 0000000000000000 AX 0 0 4 [ 3] __ex_table PROGBITS ffffffff8177c3e0 0097c3e0 0000000000002050 0000000000000000 A 0 0 8 [ 4] __mc_table PROGBITS ffffffff8177e430 0097e430 0000000000000024 0000000000000000 A 0 0 4 [ 5] .rodata PROGBITS ffffffff81800000 00a00000 000000000030777e 0000000000000000 A 0 0 128 [ 6] __bug_table PROGBITS ffffffff81b07780 00d07780 0000000000006318 0000000000000000 A 0 0 1 [ 7] __unwind_end_of_s PROGBITS ffffffff81b0da98 00d0da98 0000000000000068 0000000000000000 A 0 0 1 [ 8] __unwind_unsafe_s PROGBITS ffffffff81b0db00 00d0db00 00000000000001d0 0000000000000000 A 0 0 1 [ 9] .pci_fixup PROGBITS ffffffff81b0dcd0 00d0dcd0 00000000000038b8 0000000000000000 A 0 0 8 [10] .tracedata PROGBITS ffffffff81b11588 00d11588 000000000000003c 0000000000000000 A 0 0 1 [11] __ksymtab PROGBITS ffffffff81b115d0 00d115d0 0000000000011f20 0000000000000000 A 0 0 16 [12] __ksymtab_gpl PROGBITS ffffffff81b234f0 00d234f0 000000000000df80 0000000000000000 A 0 0 16 [13] __kcrctab PROGBITS ffffffff81b31470 00d31470 0000000000008f90 0000000000000000 A 0 0 8 [14] __kcrctab_gpl PROGBITS ffffffff81b3a400 00d3a400 0000000000006fc0 0000000000000000 A 0 0 8 [15] __ksymtab_strings PROGBITS ffffffff81b413c0 00d413c0 00000000000261c0 0000000000000000 A 0 0 1 [16] __init_rodata PROGBITS ffffffff81b67580 00d67580 00000000000000e8 0000000000000000 A 0 0 32 [17] __param PROGBITS ffffffff81b67668 00d67668 0000000000001d80 0000000000000000 A 0 0 8 [18] __modver PROGBITS ffffffff81b693e8 00d693e8 0000000000000c18 0000000000000000 A 0 0 8 [19] .data PROGBITS ffffffff81c00000 00e00000 0000000000166200 0000000000000000 WA 0 0 8192 [20] .vvar PROGBITS ffffffff81d67000 00f67000 00000000000000f0 0000000000000000 WA 0 0 16 [21] .data..percpu PROGBITS 0000000000000000 01000000 000000000001d000 0000000000000000 WA 0 0 4096 [22] .init.text PROGBITS ffffffff81d85000 01185000 0000000000069e79 0000000000000000 AX 0 0 16 [23] .init.data PROGBITS ffffffff81df0000 011f0000 0000000000124020 0000000000000000 WA 0 0 8192 [24] .x86_cpu_dev.init PROGBITS ffffffff81f14020 01314020 0000000000000018 0000000000000000 A 0 0 8 [25] .parainstructions PROGBITS ffffffff81f14038 01314038 000000000001d92c 0000000000000000 A 0 0 8 [26] .altinstructions PROGBITS ffffffff81f31968 01331968 00000000000069d8 0000000000000000 A 0 0 1 [27] .altinstr_replace PROGBITS ffffffff81f38340 01338340 000000000000217e 0000000000000000 AX 0 0 1 [28] .iommu_table PROGBITS ffffffff81f3a4c0 0133a4c0 00000000000000f0 0000000000000000 A 0 0 8 [29] .apicdrivers PROGBITS ffffffff81f3a5b0 0133a5b0 0000000000000028 0000000000000000 WA 0 0 8 [30] .exit.text PROGBITS ffffffff81f3a5d8 0133a5d8 0000000000001ba8 0000000000000000 AX 0 0 1 [31] .smp_locks PROGBITS ffffffff81f3d000 0133d000 0000000000007000 0000000000000000 A 0 0 4 [32] .data_nosave PROGBITS ffffffff81f44000 01344000 0000000000001000 0000000000000000 WA 0 0 4 [33] .bss NOBITS ffffffff81f45000 01345000 000000000030c000 0000000000000000 WA 0 0 4096 [34] .brk NOBITS ffffffff82251000 01345000 0000000000429000 0000000000000000 WA 0 0 1 [35] .shstrtab STRTAB 0000000000000000 01345000 000000000000019b 0000000000000000 0 0 1 Key to Flags: W (write), A (alloc), X (execute), M (merge), S (strings), I (info), L (link order), O (extra OS processing required), G (group), T (TLS), C (compressed), x (unknown), o (OS specific), E (exclude), l (large), p (processor specific)- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
其中的下面几个 section 都不属于内核 text section，但都是vmlinux 镜像中的代码段：
[ 2] .notes NOTE ffffffff8177c260 0097c260 000000000000017c 0000000000000000 AX 0 0 4- 1
- 2
[22] .init.text PROGBITS ffffffff81d85000 01185000 0000000000069e79 0000000000000000 AX 0 0 16- 1
- 2
[27] .altinstr_replace PROGBITS ffffffff81f38340 01338340 000000000000217e 0000000000000000 AX 0 0 1- 1
- 2
[30] .exit.text PROGBITS ffffffff81f3a5d8 0133a5d8 0000000000001ba8 0000000000000000 AX 0 0 1- 1
- 2
X (execute)，表示可执行，也就是代码段。
总结
内核段的符号从代码段的符号_text 到 BSS段的符号_end，之后就是模块的相关符号了。模块的符号肯定大于内核段中的符号。
备注：模块的符号大于内核段中的符号这是相对于x86_64，对于ARM64，在Linux 4.6 中 将内核镜像移到vmalloc的区域了。因此在ARM64，Linux 4.6 以上的版本内核段中的符号都大于模块的符号。
比如：5.4.18-74-generic aarch64 GNU/Linux- 1
ffffffc010080000 T _text ...... ffffffc0117f4000 B _end ffffffc0092dc380 d $d [virt_wifi] ffffffc0092da024 r $d [virt_wifi] ffffffc0092da024 r _note_6 [virt_wifi] ......- 1
- 2
- 3
- 4
- 5
- 6
- 7
内核段的地址都大于模块的地址。
