    Spring MVC 框架学习（八）---- SSM 框架整合


    一、准备工作导入依赖


    导入 spring mybatis mvc 等依赖，同时过滤 xml文件和 properties 文件



<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0modelVersion>

    <groupId>org.examplegroupId>
    <artifactId>2022-6-29artifactId>
    <version>1.0-SNAPSHOTversion>

<dependencies>


    <dependency>
        <groupId>org.projectlombokgroupId>
        <artifactId>lombok-maven-pluginartifactId>
        <version>1.18.12.0version>
        <scope>providedscope>
    dependency>



        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-webmvcartifactId>
            <version>5.3.18version>
        dependency>


        <dependency>
            <groupId>junitgroupId>
            <artifactId>junitartifactId>
            <version>4.12version>
            <scope>testscope>
        dependency>


        <dependency>
            <groupId>mysqlgroupId>
            <artifactId>mysql-connector-javaartifactId>
            <version>8.0.16version>
        dependency>


    <dependency>
        <groupId>org.aspectjgroupId>
        <artifactId>aspectjweaverartifactId>
        <version>1.9.9.1version>
    dependency>



    <dependency>
        <groupId>org.mybatisgroupId>
        <artifactId>mybatisartifactId>
        <version>3.5.6version>
    dependency>


    <dependency>
        <groupId>org.mybatisgroupId>
        <artifactId>mybatis-springartifactId>
        <version>2.0.7version>
    dependency>


    <dependency>
        <groupId>org.springframeworkgroupId>
        <artifactId>spring-jdbcartifactId>
        <version>5.3.21version>
    dependency>


    <dependency>
        <groupId>org.springframeworkgroupId>
        <artifactId>spring-txartifactId>
        <version>5.3.21version>
    dependency>


    <dependency>
        <groupId>javax.servletgroupId>
        <artifactId>servlet-apiartifactId>
        <version>2.5version>
    dependency>



    <dependency>
        <groupId>com.fasterxml.jackson.coregroupId>
        <artifactId>jackson-databindartifactId>
        <version>2.9.3version>
    dependency>

    <dependency>
        <groupId>com.fasterxml.jackson.coregroupId>
        <artifactId>jackson-coreartifactId>
        <version>2.9.3version>
    dependency>

    <dependency>
        <groupId>com.fasterxml.jackson.coregroupId>
        <artifactId>jackson-annotationsartifactId>
        <version>2.9.3version>
    dependency>


dependencies>




    <build>
        <resources>
            <resource>
                <directory>src/main/resourcesdirectory>
                <includes>
                    <include>**/*.xmlinclude>
                    <include>**/*.propertiesinclude>
                includes>
                <filtering>truefiltering>
            resource>

            <resource>
                <directory>src/main/javadirectory>
                <includes>
                    <include>**/*.xmlinclude>
                    <include>**/*.propertiesinclude>
                includes>
                <filtering>truefiltering>
            resource>
        resources>
    build>

project>

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99
    • 100
    • 101
    • 102
    • 103
    • 104
    • 105
    • 106
    • 107
    • 108
    • 109
    • 110
    • 111
    • 112
    • 113
    • 114
    • 115
    • 116
    • 117
    • 118
    • 119
    • 120
    • 121
    • 122
    • 123
    • 124
    • 125
    • 126
    • 127
    • 128
    • 129
    • 130
    • 131
    • 132
    • 133
    • 134
    • 135

    总体配置文件架构

    在这里插入图片描述


    建表语句,测试 mybatis 是否成功连接

    create database if not exists ssm;

use ssm;

drop table if exists users;

create table users(
      id int primary key auto_increment,
      username varchar(20),
      password varchar(20)
);


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12

    总的applicationContext.xml 文件


<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop" xmlns:cache="http://www.springframework.org/schema/cache"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/aop
        https://www.springframework.org/schema/aop/spring-aop.xsd http://www.springframework.org/schema/cache http://www.springframework.org/schema/cache/spring-cache.xsd">


<import resource="classpath:spring-dao.xml"/>





    <context:component-scan base-package="com.*"/>



    <aop:aspectj-autoproxy/>

beans>

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26

    二、Spring 整合 Mybatis


    db.properties

    jdbc.driverClassName=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://127.0.0.1:3306/ssm?useUnicode=true&characterEncoding=utf-8&serverTimezone=GMT
jdbc.username=root
jdbc.password=123456

    • 1
    • 2
    • 3
    • 4

    mybatis-config.xml，这个文件可以完全省略，但是还是留下方便做一些其他的配置


DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>




    <typeAliases>
        <package name="com.bit.pojo"/>
    typeAliases>

configuration>

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14

    spring-dao.xml


<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/aop
        https://www.springframework.org/schema/aop/spring-aop.xsd">



    <context:property-placeholder location="classpath:db.properties" />


    <bean class="org.springframework.jdbc.datasource.DriverManagerDataSource" id="dataSource">
        <property name="driverClassName" value="${jdbc.driverClassName}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="url" value="${jdbc.url}"/>
        <property name="password" value="${jdbc.password}"/>
    bean>


    <bean class="org.mybatis.spring.SqlSessionFactoryBean" id="sqlSessionFactory">
        <property name="dataSource" ref="dataSource"/>
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
        <property name="mapperLocations" value="classpath:com/bit/mapper/UserMapper.xml"/>
    bean>


   <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">

       <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
       <property name="basePackage" value="com.bit.mapper"/>


   bean>


beans>

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42

    建一个pojo包，创建一个实体类

    package com.bit.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class User {
    private int id;
    private String username;
    private String password;
}


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15

    建一个mapper 包，创建一个mapper接口以及 mapper.xml 文件


    UserMapper 接口

    package com.bit.mapper;

import com.bit.pojo.User;
import org.apache.ibatis.annotations.Param;
import java.util.List;

public interface UserMapper {

    int insert(User user);

    int delete(@Param("id") int id);

    int update(@Param("id") int id,User user);

    List<User>  selectAll();

    User selectById(int id);

}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19

    UserMapper.xml 文件


DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.bit.mapper.UserMapper">
     <insert id="insert" parameterType="user">
         insert into users values(#{id},#{username},#{password})
     insert>

    <delete id="delete">
        delete from users where id=#{id}
    delete>

    <update id="update" parameterType="user">
        update  users set username=#{username},password=#{password} where id=#{id}
    update>

    <select id="selectAll" resultType="user" >
        select * from users;
    select>

    <select id="selectById" resultType="user" >
        select * from users where id=#{id};
    select>

mapper>

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27

    在service 层创建接口，对dao层进行封装

    创建一个service包，写一个UserService接口 和 UserServiceImpl 实现类


    UserService 接口

    package com.bit.service;

import com.bit.pojo.User;

import java.util.List;

public interface UserService {

    int  addUser(User user);

    int  delteteUser(int id);

    int  updateUser(int id,User user);

    List<User> selectAllUser();

    User selectOne(int id);

}


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20

    UserServiceImpl 实现类

    package com.bit.service;

import com.bit.mapper.UserMapper;
import com.bit.pojo.User;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class UserServiceImpl implements UserService{

    @Autowired
    private UserMapper userMapper;

    public int addUser(User user) {
        return userMapper.insert(user);
    }

    public int delteteUser(int id) {
        return userMapper.delete(id);
    }

    public int updateUser(int id, User user) {
        return userMapper.update(id,user);
    }

    public List<User> selectAllUser() {
        return userMapper.selectAll();
    }

    public User selectOne(int id) {
        return userMapper.selectById(id);
    }

    public static void main(String[] args) {

    }
}


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40

    测试是否整合mybatis成功的时候一定要看一下，是否spring的配置文件都加载上了

    在这里插入图片描述


    测试是否成功整合代码

    import com.bit.pojo.User;
import com.bit.service.UserService;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class Main {

    @Test
    public void test(){
        ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
        UserService userService = context.getBean("userServiceImpl", UserService.class);
        User user = userService.selectOne(5);
        System.out.println(user);
    }
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16

    测试成功

    在这里插入图片描述


    三、Spring 整合 Spring MVC


    web.xml，配置 DispatcherServlet ，同时加载application.xml 总的spring 配置文件


<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <servlet>
        <servlet-name>springmvcservlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServletservlet-class>
        <init-param>
            <param-name>contextConfigLocationparam-name>
            <param-value>classpath:applicationContext.xmlparam-value>
        init-param>
        <load-on-startup>1load-on-startup>

    servlet>

    <servlet-mapping>
        <servlet-name>springmvcservlet-name>
        <url-pattern>/url-pattern>
    servlet-mapping>

web-app>

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23

    spring-mvc.xml


<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd">

















    <context:component-scan base-package="com.bit.controller"/>


    <mvc:default-servlet-handler/>


    <mvc:annotation-driven/>

beans>

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37

    spring-service


<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/aop
        https://www.springframework.org/schema/aop/spring-aop.xsd
    http://www.springframework.org/schema/tx
    https://www.springframework.org/schema/tx/spring-tx.xsd">




       <context:component-scan base-package="com.bit.service"/>


    <bean class="org.springframework.jdbc.datasource.DataSourceTransactionManager" id="transactionManager">
        <property name="dataSource" ref="dataSource"/>
    bean>


     <aop:aspectj-autoproxy/>


beans>

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30

    在总的applicationContext 导入 spring-mvc.xml 、spring-service.xml 文件


    <import resource="classpath:spring-mvc.xml"/>

    <import resource="classpath:spring-service.xml"/>

    • 1
    • 2
    • 3
    • 4

    测试mvc框架是否整合完成的代码


    创建controller包，创建UserController类

    package com.bit.controller;

import com.bit.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
@RequestMapping("/user")
public class UserController {

    @Autowired
    private UserService userService;

    @RequestMapping("/select")
    @ResponseBody
    public Object select(){
        return userService.selectAllUser();
    }

}



    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24

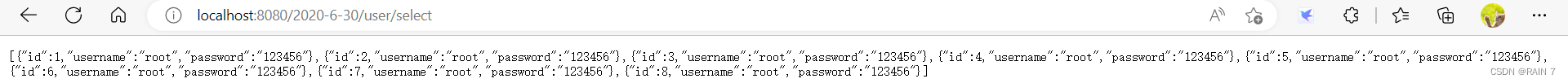

    运行项目，访问接口出现JSON格式的数据，整合mvc 成功


    在这里插入图片描述


    最后所有的整合三个框架的工作完成。


    如果有静态资源文件（css、html、js），那么放在web目录下 的 创建的static 文件夹下面。

  • 相关阅读:
    Java本地远程断点调试（实战记录）
    React环境搭建
    土豆便宜了吗？python可视化显示价格数据
    工控机通过Profinet转Modbus RTU网关连接变频器与电机通讯案例
    【GUI开发案例】用python爬百度搜索结果，并开发成exe桌面软件！
    keyboard库，keyboard.press(”a“)没有效果的可能原因
    技术分享 | Selenium多浏览器处理
    【R语言简介】
    SpringBoot JWT
    LeetCode算法心得——和可被 K 整除的子数组（前缀和+HashMap）
  • 原文地址：https://blog.csdn.net/rain67/article/details/125532409
