• Stm32_标准库_16_串口&蓝牙模块_手机与蓝牙模块通信_手机传入信息能对芯片时间日期进行更改

    实现了手机发送信息给蓝牙模块，程序对数据进行分析拆解，并更新自身数据

    main.c:

    #include "stm32f10x.h"    // Device header
#include "Delay.h"
#include "OLED.h"
#include "Serial.h"
#include "Time.h"
#include "Function.h"
#include
#include


char *News = NULL;//存数据
unsigned int time[] = {22, 59, 30};
unsigned int date[] = {2023, 12, 31};
char month[] = {0, 31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31};
unsigned int updateTime[] = {0, 0, 0};
unsigned int updateDate[] = {0, 0, 0};

void TIM2_IRQHandler(void){//定时器2
	   //主要运用时间更新
	   if(TIM_GetITStatus(TIM2, TIM_IT_Update) == SET){

			 TIM_ClearITPendingBit(TIM2, TIM_IT_Update);//清除标志位
			 Time_Control(time, month, date);
		 }

}



int main(void){

	OLED_Init();//初始化OLED
  Time_Init();//开启计时器
	Serial_Init();//开启串口
	while(1){
		uint16_t flag = 0;
		if(Serial_GetRxFlag() == 1){
			 Delay_ms(1000);//等待数据传输完
			 News = Serial_returnNews();

			 OLED_ShowString(3, 1, News);
			 if((flag = Function_DateCheck(Serial_GetRFlagTime(), Serial_GetFlagDate())) == 0){//至少得有标志符号
				  OLED_ShowString(4, 1, "error");
			 }
			 else{
				    if(flag == 1){
							if(Function_TimeUpdate(updateTime, time, News) == 1) OLED_ShowString(4, 1, ":RIGHT");//写入
				      else  OLED_ShowString(4, 1, "ERROR");
						}
            else{
							  OLED_ShowString(4, 1, "/RIGHT");
						}
            Function_ArrayReset(updateTime, updateDate);
			 }
			 flag = 0;
			 Serial_RESETI();//I至0
			 Serial_GetRxFlag();//制零否者if循环将会被执行两次
			 free(News);//释放空间必须释放否者发生地址紊乱，直接卡机
		}
		Time_Show(time);
		//Time_Show_Date(date);

	}

}




    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68

    Function.c:

    #include "stm32f10x.h"
#include "Serial.h"
#include "OLED.h"
#include "Delay.h"
//一些函数的实现

void Function_ArrayClear(char *News){//恢复数组初始化
	   uint16_t i = 0;
	   for(i = 0; i < 100; i ++) News[i] = '\0';
}

uint8_t Function_ArrayLength(char * a){//计算数组长度函数
	      uint8_t length = 0;
	      uint8_t i = 0;
	      while(a[i] != '\0'){
					i ++;
					length ++;
				}
				return length;
}


uint8_t Function_DateCheck(uint8_t flagTime, uint8_t flagDate){
	   if(flagDate == flagTime) return 0;
	   if(flagTime == 1) return 1;
	   return 2;
}
uint8_t Function_Numlength(uint16_t num){
	  uint8_t length = 0;
	  if(num == 0) return (uint8_t) 1;
	  while(num > 0){
		   num = num / 10;
		   length = length + 1;
	  }
	  return length;
}
uint8_t Function_TimeDateState(unsigned int *updateTime, char *News){
	      uint8_t cnt = 0;
	      uint8_t i = 0;
	      uint8_t end = Serial_GetI();
	      while(i < end){
					if(News[i] == ':') {
						 cnt ++;
						 i ++;
						 if(cnt >= 3) return 0;
						 continue;
					}

				  updateTime[cnt] = updateTime[cnt] * 10 + (News[i] - '0');
					i ++;
				}
				//OLED_ShowNum(2,1,updateTime[2], 3);
				if(cnt != 2) return 0;
				//OLED_ShowString(2, 10, "here");
			  //OLED_ShowNum(2,1,, 3);
				if(Function_Numlength(updateTime[0]) >= 3 || updateTime[0] > 23) return 0;
				//OLED_ShowString(2, 10, "here");
				if(Function_Numlength(updateTime[1]) >= 3 || updateTime[1] > 59) return 0;
				if(Function_Numlength(updateTime[2]) >= 3 || updateTime[2] > 59) return 0;
				//OLED_ShowString(2, 10, "here");
				return 1;
}

uint8_t Function_TimeUpdate(unsigned int *updateTime, unsigned int *time, char *News){
	   if(Function_TimeDateState(updateTime, News) == 1){
			  uint8_t i = 0;
			  OLED_ShowString(2, 12, "here");
			  while(i < 3){
					   time[i] = updateTime[i];
					   i ++;
				}
				return 1;
		 }
		 return 0;
}

void Function_ArrayReset(unsigned int *updateTime, unsigned int *updateDate){
	   uint8_t i = 0;
	   while(i < 3){
			 updateDate[i] = 0;
			 updateTime[i] = 0;
			 i ++;
		 }
}


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85

    Function.h:

    #ifndef __FUNCTION_H
#define __FUNCTION_H
#include "stm32f10x.h"
#include

void Function_ArrayClear(char *News);
uint8_t Function_ArrayLength(char * a);
uint8_t Function_DateCheck(uint8_t flagDate, uint8_t flagTime);
uint8_t Function_Numlength(uint16_t num);
uint8_t Function_TimeDateState(unsigned int *updateTime, char *News);
uint8_t Function_TimeUpdate(unsigned int *updateTime, unsigned int *time, char *News);
void Function_ArrayReset(unsigned int *updateTime, unsigned int *updateDate);

#endif

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14

    Time.c:

    #include "stm32f10x.h"
#include "OLED.h"

TIM_TimeBaseInitTypeDef TIM_TimeBaseInitStructure;
NVIC_InitTypeDef NVIC_InitStructure;
/*初始化通用定时器TIM2*/
void Time_Init(void){
	   RCC_APB1PeriphClockCmd(RCC_APB1Periph_TIM2, ENABLE);//APB1外设开启

	   TIM_InternalClockConfig(TIM2);//选择内部时钟

	   /*初始化时基单元*/
	   TIM_TimeBaseInitStructure.TIM_ClockDivision = TIM_CKD_DIV1;
	   TIM_TimeBaseInitStructure.TIM_CounterMode = TIM_CounterMode_Up;//向上计数
	   TIM_TimeBaseInitStructure.TIM_Period = 10000 - 1;//ARR自动重装
	   TIM_TimeBaseInitStructure.TIM_Prescaler = 7200 - 1;//psc预分频器
	   TIM_TimeBaseInitStructure.TIM_RepetitionCounter = 0;//高级计时器内容直接给零
	   //记录1s
	   TIM_TimeBaseInit(TIM2, &TIM_TimeBaseInitStructure);//刚初始化完就会进中断

	   TIM_ClearFlag(TIM2, TIM_FLAG_Update);//消除中断标志位
	   //使能更新中断
	   TIM_ITConfig(TIM2, TIM_IT_Update, ENABLE);

	   /*配置中断*/
	   NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2);//选择组2
	   NVIC_InitStructure.NVIC_IRQChannel = TIM2_IRQn;//定时器2在NVIC内的通道
	   NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
	   NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 1;
	   NVIC_InitStructure.NVIC_IRQChannelSubPriority = 1;
		 NVIC_Init(&NVIC_InitStructure);

		 TIM_Cmd(TIM2, ENABLE);//启动定时器
}

void Time_Control(unsigned int *time, char *month, unsigned int *date){//更新时间
	       time[2] = time[2] + 1;
        if(time[2] >= 60){
          time[2] = 0;
          time[1] = time[1] + 1;
          if(time[1] >= 60){
            time[1] = 0;
            time[0] = time[0] + 1;
            if(time[0] >= 24){
              time[0] = 0;
              date[2] = date[2] + 1;
   	          if(date[2] >= month[date[1]] + 1){
   		        date[2] = 1;
   		        date[1] = date[1] + 1;
   		        if(date[1] >= 13){
   		        	date[1] = 1;
   		        	date[0] = date[0] + 1;
   		        	if(date[0] >= 9999){
   		        		date[0] = 2023;
					   }
				   }
	           }
            }
         }
       }


}

void Time_month2_Control(char *month,unsigned int *date){//判别闰平年
	if((date[0] % 4 == 0 && date[0] % 100 != 0 )|| date[0] % 400 == 0) month[2] = 29;
	else month[2] = 28;
}

void Time_Show(unsigned int *time){
	   OLED_ShowNum(1,1,time[0], 2);
	   OLED_ShowString(1, 3, ":");
	   OLED_ShowNum(1,4,time[1], 2);
	   OLED_ShowString(1, 6, ":");
	   OLED_ShowNum(1,7,time[2], 2);
}
void Time_Show_Date(unsigned int *date){
	   OLED_ShowNum(2,1,date[0], 4);
	   OLED_ShowString(2, 5, "/");
	   OLED_ShowNum(2,6,date[1], 2);
	   OLED_ShowString(2, 8, "/");
	   OLED_ShowNum(2,9,date[2], 2);
}



    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85

    Time.h:

    //显示时间&日期
#ifndef __TIME_H
#define __TIME_H
#include "stm32f10x.h"
#include

void Time_Init(void);
void Time_Control(unsigned int *time, char *month, unsigned int *date);
void Time_month2_Control(char *month,unsigned int *date);
void Time_Show(unsigned int *time);
void Time_Show_Date(unsigned int *date);

#endif

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13

    Serial.c:

    #include "stm32f10x.h"                  // Device header
#include
#include
#include "Delay.h"
#include
#include "OLED.h"

uint8_t Serial_RxData;//存数据
uint8_t Serial_RxFlag;//标志位
GPIO_InitTypeDef GPIO_InitStructu;//GPIO
USART_InitTypeDef USART_InitStructure;//串口
NVIC_InitTypeDef NVIC_InitStructur;//中断
char news[100] = "";//存数据
uint8_t I = 0;
uint8_t flagDate = 0;//标志是否传入日期数据
uint8_t flagTime = 0;//标志是否传入时间数据


void Serial_Init(void)
{
	RCC_APB2PeriphClockCmd(RCC_APB2Periph_USART1, ENABLE);
	RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA, ENABLE);


	GPIO_InitStructu.GPIO_Mode = GPIO_Mode_AF_PP;
	GPIO_InitStructu.GPIO_Pin = GPIO_Pin_9;
	GPIO_InitStructu.GPIO_Speed = GPIO_Speed_50MHz;
	GPIO_Init(GPIOA, &GPIO_InitStructu);

	GPIO_InitStructu.GPIO_Mode = GPIO_Mode_IPU;
	GPIO_InitStructu.GPIO_Pin = GPIO_Pin_10;
	GPIO_InitStructu.GPIO_Speed = GPIO_Speed_50MHz;
	GPIO_Init(GPIOA, &GPIO_InitStructu);



	USART_InitStructure.USART_BaudRate = 9600;
	USART_InitStructure.USART_HardwareFlowControl = USART_HardwareFlowControl_None;
	USART_InitStructure.USART_Mode = USART_Mode_Tx | USART_Mode_Rx;
	USART_InitStructure.USART_Parity = USART_Parity_No;
	USART_InitStructure.USART_StopBits = USART_StopBits_1;
	USART_InitStructure.USART_WordLength = USART_WordLength_8b;
	USART_Init(USART1, &USART_InitStructure);




	USART_ITConfig(USART1, USART_IT_RXNE, ENABLE);

	NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2);//通道


	NVIC_InitStructur.NVIC_IRQChannel = USART1_IRQn;//中断通道
	NVIC_InitStructur.NVIC_IRQChannelCmd = ENABLE;
	NVIC_InitStructur.NVIC_IRQChannelPreemptionPriority = 3;
	NVIC_InitStructur.NVIC_IRQChannelSubPriority = 1;
	NVIC_Init(&NVIC_InitStructur);

	USART_Cmd(USART1, ENABLE);
}


uint8_t Serial_GetRxFlag(void)//读取标志位后自动青除
{
	if (Serial_RxFlag == 1)
	{
		Serial_RxFlag = 0;
		return 1;
	}
	return 0;
}

uint8_t Serial_GetFlagDate(void)//读取标志位后自动青除
{
	if (flagDate == 1)
	{
		flagDate = 0;
		return 1;
	}
	return 0;
}

uint8_t Serial_GetRFlagTime(void)//读取标志位后自动青除
{
	if (flagTime == 1)
	{
		flagTime = 0;
		return 1;
	}
	return 0;
}

void Serial_GetRxFlag_SET(void){
	   Serial_RxFlag = 1;
}

char * Serial_returnNews(void){//返还一个数组
	     char * array;
	     //int j = I;
	     uint8_t i = 0;
	     array = (char *) malloc(sizeof(char) * 100);
	     while(i < I){
				    if(news[i] == '/') flagDate = 1;
				    if(news[i] == ':') flagTime = 1;
				    array[i] = news[i];
				    i ++;
			 }
			 return array;
}

void Serial_RESETI(void){//初始化I
	   I = 0;
}

uint8_t Serial_GetI(void){//返回I
	   return I;
}

void USART1_IRQHandler(void)//中断函数
{

	if (USART_GetITStatus(USART1, USART_IT_RXNE) == SET)
	{
		news[I] = USART_ReceiveData(USART1);//读数据
		Serial_RxFlag = 1;//至标志位为有数据
		I ++;
		USART_ClearITPendingBit(USART1, USART_IT_RXNE);

	}
}



    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99
    • 100
    • 101
    • 102
    • 103
    • 104
    • 105
    • 106
    • 107
    • 108
    • 109
    • 110
    • 111
    • 112
    • 113
    • 114
    • 115
    • 116
    • 117
    • 118
    • 119
    • 120
    • 121
    • 122
    • 123
    • 124
    • 125
    • 126
    • 127
    • 128
    • 129
    • 130
    • 131
    • 132

    Serial.h:

    #ifndef __SERIAL_H
#define __SERIAL_H
#include "stm32f10x.h"
#include

void Serial_Init(void);
uint8_t Serial_GetRxFlag(void);
uint8_t Serial_GetRxData(void);
void Serial_GetRxFlag_SET(void);
char * Serial_returnNews(void);
void Serial_RESETI(void);
uint8_t Serial_GetI(void);
uint8_t Serial_GetRFlagTime(void);
uint8_t Serial_GetFlagDate(void);

#endif


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17

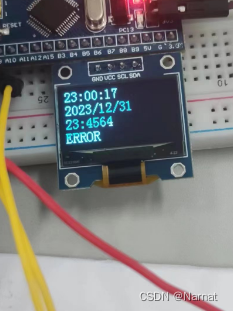

    效果：

    在这里插入图片描述
    在这里插入图片描述

    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述
    时间 + 日期

    main.c:

    #include "stm32f10x.h"    // Device header
#include "Delay.h"
#include "OLED.h"
#include "Serial.h"
#include "Time.h"
#include "Function.h"
#include
#include


char *News = NULL;//存数据
unsigned int time[] = {22, 59, 30};
unsigned int date[] = {2023, 12, 31};
char month[] = {0, 31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31};
unsigned int updateTime[] = {0, 0, 0};
unsigned int updateDate[] = {0, 0, 0};

void TIM2_IRQHandler(void){//定时器2
	   //主要运用时间更新
	   if(TIM_GetITStatus(TIM2, TIM_IT_Update) == SET){

			 TIM_ClearITPendingBit(TIM2, TIM_IT_Update);//清除标志位
			 Time_Control(time, month, date);
		 }

}



int main(void){

	OLED_Init();//初始化OLED
  Time_Init();//开启计时器
	Serial_Init();//开启串口
	while(1){
		uint16_t flag = 0;
		Time_month2_Control(month, date);
		if(Serial_GetRxFlag() == 1){
			 Delay_ms(1000);//等待数据传输完
			 News = Serial_returnNews();

			 OLED_ShowString(3, 1, News);
			 if((flag = Function_DateCheck(Serial_GetRFlagTime(), Serial_GetFlagDate())) == 0){//至少得有标志符号
				  OLED_ShowString(4, 1, "error");
			 }
			 else{
				    if(flag == 1){
							if(Function_TimeUpdate(updateTime, time, News) == 1) OLED_ShowString(4, 1, ":RIGHT");//写入
				      else  OLED_ShowString(4, 1, "ERROR");
						}
            else{
							  if(Function_DateUpdate(updateDate,date,News) == 1)OLED_ShowString(4, 1, "/RIGHT");
							  else
									  OLED_ShowString(4, 1, "ERROr");
						}
            Function_ArrayReset(updateTime, updateDate);
			 }
			 Serial_RESETI();//I至0
			 Serial_GetRxFlag();//制零否者if循环将会被执行两次
			 free(News);//释放空间必须释放否者发生地址紊乱，直接卡机
		}
		Time_Show(time);
		Time_Show_Date(date);

	}

}



    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69

    Function.c:

    #include "stm32f10x.h"
#include "Serial.h"
#include "OLED.h"
#include "Delay.h"
//一些函数的实现

void Function_ArrayClear(char *News){//恢复数组初始化
	   uint16_t i = 0;
	   for(i = 0; i < 100; i ++) News[i] = '\0';
}

uint8_t Function_ArrayLength(char * a){//计算数组长度函数
	      uint8_t length = 0;
	      uint8_t i = 0;
	      while(a[i] != '\0'){
					i ++;
					length ++;
				}
				return length;
}


uint8_t Function_DateCheck(uint8_t flagTime, uint8_t flagDate){
	   if(flagDate == flagTime) return 0;
	   if(flagTime == 1) return 1;
	   return 2;
}
uint8_t Function_Numlength(uint16_t num){
	  uint8_t length = 0;
	  if(num == 0) return (uint8_t) 1;
	  while(num > 0){
		   num = num / 10;
		   length = length + 1;
	  }
	  return length;
}
uint8_t Function_TimeDateState(unsigned int *updateTime, char *News){
	      uint8_t cnt = 0;
	      uint8_t i = 0;
	      uint8_t end = Serial_GetI();
	      while(i < end){
					if(News[i] == ':') {
						 cnt ++;
						 i ++;
						 if(cnt >= 3) return 0;
						 continue;
					}

				  updateTime[cnt] = updateTime[cnt] * 10 + (News[i] - '0');
					i ++;
				}

				if(cnt != 2) return 0;

				if(Function_Numlength(updateTime[0]) >= 3 || updateTime[0] > 23) return 0;

				if(Function_Numlength(updateTime[1]) >= 3 || updateTime[1] > 59) return 0;
				if(Function_Numlength(updateTime[2]) >= 3 || updateTime[2] > 59) return 0;

				return 1;
}

uint8_t Function_TimeUpdate(unsigned int *updateTime, unsigned int *time, char *News){
	   if(Function_TimeDateState(updateTime, News) == 1){
			  uint8_t i = 0;
			  //OLED_ShowString(2, 12, "here");
			  while(i < 3){
					   time[i] = updateTime[i];
					   i ++;
				}
				return 1;
		 }
		 return 0;
}

void Function_ArrayReset(unsigned int *updateTime, unsigned int *updateDate){
	   uint8_t i = 0;
	   while(i < 3){
			 updateDate[i] = 0;
			 updateTime[i] = 0;
			 i ++;
		 }
}

uint8_t Function_DateState(unsigned int *updateDate, char *News){
	      uint8_t cnt = 0;
	      uint8_t i = 0;
	      uint8_t end = Serial_GetI();
	      char month[] = {0, 31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31};
	      while(i < end){
					if(News[i] == '/') {
						 cnt ++;
						 i ++;
						 if(cnt >= 3) {

							 return 0;
						 }
						 continue;
					}
					updateDate[cnt] = updateDate[cnt]* 10 + (News[i] - '0');
					i ++;
        }

				if(cnt != 2) return 0;

				if(Function_Numlength(updateDate[0]) >= 5 || updateDate[0] > 9999 || updateDate[0] == 0) return 0;

				if((updateDate[0] % 4 == 0 && updateDate[0] % 100 != 0 )|| updateDate[0] % 400 == 0) month[2] = 29;
	      else month[2] = 28;

				if(Function_Numlength(updateDate[1]) >= 3 || updateDate[1] > 12 || updateDate[1] == 0) return 0;
				if(Function_Numlength(updateDate[2]) >= 3 || updateDate[2] > month[updateDate[1]]|| updateDate[2] == 0) return 0;

				return 1;

}

uint8_t Function_DateUpdate(unsigned int *updateDate, unsigned int *date, char *News){
	   if(Function_DateState(updateDate, News) == 1){
			  uint8_t i = 0;

			  while(i < 3){
					   date[i] = updateDate[i];
					   i ++;
				}
				return 1;
		 }
		 return 0;
}



    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99
    • 100
    • 101
    • 102
    • 103
    • 104
    • 105
    • 106
    • 107
    • 108
    • 109
    • 110
    • 111
    • 112
    • 113
    • 114
    • 115
    • 116
    • 117
    • 118
    • 119
    • 120
    • 121
    • 122
    • 123
    • 124
    • 125
    • 126
    • 127
    • 128
    • 129
    • 130
    • 131

    Function.h:

    #ifndef __FUNCTION_H
#define __FUNCTION_H
#include "stm32f10x.h"
#include

void Function_ArrayClear(char *News);
uint8_t Function_ArrayLength(char * a);
uint8_t Function_DateCheck(uint8_t flagDate, uint8_t flagTime);
uint8_t Function_Numlength(uint16_t num);
uint8_t Function_TimeDateState(unsigned int *updateTime, char *News);
uint8_t Function_TimeUpdate(unsigned int *updateTime, unsigned int *time, char *News);
void Function_ArrayReset(unsigned int *updateTime, unsigned int *updateDate);
uint8_t Function_DateState(unsigned int *updateDate, char *News);
uint8_t Function_DateUpdate(unsigned int *updateDate, unsigned int *date, char *News);

#endif

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16

    效果：

    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述

    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述

  • 相关阅读:
    docker - DockerFile 编写 指令
    云网络技术的好处以及类型
    nacos适配达梦、瀚高、人大金仓数据库及部分源码探究
    从任正非的内部信，看系统开发公司如何度过寒冬
    【华为机试真题 JAVA】按索引范围翻转文章片段-100
    黑苹果N卡显卡驱动，10.13.6
    故障代码表
    数字化开采|AIRIOT智慧矿山自动化生产解决方案
    03. C语言编写LED
    Linux学习笔记
  • 原文地址：https://blog.csdn.net/xyint/article/details/133869043
