python pytorch- TextCNN TextRNN FastText Transfermer （中英文）文本情感分类实战（附数据集，代码皆可运行）

python pytorch- TextCNN TextRNN FastText Transfermer 文本情感分类实战（附数据集，代码皆可运行）

注：本次实验，主要注重代码实现这些模型，博主的数据集质量较差，模型评估效果并不是十分理想，后续同学们可以自行使用自己的数据集去运行这些模型，训练自己的优质模型。数据集我会上传到我得资源当中，大家可以自行下载。

最近博主做了基于深度学习的文本情感分类的实验，在这个实验中，我们用到了四个比较热门的深度学习文本分类模型TextCNN TextRNN FastText Transfermer 。使用的是pytorch框架实现的。

在这篇博文中，博主不会介绍这些模型的数学原理，主要还是讲可运行的代码放在这篇博文里。
这篇博客分为如下几个部分

1.数据集介绍

2.数据集预处理思路简要介绍和实现代码

3.TextCNN 文本分类实战

4.TextRNN 文本分类实战

5.FastText 文本分类实战

6.Transfermer 文本分类实战

1.数据集介绍

如下是我们的数据集：

数据集由六个txt文件组成，如下图：
分别是三个训练集文件和三个测试集文件，三个训练集文件分别对应消极、积极、中性的三种文本数据。同理三个测试机文件也分别对应消极、积极、中性的三种文本数据。

其中每一个数据集都是一个一个的句子组成，每个句子占一行。
如下：

只有stopwrods.txt比较特别：

其实由一个个的停用词组成，每一行为一个停用词。
建议大家可以下载我得数据集，也可以在私聊我，我可以将数据集发给你们。

2.数据集预处理思路简要介绍和实现代码

（1）将句子通过jieba库进行分词操作。
（2）另外在数据处理过程中我们使用了停用词库。
（3）由于文本分词之后长度不一，但是使用的四个模型都要求长度统一的文本，所以我们对分词之后的单词列表进行调整，为了尽量不是数据丢失，我们将一个句子单词数量设定为20，对于单词小于20的句子进行补足，补‘#’单词，对于单词数量大于20的句子，我们进行裁剪，一般裁剪前20个单词。
（4）考到模型的特性，一般情况下，如果单词小于20，我们是在末尾进行‘#’补足,但是对于TextRNN，考虑到其对信息的记忆，在开头进行‘#’补足，这样，可以更多关注后续的信息。
（5）对于停用词集，我们根据数据集，也自己添加了一部分停用词。

这里我们附上我们的数据预处理代码：

import os

import jieba
import re

string = "This is a string with 12345 numbers"



path=r"D:\work\10-5\use_data"

def get_stop_words():
    file_object = open(r'D:\work\10-5\use_data\stopwords.txt',encoding='utf-8')

    stop_words = []
    for line in file_object.readlines():
        line = line[:-1]
        line = line.strip()
        stop_words.append(line)
    return stop_words
stop_words=get_stop_words()
stop_words.append('%')
stop_words.append('\n')
#print(stop_words)
def get_data():
    setences=[]
    label=[]
    setences_test=[]
    label_test=[]
    for file in os.listdir(path):
        print(file)
        if file.startswith('s')==False and 'train' in file:

            fp=open(path+'//'+file,encoding='utf8')
            for line in fp.readlines():
                if file.startswith('zp'):
                     label.append(0)
                if file.startswith('zs'):
                    label.append(1)
                if file.startswith('zn'):
                    label.append(2)
                line = re.sub(r'\d+', '', line)
                words=jieba.lcut(line, cut_all=False)
                words_s=[ i for i in words if i not in stop_words]
                if len(words_s)<=20:
                    for i in range(20-len(words_s)):
                        words_s=['#']+words_s
                else:
                    words_s=words_s[0:20]

            #    print(words_s)
                words_s=" ".join(words_s)
              #  print(words_s)
                setences.append(words_s)
            fp.close()
        if file.startswith('s')==False and 'test' in file:

            fp=open(path+'//'+file,encoding='utf8')
            for line in fp.readlines():
                if file.startswith('zp'):
                     label_test.append(0)
                if file.startswith('zs'):
                    label_test.append(1)
                if file.startswith('zn'):
                    label_test.append(2)
                line = re.sub(r'\d+', '', line)
                words=jieba.lcut(line, cut_all=False)
                words_s=[ i for i in words if i not in stop_words]

            #    print(words_s)
                if len(words_s)<20:
                    for i in range(20-len(words_s)):
                        words_s=['#']+words_s
                else:
                    words_s=words_s[0:20]




                words_s=" ".join(words_s)
                print(words_s)
                setences_test.append(words_s)
            fp.close()
    return setences,label,setences_test,label_test




1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88

3.TextCNN 文本分类实战

在这个算法中，对每个单词赋予一个随机的词向量，让后堆叠成图像那样的二维矩阵，之后使用卷积神经网络的方式，对其进行卷积操作。模型如下图：

模型我们就不介绍了，这里我们直接附上实现代码，并且该代码还涉及模型评估的代码：

#coding=gbk
from cgi import test
import torch
import numpy as np
import torch.nn as nn
import torch.optim as optim
import torch.utils.data as Data
import torch.nn.functional as F
from data_process import get_data
dtype = torch.FloatTensor
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
# 3 words sentences (=sequence_length is 3)
import matplotlib.pyplot as plt

sentences,labels,setences_test,label_test=get_data()
print(sentences,labels)
#sentences = ["i love you", "he loves me", "she likes baseball", "i hate you", "sorry for that", "this is awful"]
#labels = [1, 1, 1, 0, 0, 0]  # 1 is good, 0 is not good.

embedding_size = 100
num_classes = len(set(labels))
batch_size = 10
classnum=3
sequence_length = 20
word_list = " ".join(sentences).split()
word_list2 = " ".join(setences_test).split()
vocab = list(set(word_list+word_list2))

word2idx = {w:i for i,w in enumerate(vocab)}

vocab_size = len(vocab)

def make_data(sentences, labels):
    inputs = []
    for sen in sentences:
        l=[word2idx[n] for n in sen.split()]
        if len(l)<sequence_length:
            length=len(l)

            for i in range(sequence_length-length):
                l.append(0)


            inputs.append(l)
        else:
            inputs.append(l[0:sequence_length])


    targets = []
    for out in labels:
        targets.append(out)

    return inputs, targets

input_batch, target_batch = make_data(sentences, labels)


print(input_batch, target_batch)
print("fdsfafas")
input_batch= torch.LongTensor(input_batch)
target_batch= torch.LongTensor(target_batch)

print("*"*100)
print(input_batch.size(),target_batch.size())

dataset = Data.TensorDataset(input_batch,target_batch)
loader = Data.DataLoader(dataset, batch_size, True)
epoch=100
class TextCNN(nn.Module):

    def __init__(self):
        super(TextCNN, self).__init__()
        self.W = nn.Embedding(vocab_size, embedding_size)
        output_channel = 3
        self.conv = nn.Sequential(nn.Conv2d(1, output_channel, kernel_size=(4,embedding_size)), # inpu_channel, output_channel, 卷积核高和宽 n-gram 和 embedding_size
                                nn.ReLU(),
                                nn.MaxPool2d((2,1)))
        self.fc = nn.Linear(24,num_classes)

    def forward(self, X):
      '''
      X: [batch_size, sequence_length]
      '''
      batch_size = X.shape[0]
      embedding_X = self.W(X) # [batch_size, sequence_length, embedding_size]
      embedding_X = embedding_X.unsqueeze(1) # add channel(=1) [batch, channel(=1), sequence_length, embedding_size]
      conved = self.conv(embedding_X) # [batch_size, output_channel,1,1]
      flatten = conved.view(batch_size, -1)# [batch_size, output_channel*1*1]
      output = self.fc(flatten)
      return output


model = TextCNN().to(device)
criterion = nn.CrossEntropyLoss().to(device)
optimizer = optim.Adam(model.parameters(), lr=1e-3)
loss_list=[]
# Training
for epoch in range(epoch):
  for batch_x, batch_y in loader:
    batch_x, batch_y = batch_x.to(device), batch_y.to(device)
    pred = model(batch_x)
    loss = criterion(pred, batch_y)
    loss_list.append(loss)
    if (epoch + 1) % 5 == 0:
        print('Epoch:', '%04d' % (epoch + 1), 'loss =', '{:.6f}'.format(loss))

    optimizer.zero_grad()
    loss.backward()
    optimizer.step()

#test



input_batch, target_batch = make_data(setences_test, label_test)

print(input_batch, target_batch)
print("fdsfafas")
input_batch= torch.LongTensor(input_batch)
target_batch= torch.LongTensor(target_batch)

print("*"*100)
print(input_batch.size(),target_batch.size())

dataset = Data.TensorDataset(input_batch,target_batch)
loader = Data.DataLoader(dataset, batch_size, True)
test_loss = 0
correct = 0
total = 0
target_num = torch.zeros((1,classnum))
predict_num = torch.zeros((1,classnum))
acc_num = torch.zeros((1,classnum))
for batch_x, batch_y in loader:
    batch_x, batch_y = batch_x.to(device), batch_y.to(device)
    pred = model(batch_x)
    loss = criterion(pred, batch_y)

    print('Epoch:', '%04d' % (epoch + 1), 'loss =', '{:.6f}'.format(loss))
    print(pred.argmax(1))
    print(batch_y)
    test_loss += loss
    _, predicted = torch.max(pred.data, 1)
    total += batch_y.size(0)
    correct += predicted.eq(batch_y.data).cpu().sum()
    pre_mask = torch.zeros(pred.size()).scatter_(1, predicted.cpu().view(-1, 1), 1.)
    predict_num += pre_mask.sum(0)
    tar_mask = torch.zeros(pred.size()).scatter_(1, batch_y.data.cpu().view(-1, 1), 1.)
    target_num += tar_mask.sum(0)
    acc_mask = pre_mask*tar_mask
    acc_num += acc_mask.sum(0)

recall = acc_num/target_num
precision = acc_num/predict_num
F1 = 2*recall*precision/(recall+precision)
accuracy = acc_num.sum(1)/target_num.sum(1)
recall = (recall.numpy()[0]*100).round(3)
precision = (precision.numpy()[0]*100).round(3)
F1 = (F1.numpy()[0]*100).round(3)
accuracy = (accuracy.numpy()[0]*100).round(3)
# 打印格式方便复制
print('recall'," ".join('%s' % id for id in recall))
print('precision'," ".join('%s' % id for id in precision))
print('F1'," ".join('%s' % id for id in F1))
print('accuracy',accuracy)
plt.plot(loss_list,label='TextCNN')
plt.legend()
plt.title('loss-epoch')
plt.show()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168

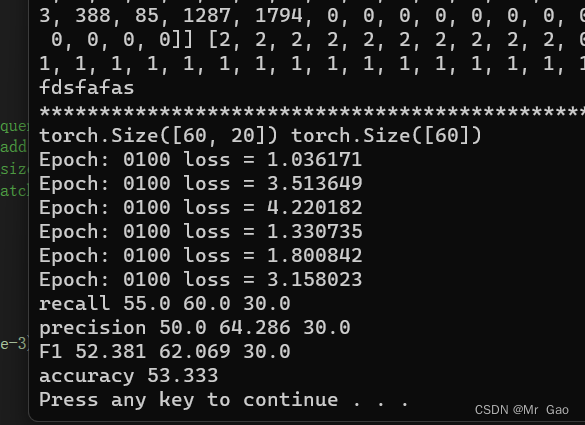

模型跑出的结果如下：

3.TextRNN 文本分类实战

在这个算法中，进行Word Embedding后，输入到双向LSTM中，然后对最后一位的输出输入到全连接层中，在对其进行softmax分类即可，模型如下图：

网络结构图如下：

代码如下

#coding=gbk
from cgi import test
import torch
import numpy as np
import torch.nn as nn
import torch.optim as optim
import torch.utils.data as Data
import torch.nn.functional as F
from data_process import get_data
dtype = torch.FloatTensor
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
# 3 words sentences (=sequence_length is 3)

import matplotlib.pyplot as plt

def make_data(sentences):
    input_data = []
    input_label = []
    for sen in sentences:
        words = sen.split()
        input_data_tmp = [word2id[i] for i in words[:-1]]
        input_label_tmp = word2id[words[-1]]
        input_data.append(np.eye(vocab_size)[input_data_tmp])
        input_label.append(input_label_tmp)

    return input_data, input_label



class TextRNN(nn.Module):
    def __init__(self):
        super(TextRNN, self).__init__()
        # 每个词向量的维度是词表长度，隐藏层输出特征大小是n_hidden
        self.rnn = nn.RNN(input_size=vocab_size, hidden_size=n_hidden)
        self.fc = nn.Linear(n_hidden, vocab_size)

    def forward(self, h0, X):
        # X: [batch_size, n_step, vocab_size]
        the_input = X.transpose(0, 1)  # RNN需要的数据得一二维度转置一下
        # RNN的输入是X和
        # RNN层会返回所有x1,x2对应的输出为out,我们只取最后一个输出
        # hidden是最后一个词计算得到的隐藏状态（符号RNN的图）
   #     print("fds",the_input.size(),h0.size())

        out, hidden = self.rnn(the_input, h0)
        out = out[-1]
        res = self.fc(out)
        return res


if __name__ == '__main__':

    # 准备一些简单的数据
    sentences,labels,setences_test,label_test=get_data()
    print(sentences,labels)

    #sentences = ["i love you", "he loves me", "she likes baseball", "i hate you", "sorry for that", "this is awful"]
    #labels = [1, 1, 1, 0, 0, 0]  # 1 is good, 0 is not good.

    for i in range(len(sentences)):
        sentences[i]=sentences[i]+' '+str(labels[i])
    for i in range(len(setences_test)):
        setences_test[i]=setences_test[i]+' '+str(label_test[i])

    embedding_size = 100
    sequence_length = 20
    num_classes = len(set(labels))
    batch_size = 10

    word_list = " ".join(sentences).split()
    word_list2 = " ".join(setences_test).split()
    word_list=['0','1','2']+word_list
    vocab = list(set(word_list+word_list2))


    epoch=100



    n_step = 20   # n_step是输入的话的x部分的长度，因为我们的话只有三个单词所以就是2
    n_hidden = 100  # 隐藏输出特征的大小



    word2id = {w: i for i, w in enumerate(vocab)}
    id2word = {i: w for i, w in enumerate(vocab)}


    vocab_size = len(vocab)



    # 构造dataset, dataloader
    input_data, input_label = make_data(sentences)
   # print( input_data, input_label)
    #for i in input_data[0:10]:
    #    print(i)
    #    print(i[0])
    #    print(len(i))

    input_data = torch.Tensor(input_data)
    input_label= torch.LongTensor(input_label)



    dataset = Data.TensorDataset(input_data, input_label)
    # 此时得到的输入数据是index形式的，不是向量形式
    dataloader = Data.DataLoader(dataset, batch_size, True)

    model = TextRNN()
    criterion = nn.CrossEntropyLoss()
    optimizer = optim.Adam(model.parameters(), lr=0.001)
    loss_list=[]
    # 训练部分
    for i in range(epoch):
        for x, y in dataloader:
            h0 = torch.zeros(1, x.shape[0], n_hidden)

            pred = model(h0, x)
            loss = criterion(pred, y)
            loss_list.append(loss)
            if (i + 1) % 5 == 0:
                print("epoch: ", '%04d' % (epoch + 1), 'cost =', '{:.6f}'.format(loss))

            optimizer.zero_grad()
            loss.backward()
            optimizer.step()

# input = [sen.split()[:2] for sen in sentences]
# # Predict
# hidden = torch.zeros(1, len(input), n_hidden)
# predict = model(hidden, input_data).data.max(1, keepdim=True)[1]
# print([sen.split()[:2] for sen in sentences], '->', [id2word[n.item()] for n in predict.squeeze()])
#test


input_data, input_label  = make_data(setences_test)



   # print( input_data, input_label)
    #for i in input_data[0:10]:
    #    print(i)
    #    print(i[0])
    #    print(len(i))

input_data = torch.Tensor(input_data)
input_label= torch.LongTensor(input_label)



dataset = Data.TensorDataset(input_data, input_label)
    # 此时得到的输入数据是index形式的，不是向量形式
dataloader = Data.DataLoader(dataset, batch_size, True)
print("fdsfafas")

classnum=3
test_loss = 0
correct = 0
total = 0
target_num =[0,0,0]
predict_num = [0,0,0]
acc_num =[0,0,0]

for x, y in dataloader:

    h0 = torch.zeros(1, x.shape[0], n_hidden)

    pred = model(h0, x)


    loss = criterion(pred, y)
    if (epoch + 1) % 5 == 0:
             print("epoch: ", '%04d' % (epoch + 1), 'cost =', '{:.6f}'.format(loss))




    for i in y:
        target_num[int(id2word[int(i)])]+=1


    test_loss += loss
    p=0
    for i in pred:

        print(i.argmax())
        index=int(i.argmax())
        if id2word[index] in ['0','1','2']:
            predict_num[int(id2word[index])]+=1
        print(id2word[index],id2word[p])
        if index==int(y[p]):
            p=p+1
            acc_num[int(id2word[index])]+=1


    print(y)

recall = [acc_num[i]/target_num[i] for i in range(3)]
precision = [acc_num[i]/predict_num[i] for i in range(3)]
F1 = [2*recall[i]*precision[i]/(recall[i]+precision[i]) for i in range(3)]
accuracy = sum(acc_num)/sum(target_num)

# 打印格式方便复制
print('recall'," ".join('%s' % id for id in recall))
print('precision'," ".join('%s' % id for id in precision))
print('F1'," ".join('%s' % id for id in F1))
print('accuracy',accuracy)
plt.plot(loss_list,label='TextRNN')
plt.legend()
plt.title('loss-epoch')
plt.show()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212

评估结果：

5.FastText 文本分类实战

FastText使用x1,x2…xn表示一个ngram向量，其使用多个向量来表示一个词，然后再使用全部的ngram去预测指定的类别。
网络结构如下：

实现代码如下：

#coding=gbk

import torch
import torch.nn as nn
import torch.optim as optim
import pandas as pd
import numpy as np
from data_process import get_data
import matplotlib.pyplot as plt
loss_list=[]
class FastText(nn.Module):
    def __init__(self, vocab, w2v_dim, classes, hidden_size):
        super(FastText, self).__init__()
        #创建embedding
        self.embed = nn.Embedding(len(vocab), w2v_dim)  #embedding初始化，需要两个参数，词典大小、词向量维度大小
        self.embed.weight.requires_grad = True #需要计算梯度，即embedding层需要被训练
        self.fc = nn.Sequential(              #序列函数
            nn.Linear(w2v_dim, hidden_size),  #这里的意思是先经过一个线性转换层
            nn.BatchNorm1d(hidden_size),      #再进入一个BatchNorm1d
            nn.ReLU(inplace=True),            #再经过Relu激活函数
            nn.Linear(hidden_size, classes)#最后再经过一个线性变换
        )
    def forward(self, x):
        x = self.embed(x.type(dtype=torch.LongTensor))                     #先将词id转换为对应的词向量
        out = self.fc(torch.mean(x, dim=1))   #这使用torch.mean()将向量进行平均
        return out
def train_model(net, epoch, lr, data, label):      #训练模型
    print("begin training")
    net.train()  # 将模型设置为训练模式，很重要！
    optimizer = optim.Adam(net.parameters(), lr=lr) #设置优化函数
    Loss = nn.CrossEntropyLoss()  #设置损失函数
    for i in range(epoch):  # 循环
        optimizer.zero_grad()  # 清除所有优化的梯度
        output = net(data)  # 传入数据，前向传播，得到预测结果
        loss = Loss(output, label) #计算预测值和真实值之间的差异，得到loss
        loss_list.append(loss)
        loss.backward() #loss反向传播
        optimizer.step() #优化器优化参数

        # 打印状态信息
        print("train epoch=" + str(i) + ",loss=" + str(loss.item()))
    print('Finished Training')

predict_list=[]
def model_test(net, test_data, test_label):
    net.eval()  # 将模型设置为验证模式
    correct = 0
    total = 0
    with torch.no_grad():
        outputs = net(test_data)
        # torch.max()[0]表示最大值的值，troch.max()[1]表示回最大值的每个索引
        _, predicted = torch.max(outputs.data, 1)  # 每个output是一行n列的数据，取一行中最大的值

        total += test_label.size(0)
        print(test_label)
        print(predicted)
        predict_list.append(predicted)
       # correct += (predicted == test_label).sum().item()

        correct += (predicted == test_label).sum().item()
        print('Accuracy: %d %%' % (100 * correct / total))


if __name__ == "__main__":
    #这里没有写具体数据的处理方法，毕竟大家所做的任务不一样


    sentences,labels,setences_test,label_test=get_data()
    print(sentences,labels)

    #sentences = ["i love you", "he loves me", "she likes baseball", "i hate you", "sorry for that", "this is awful"]
    #labels = [1, 1, 1, 0, 0, 0]  # 1 is good, 0 is not good.

    #for i in range(len(sentences)):
    #    sentences[i]=sentences[i]+' '+str(labels[i])
    #for i in range(len(setences_test)):
    #    setences_test[i]=setences_test[i]+' '+str(label_test[i])




    word_list = " ".join(sentences).split()
    word_list2 = " ".join(setences_test).split()
    word_list=['0','1','2']+word_list
    vocab = list(set(word_list+word_list2))
    vocab_size=len(vocab)
    batch_size = 64
    epoch = 1000  # 迭代次数
    w2v_dim = 300  # 词向量维度
    lr = 0.001
    hidden_size = 128
    classes = len(set(labels))
    word2id = {w: i for i, w in enumerate(vocab)}
    id2word = {i: w for i, w in enumerate(vocab)}
    sequence_length=20



    def make_data(sentences, labels):
        inputs = []
        for sen in sentences:
            l=[word2id[n] for n in sen.split()]
            if len(l)<sequence_length:
                length=len(l)

                for i in range(sequence_length-length):
                    l.append(0)


                inputs.append(l)
            else:
                inputs.append(l[0:sequence_length])


        targets = []
        print("labels",labels)
        for out in labels:
            targets.append(out)

        return inputs, targets


    input_data, input_label = make_data(sentences,labels)
   # print( input_data, input_label)
    #for i in input_data[0:10]:
    #    print(i)
    #    print(i[0])
    #    print(len(i))

    input_data = torch.Tensor(input_data)
    input_label= torch.LongTensor(input_label)
    # 定义模型
    net = FastText(vocab=vocab, w2v_dim=w2v_dim, classes=classes, hidden_size=hidden_size)

    # 训练
    print("开始训练模型")
    train_model(net, epoch, lr, input_data, input_label)
    # 保存模型
    print("开始测试模型")



    input_data, input_label= make_data(setences_test,label_test)



       # print( input_data, input_label)
        #for i in input_data[0:10]:
        #    print(i)
        #    print(i[0])
        #    print(len(i))

    input_data = torch.Tensor(input_data)
    input_label= torch.LongTensor(input_label)
    model_test(net, input_data, input_label)
test_loss = 0
correct = 0
total = 0
target_num =[0,0,0]
predict_num = [0,0,0]
p=0
acc_num =[0,0,0]

for i in label_test:
    target_num[i]+=1

for i in predict_list[0]:

        print(i.argmax())
        index=int(i)
        if index in [0,1,2]:
            predict_num[index]+=1
        print(id2word[index],id2word[p])

        if index==label_test[p]:


            acc_num[index]+=1
        p=p+1


recall = [acc_num[i]/target_num[i] for i in range(3)]
precision = [acc_num[i]/predict_num[i] for i in range(3)]
F1 = [2*recall[i]*precision[i]/(recall[i]+precision[i]) for i in range(3)]
accuracy = sum(acc_num)/sum(target_num)


plt.plot(loss_list,label='FastText')
plt.legend()
plt.title('loss-epoch')
plt.show()

# 打印格式方便复制
print('recall'," ".join('%s' % id for id in recall))
print('precision'," ".join('%s' % id for id in precision))
print('F1'," ".join('%s' % id for id in F1))
print('accuracy',accuracy)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197

评估结果：

6.Transfermer 文本分类实战

对于Transfermer算法，我们将其decoder的输入用特殊字符#代替，这样其原本的翻译模型也可以修改为分类模型了。
其网络结构图如下：

Transfermer的代码比较多：

#coding=gbk

from cgi import test
import torch
import numpy as np
import torch.nn as nn
import torch.optim as optim
import torch.utils.data as Data
import torch.nn.functional as F
import matplotlib.pyplot as plt

from data_process import get_data
dtype = torch.FloatTensor
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
# 3 words sentences (=sequence_length is 3)
# S: Symbol that shows starting of decoding input
# E: Symbol that shows starting of decoding output
# P: Symbol that will fill in blank sequence if current batch data size is short than time steps
sentencesz,labels,setences_test,label_test=get_data()
sentences_t=[]
for i in range(len(sentencesz)):
    a=[]
    sentencesz[i]=' '.join(sentencesz[i].split())
    a.append(sentencesz[i])
    a.append('#')
    a.append(str(labels[i]))
    sentences_t.append(a)


print(sentences_t)

sentences=sentences_t



word_list = " ".join(sentencesz).split()
word_list2 = " ".join(setences_test).split()
word_list=word_list
vocab = list(set(word_list+word_list2))

# Padding Should be Zero
#src_vocab = {'P' : 0, 'ich' : 1, 'mochte' : 2, 'ein' : 3, 'bier' : 4, 'cola' : 5}


src_vocab = {w: i for i, w in enumerate(vocab)}

src_vocab_size = len(src_vocab)

tgt_vocab = {'0' : 0, '1' : 1, '2' : 2, '#' : 3}

setences_test_z=[]
for i in range(len(setences_test)):
    a=[]
    setences_test[i]=' '.join(setences_test[i].split())
    a.append(setences_test[i])
    a.append('#')
    a.append(str(label_test[i]))
    setences_test_z.append(a)



idx2word = {i: w for i, w in enumerate(tgt_vocab)}


tgt_vocab_size = len(tgt_vocab)

src_len = 20 # enc_input max sequence length
tgt_len = 1 # dec_input(=dec_output) max sequence length

def make_data(sentences):
    enc_inputs, dec_inputs, dec_outputs = [], [], []
    for i in range(len(sentences)):
      enc_input = [[src_vocab[n] for n in sentences[i][0].split()]] # [[1, 2, 3, 4, 0], [1, 2, 3, 5, 0]]
      dec_input = [[tgt_vocab[n] for n in sentences[i][1].split()]] # [[6, 1, 2, 3, 4, 8], [6, 1, 2, 3, 5, 8]]
      dec_output = [[tgt_vocab[n] for n in sentences[i][2].split()]] # [[1, 2, 3, 4, 8, 7], [1, 2, 3, 5, 8, 7]]
      enc_inputs.extend(enc_input)
      dec_inputs.extend(dec_input)
      dec_outputs.extend(dec_output)

    return torch.LongTensor(enc_inputs), torch.LongTensor(dec_inputs), torch.LongTensor(dec_outputs)

enc_inputs, dec_inputs, dec_outputs = make_data(sentences)
enc_inputs_test, dec_inputs_test, dec_outputs_test = make_data(setences_test_z)

print("enc_inputs",enc_inputs)
print("dec_inputs",dec_inputs,)
print("dec_outputs",dec_outputs)

class MyDataSet(Data.Dataset):
  def __init__(self, enc_inputs, dec_inputs, dec_outputs):
    super(MyDataSet, self).__init__()
    self.enc_inputs = enc_inputs
    self.dec_inputs = dec_inputs
    self.dec_outputs = dec_outputs

  def __len__(self):
    return self.enc_inputs.shape[0]

  def __getitem__(self, idx):
    return self.enc_inputs[idx], self.dec_inputs[idx], self.dec_outputs[idx]

loader = Data.DataLoader(MyDataSet(enc_inputs, dec_inputs, dec_outputs), 40, True)
loader_test = Data.DataLoader(MyDataSet(enc_inputs_test, dec_inputs_test, dec_outputs_test), 1, True)

# Transformer Parameters
d_model =500   # Embedding Size
d_ff = 1000 # FeedForward dimension
d_k = d_v = 64  # dimension of K(=Q), V
n_layers = 6  # number of Encoder of Decoder Layer
n_heads = 8  # number of heads in Multi-Head Attention


#for enc_inputs, dec_inputs, dec_outputs in loader:
#     print(enc_inputs, dec_inputs, dec_outputs)


def get_sinusoid_encoding_table(n_position, d_model):
    def cal_angle(position, hid_idx):
        return position / np.power(10000, 2 * (hid_idx // 2) / d_model)
    def get_posi_angle_vec(position):
        return [cal_angle(position, hid_j) for hid_j in range(d_model)]

    sinusoid_table = np.array([get_posi_angle_vec(pos_i) for pos_i in range(n_position)])
    sinusoid_table[:, 0::2] = np.sin(sinusoid_table[:, 0::2])  # dim 2i
    sinusoid_table[:, 1::2] = np.cos(sinusoid_table[:, 1::2])  # dim 2i+1
    return torch.FloatTensor(sinusoid_table)
def get_attn_pad_mask(seq_q, seq_k):
    '''
    seq_q: [batch_size, seq_len]
    seq_k: [batch_size, seq_len]
    seq_len could be src_len or it could be tgt_len
    seq_len in seq_q and seq_len in seq_k maybe not equal
    '''
    batch_size, len_q = seq_q.size()
    batch_size, len_k = seq_k.size()
    # eq(zero) is PAD token
    pad_attn_mask = seq_k.data.eq(0).unsqueeze(1)  # [batch_size, 1, len_k], False is masked
    return pad_attn_mask.expand(batch_size, len_q, len_k)  # [batch_size, len_q, len_k]
def get_attn_subsequence_mask(seq):
    '''
    seq: [batch_size, tgt_len]
    '''
    attn_shape = [seq.size(0), seq.size(1), seq.size(1)]
    subsequence_mask = np.triu(np.ones(attn_shape), k=1) # Upper triangular matrix
    subsequence_mask = torch.from_numpy(subsequence_mask).byte()
    return subsequence_mask
class ScaledDotProductAttention(nn.Module):
    def __init__(self):
        super(ScaledDotProductAttention, self).__init__()

    def forward(self, Q, K, V, attn_mask):
        '''
        Q: [batch_size, n_heads, len_q, d_k]
        K: [batch_size, n_heads, len_k, d_k]
        V: [batch_size, n_heads, len_v(=len_k), d_v]
        attn_mask: [batch_size, n_heads, seq_len, seq_len]
        '''
        scores = torch.matmul(Q, K.transpose(-1, -2)) / np.sqrt(d_k) # scores : [batch_size, n_heads, len_q, len_k]
        scores.masked_fill_(attn_mask, -1e9) # Fills elements of self tensor with value where mask is True.

        attn = nn.Softmax(dim=-1)(scores)
        context = torch.matmul(attn, V) # [batch_size, n_heads, len_q, d_v]
        return context, attn
class MultiHeadAttention(nn.Module):
    def __init__(self):
        super(MultiHeadAttention, self).__init__()
        self.W_Q = nn.Linear(d_model, d_k * n_heads, bias=False)
        self.W_K = nn.Linear(d_model, d_k * n_heads, bias=False)
        self.W_V = nn.Linear(d_model, d_v * n_heads, bias=False)
        self.fc = nn.Linear(n_heads * d_v, d_model, bias=False)
    def forward(self, input_Q, input_K, input_V, attn_mask):
        '''
        input_Q: [batch_size, len_q, d_model]
        input_K: [batch_size, len_k, d_model]
        input_V: [batch_size, len_v(=len_k), d_model]
        attn_mask: [batch_size, seq_len, seq_len]
        '''
        residual, batch_size = input_Q, input_Q.size(0)
        # (B, S, D) -proj-> (B, S, D_new) -split-> (B, S, H, W) -trans-> (B, H, S, W)
        Q = self.W_Q(input_Q).view(batch_size, -1, n_heads, d_k).transpose(1,2)  # Q: [batch_size, n_heads, len_q, d_k]
        K = self.W_K(input_K).view(batch_size, -1, n_heads, d_k).transpose(1,2)  # K: [batch_size, n_heads, len_k, d_k]
        V = self.W_V(input_V).view(batch_size, -1, n_heads, d_v).transpose(1,2)  # V: [batch_size, n_heads, len_v(=len_k), d_v]

        attn_mask = attn_mask.unsqueeze(1).repeat(1, n_heads, 1, 1) # attn_mask : [batch_size, n_heads, seq_len, seq_len]

        # context: [batch_size, n_heads, len_q, d_v], attn: [batch_size, n_heads, len_q, len_k]
        context, attn = ScaledDotProductAttention()(Q, K, V, attn_mask)
        context = context.transpose(1, 2).reshape(batch_size, -1, n_heads * d_v) # context: [batch_size, len_q, n_heads * d_v]
        output = self.fc(context) # [batch_size, len_q, d_model]
        return nn.LayerNorm(d_model)(output + residual), attn
class PoswiseFeedForwardNet(nn.Module):
    def __init__(self):
        super(PoswiseFeedForwardNet, self).__init__()
        self.fc = nn.Sequential(
            nn.Linear(d_model, d_ff, bias=False),
            nn.ReLU(),
            nn.Linear(d_ff, d_model, bias=False)
        )
    def forward(self, inputs):
        '''
        inputs: [batch_size, seq_len, d_model]
        '''
        residual = inputs
        output = self.fc(inputs)
        return nn.LayerNorm(d_model)(output + residual) # [batch_size, seq_len, d_model]
class EncoderLayer(nn.Module):
    def __init__(self):
        super(EncoderLayer, self).__init__()
        self.enc_self_attn = MultiHeadAttention()
        self.pos_ffn = PoswiseFeedForwardNet()

    def forward(self, enc_inputs, enc_self_attn_mask):
        '''
        enc_inputs: [batch_size, src_len, d_model]
        enc_self_attn_mask: [batch_size, src_len, src_len]
        '''
        # enc_outputs: [batch_size, src_len, d_model], attn: [batch_size, n_heads, src_len, src_len]
        enc_outputs, attn = self.enc_self_attn(enc_inputs, enc_inputs, enc_inputs, enc_self_attn_mask) # enc_inputs to same Q,K,V
        enc_outputs = self.pos_ffn(enc_outputs) # enc_outputs: [batch_size, src_len, d_model]
        return enc_outputs, attn
class Encoder(nn.Module):
    def __init__(self):
        super(Encoder, self).__init__()
        self.src_emb = nn.Embedding(src_vocab_size, d_model)
        self.pos_emb = nn.Embedding.from_pretrained(get_sinusoid_encoding_table(src_vocab_size, d_model),freeze=True)
        self.layers = nn.ModuleList([EncoderLayer() for _ in range(n_layers)])

    def forward(self, enc_inputs):
        '''
        enc_inputs: [batch_size, src_len]
        '''
        word_emb = self.src_emb(enc_inputs) # [batch_size, src_len, d_model]
        pos_emb = self.pos_emb(enc_inputs) # [batch_size, src_len, d_model]
        enc_outputs = word_emb + pos_emb
        enc_self_attn_mask = get_attn_pad_mask(enc_inputs, enc_inputs) # [batch_size, src_len, src_len]
        enc_self_attns = []
        for layer in self.layers:
            # enc_outputs: [batch_size, src_len, d_model], enc_self_attn: [batch_size, n_heads, src_len, src_len]
            enc_outputs, enc_self_attn = layer(enc_outputs, enc_self_attn_mask)
            enc_self_attns.append(enc_self_attn)
        return enc_outputs, enc_self_attns
class DecoderLayer(nn.Module):
    def __init__(self):
        super(DecoderLayer, self).__init__()
        self.dec_self_attn = MultiHeadAttention()
        self.dec_enc_attn = MultiHeadAttention()
        self.pos_ffn = PoswiseFeedForwardNet()

    def forward(self, dec_inputs, enc_outputs, dec_self_attn_mask, dec_enc_attn_mask):
        '''
        dec_inputs: [batch_size, tgt_len, d_model]
        enc_outputs: [batch_size, src_len, d_model]
        dec_self_attn_mask: [batch_size, tgt_len, tgt_len]
        dec_enc_attn_mask: [batch_size, tgt_len, src_len]
        '''
        # dec_outputs: [batch_size, tgt_len, d_model], dec_self_attn: [batch_size, n_heads, tgt_len, tgt_len]
        dec_outputs, dec_self_attn = self.dec_self_attn(dec_inputs, dec_inputs, dec_inputs, dec_self_attn_mask)
        # dec_outputs: [batch_size, tgt_len, d_model], dec_enc_attn: [batch_size, h_heads, tgt_len, src_len]
        dec_outputs, dec_enc_attn = self.dec_enc_attn(dec_outputs, enc_outputs, enc_outputs, dec_enc_attn_mask)
        dec_outputs = self.pos_ffn(dec_outputs) # [batch_size, tgt_len, d_model]
        return dec_outputs, dec_self_attn, dec_enc_attn
class Decoder(nn.Module):
    def __init__(self):
        super(Decoder, self).__init__()
        self.tgt_emb = nn.Embedding(tgt_vocab_size, d_model)
        self.pos_emb = nn.Embedding.from_pretrained(get_sinusoid_encoding_table(tgt_vocab_size, d_model),freeze=True)
        self.layers = nn.ModuleList([DecoderLayer() for _ in range(n_layers)])

    def forward(self, dec_inputs, enc_inputs, enc_outputs):
        '''
        dec_inputs: [batch_size, tgt_len]
        enc_intpus: [batch_size, src_len]
        enc_outputs: [batsh_size, src_len, d_model]
        '''
        word_emb = self.tgt_emb(dec_inputs) # [batch_size, tgt_len, d_model]
        pos_emb = self.pos_emb(dec_inputs) # [batch_size, tgt_len, d_model]
        dec_outputs = word_emb + pos_emb
        dec_self_attn_pad_mask = get_attn_pad_mask(dec_inputs, dec_inputs) # [batch_size, tgt_len, tgt_len]
        dec_self_attn_subsequent_mask = get_attn_subsequence_mask(dec_inputs) # [batch_size, tgt_len]
        dec_self_attn_mask = torch.gt((dec_self_attn_pad_mask + dec_self_attn_subsequent_mask), 0) # [batch_size, tgt_len, tgt_len]

        dec_enc_attn_mask = get_attn_pad_mask(dec_inputs, enc_inputs) # [batc_size, tgt_len, src_len]

        dec_self_attns, dec_enc_attns = [], []
        for layer in self.layers:
            # dec_outputs: [batch_size, tgt_len, d_model], dec_self_attn: [batch_size, n_heads, tgt_len, tgt_len], dec_enc_attn: [batch_size, h_heads, tgt_len, src_len]
            dec_outputs, dec_self_attn, dec_enc_attn = layer(dec_outputs, enc_outputs, dec_self_attn_mask, dec_enc_attn_mask)
            dec_self_attns.append(dec_self_attn)
            dec_enc_attns.append(dec_enc_attn)
        return dec_outputs, dec_self_attns, dec_enc_attns
class Transformer(nn.Module):
    def __init__(self):
        super(Transformer, self).__init__()
        self.encoder = Encoder()
        self.decoder = Decoder()
        self.projection = nn.Linear(d_model, tgt_vocab_size, bias=False)
    def forward(self, enc_inputs, dec_inputs):
        '''
        enc_inputs: [batch_size, src_len]
        dec_inputs: [batch_size, tgt_len]
        '''
        # tensor to store decoder outputs
        # outputs = torch.zeros(batch_size, tgt_len, tgt_vocab_size).to(self.device)

        # enc_outputs: [batch_size, src_len, d_model], enc_self_attns: [n_layers, batch_size, n_heads, src_len, src_len]
        enc_outputs, enc_self_attns = self.encoder(enc_inputs)
        # dec_outpus: [batch_size, tgt_len, d_model], dec_self_attns: [n_layers, batch_size, n_heads, tgt_len, tgt_len], dec_enc_attn: [n_layers, batch_size, tgt_len, src_len]
        dec_outputs, dec_self_attns, dec_enc_attns = self.decoder(dec_inputs, enc_inputs, enc_outputs)
        dec_logits = self.projection(dec_outputs) # dec_logits: [batch_size, tgt_len, tgt_vocab_size]
        return dec_logits.view(-1, dec_logits.size(-1)), enc_self_attns, dec_self_attns, dec_enc_attns
model = Transformer()
criterion = nn.CrossEntropyLoss().to(device)
optimizer = optim.Adam(model.parameters(), lr=0.000008)
loss_list=[]
for epoch in range(35):
    co=0
    to=0
    for enc_inputs, dec_inputs, dec_outputs in loader:
      '''
      enc_inputs: [batch_size, src_len]
      dec_inputs: [batch_size, tgt_len]
      dec_outputs: [batch_size, tgt_len]
      '''
      # enc_inputs, dec_inputs, dec_outputs = enc_inputs.to(device), dec_inputs.to(device), dec_outputs.to(device)
      # outputs: [batch_size * tgt_len, tgt_vocab_size]
      outputs, enc_self_attns, dec_self_attns, dec_enc_attns = model(enc_inputs, dec_inputs)
      #print(outputs.argmax(1))
      #print(dec_outputs)
      index=outputs.argmax(1)
      print(index)
      #print(dec_outputs)

      for i in range(len(dec_outputs)):
          if index[i]==dec_outputs[i]:
              co+=1

      to=to+len(index)

      loss = criterion(outputs, dec_outputs.view(-1))
      loss_list.append(loss)
     # print(outputs,dec_outputs)
   #   print('Epoch:', '%04d' % (epoch + 1), 'loss =', '{:.6f}'.format(loss))

      optimizer.zero_grad()
      loss.backward()
      optimizer.step()
    print("epoch is: ",epoch)
    print("accurac is: ",co/to)
enc_inputs, dec_inputs, _ = next(iter(loader))

print("test")


correct=0
total=0
for enc_inputs, dec_inputs, dec_outputs in loader_test:
      outputs, enc_self_attns, dec_self_attns, dec_enc_attns = model(enc_inputs, dec_inputs)
      #print(outputs.argmax(1))
      #print(dec_outputs)
      index=outputs.argmax(1)
      print(index)
      #print(dec_outputs)

      for i in range(len(dec_outputs)):
          if index[i]==dec_outputs[i]:
              correct+=1

      total=total+len(index)

print( "accuracy:",correct/total)

plt.plot(loss_list,label='transfermer')
plt.legend()
plt.title('loss-epoch')
plt.show()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375

评估结果如下：

好的，这次实验，博主认为可以对于大家在学习这几个模型有着一些帮助。
