k8s部署Skywalking及java接入agent

Skywalking由国内开源

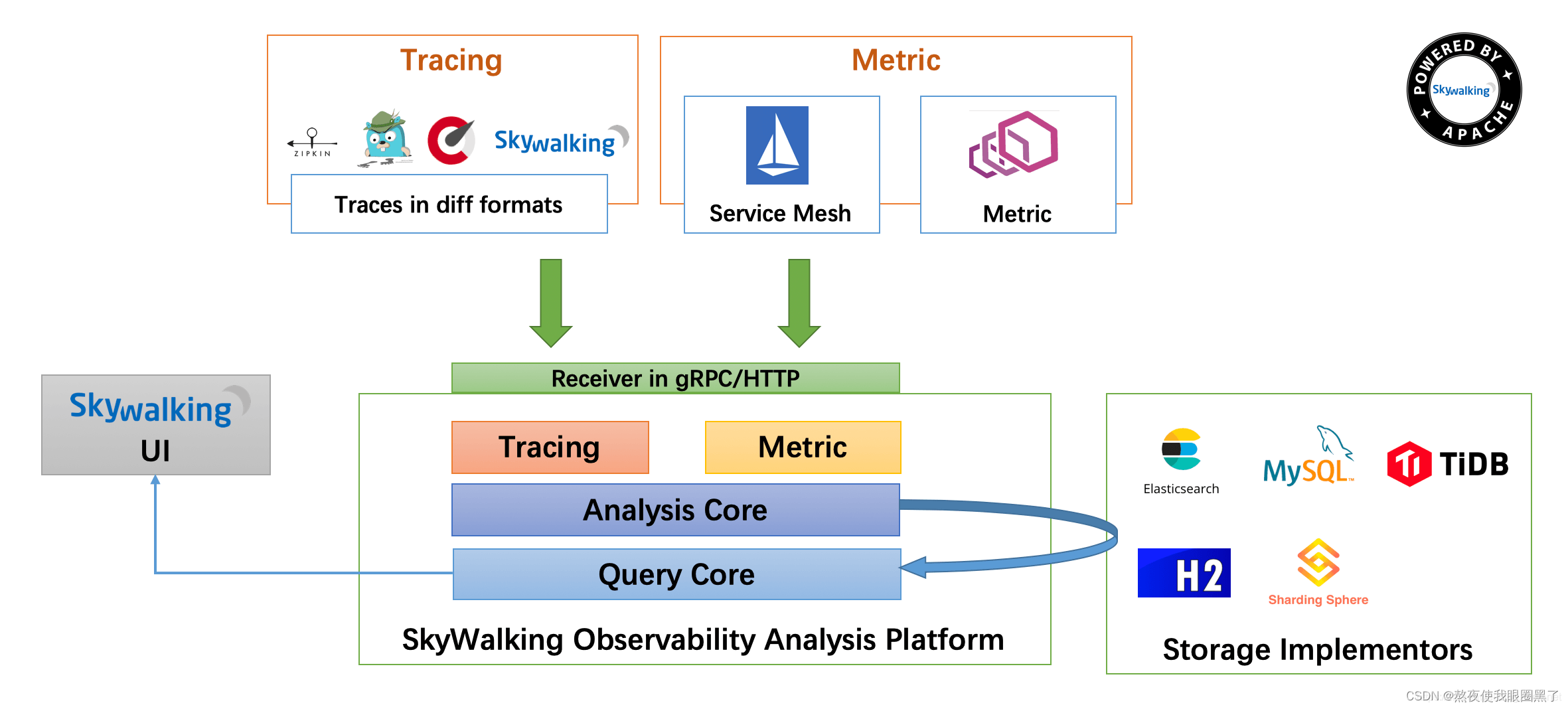

大体架构是这样子

我用的是dockerhub的镜像

docker pull apache/skywalking-ui:8.5.0
docker pull apache/skywalking-oap-server:8.5.0-es7
docker pull elasticsearch:7.9.0
1
2
3

1.部署

搞了一个简单的es用

apiVersion: apps/v1
kind: Deployment
metadata:
  name: es
  namespace: default
spec:
  template:
    metadata:
    spec:
      containers:
      - env:
        - name: discovery.type
          value: single-node
        image: elasticsearch:7.9.0
        imagePullPolicy: IfNotPresent
        name: es
        ports:
        - containerPort: 9200
          name: db
          protocol: TCP
        - containerPort: 9300
          name: transport
          protocol: TCP
        stdin: true
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        tty: true
      dnsPolicy: ClusterFirst
      restartPolicy: Always
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

apiVersion: v1
kind: Service
metadata:
  name: es
  namespace: default
spec:
  clusterIP: 10.43.193.50
  clusterIPs:
  - 10.43.193.50
  ports:
  - name: db
    port: 9200
    protocol: TCP
    targetPort: 9200
  - name: transport
    port: 9300
    protocol: TCP
    targetPort: 9300
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

部署skywalking-oap

apiVersion: apps/v1
kind: Deployment
metadata:
  name: skywalking-oap
  namespace: default
spec:
  template:
    metadata:
    spec:
      containers:
      - env:
        - name: SW_AGENT_COLLECTOR_BACKEND_SERVICES
          value: skywalking-oap.skywalking:11800
        - name: SW_AGENT_NAME
          value: skywalking-oap
        - name: SW_ES_PASSWORD
        - name: SW_ES_USER
          value: '"elastic"'
        - name: SW_STORAGE
          value: elasticsearch7
        - name: SW_STORAGE_ES_CLUSTER_NODES
          value: es:9200
        image: apache/skywalking-oap-s
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
