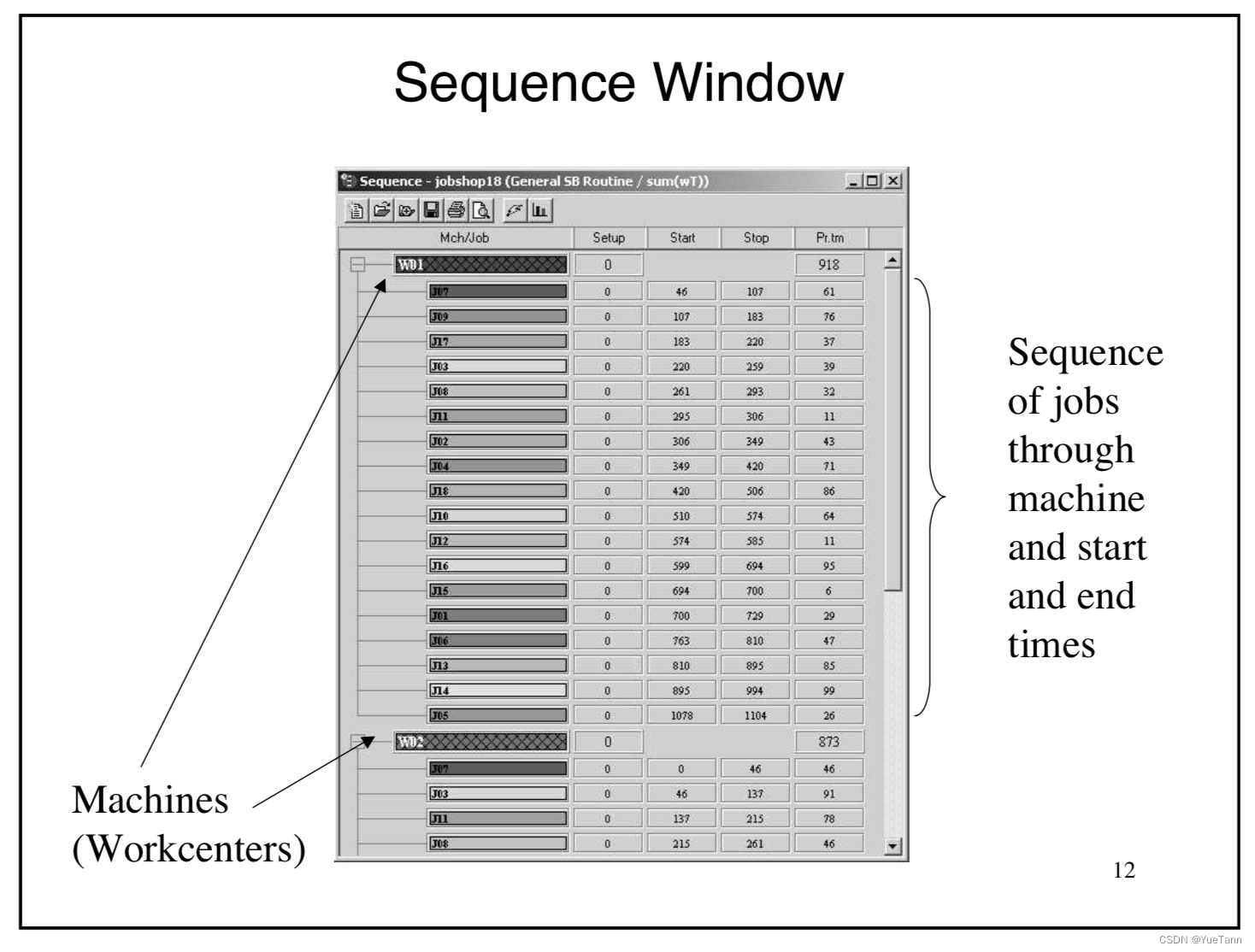

LEKIN是纽约大学一个教育性质的应用，本身似乎没有开源，但有免费的教育版试用。只能在很老的windows应用，我试图用python复线一些核心功能。

LEKIN的功能还是覆盖了很多实用的功能，但其核心还是排程算法。

https://github.com/yuetan1988/python-lekin

目标

我的目标是：最终用python复现其核心

• 主业务流程
• 实体关系
• 主要功能

过程

了解其功能和使用，根据已有功能确定具体需求

先设计整体结构

各个部分以及功能. 所以首先设计了求解器、目标、dashboard等部分。由于对细节的不熟悉，可以先到下一个部分的基础功能来设计API.

从之前最早的excel例子中，我们也知道了一些实际应用时的约束。

API设计

类

Lekin('method')

方法

solve(machine_list, jobs, max_operations)

• the number of jobs,
• the number of machines
• the number operations that the machine can perform in parallel

OOD 设计

面向对象设计原则

• Job
• Machine
• Task
• Route

# 按顺序排产核心逻辑
for resource in resource_list:
	resource.update_work_time_from_op_sequence()

def update_candidate()
	candiates = []
	for candidate in candidates:
		update_sequence()
		scheduling_one_resource()

def update_sequence():
	# 得到一个新的工序顺序，更新后进行scheduling_one_resource


def update_buffer()


def scheduling_one_resource(resource):
	resource.update_work_time_from_op_sequence() # 这个过程只, 每个op其实已经分配了一版时间
	for op in resource.op:
		op.update_buffter()

	candidate = get_material_op_candidate()



完成一个基础功能

参考https://github.com/samy-barrech/Flexible-Job-Shop-Scheduling-Problem

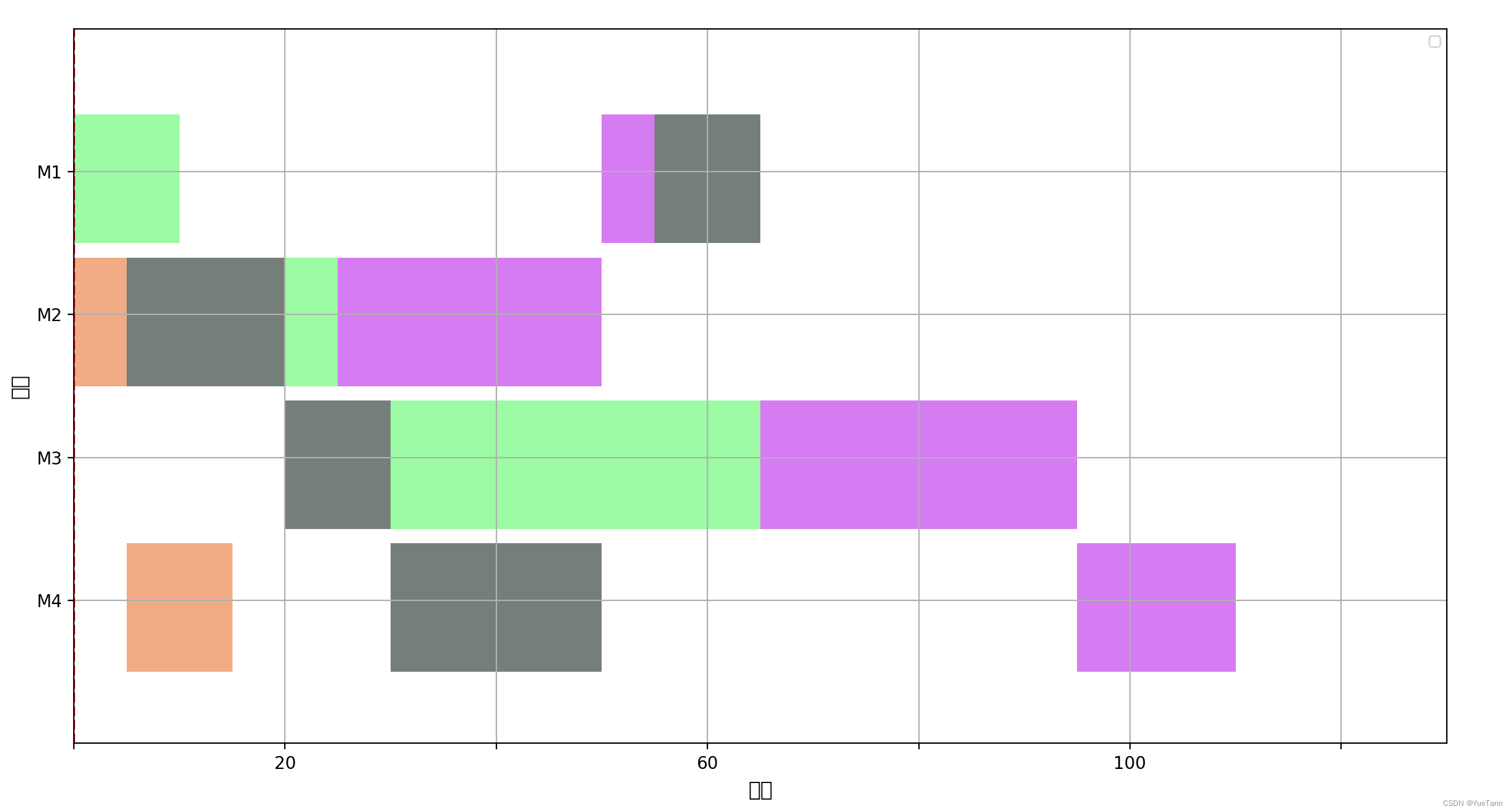

顺排

倒排

def prepareJobs(machinesList, itinerariesList):
    """Converts available data to list of jobs on which is calculations and graphs made"""
    jobsList = []
    itineraryColors = []

    pastelFactor = random.uniform(0, 1)
    # 从工艺路径任务中解析出每一个工序任务
    for idItinerary, itineraryObj in enumerate(itinerariesList):
    # 为每一条工艺路线创建不同的颜色
        itineraryColors.append(
            generate_new_color(itineraryColors, pastelFactor))
    #实例化每一个工序任务，创建工序任务列表
        for idTask, taskObj in enumerate(itineraryObj.tasksList):
            if itineraryObj.name == "Itinerary 0":
                jobsList.append(Job(itineraryObj.name, itineraryColors[idItinerary], idTask + 1, 0,
                                   taskObj.machine, taskObj.duration))
            else:
                jobsList.append(Job(itineraryObj.name, itineraryColors[idItinerary], idTask + 1, idItinerary + 1,
                                taskObj.machine, taskObj.duration))
    return jobsList

SPT

def algorithmSPT(aJobsList, machinesList):
    time = {}
    waitingOperations = {}     # 记录某一时间各机器前任务等待队列，相当于时间进度条，模拟时间流逝，推进排队
    currentTimeOnMachines = {}   # 当前机器时间，可以用来更新time
    jobsListToExport = []

    for machine in machinesList:
        currentTimeOnMachines[machine.name] = 0 # 每台机器的当前时间都设置为0

    #初始化各机器当前等待队列，该队列是job
    for machine in machinesList:
        waitingOperations[machine.name] = []
        for job in aJobsList:  # 每一个job
            if job.idOperation == 1 and machine.name in job.machine:  # idOperation是task number，解析prepare_job的时候 id_task + 1，所以==1是某一个新的开始
                #找出当前任务可选机器中机器时间最小的机器，也就是优先分配给空闲机器？
                if len(job.machine) == 1:
                    waitingOperations[machine.name].append(job)
                else:
                    minTimeMachine = machine.name
                    for mac in job.machine:
                        if currentTimeOnMachines[mac] <  currentTimeOnMachines[minTimeMachine]:
                            minTimeMachine = mac.name
                    if minTimeMachine == machine.name:
                        waitingOperations[machine.name].append(job)

        waitingOperations[machine.name].sort(key=lambda j: j.duration) # duration排序，本质上SPT是按照最短运行时间先排

    time[0] = waitingOperations
	# for each waiting task in front of machine set time to 0, update properties
    for keyMach, operations in waitingOperations.items():

        if len(operations):
            operations[0].startTime = 0
            operations[0].completed = True
            operations[0].assignedMachine = keyMach

            # push task to production, and create new event to stop at,
            # on ending time, then update machines time
            jobsListToExport.append(operations[0])
            currentTimeOnMachines[keyMach] = operations[0].getEndTime()
            time[currentTimeOnMachines[keyMach]] = {}

    while len(jobsListToExport) != len(aJobsList):
        for t, operations in time.items():
            operations = getWaitingOperationsSPT(aJobsList, float(t), machinesList, currentTimeOnMachines)

            for keyMach, tasks in operations.items():
                if len(tasks):
                    if float(t) < currentTimeOnMachines[keyMach]:
                        continue

                    tasks[0].startTime = float(t)
                    tasks[0].completed = True
                    tasks[0].assignedMachine = keyMach

                    jobsListToExport.append(tasks[0])

                    currentTimeOnMachines[keyMach] = tasks[0].getEndTime()
                    time[currentTimeOnMachines[keyMach]] = {}

            del time[t]
            break

        time = SortedDict(time)  # chronological order

    return jobsListToExport

def getWaitingOperationsSPT(aJobsList, time, machinesList, currentTimeOnMachines):
    """Get waiting jobs at current time in shortest duration order"""

    incomingOperations = {}

    # global machinesList
    for mach in machinesList:
        assignedJobsForMachine = []
        for job in aJobsList:
            if job.completed == False and mach.name in job.machine:
                if len(job.machine) ==1:
                    assignedJobsForMachine.append(job)
                else:
                    minTimeMachine = mach.name
                    for mac in job.machine:
                        if currentTimeOnMachines[mac] <  currentTimeOnMachines[minTimeMachine]:
                            minTimeMachine = mac
                    if minTimeMachine == mach.name:
                        assignedJobsForMachine.append(job)
        incomingOperations[mach.name] = []

        for j in assignedJobsForMachine:
            if j.idOperation == 1:
                incomingOperations[mach.name].append(j)
            else:
                previousTask = [job for job in aJobsList if
                                job.itinerary == j.itinerary and job.idOperation == j.idOperation - 1 and job.endTime <= time]
                if len(previousTask):
                    if previousTask[0].completed:
                        incomingOperations[mach.name].append(j)
        # sort added jobs by duration
        incomingOperations[mach.name].sort(key=lambda j: j.duration)
    return incomingOperations

最小时间排

关键路径方法

多模块开发

遗传算法

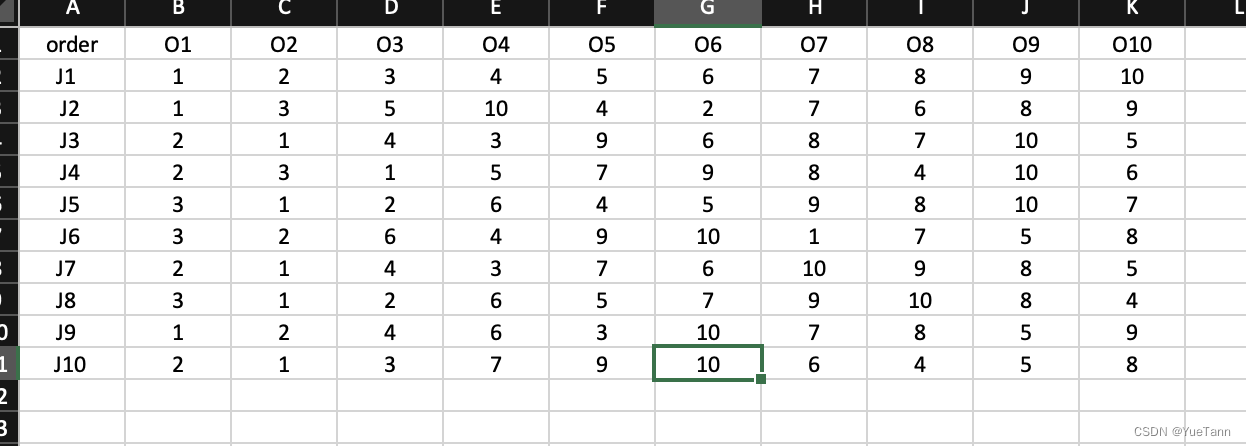

Machine sequence: 每一个订单O需要的job顺序

Processing time：每一个订单O的每一个工序J的所需时间

基因数量 = job * 机器
每个基因代表了一个解:

population里有多个解，多个基因。

OptaPlan

我们试图采用optaplanner的方式对python-lekin进行合作

• Step 1: Set Up Your Environment
• Step 2: Define Your Domain Model
  • Create Your Entity Classes:
  • Define Your Planning Entity:
  • Define Your Solution Class:
• Step 3: Define Constraints
  • Create the Constraint Provider:
• Step 4: Solve the Problem
