SpringMVC---SSM整合&&异常处理&&拦截器

  <dependencies>
    <dependency>
      <groupId>org.springframeworkgroupId>
      <artifactId>spring-webmvcartifactId>
      <version>5.2.10.RELEASEversion>
    dependency>

    <dependency>
      <groupId>org.springframeworkgroupId>
      <artifactId>spring-jdbcartifactId>
      <version>5.2.10.RELEASEversion>
    dependency>

    <dependency>
      <groupId>org.springframeworkgroupId>
      <artifactId>spring-testartifactId>
      <version>5.2.10.RELEASEversion>
    dependency>

    <dependency>
      <groupId>org.mybatisgroupId>
      <artifactId>mybatisartifactId>
      <version>3.5.6version>
    dependency>

    <dependency>
      <groupId>org.mybatisgroupId>
      <artifactId>mybatis-springartifactId>
      <version>1.3.0version>
    dependency>

    <dependency>
      <groupId>mysqlgroupId>
      <artifactId>mysql-connector-javaartifactId>
      <version>5.1.47version>
    dependency>

    <dependency>
      <groupId>com.alibabagroupId>
      <artifactId>druidartifactId>
      <version>1.1.16version>
    dependency>

    <dependency>
      <groupId>junitgroupId>
      <artifactId>junitartifactId>
      <version>4.12version>
      <scope>testscope>
    dependency>

    <dependency>
      <groupId>javax.servletgroupId>
      <artifactId>javax.servlet-apiartifactId>
      <version>3.1.0version>
      <scope>providedscope>
    dependency>

    <dependency>
      <groupId>com.fasterxml.jackson.coregroupId>
      <artifactId>jackson-databindartifactId>
      <version>2.9.0version>
    dependency>
  dependencies>

  <build>
    <plugins>
      <plugin>
        <groupId>org.apache.tomcat.mavengroupId>
        <artifactId>tomcat7-maven-pluginartifactId>
        <version>2.1version>
        <configuration>
          <port>80port>
          <path>/path>
        configuration>
      plugin>
    plugins>
  build>

-- ----------------------------
-- Table structure for tbl_book
-- ----------------------------
DROP TABLE IF EXISTS `tbl_book`;
CREATE TABLE `tbl_book`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `type` varchar(20) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `name` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `description` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 13 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of tbl_book
-- ----------------------------
INSERT INTO `tbl_book` VALUES (1, '计算机理论', 'Spring实战 第5版', 'Spring入门经典教程，深入理解Spring原理技术内幕');
INSERT INTO `tbl_book` VALUES (2, '计算机理论', 'Spring 5核心原理与30个类手写实战', '十年沉淀之作，手写Spring精华思想');
INSERT INTO `tbl_book` VALUES (3, '计算机理论', 'Spring 5 设计模式', '深入Spring源码剖析Spring源码中蕴含的10大设计模式');
INSERT INTO `tbl_book` VALUES (4, '计算机理论', 'Spring MVC+MyBatis开发从入门到项目实战', '全方位解析面向Web应用的轻量级框架，带你成为Spring MVC开发高手');
INSERT INTO `tbl_book` VALUES (5, '计算机理论', '轻量级Java Web企业应用实战', '源码级剖析Spring框架，适合已掌握Java基础的读者');
INSERT INTO `tbl_book` VALUES (6, '计算机理论', 'Java核心技术 卷I 基础知识（原书第11版）', 'Core Java 第11版，Jolt大奖获奖作品，针对Java SE9、10、11全面更新');
INSERT INTO `tbl_book` VALUES (7, '计算机理论', '深入理解Java虚拟机', '5个维度全面剖析JVM，大厂面试知识点全覆盖');
INSERT INTO `tbl_book` VALUES (8, '计算机理论', 'Java编程思想（第4版）', 'Java学习必读经典,殿堂级著作！赢得了全球程序员的广泛赞誉');
INSERT INTO `tbl_book` VALUES (9, '计算机理论', '零基础学Java（全彩版）', '零基础自学编程的入门图书，由浅入深，详解Java语言的编程思想和核心技术');
INSERT INTO `tbl_book` VALUES (10, '市场营销', '直播就该这么做：主播高效沟通实战指南', '李子柒、李佳琦、薇娅成长为网红的秘密都在书中');
INSERT INTO `tbl_book` VALUES (11, '市场营销', '直播销讲实战一本通', '和秋叶一起学系列网络营销书籍');
INSERT INTO `tbl_book` VALUES (12, '市场营销', '直播带货：淘宝、天猫直播从新手到高手', '一本教你如何玩转直播的书，10堂课轻松实现带货月入3W+');

package com.itheima.domain;

public class Book {
    private Integer id;
    private String type;
    private String name;
    private String description;

    @Override
    public String toString() {
        return "Book{" +
                "id=" + id +
                ", type='" + type + '\'' +
                ", name='" + name + '\'' +
                ", description='" + description + '\'' +
                '}';
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getType() {
        return type;
    }

    public void setType(String type) {
        this.type = type;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getDescription() {
        return description;
    }

    public void setDescription(String description) {
        this.description = description;
    }
}

package com.itheima.dao;

import com.itheima.domain.Book;
import org.apache.ibatis.annotations.Delete;
import org.apache.ibatis.annotations.Insert;
import org.apache.ibatis.annotations.Select;
import org.apache.ibatis.annotations.Update;

import java.util.List;

public interface BookDao {

//    @Insert("insert into tbl_book values(null,#{type},#{name},#{description})")
    @Insert("insert into tbl_book (type,name,description) values(#{type},#{name},#{description})")
    public void save(Book book);

    @Update("update tbl_book set type = #{type}, name = #{name}, description = #{description} where id = #{id}")
    public void update(Book book);

    @Delete("delete from tbl_book where id = #{id}")
    public void delete(Integer id);

    @Select("select * from tbl_book where id = #{id}")
    public Book getById(Integer id);

    @Select("select * from tbl_book")
    public List getAll();
}

package com.itheima.service;

import com.itheima.domain.Book;
import org.springframework.transaction.annotation.Transactional;

import java.util.List;

@Transactional
public interface BookService {

    /**
     * 保存
     * @param book
     * @return
     */
    public boolean save(Book book);

    /**
     * 修改
     * @param book
     * @return
     */
    public boolean update(Book book);

    /**
     * 按id删除
     * @param id
     * @return
     */
    public boolean delete(Integer id);

    /**
     * 按id查询
     * @param id
     * @return
     */
    public Book getById(Integer id);

    /**
     * 查询全部
     * @return
     */
    public List getAll();
}

package com.itheima.service.impl;

import com.itheima.dao.BookDao;
import com.itheima.domain.Book;
import com.itheima.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class BookServiceImpl implements BookService {
    @Autowired
    private BookDao bookDao;

    public boolean save(Book book) {
        bookDao.save(book);
        return true;
    }

    public boolean update(Book book) {
        bookDao.update(book);
        return true;
    }

    public boolean delete(Integer id) {
        bookDao.delete(id);
        return true;
    }

    public Book getById(Integer id) {
        return bookDao.getById(id);
    }

    public List getAll() {
        return bookDao.getAll();
    }
}


@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(classes = SpringConfig.class)
public class BookServiceTest {



}

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(classes = SpringConfig.class)
public class BookServiceTest {

    @Autowired
    private BookService bookService;

}

public class Result{
 private Object data;
 private Integer code;
 private String msg;
}

    @GetMapping("/{id}")
    public Result getById(@PathVariable Integer id) {

        //手动添加一个错误信息
        if(id == 1){
            int i = 1/0;
        }
        Book book = bookService.getById(id);
        Integer code = book != null ? Code.GET_OK : Code.GET_ERR;
        String msg = book != null ? "" : "数据查询失败，请重试！";
        return new Result(code,book,msg);
    }

思考

1. 各个层级均出现异常，异常处理代码书写在哪一层 ?

所有的异常均抛出到表现层进行处理

2. 异常的种类很多，表现层如何将所有的异常都处理到呢 ?

异常分类

3. 表现层处理异常，每个方法中单独书写，代码书写量巨大且意义不强，如何解决 ?

AOP

对于上面这些问题及解决方案， SpringMVC 已经为我们提供了一套解决方案 :

异常处理器 :

集中的、统一的处理项目中出现的异常。

3.2.2 使用步骤

//@RestControllerAdvice用于标识当前类为REST风格对应的异常处理器
@RestControllerAdvice
public class ProjectExceptionAdvice {
    //除了自定义的异常处理器，保留对Exception类型的异常处理，用于处理非预期的异常
    @ExceptionHandler(Exception.class)
    public Result doOtherException(Exception ex){
        System.out.println("嘿嘿，异常你哪里跑")
    }
}

    @GetMapping("/{id}")
    public Result getById(@PathVariable Integer id) {

        //手动添加一个错误信息
        if(id == 1){
            int i = 1/0;
        }
        Book book = bookService.getById(id);
        Integer code = book != null ? Code.GET_OK : Code.GET_ERR;
        String msg = book != null ? "" : "数据查询失败，请重试！";
        return new Result(code,book,msg);
    }

​

步骤3:运行程序，测试

 说明异常已经被拦截并执行了doException方法。

3.3.1 异常分类

系统异常（SystemException）

项目运行过程中可预计但无法避免的异常

3.3.2 异常解决方案

3.3.3 异常解决方案的具体实现

思路 :

1. 先通过自定义异常，完成 BusinessException 和 SystemException 的定义

2. 将其他异常包装成自定义异常类型

3. 在异常处理器类中对不同的异常进行处理

package com.itheima.exception;
//自定义异常处理器，用于封装异常信息，对异常进行分类
public class SystemException extends RuntimeException{
    private Integer code;

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public SystemException(Integer code, String message) {
        super(message);
        this.code = code;
    }

    public SystemException(Integer code, String message, Throwable cause) {
        super(message, cause);
        this.code = code;
    }

}

package com.itheima.exception;
//自定义异常处理器，用于封装异常信息，对异常进行分类
public class BusinessException extends RuntimeException{
    private Integer code;

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public BusinessException(Integer code, String message) {
        super(message);
        this.code = code;
    }

    public BusinessException(Integer code, String message, Throwable cause) {
        super(message, cause);
        this.code = code;
    }

}

步骤 2: 将其他异常包成自定义异常

假如在 BookServiceImpl 的 getById 方法抛异常了，该如何来包装呢 ?

public Book getById(Integer id) {
    //模拟业务异常，包装成自定义异常
    if(id == 1){
        throw new BusinessException(Code.BUSINESS_ERR,"请不要使用你的技术挑战我的 耐性!"); }
    //模拟系统异常，将可能出现的异常进行包装，转换成自定义异常
    try{
        int i = 1/0;
    }catch (Exception e){
         throw new SystemException(Code.SYSTEM_TIMEOUT_ERR,"服务器访问超时，请重 试!",e);
    }
    return bookDao.getById(id);
}

具体的包装方式有：

方式一 : try{}catch(){} 在 catch 中重新 throw 我们自定义异常即可。

方式二 : 直接 throw 自定义异常即可

上面为了使 code 看着更专业些，我们在 Code 类中再新增需要的属性

package com.itheima.controller;

public class Code {
    public static final Integer SAVE_OK = 20011;
    public static final Integer DELETE_OK = 20021;
    public static final Integer UPDATE_OK = 20031;
    public static final Integer GET_OK = 20041;

    public static final Integer SAVE_ERR = 20010;
    public static final Integer DELETE_ERR = 20020;
    public static final Integer UPDATE_ERR = 20030;
    public static final Integer GET_ERR = 20040;

    public static final Integer SYSTEM_ERR = 50001;
    public static final Integer SYSTEM_TIMEOUT_ERR = 50002;
    public static final Integer SYSTEM_UNKNOW_ERR = 59999;

    public static final Integer BUSINESS_ERR = 60002;



}

步骤 3: 处理器类中处理自定义异常

package com.itheima.controller;

import com.itheima.exception.BusinessException;
import com.itheima.exception.SystemException;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;

//@RestControllerAdvice用于标识当前类为REST风格对应的异常处理器
@RestControllerAdvice
public class ProjectExceptionAdvice {
    //@ExceptionHandler用于设置当前处理器类对应的异常类型
    @ExceptionHandler(SystemException.class)
    public Result doSystemException(SystemException ex){
        //记录日志
        //发送消息给运维
        //发送邮件给开发人员,ex对象发送给开发人员
        return new Result(ex.getCode(),null,ex.getMessage());
    }

    @ExceptionHandler(BusinessException.class)
    public Result doBusinessException(BusinessException ex){
        return new Result(ex.getCode(),null,ex.getMessage());
    }

    //除了自定义的异常处理器，保留对Exception类型的异常处理，用于处理非预期的异常
    @ExceptionHandler(Exception.class)
    public Result doOtherException(Exception ex){
        //记录日志
        //发送消息给运维
        //发送邮件给开发人员,ex对象发送给开发人员
        return new Result(Code.SYSTEM_UNKNOW_ERR,null,"系统繁忙，请稍后再试！");
    }
}

步骤 4: 运行程序

根据 ID查询，如果传入的参数为 1 ，会报 BusinessException

如果传入的是其他参数，会报SystemException

3.3.4小结

首先创建两个自定义异常处理器，继承RuntimeException，并且其方法(主要作用是对异常进行封装)，当程序运行出错时，将异常throw/try...catch给响应的自定义处理器，然后在处理类ProjectException中对异常进行拦截操作。

拦截器和过滤器之间的区别是什么?

归属不同： Filter 属于 Servlet 技术， Interceptor 属于 SpringMVC 技术

拦截内容不同： Filter 对所有访问进行增强， Interceptor 仅针对 SpringMVC 的访问进行增强

5.2.1 环境准备

  <dependencies>
    <dependency>
      <groupId>javax.servletgroupId>
      <artifactId>javax.servlet-apiartifactId>
      <version>3.1.0version>
      <scope>providedscope>
    dependency>
    <dependency>
      <groupId>org.springframeworkgroupId>
      <artifactId>spring-webmvcartifactId>
      <version>5.2.10.RELEASEversion>
    dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.coregroupId>
      <artifactId>jackson-databindartifactId>
      <version>2.9.0version>
    dependency>
  dependencies>

  <build>
    <plugins>
      <plugin>
        <groupId>org.apache.tomcat.mavengroupId>
        <artifactId>tomcat7-maven-pluginartifactId>
        <version>2.1version>
        <configuration>
          <port>80port>
          <path>/path>
        configuration>
      plugin>
        <plugin>
            <groupId>org.apache.maven.pluginsgroupId>
            <artifactId>maven-compiler-pluginartifactId>
            <configuration>
                <source>8source>
                <target>8target>
            configuration>
        plugin>
    plugins>
  build>

public class ServletContainersInitConfig extends AbstractAnnotationConfigDispatcherServletInitializer {
    protected Class[] getRootConfigClasses() {
        return new Class[0];
    }

    protected Class[] getServletConfigClasses() {
        return new Class[]{SpringMvcConfig.class};
    }

    protected String[] getServletMappings() {
        return new String[]{"/"};
    }

    //乱码处理
    @Override
    protected Filter[] getServletFilters() {
        CharacterEncodingFilter filter = new CharacterEncodingFilter();
        filter.setEncoding("UTF-8");
        return new Filter[]{filter};
    }
}

@Configuration
@ComponentScan({"com.itheima.controller"})
@EnableWebMvc
//实现WebMvcConfigurer接口可以简化开发，但具有一定的侵入性
public class SpringMvcConfig {

}

public class Book {
    private String name;
    private double price;

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public double getPrice() {
        return price;
    }

    public void setPrice(double price) {
        this.price = price;
    }

    @Override
    public String toString() {
        return "Book{" +
                "书名='" + name + '\'' +
                ", 价格=" + price +
                '}';
    }
}

编写 Controller

@RestController
@RequestMapping("/books")
public class BookController {

    @PostMapping
    public String save(@RequestBody Book book){
        System.out.println("book save..." + book);
        return "{'module':'book save'}";
    }

    @DeleteMapping("/{id}")
    public String delete(@PathVariable Integer id){
        System.out.println("book delete..." + id);
        return "{'module':'book delete'}";
    }

    @PutMapping
    public String update(@RequestBody Book book){
        System.out.println("book update..."+book);
        return "{'module':'book update'}";
    }

    @GetMapping("/{id}")
    public String getById(@PathVariable Integer id){
        System.out.println("book getById..."+id);
        return "{'module':'book getById'}";
    }

    @GetMapping
    public String getAll(){
        System.out.println("book getAll...");
        return "{'module':'book getAll'}";
    }
}

最终创建好的项目结构如下:



5.2.2 拦截器开发

步骤 1: 创建拦截器类

让类实现 HandlerInterceptor 接口，重写接口中的三个方法。

@Component
//定义拦截器类，实现HandlerInterceptor接口
//注意当前类必须受Spring容器控制
public class ProjectInterceptor implements HandlerInterceptor {
    @Override
    //原始方法调用前执行的内容
    //返回值类型可以拦截控制的执行，true放行，false终止
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        String contentType = request.getHeader("Content-Type");
        HandlerMethod hm = (HandlerMethod)handler;
        System.out.println("preHandle..."+contentType);
        return true;
    }

    @Override
    //原始方法调用后执行的内容
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {
        System.out.println("postHandle...");
    }

    @Override
    //原始方法调用完成后执行的内容
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        System.out.println("afterCompletion...");
    }
}

5.3 拦截器参数

5.3.1 前置处理方法

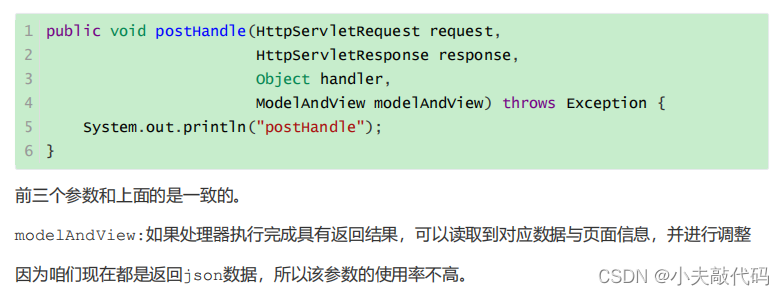

5.3.2 后置处理方法

5.4 拦截器链配置

5.4.1 配置多个拦截器

@Component
public class ProjectInterceptor2 implements HandlerInterceptor {
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
//        String contentType = request.getHeader("Content-Type");
//        HandlerMethod hm = (HandlerMethod)handler;
        System.out.println("preHandle...222");
        return false;
    }

    @Override
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {
        System.out.println("postHandle...222");
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        System.out.println("afterCompletion...222");
    }
}

@Configuration
@ComponentScan({"com.itheima.controller"})
@EnableWebMvc
//实现WebMvcConfigurer接口可以简化开发，但具有一定的侵入性
public class SpringMvcConfig implements WebMvcConfigurer {
    @Autowired
    private ProjectInterceptor projectInterceptor;
    @Autowired
    private ProjectInterceptor2 projectInterceptor2;

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        //配置多拦截器
        registry.addInterceptor(projectInterceptor).addPathPatterns("/books","/books/*");
        registry.addInterceptor(projectInterceptor2).addPathPatterns("/books","/books/*");
    }
}
