9月3日关键点检测学习笔记——图像识别与检测

---

前言

本文为9月3日关键点检测学习笔记——图像识别与检测，分为三个章节：

• 特征；
• 目标定位与检测；
• Pytorch 搭建 CNN。

---

一、特征

1、颜色特征

2、形状特征

3、纹理特征

---

二、目标定位与检测

检测 = 多目标定位。

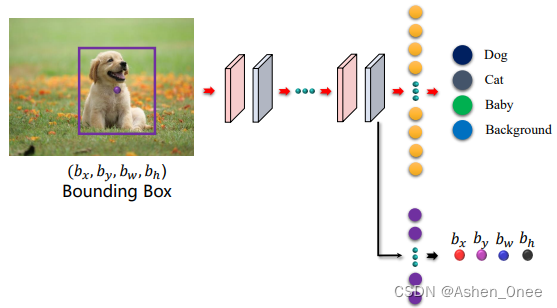

1、目标定位 Object Localization

• $y=[P_c,b_x,b_y,b_w,b_h,C_1,C_2,C_3{]}^T$；
• $P_c$：0 或 1，判断是背景还是 object，背景为 0；
• $C$：分类；
• Loss： L ( y ^ − y ) = { ( P c ^ − P c ) 2 + ( b x ^ − b x ) 2 + … + ( C 3 ^ − C 3 ) 2 i f   P c = 1 ( P c ^ − P c ) 2 i f   P c = 0 L(\hat{y} - y) = \left\{
  (Pc^−Pc)2+(bx^−bx)2+…+(C3^−C3)2if Pc=1(Pc^−Pc)2if Pc=0" role="presentation" style="text-align: center; position: relative;">(Pc^−Pc)2+(bx^−bx)2+…+(C3^−C3)2if Pc=1(Pc^−Pc)2if Pc=0$$\begin{array}{c}(\widehat{P_c}-P_c{)}^2+(\widehat{b_x}-b_x{)}^2+\dots +(\widehat{C_3}-C_3{)}^{2}if{P}_c=1\\ (\widehat{P_c}-P_c{)}^{2}if{P}_c=0\end{array}$$
  \right. L(y^​−y)={(Pc​^​−Pc​)2+(bx​^​−bx​)2+…+(C3​^​−C3​)2if Pc​=1(Pc​^​−Pc​)2if Pc​=0​。

(1)、One Class CNN

一个窗口 ⇒ 检测一个类别。

(2)、Two Classes CNN

• IoU：


• Anchor：

  • Anchor Box 1：$y=[P_c,b_x,b_y,b_w,b_h,C_1,C_2,C_3{]}^T$；
  • Anchor Box 2：$y=[P_c,b_x,b_y,b_w,b_h,C_1,C_2,C_3,P_c,b_x,b_y,b_w,b_h,C_1,C_2,C_3{]}^T$.

2、目标识别 Object detection

分类问题。

(1)、One-stage

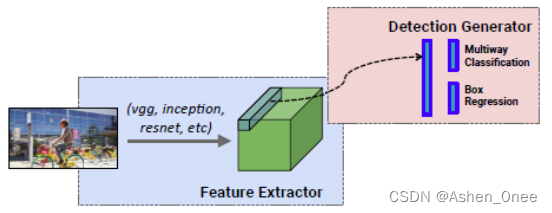

• **Single-Shot Detector： **


(2)、Two-stage

• Faster R-CNN：


3、目标检测

分类 + 定位。

---

三、Pytorch 搭建 CNN

# 使用 Cifar 数据集

import numpy as np
import torch, torchvision
import torch.nn as nn
import torch.nn.functional as F
from torchvision import datasets
import torchvision.transforms as transformers

print(torch.__version__)

# 1. Import & preprocess dataset
'''
- 计算数据的均值和标准差，然后 normalization；
- 需要分别计算 RGB 三个通道的均值和标准差；
- 传入元组，返回列表。
'''
ROOT = './data'

train_data = datasets.CIFAR10(root=ROOT,
                              train=True,
                              download=True)

# means = train_data.mean(axis=(0, 1, 2)) / 255
# stds = train_data.std(axis=(0, 1, 2)) / 255
#
# print(f'Calculated means: {means}')
# print(f'Calculated stds: {stds}')

train_transformers = transformers.Compose([
                            transformers.RandomRotation(5),
                            transformers.RandomHorizontalFlip(0.5),
                            transformers.RandomCrop(32, padding=2),
                            transformers.ToTensor(),
                            transformers.Normalize(mean=[0.4914, 0.4812, 0.4465],
                                                   std=[0.2470, 0.2435, 0.2616])
])

test_transformers = transformers.Compose([
                        transformers.ToTensor(),
                        transformers.Normalize(mean=[0.4914, 0.4812, 0.4465],
                                               std=[0.2470, 0.2435, 0.2616])
])

train_dataset = datasets.CIFAR10(ROOT,
                                 train=True,
                                 download=True,
                                 transform=train_transformers)

test_dataset = datasets.CIFAR10(ROOT,
                                train=False,
                                download=True,
                                transform=test_transformers)

# 2. 搭建 CNN 网络并训练

# Data loaders
train_loader = torch.utils.data.DataLoader(train_dataset,
                                           batch_size=128,
                                           shuffle=True)
test_loader = torch.utils.data.DataLoader(train_dataset,
                                           batch_size=128,
                                           shuffle=False)

# CNN
class net(nn.Module):
    def __init__(self, input_dim, num_filters, kernel_size, stride, padding, num_classes):
        super(net, self).__init__()
        self.input_dim = input_dim
        conv_output_size = int((input_dim - kernel_size + 2 * padding) / stride) + 1 # 卷积层输出尺寸
        pool_output_size = int((conv_output_size - kernel_size) / stride) + 1 # 池化层输出尺寸

        self.conv = nn.Conv2d(3,
                              num_filters,
                              kernel_size=kernel_size,
                              stride=stride,
                              padding=padding)
        self.pool = nn.MaxPool2d(kernel_size=kernel_size,
                                 stride=stride)
        self.relu = nn.ReLU()
        self.dense = nn.Linear(pool_output_size * pool_output_size * num_filters, num_classes)

    def forward(self, x):
        x = self.conv(x)
        x = self.relu(x)
        x = self.pool(x)
        x = x.view(x.size(0), -1)  # resize to fit into final dense layer
        x = self.dense(x)
        return x

# 超参数
DEVICE = torch.device('cuda')
INPUT_DIM = 32
NUM_FILTERS = 32
KERNEL_SIZE = 3
STRIDE = 1
PADDING = 1
NUM_CLASSES = 10
LEARNING_RATE = 1e-3
NUM_EPOCHS = 30

model = net(INPUT_DIM, NUM_FILTERS, KERNEL_SIZE, STRIDE, PADDING, NUM_CLASSES).to(DEVICE)
criterion = nn.CrossEntropyLoss() # 不需要调用 softmax，已包含在内
optimizer = torch.optim.Adam(model.parameters(), lr=LEARNING_RATE)

# 训练模型
for i in range(NUM_EPOCHS):
    temp_loss = []
    for (x, y) in train_loader:
        x, y = x.float().to(DEVICE), y.to(DEVICE)
        outputs = model(x)
        loss = criterion(outputs, y)
        # print(loss.type)
        '''
        .item():
        - 以列表返回可遍历的(键, 值) 元组数组;
        - 可用于 for 循环遍历;
        - 把字典中每对 key 和 value 组成一个元组，并把这些元组放在列表中返回.
        '''
        temp_loss.append(loss.item())

        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

    print("Loss at {}th epoch: {}".format(i, np.mean(temp_loss)))

# 3. Evaluation
y_pred, y_true = [], []
with torch.no_grad():
    for x, y in test_loader:
        x, y = x.float().to(DEVICE), y.to(DEVICE)
        outputs = F.softmax(model(x)).max(1)[-1]  # 预测的 label
        y_true += list(y.numpy())
        y_pred += list(outputs.numpy())

# 评估结果
from sklearn.metrics import accuracy_score
print(accuracy_score(y_true, y_pred))

>>> ……
>>> Loss at 29th epoch: 1.006340386312636
>>> 0.66006
