测试数据库 （可忽视）

/*
 Navicat Premium Data Transfer

 Source Server         : 127.0.0.1
 Source Server Type    : MySQL
 Source Server Version : 80015
 Source Host           : localhost:3306
 Source Schema         : hrm_db

 Target Server Type    : MySQL
 Target Server Version : 80015
 File Encoding         : 65001

 Date: 04/08/2022 17:57:51
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for dept_inf
-- ----------------------------
DROP TABLE IF EXISTS `dept_inf`;
CREATE TABLE `dept_inf`  (
  `ID` int(11) NOT NULL AUTO_INCREMENT,
  `NAME` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `REMARK` varchar(300) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `NUM` int(11) NULL DEFAULT 0,
  PRIMARY KEY (`ID`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 18 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of dept_inf
-- ----------------------------
INSERT INTO `dept_inf` VALUES (1, '技术部', '技术部', 0);
INSERT INTO `dept_inf` VALUES (2, '运营部', '运营部', 0);
INSERT INTO `dept_inf` VALUES (3, '财务部', '财务部', 0);
INSERT INTO `dept_inf` VALUES (5, '总公办', '总公办', 0);
INSERT INTO `dept_inf` VALUES (6, '市场部', '市场部', 0);
INSERT INTO `dept_inf` VALUES (7, '教学部', '教学部', 0);
INSERT INTO `dept_inf` VALUES (10, '测试001', '这是测试001', 0);
INSERT INTO `dept_inf` VALUES (11, 'UNDOING。。。', '这是测试001', 42);
INSERT INTO `dept_inf` VALUES (13, '测试3', '这是测试001', 16);
INSERT INTO `dept_inf` VALUES (14, '测试005', '这是测试001', 0);
INSERT INTO `dept_inf` VALUES (16, '修修改改。。。', 'CS', 33);

-- ----------------------------
-- Table structure for document_inf
-- ----------------------------
DROP TABLE IF EXISTS `document_inf`;
CREATE TABLE `document_inf`  (
  `ID` int(11) NOT NULL AUTO_INCREMENT,
  `TITLE` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `filename` varchar(300) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `REMARK` varchar(300) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `CREATE_DATE` timestamp(0) NOT NULL DEFAULT CURRENT_TIMESTAMP(0),
  `USER_ID` int(11) NULL DEFAULT NULL,
  PRIMARY KEY (`ID`) USING BTREE,
  INDEX `FK_DOCUMENT_USER`(`USER_ID`) USING BTREE,
  CONSTRAINT `FK_DOCUMENT_USER` FOREIGN KEY (`USER_ID`) REFERENCES `user_inf` (`ID`) ON DELETE RESTRICT ON UPDATE RESTRICT
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for employee_inf
-- ----------------------------
DROP TABLE IF EXISTS `employee_inf`;
CREATE TABLE `employee_inf`  (
  `ID` int(11) NOT NULL AUTO_INCREMENT,
  `DEPT_ID` int(11) NOT NULL,
  `JOB_ID` int(11) NOT NULL,
  `NAME` varchar(20) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `CARD_ID` varchar(18) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `ADDRESS` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `POST_CODE` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `TEL` varchar(16) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `PHONE` varchar(11) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `QQ_NUM` varchar(10) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `EMAIL` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `SEX` int(11) NOT NULL DEFAULT 1,
  `PARTY` varchar(10) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `BIRTHDAY` datetime(0) NULL DEFAULT NULL,
  `RACE` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `EDUCATION` varchar(10) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `SPECIALITY` varchar(20) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `HOBBY` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `REMARK` varchar(500) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `CREATE_DATE` timestamp(0) NOT NULL DEFAULT CURRENT_TIMESTAMP(0),
  PRIMARY KEY (`ID`) USING BTREE,
  INDEX `FK_EMP_DEPT`(`DEPT_ID`) USING BTREE,
  INDEX `FK_EMP_JOB`(`JOB_ID`) USING BTREE,
  CONSTRAINT `FK_EMP_DEPT` FOREIGN KEY (`DEPT_ID`) REFERENCES `dept_inf` (`ID`) ON DELETE RESTRICT ON UPDATE RESTRICT,
  CONSTRAINT `FK_EMP_JOB` FOREIGN KEY (`JOB_ID`) REFERENCES `job_inf` (`ID`) ON DELETE RESTRICT ON UPDATE RESTRICT
) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of employee_inf
-- ----------------------------
INSERT INTO `employee_inf` VALUES (1, 1, 8, '爱丽丝', '4328011988', '广州天河', '510000', '020-77777777', '13902001111', '36750066', '251425887@qq.com', 0, '党员', '1980-01-01 00:00:00', '满', '本科', '美声', '唱歌', '四大天王', '2016-03-14 11:35:18');
INSERT INTO `employee_inf` VALUES (2, 2, 1, '杰克', '22623', '43234', '42427424', '42242', '4247242', '42424', '251425887@qq.com', 2, NULL, NULL, NULL, NULL, NULL, NULL, NULL, '2016-03-14 11:35:18');
INSERT INTO `employee_inf` VALUES (3, 1, 2, 'bb', '432801197711251038', '广州', '510000', '020-99999999', '13907351532', '36750064', '36750064@qq.com', 1, '党员', '1977-11-25 00:00:00', '汉', '本科', '计算机', '爬山', '无', '2016-07-14 09:54:52');

-- ----------------------------
-- Table structure for job_inf
-- ----------------------------
DROP TABLE IF EXISTS `job_inf`;
CREATE TABLE `job_inf`  (
  `ID` int(11) NOT NULL AUTO_INCREMENT,
  `NAME` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `REMARK` varchar(300) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`ID`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 9 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of job_inf
-- ----------------------------
INSERT INTO `job_inf` VALUES (1, '职员', '职员');
INSERT INTO `job_inf` VALUES (2, 'Java开发工程师', 'Java开发工程师');
INSERT INTO `job_inf` VALUES (3, 'Java中级开发工程师', 'Java中级开发工程师');
INSERT INTO `job_inf` VALUES (4, 'Java高级开发工程师', 'Java高级开发工程师');
INSERT INTO `job_inf` VALUES (5, '系统管理员', '系统管理员');
INSERT INTO `job_inf` VALUES (6, '架构师', '架构师');
INSERT INTO `job_inf` VALUES (7, '主管', '主管');
INSERT INTO `job_inf` VALUES (8, '经理', '经理');
INSERT INTO `job_inf` VALUES (9, '总经理', '总经理');

-- ----------------------------
-- Table structure for notice_inf
-- ----------------------------
DROP TABLE IF EXISTS `notice_inf`;
CREATE TABLE `notice_inf`  (
  `ID` int(11) NOT NULL AUTO_INCREMENT,
  `TITLE` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `CONTENT` text CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `CREATE_DATE` timestamp(0) NOT NULL DEFAULT CURRENT_TIMESTAMP(0),
  `USER_ID` int(11) NULL DEFAULT NULL,
  PRIMARY KEY (`ID`) USING BTREE,
  INDEX `FK_NOTICE_USER`(`USER_ID`) USING BTREE,
  CONSTRAINT `FK_NOTICE_USER` FOREIGN KEY (`USER_ID`) REFERENCES `user_inf` (`ID`) ON DELETE RESTRICT ON UPDATE RESTRICT
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for user_inf
-- ----------------------------
DROP TABLE IF EXISTS `user_inf`;
CREATE TABLE `user_inf`  (
  `ID` int(11) NOT NULL AUTO_INCREMENT,
  `loginname` varchar(20) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `PASSWORD` varchar(16) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `USERSTATUS` int(11) NOT NULL DEFAULT 1,
  `createdate` timestamp(0) NOT NULL DEFAULT CURRENT_TIMESTAMP(0),
  `username` varchar(20) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`ID`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of user_inf
-- ----------------------------
INSERT INTO `user_inf` VALUES (1, 'admin', '123456', 2, '2016-03-12 09:34:28', '超级管理员');

-- ----------------------------
-- Procedure structure for SAD_LOCK_TEST
-- ----------------------------
DROP PROCEDURE IF EXISTS `SAD_LOCK_TEST`;
delimiter ;;
CREATE PROCEDURE `SAD_LOCK_TEST`()
BEGIN
SET @sum:=0;
SET @sum:=0;
START TRANSACTION;
SELECT * FROM dept_inf WHERE ID = 11;
WHILE @sum < 1000000 DO
SET @sum = @sum +1;
END WHILE;
SELECT @sum;
COMMIT;
END
;;
delimiter ;

-- ----------------------------

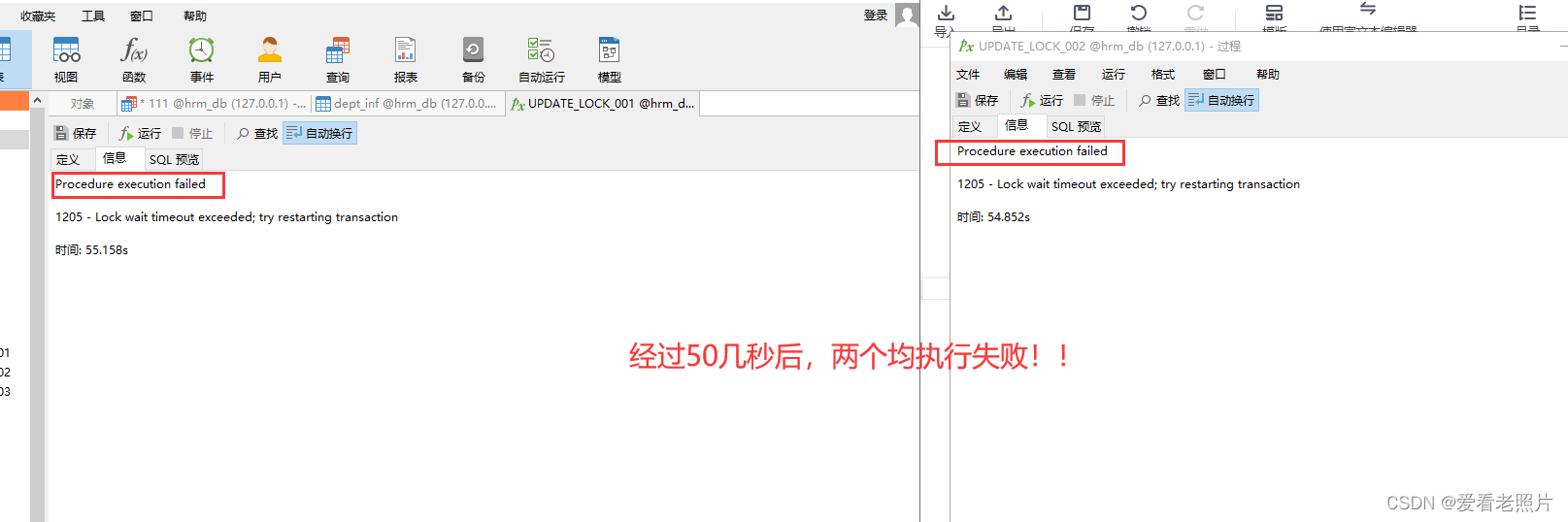

-- Procedure structure for SELECT...FOR UPDATE_001
-- ----------------------------
DROP PROCEDURE IF EXISTS `SELECT...FOR UPDATE_001`;
delimiter ;;
CREATE PROCEDURE `SELECT...FOR UPDATE_001`()
BEGIN
SET @sum:=0;
SET @sum:=0;
START TRANSACTION;
-- 111
SELECT * FROM dept_inf WHERE ID=11 FOR UPDATE;

WHILE @sum < 1000000 DO
SET @sum = @sum +1;
END WHILE;
-- 等待222执行完毕
UPDATE dept_inf SET NUM=NUM+1 WHERE ID=13;

SELECT @sum;
COMMIT;
END
;;
delimiter ;

-- ----------------------------
-- Procedure structure for SELECT...FOR UPDATE_002
-- ----------------------------
DROP PROCEDURE IF EXISTS `SELECT...FOR UPDATE_002`;
delimiter ;;
CREATE PROCEDURE `SELECT...FOR UPDATE_002`()
BEGIN
SET @sum:=0;
SET @sum:=0;
START TRANSACTION;

-- 333
SELECT * FROM dept_inf WHERE ID=13 FOR UPDATE;

 WHILE @sum < 1000000 DO
 SET @sum = @sum +1;
 END WHILE;
 -- 等待111执行完毕
 UPDATE dept_inf SET NUM=NUM+1 WHERE ID=11;
SELECT @sum;
COMMIT;
END
;;
delimiter ;

-- ----------------------------
-- Procedure structure for SELECT...FOR UPDATE_003
-- ----------------------------
DROP PROCEDURE IF EXISTS `SELECT...FOR UPDATE_003`;
delimiter ;;
CREATE PROCEDURE `SELECT...FOR UPDATE_003`()
BEGIN
SET @sum:=0;
SET @sum:=0;
START TRANSACTION;
-- 222
SELECT * FROM dept_inf WHERE ID=16 FOR UPDATE;

WHILE @sum < 1000000 DO
SET @sum = @sum +1;
END WHILE;
-- 等待333执行完毕
UPDATE dept_inf SET NUM=NUM+1 WHERE ID=13;

SELECT @sum;
COMMIT;
END
;;
delimiter ;

-- ----------------------------

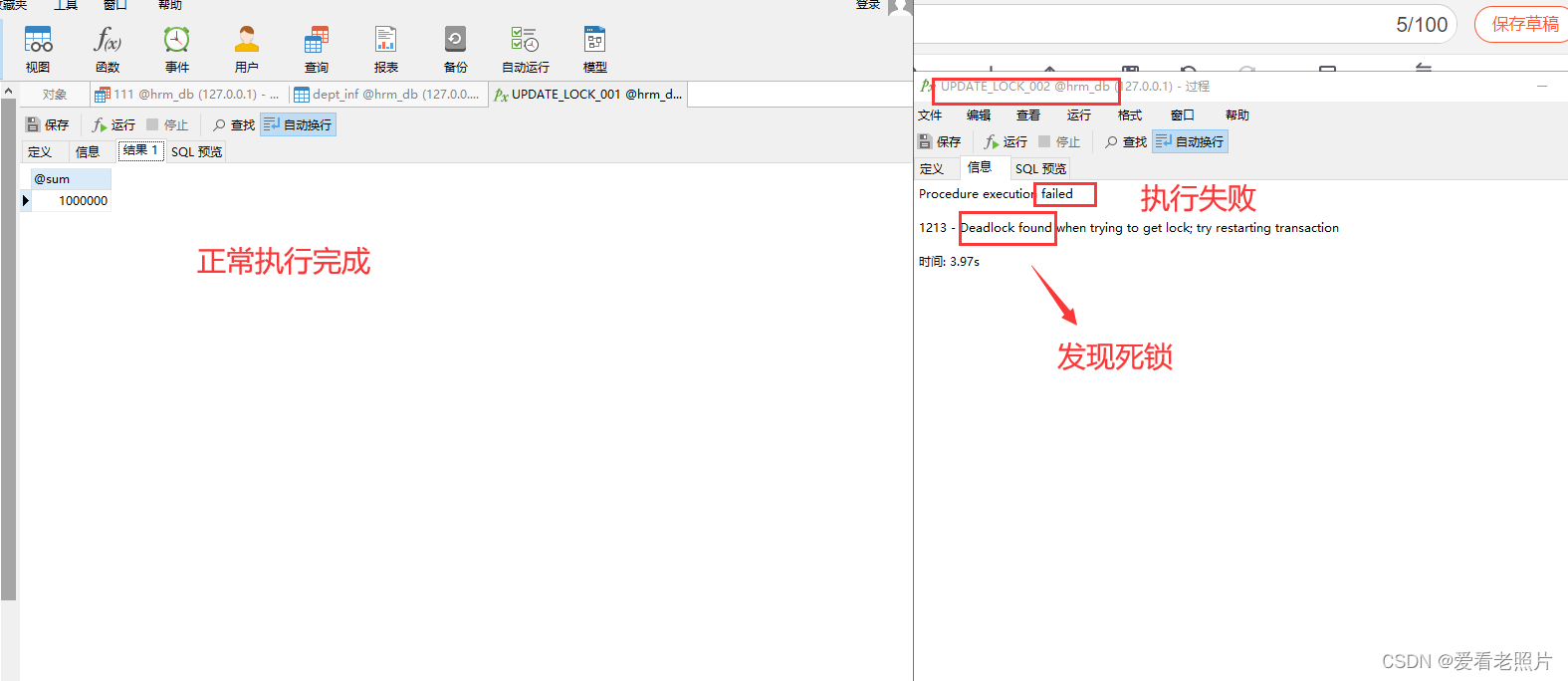

-- Procedure structure for UPDATE_LOCK_001
-- ----------------------------
DROP PROCEDURE IF EXISTS `UPDATE_LOCK_001`;
delimiter ;;
CREATE PROCEDURE `UPDATE_LOCK_001`()
BEGIN
SET @sum:=0;
SET @sum:=0;
START TRANSACTION;

-- 等待222执行完毕
UPDATE dept_inf SET NUM=NUM+1 WHERE ID=16;

WHILE @sum < 1000000 DO
SET @sum = @sum +1;
END WHILE;

UPDATE dept_inf SET NUM=NUM+1 WHERE ID=11;

SELECT @sum;
COMMIT;
END
;;
delimiter ;

-- ----------------------------
-- Procedure structure for UPDATE_LOCK_002
-- ----------------------------
DROP PROCEDURE IF EXISTS `UPDATE_LOCK_002`;
delimiter ;;
CREATE PROCEDURE `UPDATE_LOCK_002`()
BEGIN
SET @sum:=0;
SET @sum:=0;
START TRANSACTION;

-- 等待222执行完毕
UPDATE dept_inf SET NUM=NUM+2 WHERE ID=11;

WHILE @sum < 1000000 DO
SET @sum = @sum +1;
END WHILE;

UPDATE dept_inf SET NUM=NUM+2 WHERE ID=16;

SELECT @sum;
COMMIT;
END
;;
delimiter ;

-- ----------------------------
-- Procedure structure for UPDATE_LOCK_003
-- ----------------------------
DROP PROCEDURE IF EXISTS `UPDATE_LOCK_003`;
delimiter ;;
CREATE PROCEDURE `UPDATE_LOCK_003`()
BEGIN
SET @sum:=0;
SET @sum:=0;
START TRANSACTION;

-- 等待222执行完毕
UPDATE dept_inf SET NUM=NUM+1 WHERE ID=13;

WHILE @sum < 1000000 DO
SET @sum = @sum +1;
END WHILE;

SELECT @sum;
COMMIT;
END
;;
delimiter ;

SET FOREIGN_KEY_CHECKS = 1;
