• 使用sealer-构建、交付、运行【kubernetes】-demo

    Kubernetes 是一个开源的容器编排引擎，用来对容器化应用进行自动化部署、 扩缩和管理.

    sealer
    把整个集群看成一台服务器，把kubernetes看成云操作系统，吸取docker设计精髓实现分布式软件镜像化构建、交付、运行

    • 构建: 使用Kubefile定义整个集群所有依赖，把kubernetes 中间件 数据库和SaaS软件所有依赖打包到集群镜像中
    • 交付: 像交付Docker镜像一样交付整个集群和集群中的分布式软件
    • 运行: 一条命令启动整个集群, 集群纬度保障一致性，兼容主流linux系统与多种架构

    当前文档简单使用sealer，暂未应用，通过sealer看看Kubernetes。

    参考

    在这里插入图片描述
    sealer
    在这里插入图片描述
    Kubernetes 文档
    sealer是如何把sealos按在地上摩擦的
    sealos-gitee
    sealos-github
    sealer-gitee
    sealer-github
    Containerd 的前世今生和保姆级入门教程
    sealos爆火后依然要开发sealer，背后原因有哪些？
    K8S高可用之Sealos

    demo-操作

    使用sealer创建一个kubernetes集群

    主要参考：

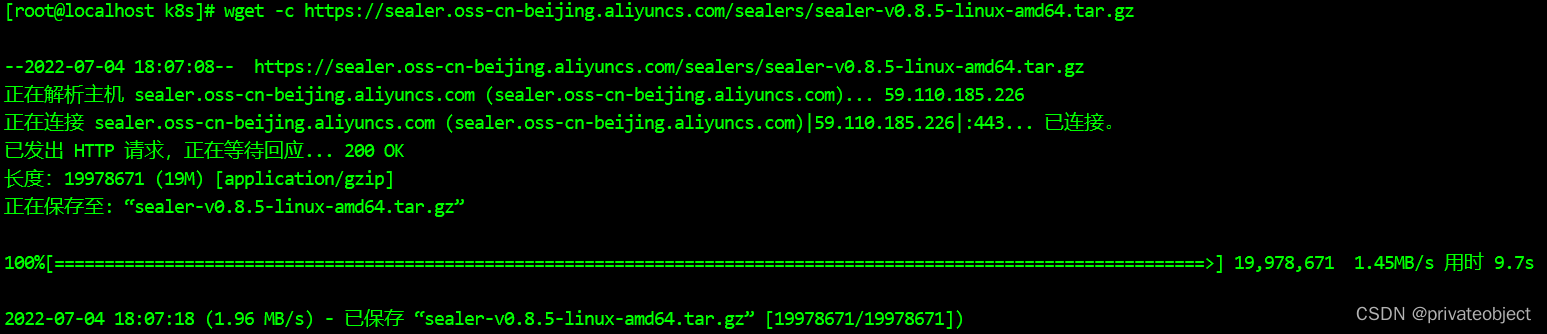

    下载

    wget -c https://sealer.oss-cn-beijing.aliyuncs.com/sealers/sealer-v0.8.5-linux-amd64.tar.gz

    • 1

    在这里插入图片描述

    解压并移动

    tar -xvf  sealer-v0.8.5-linux-amd64.tar.gz -C /usr/bin/

    • 1

    在这里插入图片描述

    调整授权用户（如果是root请忽略）

    在这里插入图片描述
    压缩文件内
    在这里插入图片描述

    chown root:root /usr/bin/sealer
ll /usr/bin/ |grep  seal

    • 1
    • 2

    在这里插入图片描述

    命令

    版本

    sealer version

    • 1
    {
    "gitVersion": "v0.8.5",
    "gitCommit": "f9c3d99",
    "buildDate": "2022-04-28 14:16:58",
    "goVersion": "go1.16.15",
    "compiler": "gc",
    "platform": "linux/amd64"
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8

    当前版本命令

    Available Commands:
  apply       应用kubernetes集群
  build       从Kubefile构建云image
  cert        更新k8s API服务器证书
  check       检查群集的状态
  completion  为bash生成自动完成脚本
  debug       为POD和节点创建调试会话
  delete      删除集群
  exec        在所有节点上执行shell命令或脚本。
  gen         生成一个Clusterfile来接管未由sealer部署的正常集群
  gen-doc     使用降价格式为sealer CLI生成MarkDown
  help        关于任何命令的帮助
  images      列出所有集群images
  inspect     打印image信息或Clusterfile
  join        将节点加入集群
  load        从tar文件加载image
  login       登录image存储库
  merge       将多个image合并为一个
  prune       削减sealer数据目录
  pull        将云image拉到本地
  push        将云image推送到注册表
  rmi         按名称删除本地image
  run         使用image和参数运行集群
  save        将image保存到tar文件
  search      sealer搜索kubernetes
  tag         将image标记为新image
  upgrade     升级kubernetes集群
  version     显示sealer版本

Flags:
      --config string   配置文件 (默认是 $HOME/.sealer.json)
  -d, --debug           启用调试模式
  -h, --help            sealer帮助
      --hide-path       隐藏日志路径
      --hide-time       隐藏日志时间
  -t, --toggle          切换的帮助消息

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36

    一个命令部署整个 Kubernetes 集群

    Flags:
      --cmd-args strings     set args for image cmd instruction
  -e, --env strings          set custom environment variables
  -h, --help                 help for run
  -m, --masters string       set Count or IPList to masters
  -n, --nodes string         set Count or IPList to nodes
  -p, --passwd string        set cloud provider or baremetal server password
      --pk string            set baremetal server private key (default "/root/.ssh/id_rsa")
      --pk-passwd string     set baremetal server private key password
      --port string          set the sshd service port number for the server (default port: 22) (default "22")
      --provider ALI_CLOUD   set infra provider, example ALI_CLOUD, the local server need ignore this
  -u, --user string          set baremetal server username (default "root")

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12

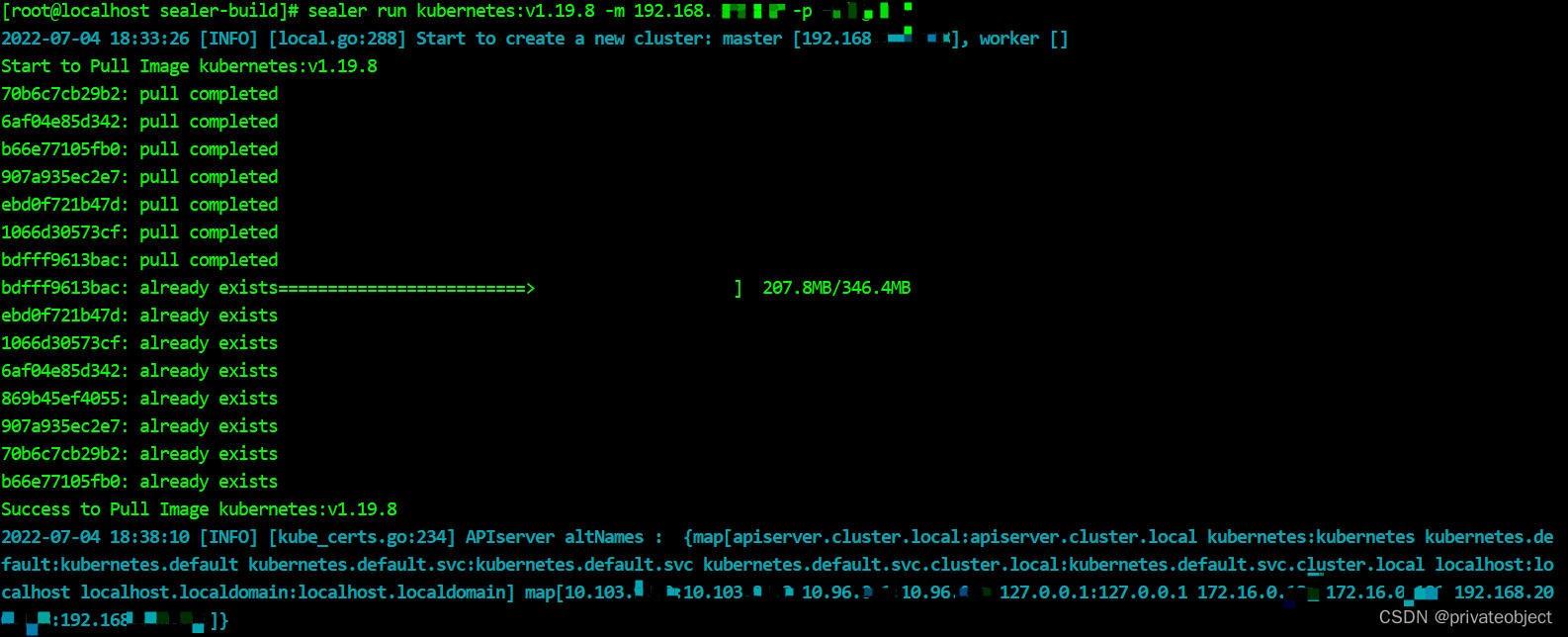

    Sealer运行命令行

    # 默认root用户
sealer run kubernetes:v1.19.8 -m 192.168.xxx.xxx -p {root密码}

    • 1
    • 2

    在这里插入图片描述
    启动日志

    2022-07-04 18:33:26 [INFO] [local.go:288] Start to create a new cluster: master [192.168.xxx.xxx], worker []
Start to Pull Image kubernetes:v1.19.8
70b6c7cb29b2: pull completed
6af04e85d342: pull completed
b66e77105fb0: pull completed
907a935ec2e7: pull completed
ebd0f721b47d: pull completed
1066d30573cf: pull completed
bdfff9613bac: pull completed
bdfff9613bac: already exists=========================>                    ]  207.8MB/346.4MB
ebd0f721b47d: already exists
1066d30573cf: already exists
6af04e85d342: already exists
869b45ef4055: already exists
907a935ec2e7: already exists
70b6c7cb29b2: already exists
b66e77105fb0: already exists
Success to Pull Image kubernetes:v1.19.8
2022-07-04 18:38:10 [INFO] [kube_certs.go:234] APIserver altNames :  {map[apiserver.cluster.local:apiserver.cluster.local kubernetes:kubernetes kubernetes.default:kubernetes.default kubernetes.default.svc:kubernetes.default.svc kubernetes.default.svc.cluster.local:kubernetes.default.svc.cluster.local localhost:localhost localhost.localdomain:localhost.localdomain] map[10.103.xxx.xxx:10.103.xxx.xxx 10.96.xxx.xxx:10.96.xxx.xxx 127.0.0.1:127.0.0.1 172.16.xxx.xxx:172.16.xxx.xxx 192.168.xxx.xxx:192.168.xxx.xxx]}
2022-07-04 18:38:10 [INFO] [kube_certs.go:254] Etcd altnames : {map[localhost:localhost localhost.localdomain:localhost.localdomain] map[127.0.0.1:127.0.0.1 192.168.xxx.xxx:192.168.xxx.xxx ::1:::1]}, commonName : localhost.localdomain
2022-07-04 18:38:17 [INFO] [kubeconfig.go:267] [kubeconfig] Writing "admin.conf" kubeconfig file

2022-07-04 18:38:19 [INFO] [kubeconfig.go:267] [kubeconfig] Writing "controller-manager.conf" kubeconfig file

2022-07-04 18:38:19 [INFO] [kubeconfig.go:267] [kubeconfig] Writing "scheduler.conf" kubeconfig file

2022-07-04 18:38:20 [INFO] [kubeconfig.go:267] [kubeconfig] Writing "kubelet.conf" kubeconfig file

++ dirname init-registry.sh
+ cd .
+ REGISTRY_PORT=5000
+ VOLUME=/var/lib/sealer/data/my-cluster/rootfs/registry
+ REGISTRY_DOMAIN=sea.hub
+ container=sealer-registry
+++ pwd
++ dirname /var/lib/sealer/data/my-cluster/rootfs/scripts
+ rootfs=/var/lib/sealer/data/my-cluster/rootfs
+ config=/var/lib/sealer/data/my-cluster/rootfs/etc/registry_config.yml
+ htpasswd=/var/lib/sealer/data/my-cluster/rootfs/etc/registry_htpasswd
+ certs_dir=/var/lib/sealer/data/my-cluster/rootfs/certs
+ image_dir=/var/lib/sealer/data/my-cluster/rootfs/images
+ mkdir -p /var/lib/sealer/data/my-cluster/rootfs/registry
+ load_images
+ for image in '"$image_dir"/*'
+ '[' -f /var/lib/sealer/data/my-cluster/rootfs/images/registry.tar ']'
+ docker load -q -i /var/lib/sealer/data/my-cluster/rootfs/images/registry.tar
Loaded image: registry:2.7.1
++ docker ps -aq -f name=sealer-registry
+ '[' '' ']'
+ regArgs='-d --restart=always --net=host --name sealer-registry -v /var/lib/sealer/data/my-cluster/rootfs/certs:/certs -v /var/lib/sealer/data/my-cluster/rootfs/registry:/var/lib/registry -e REGISTRY_HTTP_TLS_CERTIFICATE=/certs/sea.hub.crt -e REGISTRY_HTTP_TLS_KEY=/certs/sea.hub.key'
+ '[' -f /var/lib/sealer/data/my-cluster/rootfs/etc/registry_config.yml ']'
+ sed -i s/5000/5000/g /var/lib/sealer/data/my-cluster/rootfs/etc/registry_config.yml
+ regArgs='-d --restart=always --net=host --name sealer-registry -v /var/lib/sealer/data/my-cluster/rootfs/certs:/certs -v /var/lib/sealer/data/my-cluster/rootfs/registry:/var/lib/registry -e REGISTRY_HTTP_TLS_CERTIFICATE=/certs/sea.hub.crt -e REGISTRY_HTTP_TLS_KEY=/certs/sea.hub.key     -v /var/lib/sealer/data/my-cluster/rootfs/etc/registry_config.yml:/etc/docker/registry/config.yml'
+ '[' -f /var/lib/sealer/data/my-cluster/rootfs/etc/registry_htpasswd ']'
+ docker run -d --restart=always --net=host --name sealer-registry -v /var/lib/sealer/data/my-cluster/rootfs/certs:/certs -v /var/lib/sealer/data/my-cluster/rootfs/registry:/var/lib/registry -e REGISTRY_HTTP_TLS_CERTIFICATE=/certs/sea.hub.crt -e REGISTRY_HTTP_TLS_KEY=/certs/sea.hub.key -v /var/lib/sealer/data/my-cluster/rootfs/etc/registry_config.yml:/etc/docker/registry/config.yml registry:2.7.1
6d81axxx.xxx
+ check_registry
+ n=1
+ ((  n <= 3  ))
++ docker inspect --format '{{json .State.Status}}' sealer-registry
+ registry_status='"running"'
+ [[ "running" == \"running\" ]]
+ break
2022-07-04 18:40:30 [INFO] [init.go:251] start to init master0...
2022-07-04 18:44:38 [INFO] [init.go:206] join command is: kubeadm join  apiserver.cluster.local:6443 --token 2uywik.xxx.xxx \
    --discovery-token-ca-cert-hash sha256:f8efxxx.xxx \
    --control-plane --certificate-key 0830xxx.xxx


customresourcedefinition.apiextensions.k8s.io/bgpconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/bgppeers.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/blockaffinities.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/caliconodestatuses.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/clusterinformations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/felixconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/globalnetworkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/globalnetworksets.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/hostendpoints.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamblocks.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamconfigs.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamhandles.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ippools.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipreservations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/kubecontrollersconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/networkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/networksets.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/apiservers.operator.tigera.io created
customresourcedefinition.apiextensions.k8s.io/imagesets.operator.tigera.io created
customresourcedefinition.apiextensions.k8s.io/installations.operator.tigera.io created
customresourcedefinition.apiextensions.k8s.io/tigerastatuses.operator.tigera.io created
namespace/tigera-operator created
podsecuritypolicy.policy/tigera-operator created
serviceaccount/tigera-operator created
clusterrole.rbac.authorization.k8s.io/tigera-operator created
clusterrolebinding.rbac.authorization.k8s.io/tigera-operator created
deployment.apps/tigera-operator created
installation.operator.tigera.io/default created
apiserver.operator.tigera.io/default created
2022-07-04 18:44:48 [INFO] [local.go:298] Succeeded in creating a new cluster, enjoy it!

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99

    kubectl–help

    kubectl controls the Kubernetes cluster manager.

 Find more information at: https://kubernetes.io/docs/reference/kubectl/overview/

Basic Commands (Beginner):
  create        Create a resource from a file or from stdin.
  expose        使用 replication controller, service, deployment 或者 pod 并暴露它作为一个 新的 Kubernetes
Service
  run           在集群中运行一个指定的镜像
  set           为 objects 设置一个指定的特征

Basic Commands (Intermediate):
  explain       查看资源的文档
  get           显示一个或更多 resources
  edit          在服务器上编辑一个资源
  delete        Delete resources by filenames, stdin, resources and names, or by resources and label selector

Deploy Commands:
  rollout       Manage the rollout of a resource
  scale         Set a new size for a Deployment, ReplicaSet or Replication Controller
  autoscale     自动调整一个 Deployment, ReplicaSet, 或者 ReplicationController 的副本数量

Cluster Management Commands:
  certificate   修改 certificate 资源.
  cluster-info  显示集群信息
  top           Display Resource (CPU/Memory/Storage) usage.
  cordon        标记 node 为 unschedulable
  uncordon      标记 node 为 schedulable
  drain         Drain node in preparation for maintenance
  taint         更新一个或者多个 node 上的 taints

Troubleshooting and Debugging Commands:
  describe      显示一个指定 resource 或者 group 的 resources 详情
  logs          输出容器在 pod 中的日志
  attach        Attach 到一个运行中的 container
  exec          在一个 container 中执行一个命令
  port-forward  Forward one or more local ports to a pod
  proxy         运行一个 proxy 到 Kubernetes API server
  cp            复制 files 和 directories 到 containers 和从容器中复制 files 和 directories.
  auth          Inspect authorization

Advanced Commands:
  diff          Diff live version against would-be applied version
  apply         通过文件名或标准输入流(stdin)对资源进行配置
  patch         使用 strategic merge patch 更新一个资源的 field(s)
  replace       通过 filename 或者 stdin替换一个资源
  wait          Experimental: Wait for a specific condition on one or many resources.
  convert       在不同的 API versions 转换配置文件
  kustomize     Build a kustomization target from a directory or a remote url.

Settings Commands:
  label         更新在这个资源上的 labels
  annotate      更新一个资源的注解
  completion    Output shell completion code for the specified shell (bash or zsh)

Other Commands:
  alpha         Commands for features in alpha
  api-resources Print the supported API resources on the server
  api-versions  Print the supported API versions on the server, in the form of "group/version"
  config        修改 kubeconfig 文件
  plugin        Provides utilities for interacting with plugins.
  version       输出 client 和 server 的版本信息

Usage:
  kubectl [flags] [options]

Use "kubectl <command> --help" for more information about a given command.
Use "kubectl options" for a list of global command-line options (applies to all commands).

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68

    检查集群

    # sealer正在启动的时候，是获取不到信息的
kubectl get node
#The connection to the server localhost:8080 was refused - did you specify the right host or port?
# sealer启动成功后就可以了
kubectl get node
#NAME                    STATUS   ROLES    AGE     VERSION
#localhost.localdomain   Ready    master   5m30s   v1.19.8

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7

    在这里插入图片描述

    pod状态

    Pod是Kubernetes创建或部署的最小/最简单的基本单位，一个Pod代表集群上正在运行的一个进程

    kubectl get pod -A

    • 1

    在这里插入图片描述
    监听模式

    kubectl get pod -A -w

    • 1

    在这里插入图片描述

    挂载情况

    可以发现，挂载了很多容器

    df -kh

    • 1

    在这里插入图片描述
    sealer在启动的时候，容器数据是越来越多的，当前是启动成功后,路径做了压缩

    文件系统                 容量  已用  可用 已用% 挂载点
/dev/mapper/centos-root   50G   23G   28G   45% /
devtmpfs                 7.8G     0  7.8G    0% /dev
tmpfs                    7.8G   84K  7.8G    1% /dev/shm
tmpfs                    7.8G  876M  7.0G   12% /run
tmpfs                    7.8G     0  7.8G    0% /sys/fs/cgroup
/dev/sda1               1014M  180M  835M   18% /boot
/dev/mapper/centos-home   42G  3.4G   38G    9% /home
tmpfs                    1.6G     0  1.6G    0% /run/user/0
tmpfs                    1.6G     0  1.6G    0% /run/user/984
tmpfs                    1.6G     0  1.6G    0% /run/user/1003
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/a5bc...e65e/merged
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/5a3a...d865/merged
shm                       64M     0   64M    0% /var/lib/docker/containers/d510...0a1e/mounts/shm
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/a21d...8e9b/merged
shm                       64M     0   64M    0% /var/lib/docker/containers/e4b6...1173/mounts/shm
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/cc59...c72c/merged
shm                       64M     0   64M    0% /var/lib/docker/containers/e567...6685/mounts/shm
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/5b6e...98d2/merged
shm                       64M     0   64M    0% /var/lib/docker/containers/3f19...78ec/mounts/shm
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/446c...754e/merged
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/98a0...3657/merged
tmpfs                    7.8G   12K  7.8G    1% /var/lib/kubelet/pods/ba6a...c6f/volumes/kubernetes.io~secret/kube-proxy-token-zd26q
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/84afc435a3ab38ab2421f6faf9cffdcb3acaeb7a18313ae1a34889357a46945c/merged
tmpfs                    7.8G   12K  7.8G    1% /var/lib/kubelet/pods/d039...b5c0/volumes/kubernetes.io~secret/tigera-operator-token-crqnv
shm                       64M     0   64M    0% /var/lib/docker/containers/1667...028a/mounts/shm
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/496d...8cde/merged
shm                       64M     0   64M    0% /var/lib/docker/containers/e64c...6364/mounts/shm
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/a36a...85cd/merged
tmpfs                    7.8G   12K  7.8G    1% /var/lib/kubelet/pods/d19d...3ba2/volumes/kubernetes.io~secret/calico-typha-token-k476g
tmpfs                    7.8G   12K  7.8G    1% /var/lib/kubelet/pods/d19d...3ba2/volumes/kubernetes.io~secret/typha-certs
tmpfs                    7.8G   12K  7.8G    1% /var/lib/kubelet/pods/36bd...a6e9/volumes/kubernetes.io~secret/felix-certs
tmpfs                    7.8G   12K  7.8G    1% /var/lib/kubelet/pods/36bd...a6e9/volumes/kubernetes.io~secret/calico-node-token-qh4s6
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/0529...5257/merged
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/9f3d...4d93/merged
shm                       64M     0   64M    0% /var/lib/docker/containers/f578...c67e/mounts/shm
shm                       64M     0   64M    0% /var/lib/docker/containers/8db2...773c/mounts/shm
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/758f...afde/merged
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/0173...b9af/merged
tmpfs                    7.8G   12K  7.8G    1% /var/lib/kubelet/pods/64f0...441e/volumes/kubernetes.io~secret/coredns-token-7sxtt
tmpfs                    7.8G   12K  7.8G    1% /var/lib/kubelet/pods/f660...eb6d/volumes/kubernetes.io~secret/coredns-token-7sxtt
tmpfs                    7.8G   12K  7.8G    1% /var/lib/kubelet/pods/918c...582c/volumes/kubernetes.io~secret/calico-kube-controllers-token-zx262
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/c5f2a...fb58/merged
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/b808...e85a/merged
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/2688...acfd/merged
shm                       64M     0   64M    0% /var/lib/docker/containers/1b75...8e73/mounts/shm
shm                       64M     0   64M    0% /var/lib/docker/containers/4c1b...c7e4/mounts/shm
shm                       64M     0   64M    0% /var/lib/docker/containers/38e2...90b2/mounts/shm
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/1ed...cce6/merged
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/56d6...14d4/merged
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/4084...88ee/merged
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/27b2...3bb2/merged
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/3983...e1a5/merged
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/1b6b...a007/merged
tmpfs                    7.8G   12K  7.8G    1% /var/lib/kubelet/pods/fbfc...882f/volumes/kubernetes.io~secret/calico-apiserver-token-h468b
tmpfs                    7.8G  8.0K  7.8G    1% /var/lib/kubelet/pods/fbfc...882f/volumes/kubernetes.io~secret/calico-apiserver-certs
tmpfs                    7.8G  8.0K  7.8G    1% /var/lib/kubelet/pods/6dab...d8f5/volumes/kubernetes.io~secret/calico-apiserver-certs
tmpfs                    7.8G   12K  7.8G    1% /var/lib/kubelet/pods/6dab...d8f5/volumes/kubernetes.io~secret/calico-apiserver-token-h468b
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/4476...b167/merged
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/a7c9...67b2/merged
shm                       64M     0   64M    0% /var/lib/docker/containers/b0d7...3b1a/mounts/shm
shm                       64M     0   64M    0% /var/lib/docker/containers/3770...d3f6/mounts/shm
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/4122...ca4b/merged
overlay                   50G   23G   28G   45% /var/lib/docker/overlay2/ab2e...6cd8/merged

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64

    扩展和缩减（只有一个服务器-未测试）

    略

    清理集群

    sealer delete --help

    if provider is Bare Metal Server will delete kubernetes nodes

Usage:
  sealer delete [flags]

Examples:

delete to default cluster:
        sealer delete --masters x.x.x.x --nodes x.x.x.x
        sealer delete --masters x.x.x.x-x.x.x.y --nodes x.x.x.x-x.x.x.y
delete all:
        sealer delete --all [--force]
        sealer delete -f /root/.sealer/mycluster/Clusterfile [--force]
        sealer delete -c my-cluster [--force]


Flags:
  -f, --Clusterfile string   delete a kubernetes cluster with Clusterfile Annotations
  -a, --all                  this flags is for delete nodes, if this is true, empty all node ip
  -c, --cluster string       delete a kubernetes cluster with cluster name
      --force                We also can input an --force flag to delete cluster by force
  -h, --help                 help for delete
  -m, --masters string       reduce Count or IPList to masters
  -n, --nodes string         reduce Count or IPList to nodes

Global Flags:
      --config string   config file (default is $HOME/.sealer.json)
  -d, --debug           turn on debug mode
      --hide-path       hide the log path
      --hide-time       hide the log time

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30

    执行清理

    sealer delete --all

    • 1

    在这里插入图片描述

    2022-07-05 13:15:59 [INFO] [runtime.go:67] Start to delete cluster: master [192.168.xxx.xxx], node []
Are you sure to delete these nodes?  Yes [y/yes], No [n/no] : y
/usr/bin/kubeadm
[reset] Reading configuration from the cluster...
[reset] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml'
[preflight] Running pre-flight checks
[reset] Removing info for node "localhost.localdomain" from the ConfigMap "kubeadm-config" in the "kube-system" Namespace
[reset] Stopping the kubelet service
[reset] Unmounting mounted directories in "/var/lib/kubelet"
[reset] Deleting contents of config directories: [/etc/kubernetes/manifests /etc/kubernetes/pki]
[reset] Deleting files: [/etc/kubernetes/admin.conf /etc/kubernetes/kubelet.conf /etc/kubernetes/bootstrap-kubelet.conf /etc/kubernetes/controller-manager.conf /etc/kubernetes/scheduler.conf]
[reset] Deleting contents of stateful directories: [/var/lib/etcd /var/lib/kubelet /var/lib/dockershim /var/run/kubernetes /var/lib/cni]

The reset process does not clean CNI configuration. To do so, you must remove /etc/cni/net.d

The reset process does not reset or clean up iptables rules or IPVS tables.
If you wish to reset iptables, you must do so manually by using the "iptables" command.

If your cluster was setup to utilize IPVS, run ipvsadm --clear (or similar)
to reset your system's IPVS tables.

The reset process does not clean your kubeconfig files and you must remove them manually.
Please, check the contents of the $HOME/.kube/config file.
Module                  Size  Used by
vxlan                  49678  0
ip6_udp_tunnel         12755  1 vxlan
udp_tunnel             14423  1 vxlan
xt_multiport           12798  11
ipt_rpfilter           12606  1
iptable_raw            12678  1
ip_set_hash_ip         31658  1
ip_set_hash_net        36021  3
xt_set                 18141  10
ip_set_hash_ipportnet    36255  1
ip_set_bitmap_port     17150  4
ip_set_hash_ipportip    31880  2
ip_set_hash_ipport     31806  8
dummy                  12960  0
iptable_mangle         12695  1
xt_mark                12563  97
ip_vs_sh               12688  0
ip_vs_wrr              12697  0
ip_vs_rr               12600  7
ip_vs                 145497  13 ip_vs_rr,ip_vs_sh,ip_vs_wrr
nf_conntrack_netlink    36354  0
xt_addrtype            12676  8
br_netfilter           22256  0
ip6table_nat           12864  0
nf_conntrack_ipv6      18935  1
nf_defrag_ipv6         35104  1 nf_conntrack_ipv6
nf_nat_ipv6            14131  1 ip6table_nat
ip6_tables             26912  1 ip6table_nat
xt_conntrack           12760  28
iptable_filter         12810  1
ipt_MASQUERADE         12678  5
nf_nat_masquerade_ipv4    13412  1 ipt_MASQUERADE
xt_comment             12504  315
iptable_nat            12875  1
nf_conntrack_ipv4      15053  29
nf_defrag_ipv4         12729  1 nf_conntrack_ipv4
nf_nat_ipv4            14115  1 iptable_nat
nf_nat                 26787  3 nf_nat_ipv4,nf_nat_ipv6,nf_nat_masquerade_ipv4
nf_conntrack          133095  9 ip_vs,nf_nat,nf_nat_ipv4,nf_nat_ipv6,xt_conntrack,nf_nat_masquerade_ipv4,nf_conntrack_netlink,nf_conntrack_ipv4,nf_conntrack_ipv6
ip_tables              27126  4 iptable_filter,iptable_mangle,iptable_nat,iptable_raw
veth                   13410  0
overlay                71964  2
tun                    31740  1
devlink                48345  0
ip_set                 45644  7 ip_set_hash_ipportnet,ip_set_hash_net,ip_set_bitmap_port,ip_set_hash_ipportip,ip_set_hash_ip,xt_set,ip_set_hash_ipport
nfnetlink              14490  3 ip_set,nf_conntrack_netlink
bridge                151336  1 br_netfilter
stp                    12976  1 bridge
llc                    14552  2 stp,bridge
vmw_vsock_vmci_transport    30577  1
vsock                  36526  2 vmw_vsock_vmci_transport
sunrpc                353352  1
nfit                   55016  0
libnvdimm             147731  1 nfit
iosf_mbi               15582  0
crc32_pclmul           13133  0
ghash_clmulni_intel    13273  0
aesni_intel           189414  1
lrw                    13286  1 aesni_intel
gf128mul               15139  1 lrw
glue_helper            13990  1 aesni_intel
ablk_helper            13597  1 aesni_intel
ppdev                  17671  0
cryptd                 21190  3 ghash_clmulni_intel,aesni_intel,ablk_helper
vmw_balloon            18094  0
pcspkr                 12718  0
sg                     40721  0
joydev                 17389  0
parport_pc             28205  0
i2c_piix4              22401  0
parport                46395  2 ppdev,parport_pc
vmw_vmci               67127  1 vmw_vsock_vmci_transport
sch_fq_codel           17571  6
xfs                   997127  3
libcrc32c              12644  4 xfs,ip_vs,nf_nat,nf_conntrack
sd_mod                 46281  3
sr_mod                 22416  0
cdrom                  42556  1 sr_mod
crc_t10dif             12912  1 sd_mod
crct10dif_generic      12647  0
crct10dif_pclmul       14307  1
crct10dif_common       12595  3 crct10dif_pclmul,crct10dif_generic,crc_t10dif
crc32c_intel           22094  1
serio_raw              13434  0
ata_generic            12923  0
pata_acpi              13053  0
vmwgfx                276430  2
floppy                 69432  0
drm_kms_helper        179394  1 vmwgfx
syscopyarea            12529  1 drm_kms_helper
sysfillrect            12701  1 drm_kms_helper
sysimgblt              12640  1 drm_kms_helper
fb_sys_fops            12703  1 drm_kms_helper
ttm                   114635  1 vmwgfx
ata_piix               35052  0
drm                   429744  5 ttm,drm_kms_helper,vmwgfx
libata                243133  3 pata_acpi,ata_generic,ata_piix
vmxnet3                58059  0
mptspi                 22628  2
scsi_transport_spi     30732  1 mptspi
mptscsih               40150  1 mptspi
mptbase               106036  2 mptspi,mptscsih
drm_panel_orientation_quirks    12957  1 drm
dm_mirror              22289  0
dm_region_hash         20813  1 dm_mirror
dm_log                 18411  2 dm_region_hash,dm_mirror
dm_mod                124407  10 dm_log,dm_mirror
[
    {
        "Id": "6d81...9aff",
        "Created": "2022-07-04T10:40:28.068520236Z",
        "Path": "registry",
        "Args": [
            "serve",
            "/etc/docker/registry/config.yml"
        ],
        "State": {
            "Status": "running",
            "Running": true,
            "Paused": false,
            "Restarting": false,
            "OOMKilled": false,
            "Dead": false,
            "Pid": 767,
            "ExitCode": 0,
            "Error": "",
            "StartedAt": "2022-07-04T10:40:30.304277835Z",
            "FinishedAt": "0001-01-01T00:00:00Z"
        },
        "Image": "sha256:0d01...4fda",
        "ResolvConfPath": "/var/lib/docker/containers/6d81...9aff/resolv.conf",
        "HostnamePath": "/var/lib/docker/containers/6d81...9aff/hostname",
        "HostsPath": "/var/lib/docker/containers/6d81...9aff/hosts",
        "LogPath": "/var/lib/docker/containers/6d81...9aff/6d81...9aff-json.log",
        "Name": "/sealer-registry",
        "RestartCount": 0,
        "Driver": "overlay2",
        "Platform": "linux",
        "MountLabel": "",
        "ProcessLabel": "",
        "AppArmorProfile": "",
        "ExecIDs": null,
        "HostConfig": {
            "Binds": [
                "/var/lib/sealer/data/my-cluster/rootfs/certs:/certs",
                "/var/lib/sealer/data/my-cluster/rootfs/registry:/var/lib/registry",
                "/var/lib/sealer/data/my-cluster/rootfs/etc/registry_config.yml:/etc/docker/registry/config.yml"
            ],
            "ContainerIDFile": "",
            "LogConfig": {
                "Type": "json-file",
                "Config": {
                    "max-file": "3",
                    "max-size": "10m"
                }
            },
            "NetworkMode": "host",
            "PortBindings": {},
            "RestartPolicy": {
                "Name": "always",
                "MaximumRetryCount": 0
            },
            "AutoRemove": false,
            "VolumeDriver": "",
            "VolumesFrom": null,
            "CapAdd": null,
            "CapDrop": null,
            "Capabilities": null,
            "Dns": [],
            "DnsOptions": [],
            "DnsSearch": [],
            "ExtraHosts": null,
            "GroupAdd": null,
            "IpcMode": "private",
            "Cgroup": "",
            "Links": null,
            "OomScoreAdj": 0,
            "PidMode": "",
            "Privileged": false,
            "PublishAllPorts": false,
            "ReadonlyRootfs": false,
            "SecurityOpt": null,
            "UTSMode": "",
            "UsernsMode": "",
            "ShmSize": 67108864,
            "Runtime": "runc",
            "ConsoleSize": [
                0,
                0
            ],
            "Isolation": "",
            "CpuShares": 0,
            "Memory": 0,
            "NanoCpus": 0,
            "CgroupParent": "",
            "BlkioWeight": 0,
            "BlkioWeightDevice": [],
            "BlkioDeviceReadBps": null,
            "BlkioDeviceWriteBps": null,
            "BlkioDeviceReadIOps": null,
            "BlkioDeviceWriteIOps": null,
            "CpuPeriod": 0,
            "CpuQuota": 0,
            "CpuRealtimePeriod": 0,
            "CpuRealtimeRuntime": 0,
            "CpusetCpus": "",
            "CpusetMems": "",
            "Devices": [],
            "DeviceCgroupRules": null,
            "DeviceRequests": null,
            "KernelMemory": 0,
            "KernelMemoryTCP": 0,
            "MemoryReservation": 0,
            "MemorySwap": 0,
            "MemorySwappiness": null,
            "OomKillDisable": false,
            "PidsLimit": null,
            "Ulimits": null,
            "CpuCount": 0,
            "CpuPercent": 0,
            "IOMaximumIOps": 0,
            "IOMaximumBandwidth": 0,
            "MaskedPaths": [
                "/proc/asound",
                "/proc/acpi",
                "/proc/kcore",
                "/proc/keys",
                "/proc/latency_stats",
                "/proc/timer_list",
                "/proc/timer_stats",
                "/proc/sched_debug",
                "/proc/scsi",
                "/sys/firmware"
            ],
            "ReadonlyPaths": [
                "/proc/bus",
                "/proc/fs",
                "/proc/irq",
                "/proc/sys",
                "/proc/sysrq-trigger"
            ]
        },
        "GraphDriver": {
            "Data": {
                "LowerDir": "/var/lib/docker/overlay2/a5bc...e65e-init/diff:/var/lib/docker/overlay2/362e...7587f2d449685a3a6/diff:/var/lib/docker/overlay2/b907...c3f7/diff:/var/lib/docker/overlay2/8f53...ae07/diff",
                "MergedDir": "/var/lib/docker/overlay2/a5bc12b6f24d74fb23c72e5b051cde8262853d0fdf612ccd060384663ec5e65e/merged",
                "UpperDir": "/var/lib/docker/overlay2/a5bc...3ec5e65e/diff",
                "WorkDir": "/var/lib/docker/overlay2/a5bc...e65e/work"
            },
            "Name": "overlay2"
        },
        "Mounts": [
            {
                "Type": "bind",
                "Source": "/var/lib/sealer/data/my-cluster/rootfs/registry",
                "Destination": "/var/lib/registry",
                "Mode": "",
                "RW": true,
                "Propagation": "rprivate"
            },
            {
                "Type": "bind",
                "Source": "/var/lib/sealer/data/my-cluster/rootfs/etc/registry_config.yml",
                "Destination": "/etc/docker/registry/config.yml",
                "Mode": "",
                "RW": true,
                "Propagation": "rprivate"
            },
            {
                "Type": "bind",
                "Source": "/var/lib/sealer/data/my-cluster/rootfs/certs",
                "Destination": "/certs",
                "Mode": "",
                "RW": true,
                "Propagation": "rprivate"
            }
        ],
        "Config": {
            "Hostname": "localhost.localdomain",
            "Domainname": "",
            "User": "",
            "AttachStdin": false,
            "AttachStdout": false,
            "AttachStderr": false,
            "ExposedPorts": {
                "5000/tcp": {}
            },
            "Tty": false,
            "OpenStdin": false,
            "StdinOnce": false,
            "Env": [
                "REGISTRY_HTTP_TLS_CERTIFICATE=/certs/sea.hub.crt",
                "REGISTRY_HTTP_TLS_KEY=/certs/sea.hub.key",
                "PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin"
            ],
            "Cmd": [
                "serve",
                "/etc/docker/registry/config.yml"
            ],
            "Image": "registry:2.7.1",
            "Volumes": {
                "/var/lib/registry": {}
            },
            "WorkingDir": "",
            "Entrypoint": [
                "registry"
            ],
            "OnBuild": null,
            "Labels": {}
        },
        "NetworkSettings": {
            "Bridge": "",
            "SandboxID": "ae1d...ac1b",
            "HairpinMode": false,
            "LinkLocalIPv6Address": "",
            "LinkLocalIPv6PrefixLen": 0,
            "Ports": {},
            "SandboxKey": "/var/run/docker/netns/default",
            "SecondaryIPAddresses": null,
            "SecondaryIPv6Addresses": null,
            "EndpointID": "",
            "Gateway": "",
            "GlobalIPv6Address": "",
            "GlobalIPv6PrefixLen": 0,
            "IPAddress": "",
            "IPPrefixLen": 0,
            "IPv6Gateway": "",
            "MacAddress": "",
            "Networks": {
                "host": {
                    "IPAMConfig": null,
                    "Links": null,
                    "Aliases": null,
                    "NetworkID": "3ed7...98c3e",
                    "EndpointID": "ebaa...1ef4",
                    "Gateway": "",
                    "IPAddress": "",
                    "IPPrefixLen": 0,
                    "IPv6Gateway": "",
                    "GlobalIPv6Address": "",
                    "GlobalIPv6PrefixLen": 0,
                    "MacAddress": "",
                    "DriverOpts": null
                }
            }
        }
    }
]
sealer-registry
2022-07-05 13:16:28 [INFO] [local.go:316] Succeeded in deleting current cluster

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99
    • 100
    • 101
    • 102
    • 103
    • 104
    • 105
    • 106
    • 107
    • 108
    • 109
    • 110
    • 111
    • 112
    • 113
    • 114
    • 115
    • 116
    • 117
    • 118
    • 119
    • 120
    • 121
    • 122
    • 123
    • 124
    • 125
    • 126
    • 127
    • 128
    • 129
    • 130
    • 131
    • 132
    • 133
    • 134
    • 135
    • 136
    • 137
    • 138
    • 139
    • 140
    • 141
    • 142
    • 143
    • 144
    • 145
    • 146
    • 147
    • 148
    • 149
    • 150
    • 151
    • 152
    • 153
    • 154
    • 155
    • 156
    • 157
    • 158
    • 159
    • 160
    • 161
    • 162
    • 163
    • 164
    • 165
    • 166
    • 167
    • 168
    • 169
    • 170
    • 171
    • 172
    • 173
    • 174
    • 175
    • 176
    • 177
    • 178
    • 179
    • 180
    • 181
    • 182
    • 183
    • 184
    • 185
    • 186
    • 187
    • 188
    • 189
    • 190
    • 191
    • 192
    • 193
    • 194
    • 195
    • 196
    • 197
    • 198
    • 199
    • 200
    • 201
    • 202
    • 203
    • 204
    • 205
    • 206
    • 207
    • 208
    • 209
    • 210
    • 211
    • 212
    • 213
    • 214
    • 215
    • 216
    • 217
    • 218
    • 219
    • 220
    • 221
    • 222
    • 223
    • 224
    • 225
    • 226
    • 227
    • 228
    • 229
    • 230
    • 231
    • 232
    • 233
    • 234
    • 235
    • 236
    • 237
    • 238
    • 239
    • 240
    • 241
    • 242
    • 243
    • 244
    • 245
    • 246
    • 247
    • 248
    • 249
    • 250
    • 251
    • 252
    • 253
    • 254
    • 255
    • 256
    • 257
    • 258
    • 259
    • 260
    • 261
    • 262
    • 263
    • 264
    • 265
    • 266
    • 267
    • 268
    • 269
    • 270
    • 271
    • 272
    • 273
    • 274
    • 275
    • 276
    • 277
    • 278
    • 279
    • 280
    • 281
    • 282
    • 283
    • 284
    • 285
    • 286
    • 287
    • 288
    • 289
    • 290
    • 291
    • 292
    • 293
    • 294
    • 295
    • 296
    • 297
    • 298
    • 299
    • 300
    • 301
    • 302
    • 303
    • 304
    • 305
    • 306
    • 307
    • 308
    • 309
    • 310
    • 311
    • 312
    • 313
    • 314
    • 315
    • 316
    • 317
    • 318
    • 319
    • 320
    • 321
    • 322
    • 323
    • 324
    • 325
    • 326
    • 327
    • 328
    • 329
    • 330
    • 331
    • 332
    • 333
    • 334
    • 335
    • 336
    • 337
    • 338
    • 339
    • 340
    • 341
    • 342
    • 343
    • 344
    • 345
    • 346
    • 347
    • 348
    • 349
    • 350
    • 351
    • 352
    • 353
    • 354
    • 355
    • 356
    • 357
    • 358
    • 359
    • 360
    • 361
    • 362
    • 363
    • 364
    • 365
    • 366
    • 367
    • 368
    • 369
    • 370
    • 371
    • 372
    • 373
    • 374

    删除镜像

    sealer rmi  kubernetes:v1.19.8

    • 1

    在这里插入图片描述

    清理后挂载情况

    df -kh

    • 1

    可以看到，归还了部分硬盘空间
    在这里插入图片描述
    查看sealer和docker的数据目录大小

    du -h --max-depth=1 /var/lib/sealer/*
du -h --max-depth=1 /var/lib/docker/

    • 1
    • 2

    在这里插入图片描述
    sealer rmi后，瞬间清净了。
    在这里插入图片描述
    在这里插入图片描述

    find / -name docker
find / -name sealer

    • 1
    • 2

    在这里插入图片描述
    在这里插入图片描述

    其他

    sealer images
|     IMAGE NAME     | IMAGE ID    | ARCH  | VARIANT |       CREATE        |   SIZE   |
| kubernetes:v1.19.8 | 46f8...7618 | amd64 |         | 2022-07-04 18:37:53 | 956.60MB |

    • 1
    • 2
    • 3
    # 清理docker，未找到运行docker运行，先这么处理了，暂不清楚后果如何
rm -rf /var/lib/docker

    • 1
    • 2

    暂时没有测试其他的操作

    END

  • 相关阅读:
    VIAVI唯亚威SmartPocket V2 OLS-35V2/-36V2 光学光功率计
    【云原生 | Kubernetes 系列】K8s 实战 Kubernetes 对象管理之指令式命令管理和配置文件命令式管理
    效率倍增啊，20个面向数据科学家的自动机器学习(AutoML)库来了
    在全新ubuntu上用gpu训练paddleocr模型遇到的坑与解决办法
    内核态内存映射
    【华为OD机试真题 python】 拼接url【2022 Q4 | 100分】
    分类预测 | MATLAB实现PCA-LSTM(主成分长短期记忆神经网络)分类预测
    MySQL表的操作
    JSP1410 科研项目团队建设经费管理系统mysql
    ROS2 中的轻量级、自动化、受控回放
  • 原文地址：https://blog.csdn.net/privateobject/article/details/125616696
