React + antv x6实现拖拽生成自定义节点流程图

最近开发新项目要实现一个低代码平台，在画布上拖拖拽拽，就可以实现一些算法流程，生成所需要的代码。
然后就考虑使用antv x6来实现，跟别的工具一样，依旧觉得文档很烂，看了好多资料才实现，踩了很多坑，希望能对大家有些帮助吧~

1.生成配置画布

1.1 创建一个用来生成画布的节点

   <div className={styles.content} id="content">
        <div id="container" ref={refContainer}></div>
      </div>
1
2
3

1.2 生成画布

  // 初始，mounted生命周期时, container组件还没挂载。
  const [container, setcontainer] = useState(document.createElement("div"));

  // 获取container对象
  const refContainer = (container) => {
    setcontainer(container);
  };

  // 绑定画布
  useEffect(() => {
	const graph = new Graph({
      container: container,
      width: "100%",
      height: "100%",
      background: {
         color: "#ffffff", // 设置画布背景颜色
      }
   }
}）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

1.3 对画布更多选项的配置

useEffect(() => {
    const d =
      "M4.834,4.834L4.833,4.833c-5.889,5.892-5.89,15.443,0.001,21.334s15.44,5.888,21.33-0.002c5.891-5.891,5.893-15.44,0.002-21.33C20.275-1.056,10.725-1.056,4.834,4.834zM25.459,5.542c0.833,0.836,1.523,1.757,2.104,2.726l-4.08,4.08c-0.418-1.062-1.053-2.06-1.912-2.918c-0.859-0.859-1.857-1.494-2.92-1.913l4.08-4.08C23.7,4.018,24.622,4.709,25.459,5.542zM10.139,20.862c-2.958-2.968-2.959-7.758-0.001-10.725c2.966-2.957,7.756-2.957,10.725,0c2.954,2.965,2.955,7.757-0.001,10.724C17.896,23.819,13.104,23.817,10.139,20.862zM5.542,25.459c-0.833-0.837-1.524-1.759-2.105-2.728l4.081-4.081c0.418,1.063,1.055,2.06,1.914,2.919c0.858,0.859,1.855,1.494,2.917,1.913l-4.081,4.081C7.299,26.982,6.379,26.292,5.542,25.459zM8.268,3.435l4.082,4.082C11.288,7.935,10.29,8.571,9.43,9.43c-0.858,0.859-1.494,1.855-1.912,2.918L3.436,8.267c0.58-0.969,1.271-1.89,2.105-2.727C6.377,4.707,7.299,4.016,8.268,3.435zM22.732,27.563l-4.082-4.082c1.062-0.418,2.061-1.053,2.919-1.912c0.859-0.859,1.495-1.857,1.913-2.92l4.082,4.082c-0.58,0.969-1.271,1.891-2.105,2.728C24.623,26.292,23.701,26.983,22.732,27.563z";

    // 连接过程中产生的新边的样式
    Graph.registerEdge(
      "dag-edge",
      {
        inherit: "edge",
        attrs: {
          line: {
            stroke: "#9DADB6",
            strokeWidth: 2,
            sourceMarker: null,
            targetMarker: {
              //
              name: "block", // 实心箭头
            },
          },
        },
      },
      true
    );

    // 自定义连接器，将起点、路由返回的点、终点加工为 <path> 元素的 d 属性，返回边在画布上渲染后的样式
    Graph.registerConnector(
      "algo-connector",
      (s, e) => {
        const offset = 4;
        const deltaY = Math.abs(e.y - s.y);
        const control = Math.floor((deltaY / 3) * 2);

        const v1 = { x: s.x, y: s.y + offset + control };
        const v2 = { x: e.x, y: e.y - offset - control };

        return Path.normalize(
          `M ${s.x} ${s.y} // 起始位置
           L ${s.x} ${s.y + offset} // 到达位置
           C ${v1.x} ${v1.y} ${v2.x} ${v2.y} ${e.x} ${e.y - offset} // 曲线到
           L ${e.x} ${e.y} // 到达位置
          `
        );
      },
      true
    );
    // 绑定画布
    const graph = new Graph({
      container: container,
      width: "100%",
      height: "100%",
      background: {
        color: "#ffffff", // 设置画布背景颜色
      },
      grid: {
        size: 10, // 网格大小 10px
        visible: true, // 渲染网格背景
        type: "mesh",
        args: {
          color: "rgba(245,245,245,1)",
        },
      },
      history: true, // 撤销/重做，默认禁用
      snapline: {
        // 是否添加对齐线
        enabled: true,
        sharp: true,
      },
      // scroller: { // 画布是否可滚动
      //   enabled: true,
      //   pageVisible: false,
      //   pageBreak: false,
      //   pannable: true,
      // },
      mousewheel: {
        // 是否可用鼠标绽放
        enabled: true,
        modifiers: ["ctrl", "meta"],
      },
      highlighting: {
        // 触发某种交互时的高亮样式
        magnetAdsorbed: {
          // 连接桩可以被连接时高亮
          name: "stroke",
          args: {
            attrs: {
              fill: "#fff",
              stroke: "#31d0c6",
              strokeWidth: 4,
            },
          },
        },
      },
      connecting: {
        // 配置全局的连线规则

        snap: true, // 是否自动吸附
        allowBlank: false, // 是否允许连接到空白点
        allowLoop: false, // 是否允许创建循环连线
        highlight: true, // 拖动边时，是否高亮显示所有可用的连接桩或节点
        connector: "algo-connector", // 边渲染到画布后的样式
        connectionPoint: "anchor", // 指定连接点
        anchor: "center", // 指定被连接的节点的锚点
        validateMagnet({ magnet }) {
          // magnet 被按下时，是否创建新的边
          return magnet.getAttribute("port-group") !== "top";
        },
        createEdge() {
          // 连接的过程中创建新的边
          return graph.createEdge({
            shape: "dag-edge",
            attrs: {
              line: {
                strokeDasharray: "5 5",
              },
            },
            zIndex: -1,
          });
        },
      },
      selecting: {
        // 是否可通过点击或者套索框选节点
        enabled: true,
        multiple: true,
        rubberEdge: true,
        rubberNode: true,
        modifiers: "shift",
        rubberband: true,
      },
    });

    graph.enableHistory();
    globalGraph = graph; // 定义一个全局变量，用来存放graph，待生成拖拽事件的时候用
  }, [container]); // useEffect 依赖container变化，不然会一直重复渲染
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133

记得生成画布事件一定要放在useEffect中哦，因为dom异步渲染事件可能会导致诸如‘container is not undefined’ 类的错误

配置好箭头和边的新样式后长这样子

下面我们就要写拖拽生成节点了

2.拖拽生成节点

我们的页面结构是这样的，

然后我们给左侧tab面板中的按钮绑定拖拽事件，使用onMouseDown

 <div className={styles.toolsContent}>
            {currentToolList.map((item, index) => {
              return (
                <div
                  onClick={() => handleModel(index)}
                  onMouseDown={(e) => startDrag(item, e)}
                >
                </div>
              );
            })}
          </div>

 // 绑定事件，传入graph对象
  const startDrag = (type, e) => {
    if (graph) {
      startDragToGraph(globalGraph, type, e, handleRun, setLoading); // 传入(graph对象，当前节点类型，事件对象，打开弹窗事件，设置loading事件)
    }
  };
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

3.定义antv x6的拖拽事件（startDragToGraph.js)

import {
  Addon
} from '@antv/x6'
import {
  insertCss
} from 'insert-css'
import {
  createWorkflow,
  queryTypeById
} from "@/service/knn/csvExcel";
import {
  message,
} from "antd";

// 拖拽生成节点
export const startDragToGraph = (graph, type, e, handleRun, setLoading) => {

const dnd = new Addon.Dnd({
    target: graph,
    scaled: false,
    animation: true
  })

 const target = graph.createNode({
    width: 64,
    height: 92,
    // shape: 'react-shape', //这里只可以使用react component返回节点，
    // component: <MyComponent type={type} />,
    shape: 'html',

    html: () => { // 使用html模板字符串返回节点
      const wrap = `
                <div class='wrap ${type.tag}'>
                  <div class="left">
                    <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 17 62" class="design-iconfont" width="128" height="128">
                      <path d="M11,470 C34.7512315,470 54.025641,488.792549 54.025641,512 C54.025641,513.104569 53.1302105,514 52.025641,514 C50.9210715,514 50.025641,513.104569 50.025641,512 C50.025641,491.024671 32.5644403,474 11,474 C9.8954305,474 9,473.104569 9,472 C9,470.895431 9.8954305,470 11,470 Z" transform="scale(-1 1) rotate(45 564.97622613 205.94213543)" fill="#9DADB6" fill-rule="nonzero"></path>
                    </svg>
                  </div>

                  <div class="middle">
                  <div class="shape">
                    <img class="icon" src=${type.icon}></img>
                  </div>
                  <div class="text">${type.name}</div>
                  </div>
                  <div class="right">
                  <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 17 62" class="design-iconfont" width="128" height="128">
                    <path d="M63,470 C86.7512315,470 106.025641,488.792549 106.025641,512 C106.025641,513.104569 105.130211,514 104.025641,514 C102.921072,514 102.025641,513.104569 102.025641,512 C102.025641,491.024671 84.5644403,474 63,474 C61.8954305,474 61,473.104569 61,472 C61,470.895431 61.8954305,470 63,470 Z" transform="rotate(45 599.48904713 163.72435072)" fill="#9DADB6" fill-rule="nonzero"></path>
                  </svg>
                  </div>
                </div>
              `
      return wrap
    },
    ports: ports,
  })

  // 初始化拖拽面板
  dnd.start(target, e.nativeEvent)
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

定义锚点的代码（可以连接线的节点位置，样式等）

const ports = {
  groups: {
    left: {
      position: {
        name: 'absolute'
      },
      attrs: {
        circle: {
          r: 4,
          magnet: true,
          stroke: '#9DADB6',
          strokeWidth: 0,
          fill: '#9DADB6',
        },
      },
    },
    right: {
      position: {
        name: 'absolute'
      },
      attrs: {
        circle: {
          r: 4,
          magnet: true,
          stroke: '#9DADB6',
          strokeWidth: 0,
          fill: '#9DADB6',
        },
      },
    },
  },
  items: [{
      id: 'port3',
      group: 'left',
      args: {
        x: 0 - 8,
        y: 64 / 2,
        angle: 45,
      },
    },
    {
      id: 'port4',
      group: 'right',
      args: {
        x: 64 + 8,
        y: 64 / 2,
        angle: 45,
      },
    }
  ],
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

我们的css这样写

insertCss(`
  .wrap {
    display: flex;
    align-items: center;
    justify-content: center;
  }

  .left {
    width: 64px;
    height: 64px;
    position: absolute;
    left: -34px;
    top: 0px
  }
  .right {
    width: 64px;
    height: 64px;
    position: absolute;
    left: 34px;
    top: 0px
  }
  .design-iconfont {
    width: 100%;
    height: 100%;
  }
  .shape {
    width: 64px;
    height: 64px;
    display: flex;
    align-items: center;
    justify-content: center;
    background: #F6BAE0;
    border-radius: 100%;
  }
  .icon {
    width: 26px;
    height: 34px;
  }
  .text {
    font-size: 14px;
    margin-top: 12px;
    font-family: Helvetica;
    font-weight: ;
    font-size: 14px;
    color: #040D26;
    letter-spacing: 0;
    text-align: center;
    line-height: 12px;
  }
`)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

如果用react component实现自定义节点这样写

class MyComponent extends React.Component {
  shouldComponentUpdate() {
    const node = this.props.node
    if (node) {
      if (node.hasChanged('data')) {
        return true
      }
    }

    return false
  }


   abs() {
      console.log(11111111111111111)
  }

  render() {
    const {type} = this.props
    return (
      <div class="wrap" onClick={() => this.abs()}>
        <div class="left">
          <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 17 62" class="design-iconfont" width="128" height="128">
            <path d="M11,470 C34.7512315,470 54.025641,488.792549 54.025641,512 C54.025641,513.104569 53.1302105,514 52.025641,514 C50.9210715,514 50.025641,513.104569 50.025641,512 C50.025641,491.024671 32.5644403,474 11,474 C9.8954305,474 9,473.104569 9,472 C9,470.895431 9.8954305,470 11,470 Z" transform="scale(-1 1) rotate(45 564.97622613 205.94213543)" fill="#9DADB6" fill-rule="nonzero"></path>
          </svg>
        </div>

        <div class="middle">
          <div class="shape">
            <img class="icon" ></img>
          </div>
          <div class="text">{type.name}</div>
        </div>
        <div class="right">
          <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 17 62" class="design-iconfont" width="128" height="128">
            <path d="M63,470 C86.7512315,470 106.025641,488.792549 106.025641,512 C106.025641,513.104569 105.130211,514 104.025641,514 C102.921072,514 102.025641,513.104569 102.025641,512 C102.025641,491.024671 84.5644403,474 63,474 C61.8954305,474 61,473.104569 61,472 C61,470.895431 61.8954305,470 63,470 Z" transform="rotate(45 599.48904713 163.72435072)" fill="#9DADB6" fill-rule="nonzero"></path>
          </svg>
        </div>
      </div>
    )
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

4.如何给自定义节点写交互事件

为了给节点写交互事件真的踩了好几次坑，还把事情想复杂了，记录都在这里，x6生成节点后，有一个唯一的固定的id，生成或者双击等都可以获取到这个id，我们直接使用这个id与后端交互

拖拽结束后，我们与后端交互，获取node.id，服务端返回正确后再放到画布上面

4.1拖拽生成节点

const dnd = new Addon.Dnd({
    target: graph,
    scaled: false,
    animation: true,

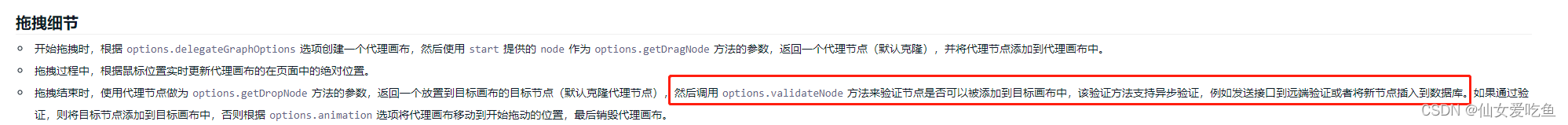

    validateNode(droppingNode, options) {
      console.log('droppingNode, options=================', droppingNode, options)
      return droppingNode.shape === 'html' ?
        new Promise((resolve, reject) => {

          try {
            setLoading(true)
            createWorkflow({
              widget_type: type.typeId,
              widget_id: droppingNode.id
            }).then((res) => {
              const {
                data,
                code,
                msg
              } = res;
              if (code !== 200) {
                message.error(`抱歉！${msg}`);
                return;
              }
              setLoading(false)
              resolve(true)

            });
          } catch (err) {
            message.error("当前网络不好，请稍候重试！");
            console.error(err);
          }
        }) : true
    },
    // getDropNode(droppingNode, options) {
    //   console.log('拖拽结束时，获取放置到目标画布的节点',droppingNode, options)
    // }
  })

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

4.2双击打开弹窗

graph.on('node:dblclick', ({
    e,
    x,
    y,
    node,
    view
  }) => {
    console.log('node,===============', node.id)
    queryTypeById({
      widget_id: node.id
    }).then(res => {
      console.log('queryTypeByIdres', res)
      handleRun({ // 执行传入的打开弹窗事件，设置节点相关事件）
        id: node.id,
        type: res.data
      })

    })
  })

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

好啦，antv x6的初始使用我们现在已经完成啦！后续如果还有其他坑或者比较难调试的功能我也会发上来，大家有什么问题都可以给我留言哦~
