【图像分类】【深度学习】【Pytorch版本】Inception-ResNet模型算法详解

文章目录

【图像分类】【深度学习】【Pytorch版本】Inception-ResNet模型算法详解
前言
Inception-ResNet讲解
GoogLeNet(Inception-ResNet) Pytorch代码
- ## Inception-ResNet-V1
- Inception-ResNet-V2
完整代码
- Inception-ResNet-V1
- Inception-ResNet-V2
总结

前言

GoogLeNet(Inception-ResNet)是由谷歌的Szegedy, Christian等人在《Inception-v4, Inception-ResNet and the Impact of Residual Connections on Learning【AAAI-2017】》【论文地址】一文中提出的改进模型，受启发于ResNet【参考】在深度网络上较好的表现影响，论文将残差连接加入到Inception结构中形成2个Inception-ResNet版本的网络，它将残差连接取代原本Inception块中池化层部分，并将拼接变成了求和相加，提升了Inception的训练速度。

因为InceptionV4、Inception-Resnet-v1和Inception-Resnet-v2同出自一篇论文，大部分读者对InceptionV4存在误解，认为它是Inception模块与残差学习的结合，其实InceptionV4没有使用残差学习的思想，它基本延续了Inception v2/v3的结构，只有Inception-Resnet-v1和Inception-Resnet-v2才是Inception模块与残差学习的结合产物。

Inception-ResNet讲解

Inception-ResNet的核心思想是将Inception模块和ResNet模块进行融合，以利用它们各自的优点。Inception模块通过并行多个不同大小的卷积核来捕捉多尺度的特征，而ResNet模块通过残差连接解决了深层网络中的梯度消失和梯度爆炸问题，有助于更好地训练深层模型。Inception-ResNet使用了与InceptionV4【参考】类似的Inception模块，并在其中引入了ResNet的残差连接。这样，网络中的每个Inception模块都包含了两个分支：一个是常规的Inception结构，另一个是包含残差连接的Inception结构。这种设计使得模型可以更好地学习特征表示，并且在训练过程中可以更有效地传播梯度。

Inception-ResNet-V1

Inception-ResNet-v1：一种和InceptionV3【参考】具有相同计算损耗的结构。

Stem结构： Inception-ResNet-V1的Stem结构类似于此前的InceptionV3网络中Inception结构组之前的网络层。

所有卷积中没有标记为V表示填充方式为"SAME Padding"，输入和输出维度一致；标记为V表示填充方式为"VALID Padding"，输出维度视具体情况而定。
Inception-resnet-A结构： InceptionV4网络中Inception-A结构的变体，1×1卷积的目的是为了保持主分支与shortcut分支的特征图形状保持完全一致。

Inception-resnet结构残差连接代替了Inception中的池化层，并用残差连接相加操作取代了原Inception块中的拼接操作。
Inception-resnet-B结构： InceptionV4网络中Inception-B结构的变体，1×1卷积的目的是为了保持主分支与shortcut分支的特征图形状保持完全一致。
Inception-resnet-C结构： InceptionV4网络中Inception-C结构的变体，1×1卷积的目的是为了保持主分支与shortcut分支的特征图形状保持完全一致。
Redution-A结构： 与InceptionV4网络中Redution-A结构一致，区别在于卷积核的个数。

k和l表示卷积个数，不同网络结构的redution-A结构k和l是不同的。
Redution-B结构：
.

Inception-ResNet-V2

Inception-ResNet-v2：这是一种和InceptionV4具有相同计算损耗的结构，但是训练速度要比纯Inception-v4要快。
Inception-ResNet-v2的整体框架和Inception-ResNet-v1的一致，除了Inception-ResNet-v2的stem结构与Inception V4的相同，其他的的结构Inception-ResNet-v2与Inception-ResNet-v1的类似，只不过卷积的个数Inception-ResNet-v2数量更多。

Stem结构： Inception-ResNet-v2的stem结构与Inception V4的相同。

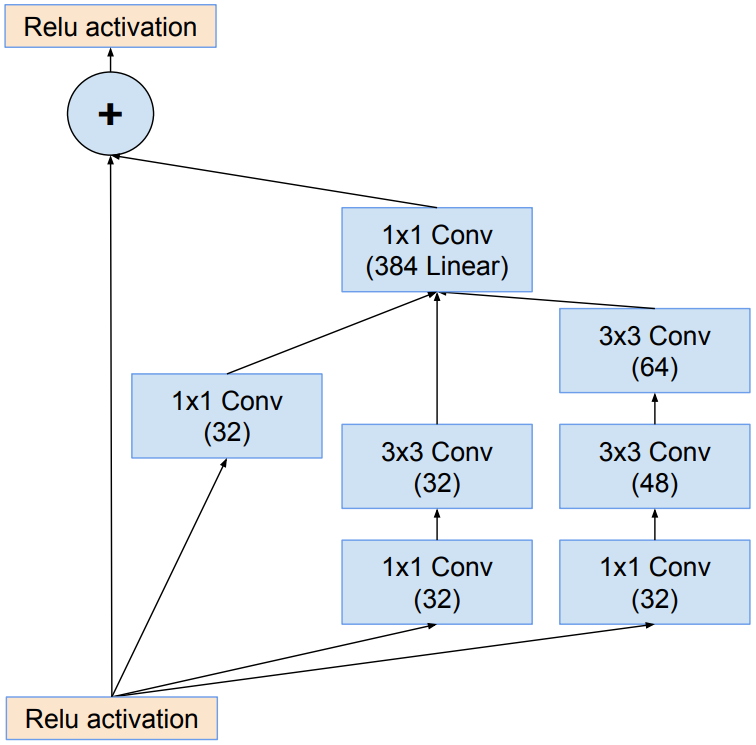

Inception-resnet-A结构： InceptionV4网络中Inception-A结构的变体，1×1卷积的目的是为了保持主分支与shortcut分支的特征图形状保持完全一致。
Inception-resnet-B结构： InceptionV4网络中Inception-B结构的变体，1×1卷积的目的是为了保持主分支与shortcut分支的特征图形状保持完全一致。
Inception-resnet-C结构： InceptionV4网络中Inception-C结构的变体，1×1卷积的目的是为了保持主分支与shortcut分支的特征图形状保持完全一致。

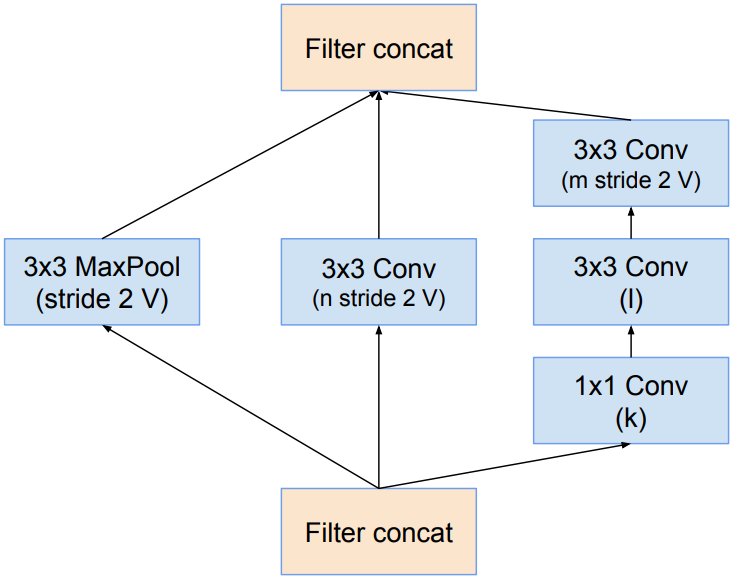

Redution-A结构： 与InceptionV4网络中Redution-A结构一致，区别在于卷积核的个数。

k和l表示卷积个数，不同网络结构的redution-A结构k和l是不同的。
1. Redution-B结构：

残差模块的缩放(Scaling of the Residuals)

如果单个网络层卷积核数量过多(超过1000)，残差网络开始出现不稳定，网络会在训练过程早期便会开始失效—经过几万次训练后，平均池化层之前的层开始只输出0。降低学习率、增加额外的BN层都无法避免这种状况。因此在将shortcut分支加到当前残差块的输出之前，对残差块的输出进行放缩能够稳定训练

通常，将残差放缩因子定在0.1到0.3之间去缩放残差块输出。即使缩放并不是完全必须的，它似乎并不会影响最终的准确率，但是放缩能有益于训练的稳定性。

Inception-ResNet的总体模型结构

下图是原论文给出的关于 Inception-ResNet-V1模型结构的详细示意图：

下图是原论文给出的关于 Inception-ResNet-V2模型结构的详细示意图：

读者注意了,原始论文标注的 Inception-ResNet-V2通道数有一部分是错的，写代码时候对应不上。

两个版本的总体结构相同，具体的Stem、Inception块、Redution块则稍微不同。
Inception-ResNet-V1和 Inception-ResNet-V2在图像分类中分为两部分：backbone部分： 主要由 Inception-resnet模块、Stem模块和池化层(汇聚层)组成，分类器部分：由全连接层组成。

GoogLeNet(Inception-ResNet) Pytorch代码

## Inception-ResNet-V1

卷积层组： 卷积层+BN层+激活函数

# 卷积组: Conv2d+BN+ReLU
class BasicConv2d(nn.Module):
    def __init__(self, in_channels, out_channels, kernel_size, stride=1, padding=0):
        super(BasicConv2d, self).__init__()
        self.conv = nn.Conv2d(in_channels, out_channels, kernel_size, stride, padding)
        self.bn = nn.BatchNorm2d(out_channels)
        self.relu = nn.ReLU(inplace=True)
    def forward(self, x):
        x = self.conv(x)
        x = self.bn(x)
        x = self.relu(x)
        return x
1
2
3
4
5
6
7
8
9
10
11
12

Stem模块： 卷积层组+池化层

# Stem:BasicConv2d+MaxPool2d
class Stem(nn.Module):
    def __init__(self, in_channels):
        super(Stem, self).__init__()

        # conv3x3(32 stride2 valid)
        self.conv1 = BasicConv2d(in_channels, 32, kernel_size=3, stride=2)
        # conv3*3(32 valid)
        self.conv2 = BasicConv2d(32, 32, kernel_size=3)
        # conv3*3(64)
        self.conv3 = BasicConv2d(32, 64, kernel_size=3, padding=1)

        # maxpool3*3(stride2 valid)
        self.maxpool4 = nn.MaxPool2d(kernel_size=3, stride=2)

        # conv1*1(80)
        self.conv5 = BasicConv2d(64, 80, kernel_size=1)
        # conv3*3(192 valid)
        self.conv6 = BasicConv2d(80, 192, kernel_size=1)

        # conv3*3(256 stride2 valid)
        self.conv7 = BasicConv2d(192, 256, kernel_size=3, stride=2)

    def forward(self, x):
        x = self.maxpool4(self.conv3(self.conv2(self.conv1(x))))
        x = self.conv7(self.conv6(self.conv5(x)))
        return x
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

Inception_ResNet-A模块： 卷积层组+池化层

# Inception_ResNet_A:BasicConv2d+MaxPool2d
class Inception_ResNet_A(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3red, ch3x3, ch3x3redX2, ch3x3X2_1, ch3x3X2_2, ch1x1ext, scale=1.0):
        super(Inception_ResNet_A, self).__init__()
        # 缩减指数
        self.scale = scale
        # conv1*1(32)
        self.branch_0 = BasicConv2d(in_channels, ch1x1, 1)
        # conv1*1(32)+conv3*3(32)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3red, 1),
            BasicConv2d(ch3x3red, ch3x3, 3, stride=1, padding=1)
        )
        # conv1*1(32)+conv3*3(32)+conv3*3(32)
        self.branch_2 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3redX2, 1),
            BasicConv2d(ch3x3redX2, ch3x3X2_1, 3, stride=1, padding=1),
            BasicConv2d(ch3x3X2_1, ch3x3X2_2, 3, stride=1, padding=1)
        )
        # conv1*1(256)
        self.conv = BasicConv2d(ch1x1+ch3x3+ch3x3X2_2, ch1x1ext, 1)
        self.relu = nn.ReLU(inplace=True)
    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        x2 = self.branch_2(x)
        # 拼接
        x_res = torch.cat((x0, x1, x2), dim=1)
        x_res = self.conv(x_res)
        return self.relu(x + self.scale * x_res)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

Inception_ResNet-B模块： 卷积层组+池化层

# Inception_ResNet_B:BasicConv2d+MaxPool2d
class Inception_ResNet_B(nn.Module):
    def __init__(self, in_channels, ch1x1, ch_red, ch_1, ch_2, ch1x1ext, scale=1.0):
        super(Inception_ResNet_B, self).__init__()
        # 缩减指数
        self.scale = scale
        # conv1*1(128)
        self.branch_0 = BasicConv2d(in_channels, ch1x1, 1)
        # conv1*1(128)+conv1*7(128)+conv1*7(128)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch_red, 1),
            BasicConv2d(ch_red, ch_1, (1, 7), stride=1, padding=(0, 3)),
            BasicConv2d(ch_1, ch_2, (7, 1), stride=1, padding=(3, 0))
        )
        # conv1*1(896)
        self.conv = BasicConv2d(ch1x1+ch_2, ch1x1ext, 1)
        self.relu = nn.ReLU(inplace=True)

    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        # 拼接
        x_res = torch.cat((x0, x1), dim=1)
        x_res = self.conv(x_res)
        return self.relu(x + self.scale * x_res)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

Inception_ResNet-C模块： 卷积层组+池化层

# Inception_ResNet_C:BasicConv2d+MaxPool2d
class Inception_ResNet_C(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3redX2, ch3x3X2_1, ch3x3X2_2, ch1x1ext,  scale=1.0, activation=True):
        super(Inception_ResNet_C, self).__init__()
        # 缩减指数
        self.scale = scale
        # 是否激活
        self.activation = activation
        # conv1*1(192)
        self.branch_0 = BasicConv2d(in_channels, ch1x1, 1)
        # conv1*1(192)+conv1*3(192)+conv3*1(192)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3redX2, 1),
            BasicConv2d(ch3x3redX2, ch3x3X2_1, (1, 3), stride=1, padding=(0, 1)),
            BasicConv2d(ch3x3X2_1, ch3x3X2_2, (3, 1), stride=1, padding=(1, 0))
        )
        # conv1*1(1792)
        self.conv = BasicConv2d(ch1x1+ch3x3X2_2, ch1x1ext, 1)
        self.relu = nn.ReLU(inplace=True)
    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        # 拼接
        x_res = torch.cat((x0, x1), dim=1)
        x_res = self.conv(x_res)
        if self.activation:
            return self.relu(x + self.scale * x_res)
        return x + self.scale * x_res
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

redutionA模块： 卷积层组+池化层

# redutionA:BasicConv2d+MaxPool2d
class redutionA(nn.Module):
    def __init__(self, in_channels, k, l, m, n):
        super(redutionA, self).__init__()
        # conv3*3(n stride2 valid)
        self.branch1 = nn.Sequential(
            BasicConv2d(in_channels, n, kernel_size=3, stride=2),
        )
        # conv1*1(k)+conv3*3(l)+conv3*3(m stride2 valid)
        self.branch2 = nn.Sequential(
            BasicConv2d(in_channels, k, kernel_size=1),
            BasicConv2d(k, l, kernel_size=3, padding=1),
            BasicConv2d(l, m, kernel_size=3, stride=2)
        )
        # maxpool3*3(stride2 valid)
        self.branch3 = nn.Sequential(nn.MaxPool2d(kernel_size=3, stride=2))

    def forward(self, x):
        branch1 = self.branch1(x)
        branch2 = self.branch2(x)
        branch3 = self.branch3(x)
        # 拼接
        outputs = [branch1, branch2, branch3]
        return torch.cat(outputs, 1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

redutionB模块： 卷积层组+池化层

# redutionB:BasicConv2d+MaxPool2d
class redutionB(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3_1, ch3x3_2, ch3x3_3, ch3x3_4):
        super(redutionB, self).__init__()
        # conv1*1(256)+conv3x3(384 stride2 valid)
        self.branch_0 = nn.Sequential(
            BasicConv2d(in_channels, ch1x1, 1),
            BasicConv2d(ch1x1, ch3x3_1, 3, stride=2, padding=0)
        )
        # conv1*1(256)+conv3x3(256 stride2 valid)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch1x1, 1),
            BasicConv2d(ch1x1, ch3x3_2, 3, stride=2, padding=0),
        )
        # conv1*1(256)+conv3x3(256)+conv3x3(256 stride2 valid)
        self.branch_2 = nn.Sequential(
            BasicConv2d(in_channels, ch1x1, 1),
            BasicConv2d(ch1x1, ch3x3_3, 3, stride=1, padding=1),
            BasicConv2d(ch3x3_3, ch3x3_4, 3, stride=2, padding=0)
        )
        # maxpool3*3(stride2 valid)
        self.branch_3 = nn.MaxPool2d(3, stride=2, padding=0)

    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        x2 = self.branch_2(x)
        x3 = self.branch_3(x)
        return torch.cat((x0, x1, x2, x3), dim=1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

Inception-ResNet-V2

Inception-ResNet-V2除了Stem，其他模块在结构上与Inception-ResNet-V1一致。
卷积层组： 卷积层+BN层+激活函数

# 卷积组: Conv2d+BN+ReLU
class BasicConv2d(nn.Module):
    def __init__(self, in_channels, out_channels, kernel_size, stride=1, padding=0):
        super(BasicConv2d, self).__init__()
        self.conv = nn.Conv2d(in_channels, out_channels, kernel_size, stride, padding)
        self.bn = nn.BatchNorm2d(out_channels)
        self.relu = nn.ReLU(inplace=True)
    def forward(self, x):
        x = self.conv(x)
        x = self.bn(x)
        x = self.relu(x)
        return x
1
2
3
4
5
6
7
8
9
10
11
12

Stem模块： 卷积层组+池化层

# Stem:BasicConv2d+MaxPool2d
class Stem(nn.Module):
    def __init__(self, in_channels):
        super(Stem, self).__init__()
        # conv3*3(32 stride2 valid)
        self.conv1 = BasicConv2d(in_channels, 32, kernel_size=3, stride=2)
        # conv3*3(32 valid)
        self.conv2 = BasicConv2d(32, 32, kernel_size=3)
        # conv3*3(64)
        self.conv3 = BasicConv2d(32, 64, kernel_size=3, padding=1)
        # maxpool3*3(stride2 valid) & conv3*3(96 stride2 valid)
        self.maxpool4 = nn.MaxPool2d(kernel_size=3, stride=2)
        self.conv4 = BasicConv2d(64, 96, kernel_size=3, stride=2)

        # conv1*1(64)+conv3*3(96 valid)
        self.conv5_1_1 = BasicConv2d(160, 64, kernel_size=1)
        self.conv5_1_2 = BasicConv2d(64, 96, kernel_size=3)
        # conv1*1(64)+conv7*1(64)+conv1*7(64)+conv3*3(96 valid)
        self.conv5_2_1 = BasicConv2d(160, 64, kernel_size=1)
        self.conv5_2_2 = BasicConv2d(64, 64, kernel_size=(7, 1), padding=(3, 0))
        self.conv5_2_3 = BasicConv2d(64, 64, kernel_size=(1, 7), padding=(0, 3))
        self.conv5_2_4 = BasicConv2d(64, 96, kernel_size=3)

        # conv3*3(192 valid) & maxpool3*3(stride2 valid)
        self.conv6 = BasicConv2d(192, 192, kernel_size=3, stride=2)
        self.maxpool6 = nn.MaxPool2d(kernel_size=3, stride=2)

    def forward(self, x):
        x1_1 = self.maxpool4(self.conv3(self.conv2(self.conv1(x))))
        x1_2 = self.conv4(self.conv3(self.conv2(self.conv1(x))))
        x1 = torch.cat([x1_1, x1_2], 1)

        x2_1 = self.conv5_1_2(self.conv5_1_1(x1))
        x2_2 = self.conv5_2_4(self.conv5_2_3(self.conv5_2_2(self.conv5_2_1(x1))))
        x2 = torch.cat([x2_1, x2_2], 1)

        x3_1 = self.conv6(x2)
        x3_2 = self.maxpool6(x2)
        x3 = torch.cat([x3_1, x3_2], 1)
        return x3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

Inception_ResNet-A模块： 卷积层组+池化层

# Inception_ResNet_A:BasicConv2d+MaxPool2d
class Inception_ResNet_A(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3red, ch3x3, ch3x3redX2, ch3x3X2_1, ch3x3X2_2, ch1x1ext, scale=1.0):
        super(Inception_ResNet_A, self).__init__()
        # 缩减指数
        self.scale = scale
        # conv1*1(32)
        self.branch_0 = BasicConv2d(in_channels, ch1x1, 1)
        # conv1*1(32)+conv3*3(32)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3red, 1),
            BasicConv2d(ch3x3red, ch3x3, 3, stride=1, padding=1)
        )
        # conv1*1(32)+conv3*3(48)+conv3*3(64)
        self.branch_2 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3redX2, 1),
            BasicConv2d(ch3x3redX2, ch3x3X2_1, 3, stride=1, padding=1),
            BasicConv2d(ch3x3X2_1, ch3x3X2_2, 3, stride=1, padding=1)
        )
        # conv1*1(384)
        self.conv = BasicConv2d(ch1x1+ch3x3+ch3x3X2_2, ch1x1ext, 1)
        self.relu = nn.ReLU(inplace=True)
    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        x2 = self.branch_2(x)
        # 拼接
        x_res = torch.cat((x0, x1, x2), dim=1)
        x_res = self.conv(x_res)
        return self.relu(x + self.scale * x_res)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

Inception_ResNet-B模块： 卷积层组+池化层

# Inception_ResNet_B:BasicConv2d+MaxPool2d
class Inception_ResNet_B(nn.Module):
    def __init__(self, in_channels, ch1x1, ch_red, ch_1, ch_2, ch1x1ext, scale=1.0):
        super(Inception_ResNet_B, self).__init__()
        # 缩减指数
        self.scale = scale
        # conv1*1(192)
        self.branch_0 = BasicConv2d(in_channels, ch1x1, 1)
        # conv1*1(128)+conv1*7(160)+conv1*7(192)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch_red, 1),
            BasicConv2d(ch_red, ch_1, (1, 7), stride=1, padding=(0, 3)),
            BasicConv2d(ch_1, ch_2, (7, 1), stride=1, padding=(3, 0))
        )
        # conv1*1(1154)
        self.conv = BasicConv2d(ch1x1+ch_2, ch1x1ext, 1)
        self.relu = nn.ReLU(inplace=True)

    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        # 拼接
        x_res = torch.cat((x0, x1), dim=1)
        x_res = self.conv(x_res)
        return self.relu(x + self.scale * x_res)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

Inception_ResNet-C模块： 卷积层组+池化层

# Inception_ResNet_C:BasicConv2d+MaxPool2d
class Inception_ResNet_C(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3redX2, ch3x3X2_1, ch3x3X2_2, ch1x1ext,  scale=1.0, activation=True):
        super(Inception_ResNet_C, self).__init__()
        # 缩减指数
        self.scale = scale
        # 是否激活
        self.activation = activation
        # conv1*1(192)
        self.branch_0 = BasicConv2d(in_channels, ch1x1, 1)
        # conv1*1(192)+conv1*3(224)+conv3*1(256)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3redX2, 1),
            BasicConv2d(ch3x3redX2, ch3x3X2_1, (1, 3), stride=1, padding=(0, 1)),
            BasicConv2d(ch3x3X2_1, ch3x3X2_2, (3, 1), stride=1, padding=(1, 0))
        )
        # conv1*1(2048)
        self.conv = BasicConv2d(ch1x1+ch3x3X2_2, ch1x1ext, 1)
        self.relu = nn.ReLU(inplace=True)
    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        # 拼接
        x_res = torch.cat((x0, x1), dim=1)
        x_res = self.conv(x_res)
        if self.activation:
            return self.relu(x + self.scale * x_res)
        return x + self.scale * x_res
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

redutionA模块： 卷积层组+池化层

# redutionA:BasicConv2d+MaxPool2d
class redutionA(nn.Module):
    def __init__(self, in_channels, k, l, m, n):
        super(redutionA, self).__init__()
        # conv3*3(n stride2 valid)
        self.branch1 = nn.Sequential(
            BasicConv2d(in_channels, n, kernel_size=3, stride=2),
        )
        # conv1*1(k)+conv3*3(l)+conv3*3(m stride2 valid)
        self.branch2 = nn.Sequential(
            BasicConv2d(in_channels, k, kernel_size=1),
            BasicConv2d(k, l, kernel_size=3, padding=1),
            BasicConv2d(l, m, kernel_size=3, stride=2)
        )
        # maxpool3*3(stride2 valid)
        self.branch3 = nn.Sequential(nn.MaxPool2d(kernel_size=3, stride=2))

    def forward(self, x):
        branch1 = self.branch1(x)
        branch2 = self.branch2(x)
        branch3 = self.branch3(x)
        # 拼接
        outputs = [branch1, branch2, branch3]
        return torch.cat(outputs, 1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

redutionB模块： 卷积层组+池化层

# redutionB:BasicConv2d+MaxPool2d
class redutionB(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3_1, ch3x3_2, ch3x3_3, ch3x3_4):
        super(redutionB, self).__init__()
        # conv1*1(256)+conv3x3(384 stride2 valid)
        self.branch_0 = nn.Sequential(
            BasicConv2d(in_channels, ch1x1, 1),
            BasicConv2d(ch1x1, ch3x3_1, 3, stride=2, padding=0)
        )
        # conv1*1(256)+conv3x3(288 stride2 valid)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch1x1, 1),
            BasicConv2d(ch1x1, ch3x3_2, 3, stride=2, padding=0),
        )
        # conv1*1(256)+conv3x3(288)+conv3x3(320 stride2 valid)
        self.branch_2 = nn.Sequential(
            BasicConv2d(in_channels, ch1x1, 1),
            BasicConv2d(ch1x1, ch3x3_3, 3, stride=1, padding=1),
            BasicConv2d(ch3x3_3, ch3x3_4, 3, stride=2, padding=0)
        )
        # maxpool3*3(stride2 valid)
        self.branch_3 = nn.MaxPool2d(3, stride=2, padding=0)

    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        x2 = self.branch_2(x)
        x3 = self.branch_3(x)
        return torch.cat((x0, x1, x2, x3), dim=1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

完整代码

Inception-ResNet的输入图像尺寸是299×299

Inception-ResNet-V1

import torch
import torch.nn as nn
from torchsummary import summary

# 卷积组: Conv2d+BN+ReLU
class BasicConv2d(nn.Module):
    def __init__(self, in_channels, out_channels, kernel_size, stride=1, padding=0):
        super(BasicConv2d, self).__init__()
        self.conv = nn.Conv2d(in_channels, out_channels, kernel_size, stride, padding)
        self.bn = nn.BatchNorm2d(out_channels)
        self.relu = nn.ReLU(inplace=True)
    def forward(self, x):
        x = self.conv(x)
        x = self.bn(x)
        x = self.relu(x)
        return x

# Stem:BasicConv2d+MaxPool2d
class Stem(nn.Module):
    def __init__(self, in_channels):
        super(Stem, self).__init__()

        # conv3x3(32 stride2 valid)
        self.conv1 = BasicConv2d(in_channels, 32, kernel_size=3, stride=2)
        # conv3*3(32 valid)
        self.conv2 = BasicConv2d(32, 32, kernel_size=3)
        # conv3*3(64)
        self.conv3 = BasicConv2d(32, 64, kernel_size=3, padding=1)

        # maxpool3*3(stride2 valid)
        self.maxpool4 = nn.MaxPool2d(kernel_size=3, stride=2)

        # conv1*1(80)
        self.conv5 = BasicConv2d(64, 80, kernel_size=1)
        # conv3*3(192 valid)
        self.conv6 = BasicConv2d(80, 192, kernel_size=1)

        # conv3*3(256 stride2 valid)
        self.conv7 = BasicConv2d(192, 256, kernel_size=3, stride=2)

    def forward(self, x):
        x = self.maxpool4(self.conv3(self.conv2(self.conv1(x))))
        x = self.conv7(self.conv6(self.conv5(x)))
        return x

# Inception_ResNet_A:BasicConv2d+MaxPool2d
class Inception_ResNet_A(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3red, ch3x3, ch3x3redX2, ch3x3X2_1, ch3x3X2_2, ch1x1ext, scale=1.0):
        super(Inception_ResNet_A, self).__init__()
        # 缩减指数
        self.scale = scale
        # conv1*1(32)
        self.branch_0 = BasicConv2d(in_channels, ch1x1, 1)
        # conv1*1(32)+conv3*3(32)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3red, 1),
            BasicConv2d(ch3x3red, ch3x3, 3, stride=1, padding=1)
        )
        # conv1*1(32)+conv3*3(32)+conv3*3(32)
        self.branch_2 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3redX2, 1),
            BasicConv2d(ch3x3redX2, ch3x3X2_1, 3, stride=1, padding=1),
            BasicConv2d(ch3x3X2_1, ch3x3X2_2, 3, stride=1, padding=1)
        )
        # conv1*1(256)
        self.conv = BasicConv2d(ch1x1+ch3x3+ch3x3X2_2, ch1x1ext, 1)
        self.relu = nn.ReLU(inplace=True)
    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        x2 = self.branch_2(x)
        # 拼接
        x_res = torch.cat((x0, x1, x2), dim=1)
        x_res = self.conv(x_res)
        return self.relu(x + self.scale * x_res)

# Inception_ResNet_B:BasicConv2d+MaxPool2d
class Inception_ResNet_B(nn.Module):
    def __init__(self, in_channels, ch1x1, ch_red, ch_1, ch_2, ch1x1ext, scale=1.0):
        super(Inception_ResNet_B, self).__init__()
        # 缩减指数
        self.scale = scale
        # conv1*1(128)
        self.branch_0 = BasicConv2d(in_channels, ch1x1, 1)
        # conv1*1(128)+conv1*7(128)+conv1*7(128)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch_red, 1),
            BasicConv2d(ch_red, ch_1, (1, 7), stride=1, padding=(0, 3)),
            BasicConv2d(ch_1, ch_2, (7, 1), stride=1, padding=(3, 0))
        )
        # conv1*1(896)
        self.conv = BasicConv2d(ch1x1+ch_2, ch1x1ext, 1)
        self.relu = nn.ReLU(inplace=True)

    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        # 拼接
        x_res = torch.cat((x0, x1), dim=1)
        x_res = self.conv(x_res)
        return self.relu(x + self.scale * x_res)

# Inception_ResNet_C:BasicConv2d+MaxPool2d
class Inception_ResNet_C(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3redX2, ch3x3X2_1, ch3x3X2_2, ch1x1ext,  scale=1.0, activation=True):
        super(Inception_ResNet_C, self).__init__()
        # 缩减指数
        self.scale = scale
        # 是否激活
        self.activation = activation
        # conv1*1(192)
        self.branch_0 = BasicConv2d(in_channels, ch1x1, 1)
        # conv1*1(192)+conv1*3(192)+conv3*1(192)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3redX2, 1),
            BasicConv2d(ch3x3redX2, ch3x3X2_1, (1, 3), stride=1, padding=(0, 1)),
            BasicConv2d(ch3x3X2_1, ch3x3X2_2, (3, 1), stride=1, padding=(1, 0))
        )
        # conv1*1(1792)
        self.conv = BasicConv2d(ch1x1+ch3x3X2_2, ch1x1ext, 1)
        self.relu = nn.ReLU(inplace=True)
    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        # 拼接
        x_res = torch.cat((x0, x1), dim=1)
        x_res = self.conv(x_res)
        if self.activation:
            return self.relu(x + self.scale * x_res)
        return x + self.scale * x_res

# redutionA:BasicConv2d+MaxPool2d
class redutionA(nn.Module):
    def __init__(self, in_channels, k, l, m, n):
        super(redutionA, self).__init__()
        # conv3*3(n stride2 valid)
        self.branch1 = nn.Sequential(
            BasicConv2d(in_channels, n, kernel_size=3, stride=2),
        )
        # conv1*1(k)+conv3*3(l)+conv3*3(m stride2 valid)
        self.branch2 = nn.Sequential(
            BasicConv2d(in_channels, k, kernel_size=1),
            BasicConv2d(k, l, kernel_size=3, padding=1),
            BasicConv2d(l, m, kernel_size=3, stride=2)
        )
        # maxpool3*3(stride2 valid)
        self.branch3 = nn.Sequential(nn.MaxPool2d(kernel_size=3, stride=2))

    def forward(self, x):
        branch1 = self.branch1(x)
        branch2 = self.branch2(x)
        branch3 = self.branch3(x)
        # 拼接
        outputs = [branch1, branch2, branch3]
        return torch.cat(outputs, 1)

# redutionB:BasicConv2d+MaxPool2d
class redutionB(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3_1, ch3x3_2, ch3x3_3, ch3x3_4):
        super(redutionB, self).__init__()
        # conv1*1(256)+conv3x3(384 stride2 valid)
        self.branch_0 = nn.Sequential(
            BasicConv2d(in_channels, ch1x1, 1),
            BasicConv2d(ch1x1, ch3x3_1, 3, stride=2, padding=0)
        )
        # conv1*1(256)+conv3x3(256 stride2 valid)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch1x1, 1),
            BasicConv2d(ch1x1, ch3x3_2, 3, stride=2, padding=0),
        )
        # conv1*1(256)+conv3x3(256)+conv3x3(256 stride2 valid)
        self.branch_2 = nn.Sequential(
            BasicConv2d(in_channels, ch1x1, 1),
            BasicConv2d(ch1x1, ch3x3_3, 3, stride=1, padding=1),
            BasicConv2d(ch3x3_3, ch3x3_4, 3, stride=2, padding=0)
        )
        # maxpool3*3(stride2 valid)
        self.branch_3 = nn.MaxPool2d(3, stride=2, padding=0)

    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        x2 = self.branch_2(x)
        x3 = self.branch_3(x)
        return torch.cat((x0, x1, x2, x3), dim=1)

class Inception_ResNetv1(nn.Module):
    def __init__(self, num_classes = 1000, k=192, l=192, m=256, n=384):
        super(Inception_ResNetv1, self).__init__()
        blocks = []
        blocks.append(Stem(3))
        for i in range(5):
            blocks.append(Inception_ResNet_A(256,32, 32, 32, 32, 32, 32, 256, 0.17))
        blocks.append(redutionA(256, k, l, m, n))
        for i in range(10):
            blocks.append(Inception_ResNet_B(896, 128, 128, 128, 128, 896, 0.10))
        blocks.append(redutionB(896,256, 384, 256, 256, 256))
        for i in range(4):
            blocks.append(Inception_ResNet_C(1792,192, 192, 192, 192, 1792, 0.20))
        blocks.append(Inception_ResNet_C(1792, 192, 192, 192, 192, 1792, activation=False))
        self.features = nn.Sequential(*blocks)
        self.conv = BasicConv2d(1792, 1536, 1)
        self.global_average_pooling = nn.AdaptiveAvgPool2d((1, 1))
        self.dropout = nn.Dropout(0.8)
        self.linear = nn.Linear(1536, num_classes)

    def forward(self, x):
        x = self.features(x)
        x = self.conv(x)
        x = self.global_average_pooling(x)
        x = x.view(x.size(0), -1)
        x = self.dropout(x)
        x = self.linear(x)
        return x

if __name__ == '__main__':
    device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
    model = Inception_ResNetv1().to(device)
    summary(model, input_size=(3, 229, 229))
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219

summary可以打印网络结构和参数，方便查看搭建好的网络结构。

Inception-ResNet-V2

import torch
import torch.nn as nn
from torchsummary import summary

# 卷积组: Conv2d+BN+ReLU
class BasicConv2d(nn.Module):
    def __init__(self, in_channels, out_channels, kernel_size, stride=1, padding=0):
        super(BasicConv2d, self).__init__()
        self.conv = nn.Conv2d(in_channels, out_channels, kernel_size, stride, padding)
        self.bn = nn.BatchNorm2d(out_channels)
        self.relu = nn.ReLU(inplace=True)
    def forward(self, x):
        x = self.conv(x)
        x = self.bn(x)
        x = self.relu(x)
        return x

# Stem:BasicConv2d+MaxPool2d
class Stem(nn.Module):
    def __init__(self, in_channels):
        super(Stem, self).__init__()
        # conv3*3(32 stride2 valid)
        self.conv1 = BasicConv2d(in_channels, 32, kernel_size=3, stride=2)
        # conv3*3(32 valid)
        self.conv2 = BasicConv2d(32, 32, kernel_size=3)
        # conv3*3(64)
        self.conv3 = BasicConv2d(32, 64, kernel_size=3, padding=1)
        # maxpool3*3(stride2 valid) & conv3*3(96 stride2 valid)
        self.maxpool4 = nn.MaxPool2d(kernel_size=3, stride=2)
        self.conv4 = BasicConv2d(64, 96, kernel_size=3, stride=2)

        # conv1*1(64)+conv3*3(96 valid)
        self.conv5_1_1 = BasicConv2d(160, 64, kernel_size=1)
        self.conv5_1_2 = BasicConv2d(64, 96, kernel_size=3)
        # conv1*1(64)+conv7*1(64)+conv1*7(64)+conv3*3(96 valid)
        self.conv5_2_1 = BasicConv2d(160, 64, kernel_size=1)
        self.conv5_2_2 = BasicConv2d(64, 64, kernel_size=(7, 1), padding=(3, 0))
        self.conv5_2_3 = BasicConv2d(64, 64, kernel_size=(1, 7), padding=(0, 3))
        self.conv5_2_4 = BasicConv2d(64, 96, kernel_size=3)

        # conv3*3(192 valid) & maxpool3*3(stride2 valid)
        self.conv6 = BasicConv2d(192, 192, kernel_size=3, stride=2)
        self.maxpool6 = nn.MaxPool2d(kernel_size=3, stride=2)

    def forward(self, x):
        x1_1 = self.maxpool4(self.conv3(self.conv2(self.conv1(x))))
        x1_2 = self.conv4(self.conv3(self.conv2(self.conv1(x))))
        x1 = torch.cat([x1_1, x1_2], 1)

        x2_1 = self.conv5_1_2(self.conv5_1_1(x1))
        x2_2 = self.conv5_2_4(self.conv5_2_3(self.conv5_2_2(self.conv5_2_1(x1))))
        x2 = torch.cat([x2_1, x2_2], 1)

        x3_1 = self.conv6(x2)
        x3_2 = self.maxpool6(x2)
        x3 = torch.cat([x3_1, x3_2], 1)
        return x3

# Inception_ResNet_A:BasicConv2d+MaxPool2d
class Inception_ResNet_A(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3red, ch3x3, ch3x3redX2, ch3x3X2_1, ch3x3X2_2, ch1x1ext, scale=1.0):
        super(Inception_ResNet_A, self).__init__()
        # 缩减指数
        self.scale = scale
        # conv1*1(32)
        self.branch_0 = BasicConv2d(in_channels, ch1x1, 1)
        # conv1*1(32)+conv3*3(32)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3red, 1),
            BasicConv2d(ch3x3red, ch3x3, 3, stride=1, padding=1)
        )
        # conv1*1(32)+conv3*3(48)+conv3*3(64)
        self.branch_2 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3redX2, 1),
            BasicConv2d(ch3x3redX2, ch3x3X2_1, 3, stride=1, padding=1),
            BasicConv2d(ch3x3X2_1, ch3x3X2_2, 3, stride=1, padding=1)
        )
        # conv1*1(384)
        self.conv = BasicConv2d(ch1x1+ch3x3+ch3x3X2_2, ch1x1ext, 1)
        self.relu = nn.ReLU(inplace=True)
    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        x2 = self.branch_2(x)
        # 拼接
        x_res = torch.cat((x0, x1, x2), dim=1)
        x_res = self.conv(x_res)
        return self.relu(x + self.scale * x_res)

# Inception_ResNet_B:BasicConv2d+MaxPool2d
class Inception_ResNet_B(nn.Module):
    def __init__(self, in_channels, ch1x1, ch_red, ch_1, ch_2, ch1x1ext, scale=1.0):
        super(Inception_ResNet_B, self).__init__()
        # 缩减指数
        self.scale = scale
        # conv1*1(192)
        self.branch_0 = BasicConv2d(in_channels, ch1x1, 1)
        # conv1*1(128)+conv1*7(160)+conv1*7(192)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch_red, 1),
            BasicConv2d(ch_red, ch_1, (1, 7), stride=1, padding=(0, 3)),
            BasicConv2d(ch_1, ch_2, (7, 1), stride=1, padding=(3, 0))
        )
        # conv1*1(1154)
        self.conv = BasicConv2d(ch1x1+ch_2, ch1x1ext, 1)
        self.relu = nn.ReLU(inplace=True)

    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        # 拼接
        x_res = torch.cat((x0, x1), dim=1)
        x_res = self.conv(x_res)
        return self.relu(x + self.scale * x_res)

# Inception_ResNet_C:BasicConv2d+MaxPool2d
class Inception_ResNet_C(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3redX2, ch3x3X2_1, ch3x3X2_2, ch1x1ext,  scale=1.0, activation=True):
        super(Inception_ResNet_C, self).__init__()
        # 缩减指数
        self.scale = scale
        # 是否激活
        self.activation = activation
        # conv1*1(192)
        self.branch_0 = BasicConv2d(in_channels, ch1x1, 1)
        # conv1*1(192)+conv1*3(224)+conv3*1(256)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3redX2, 1),
            BasicConv2d(ch3x3redX2, ch3x3X2_1, (1, 3), stride=1, padding=(0, 1)),
            BasicConv2d(ch3x3X2_1, ch3x3X2_2, (3, 1), stride=1, padding=(1, 0))
        )
        # conv1*1(2048)
        self.conv = BasicConv2d(ch1x1+ch3x3X2_2, ch1x1ext, 1)
        self.relu = nn.ReLU(inplace=True)
    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        # 拼接
        x_res = torch.cat((x0, x1), dim=1)
        x_res = self.conv(x_res)
        if self.activation:
            return self.relu(x + self.scale * x_res)
        return x + self.scale * x_res

# redutionA:BasicConv2d+MaxPool2d
class redutionA(nn.Module):
    def __init__(self, in_channels, k, l, m, n):
        super(redutionA, self).__init__()
        # conv3*3(n stride2 valid)
        self.branch1 = nn.Sequential(
            BasicConv2d(in_channels, n, kernel_size=3, stride=2),
        )
        # conv1*1(k)+conv3*3(l)+conv3*3(m stride2 valid)
        self.branch2 = nn.Sequential(
            BasicConv2d(in_channels, k, kernel_size=1),
            BasicConv2d(k, l, kernel_size=3, padding=1),
            BasicConv2d(l, m, kernel_size=3, stride=2)
        )
        # maxpool3*3(stride2 valid)
        self.branch3 = nn.Sequential(nn.MaxPool2d(kernel_size=3, stride=2))

    def forward(self, x):
        branch1 = self.branch1(x)
        branch2 = self.branch2(x)
        branch3 = self.branch3(x)
        # 拼接
        outputs = [branch1, branch2, branch3]
        return torch.cat(outputs, 1)

# redutionB:BasicConv2d+MaxPool2d
class redutionB(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3_1, ch3x3_2, ch3x3_3, ch3x3_4):
        super(redutionB, self).__init__()
        # conv1*1(256)+conv3x3(384 stride2 valid)
        self.branch_0 = nn.Sequential(
            BasicConv2d(in_channels, ch1x1, 1),
            BasicConv2d(ch1x1, ch3x3_1, 3, stride=2, padding=0)
        )
        # conv1*1(256)+conv3x3(288 stride2 valid)
        self.branch_1 = nn.Sequential(
            BasicConv2d(in_channels, ch1x1, 1),
            BasicConv2d(ch1x1, ch3x3_2, 3, stride=2, padding=0),
        )
        # conv1*1(256)+conv3x3(288)+conv3x3(320 stride2 valid)
        self.branch_2 = nn.Sequential(
            BasicConv2d(in_channels, ch1x1, 1),
            BasicConv2d(ch1x1, ch3x3_3, 3, stride=1, padding=1),
            BasicConv2d(ch3x3_3, ch3x3_4, 3, stride=2, padding=0)
        )
        # maxpool3*3(stride2 valid)
        self.branch_3 = nn.MaxPool2d(3, stride=2, padding=0)

    def forward(self, x):
        x0 = self.branch_0(x)
        x1 = self.branch_1(x)
        x2 = self.branch_2(x)
        x3 = self.branch_3(x)
        return torch.cat((x0, x1, x2, x3), dim=1)

class Inception_ResNetv2(nn.Module):
    def __init__(self, num_classes = 1000, k=256, l=256, m=384, n=384):
        super(Inception_ResNetv2, self).__init__()
        blocks = []
        blocks.append(Stem(3))
        for i in range(5):
            blocks.append(Inception_ResNet_A(384,32, 32, 32, 32, 48, 64, 384, 0.17))
        blocks.append(redutionA(384, k, l, m, n))
        for i in range(10):
            blocks.append(Inception_ResNet_B(1152, 192, 128, 160, 192, 1152, 0.10))
        blocks.append(redutionB(1152, 256, 384, 288, 288, 320))
        for i in range(4):
            blocks.append(Inception_ResNet_C(2144,192, 192, 224, 256, 2144, 0.20))
        blocks.append(Inception_ResNet_C(2144, 192, 192, 224, 256, 2144, activation=False))
        self.features = nn.Sequential(*blocks)
        self.conv = BasicConv2d(2144, 1536, 1)
        self.global_average_pooling = nn.AdaptiveAvgPool2d((1, 1))
        self.dropout = nn.Dropout(0.8)
        self.linear = nn.Linear(1536, num_classes)

    def forward(self, x):
        x = self.features(x)
        x = self.conv(x)
        x = self.global_average_pooling(x)
        x = x.view(x.size(0), -1)
        x = self.dropout(x)
        x = self.linear(x)
        return x

if __name__ == '__main__':
    device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
    model = Inception_ResNetv2().to(device)
    summary(model, input_size=(3, 229, 229))
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232

summary可以打印网络结构和参数，方便查看搭建好的网络结构。

总结

尽可能简单、详细的介绍了Inception-ResNet将Inception和ResNet结合的作用和过程，讲解了Inception-ResNet模型的结构和pytorch代码。

相关阅读:
【16-配置中心之Nacos的基本使用&Nacos服务之命令空间、Nacos服务之配置组、Nacos服务之配置拆分】
【C++】——类和对象(中)
JavaScript学习笔记
 25.Xaml DateGrid控件----＞默认单选，可以多项选择的网格控件
 VisualSP Enterprise - September 2023 Crack
蓝桥等考Python组别十六级008
学习网络安全有哪些误区？学习之前要做哪些准备？如何系统的学习黑客技术/网络安全？
当遇到修复错误0xc000000e时，你的电脑需要修复。如何在Windows 11/10上修复此错误
 C++ NULL 与nullptr 区别
 工厂模式之简单工厂模式（常用）
原文地址：https://blog.csdn.net/yangyu0515/article/details/134513904
