C#上位机序列10: 批量读写+点对点更新+数据类型处理

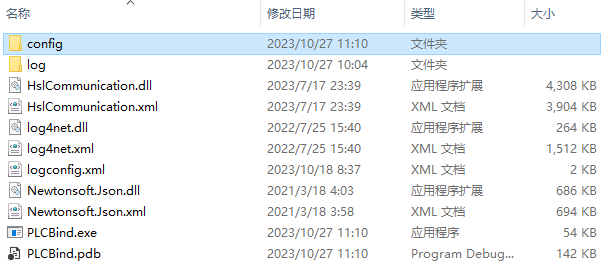

一、源码结构

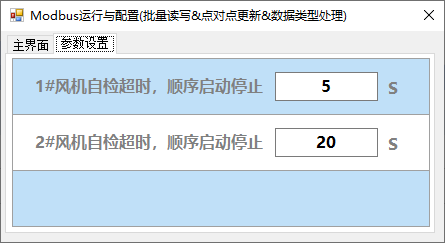

二、运行效果

三、源码解析

PLC批量读写+点对点更新+数据类型处理

优点：根据数据类型，判定监听的地址范围（40120_int 监听两个word：40120 40121；40130_long 监听四个word：40130 40131 40132 40133），添加到UI字典中，PLC批量读取，判定数据变化，查找控件集合，点对点更新，效率高

实现流程：
1. 读取配置文件及创建变量信息（点位名称，地址，数据类型（bool/short/int/float/long/double））

2. 自定义控件绑定参数，用UI字典存储，通过属性get方式，如果是bool类型，直接取Bool字典的点位数据；如果是Word类型，根据数据类型拼装Word字典中的word数据，得到对应数据类型的点位数据；通过set方式，加入到写队列。

using PLCBind.CustomControls;
using PLCBind.Service;
using PLCBind.Util;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Windows.Forms;

namespace PLCBind
{
    public partial class MainForm : Form
    {
        public MainForm()
        {
            InitializeComponent();
        }

        private void MainForm_Load(object sender, EventArgs e)
        {
            CommonMethods.LoadVar();// 读取配置文件及创建变量信息（点位名称，地址，类型）
            PLCService.Init();      // 读任务&写任务,数据有变化时事件广播通知（自定义控件预先绑定事件）
            BindControlParamModel();// 为按钮绑定参数
        }

        ///

        /// 为控件绑定参数
        ///
        private void BindControlParamModel()
        {
            InitControlTag();
            SetControlParamModel();
        }

        ///

        /// 绑定控件变量
        ///
        void InitControlTag()
        {
            // 左皮带
            lblYX1.Tag = ucBeltLeft1.Tag = "00101";// 启动
            lblZS1.Tag = "40101";// 转速
            lblDY1.Tag = "40120";// 电压
            lblDL1.Tag = "40130";// 电流
        }

        ///

        /// 赋值控件参数
        ///
        void SetControlParamModel()
        {
            foreach (Control item in this.pnlMain.Controls)
            {
                if (item is ITransferUI objItem)
                {
                    var address = item.Tag.ToString();

                    var common = CommonMethods.HomeVariables.Where(obj => obj.PLCAddress == address).FirstOrDefault();

                    if (common != null)
                    {
                        objItem.ParamModel = common;

                        List lstAddress = null;
                        switch (common.DataType)
                        {
                            case DataType.Bool:
                                lstAddress = PLCService.RangeAddress(common.PLCAddress, 0);
                                break;
                            case DataType.Short:
                                lstAddress = PLCService.RangeAddress(common.PLCAddress, 0);
                                break;
                            case DataType.Int:
                            case DataType.Float:
                                lstAddress = PLCService.RangeAddress(common.PLCAddress, 2);// 40120 监听两个word：40120 40121
                                break;
                            case DataType.Long:
                            case DataType.Double:
                                lstAddress = PLCService.RangeAddress(common.PLCAddress, 4);// 40130 监听四个word：40130 40131 40132 40133
                                break;
                        }

                        foreach (var range in lstAddress)
                        {
                            CommonMethods.AddControl(CommonMethods.DicHomeControl, range, item);
                        }
                    }
                }
            }
        }

        private void tabControl1_SelectedIndexChanged(object sender, EventArgs e)
        {
            var index = tabControl1.SelectedIndex;

            switch (index)
            {
                case 0:
                    this.ucParameter1.RemoveParams();
                    break;
                case 1:
                    // 参数设置
                    this.pnlSet.Controls.Clear();
                    this.pnlSet.Controls.Add(ucParameter1);
                    this.ucParameter1.ListParams = CommonMethods.SetVariables.Where(s => s.Group == "顺序启动参数").ToList();
                    break;
            }
        }
    }
}

using PLCBind.Service;

namespace PLCBind.UIForm
{
    public class BaseParams
    {
        ///

        /// 描述
        ///
        public string Description { get; set; }

        ///

        /// PLC地址, 多个输入时，用";"分隔开
        ///
        public string PLCAddress { get; set; }

        ///

        /// 数据类型
        ///
        public DataType DataType { get; set; }

        ///

        /// 数据分组
        ///
        public string Group { get; set; }

        ///

        /// 单位
        ///
        public string Unit { get; set; }

        ///

        /// 设置与获取PLC值
        ///
        public object PLCValue
        {
            get
            {
                object obj = null;
                switch (DataType)
                {
                    case DataType.Bool:
                        obj = PLCService.GetBool(PLCAddress);
                        break;
                    case DataType.Short:
                        obj = PLCService.GetShort(PLCAddress);
                        break;
                    case DataType.Int:
                        obj = PLCService.GetInt(PLCAddress);
                        break;
                    case DataType.Float:
                        obj = PLCService.GetFloat(PLCAddress);
                        break;
                    case DataType.Long:
                        obj = PLCService.GetLong(PLCAddress);
                        break;
                    case DataType.Double:
                        obj = PLCService.GetDouble(PLCAddress);
                        break;
                }
                return obj;
            }
            set
            {
                PLCService.AddWriteVariable(PLCAddress, value, DataType);
            }
        }
    }
}

3. 异步任务处理：读任务&写任务,将读到的数据存到Data字典中，判断数据是否有发生变化，如果数据有变化，通过UI字典获取控件集合，调用更新方法

using HslCommunication;
using HslCommunication.Core;
using HslCommunication.ModBus;
using PLCBind.CustomControls;
using PLCBind.Util;
using System;
using System.Collections.Concurrent;
using System.Collections.Generic;
using System.Threading.Tasks;
using System.Windows.Forms;
using UtilHelper;

namespace PLCBind.Service
{
    public class PLCService
    {
        public static ConcurrentDictionary DicBoolData = new ConcurrentDictionary();
        public static ConcurrentDictionary DicWordData = new ConcurrentDictionary();
        public static ConcurrentDictionary DicWordChange = new ConcurrentDictionary();
        //
        static ModbusTcpNet client = null;
        static IByteTransform byteTransform;
        static ConcurrentQueue queueWrite = new ConcurrentQueue();

        // UI通知
        static void NoticeUI(string address, ConcurrentDictionary> dicControl)
        {
            dicControl.TryGetValue(address, out List lstControl);
            if (null != lstControl)
            {
                foreach (var item in lstControl)
                {
                    if (item is ITransferUI objItem)
                    {
                        objItem.NoticeChange();
                    }
                }
            }
        }

        ///

        /// 事件触发
        ///

        public static void DataChange(string address)
        {
            Task.Run(() => NoticeUI(address, CommonMethods.DicHomeControl));
            Task.Run(() => NoticeUI(address, CommonMethods.DicSetControl));
        }

        ///

        /// 自定义控件内接收到数据变化事件，根据传入address，以及DataType查询监听地址所需要的监听范围（40120_int 监听两个word：40120 40121；40130_long 监听四个word：40130 40131 40132 40133），判断是否属于本控件监听
        ///
        public static List RangeAddress(string address, int length)
        {
            List lstaddress = new List();

            if (0 == length)
            {
                lstaddress.Add(address);
            }
            else
            {
                for (int i = 0; i < length; i++)
                {
                    lstaddress.Add(FillAddress((DataHelper.Obj2Int(address) + i).ToString()));
                }
            }
            return lstaddress;
        }

        ///

        /// 读取时，按位补充0
        ///
        public static string FillAddress(string val, int length = 5)
        {
            return val.PadLeft(length, '0');
        }

        ///

        /// 写入时，格式化地址，如：40101 -> 101
        ///

        public static string FormatAddress(string val)
        {
            if (val.Length < 5) return val;

            return val.Substring(1, val.Length - 1);
        }

        ///

        /// 初始化plc通信，开启读写任务
        ///
        public static void Init()
        {
            client = new ModbusTcpNet(CommonMethods.PLCConfig.HostAddress, CommonMethods.PLCConfig.PortNumber);
            client.AddressStartWithZero = false;
            client.DataFormat = DataFormat.CDAB;
            byteTransform = client.ByteTransform;

            TskPlcRead();
            TskPlcWrite();
        }

        ///

        /// 获取bool（bool类型）
        ///
        ///
        ///
        public static bool GetBool(string address)
        {
            try
            {
                bool exist = DicBoolData.TryGetValue(address, out var value);// 字典存储
                if (!exist)
                {
                    Logger.Info($"[Error] PLCService,GetBool,errmsg:查无点位数据({address})");
                }
                return value;
            }
            catch (Exception ex)
            {
                Logger.Info("[Error] PLCService,GetBool,errmsg:" + ex.Message);
            }
            return false;
        }

        ///

        /// 获取word（1个word，2个字节）
        ///

        static Word GetAddressWord(string address, int add)
        {
            address = FillAddress((Convert.ToInt32(address) + add).ToString());
            bool exist = DicWordData.TryGetValue(address, out var value);
            if (!exist)
            {
                Logger.Info($"[Error] PLCService,GetAddressWord,errmsg:查无点位数据({address})");
            }
            return value;
        }

        ///

        /// 拼接字节（多个word）
        ///

        static byte[] JoinAddressWord(string address, DataType datatype)
        {
            byte[] ret = null;
            switch (datatype)
            {
                case DataType.Short:
                    {
                        var buff = GetAddressWord(address, 0);
                        ret = new byte[2] { buff.Byte1, buff.Byte2 };
                    }
                    break;
                case DataType.Int:
                case DataType.Float:
                    {
                        var buff1 = GetAddressWord(address, 0);
                        var buff2 = GetAddressWord(address, 1);
                        ret = new byte[4] { buff1.Byte1, buff1.Byte2, buff2.Byte1, buff2.Byte2 };
                    }
                    break;
                case DataType.Long:
                case DataType.Double:
                    {
                        var buff1 = GetAddressWord(address, 0);
                        var buff2 = GetAddressWord(address, 1);
                        var buff3 = GetAddressWord(address, 2);
                        var buff4 = GetAddressWord(address, 3);
                        ret = new byte[8] { buff1.Byte1, buff1.Byte2, buff2.Byte1, buff2.Byte2, buff3.Byte1, buff3.Byte2, buff4.Byte1, buff4.Byte2 };
                    }
                    break;
            }
            return ret;
        }

        public static ushort GetShort(string address)
        {
            try
            {
                var buff = JoinAddressWord(address, DataType.Short);
                return byteTransform.TransUInt16(buff, 0);
            }
            catch (Exception ex)
            {
                Logger.Info("[Error] PLCService,GetShort,errmsg:" + ex.Message);
            }
            return 0;
        }

        public static uint GetInt(string address)
        {
            try
            {
                var buff = JoinAddressWord(address, DataType.Int);
                return byteTransform.TransUInt32(buff, 0);
            }
            catch (Exception ex)
            {
                Logger.Info("[Error] PLCService,GetInt,errmsg:" + ex.Message);
            }
            return 0;
        }

        public static float GetFloat(string address)
        {
            try
            {
                var buff = JoinAddressWord(address, DataType.Float);
                return byteTransform.TransSingle(buff, 0);
            }
            catch (Exception ex)
            {
                Logger.Info("[Error] PLCService,GetFloat,errmsg:" + ex.Message);
            }
            return 0;
        }

        public static ulong GetLong(string address)
        {
            try
            {
                var buff = JoinAddressWord(address, DataType.Long);
                return byteTransform.TransUInt64(buff, 0);
            }
            catch (Exception ex)
            {
                Logger.Info("[Error] PLCService,GetLong,errmsg:" + ex.Message);
            }
            return 0;
        }

        public static double GetDouble(string address)
        {
            try
            {
                var buff = JoinAddressWord(address, DataType.Double);
                return byteTransform.TransDouble(buff, 0);
            }
            catch (Exception ex)
            {
                Logger.Info("[Error] PLCService,GetDouble,errmsg:" + ex.Message);
            }
            return 0;
        }

        ///

        /// 定时读取
        ///
        static void TskPlcRead()
        {
            Task.Factory.StartNew(async () =>
            {
                var start_c = CommonMethods.PLCConfig.ReadStart_Coil;
                var start_h = CommonMethods.PLCConfig.ReadStart_Holding;

                bool[] temp_c = null; bool init_c = false;
                byte[] temp_h = null; bool init_h = false;

                while (!CommonMethods.CTS.IsCancellationRequested)
                {
                    try
                    {
                        DicWordChange.Clear();

                        var array_c = (await client.ReadBoolAsync(start_c, (ushort)CommonMethods.PLCConfig.ReadCount_Coil)).Content;
                        var array_h = (await client.ReadAsync(start_h, (ushort)(CommonMethods.PLCConfig.ReadCount_Holding * 2))).Content;// ushort占两个字节

                        if (null != array_c)
                        {
                            // bool类型只占1位，数据有变化直接通知
                            if (null == temp_c)
                            {
                                init_c = true;
                                temp_c = new bool[array_c.Length];
                            }
                            CheckBoolChange("0", start_c, temp_c, array_c, init_c); init_c = false;
                            Array.Copy(array_c, temp_c, array_c.Length);
                        }

                        if (null != array_h)
                        {
                            // word类型数据位(2,4,8)，所以要先读取全部的数据，再通知变化
                            if (null == temp_h)
                            {
                                init_h = true;
                                temp_h = new byte[array_h.Length];
                            }
                            CheckWordChange("4", start_h, temp_h, array_h, init_h); init_h = false;
                            Array.Copy(array_h, temp_h, array_h.Length);

                            if (DicWordChange.Count > 0)
                            {
                                foreach (var item in DicWordChange)
                                {
                                    DataChange(item.Key);
                                }
                            }
                        }
                    }
                    catch (Exception ex)
                    {
                        Logger.Info("[Error] PLCMgr,TskPlcRead,errmsg" + ex.Message);
                    }

                    await Task.Delay(100);
                }
            }, TaskCreationOptions.LongRunning);
        }

        ///

        /// 检查数据是否有变化（bool类型）
        ///

        public static void CheckBoolChange(string flg, string start, bool[] oldbuffer, bool[] newbuffer, bool init)
        {
            for (int i = 0; i < newbuffer.Length; i++)
            {
                // 00101
                string address = flg + FillAddress((i + Convert.ToInt32(start)).ToString(), 4);

                bool value = newbuffer[i];

                DicBoolData.AddOrUpdate1(address, value);

                if (init || oldbuffer[i] != value)
                {
                    DataChange(address);
                }
            }
        }

        ///

        /// 检查数据是否有变化（word类型）
        ///

        public static void CheckWordChange(string flg, string start, byte[] oldbuffer, byte[] newbuffer, bool init)
        {
            int index = 0;
            for (int i = 0; i < newbuffer.Length; i = i + 2)
            {
                // 40101
                string address = flg + FillAddress((index + Convert.ToInt32(start)).ToString(), 4); index++;

                byte byte1 = newbuffer[i];
                byte byte2 = newbuffer[i + 1];

                Word buff = new Word() { Byte1 = byte1, Byte2 = byte2 };

                DicWordData.AddOrUpdate1(address, buff);

                if (init || (oldbuffer[i] != byte1 || oldbuffer[i + 1] != byte2))
                {
                    DicWordChange.AddOrUpdate1(address, buff);
                }
            }
        }

        ///

        /// 添加写入值
        ///

        public static void AddWriteVariable(string address, object value, DataType datatype)
        {
            queueWrite.Enqueue(new PLCModel() { Address = address, Value = value, PLCDataType = datatype });//加载值进队列
        }

        ///

        /// 定时写入
        ///
        static void TskPlcWrite()
        {
            Task.Factory.StartNew(async () =>
            {
                while (!CommonMethods.CTS.IsCancellationRequested)
                {
                    try
                    {
                        if (!queueWrite.IsEmpty)
                        {
                            PLCModel model = null; OperateResult result = null;
                            queueWrite.TryDequeue(out model);

                            var dataype = model.PLCDataType;
                            switch (dataype)
                            {
                                case DataType.Bool:
                                    result = await client.WriteAsync(FormatAddress(model.Address), Convert.ToBoolean(model.Value));
                                    break;
                                case DataType.Short:
                                    result = await client.WriteAsync(FormatAddress(model.Address), Convert.ToUInt16(model.Value));
                                    break;
                                case DataType.Int:
                                    result = await client.WriteAsync(FormatAddress(model.Address), Convert.ToUInt32(model.Value));
                                    break;
                                case DataType.Float:
                                    result = await client.WriteAsync(FormatAddress(model.Address), Convert.ToSingle(model.Value));
                                    break;
                                case DataType.Long:
                                    result = await client.WriteAsync(FormatAddress(model.Address), Convert.ToUInt64(model.Value));
                                    break;
                                case DataType.Double:
                                    result = await client.WriteAsync(FormatAddress(model.Address), Convert.ToDouble(model.Value));
                                    break;
                            }

                            if (!result.IsSuccess)
                            {
                                Logger.Info("[Error] PLCMgr,TskPlcWrite,errmsg:写入失败," + result.Message);
                            }
                        }
                    }
                    catch (Exception ex)
                    {
                        Logger.Info("[Error] PLCMgr,TskPlcWrite,errmsg:" + ex.Message);
                    }

                    await Task.Delay(100);
                }
            }, TaskCreationOptions.LongRunning);
        }
    }
}

4. 主界面控件都是静态加载，参数设置的控件是动态加载(点击进入，动态加载变量并监听；离开，移除不监听)

using PLCBind.Util;
using System.Collections.Generic;
using System.Drawing;
using System.Windows.Forms;

namespace PLCBind.UIForm
{
    public partial class ucParameter : UserControl
    {
        public ucParameter()
        {
            InitializeComponent();
        }

        ///

        /// 参数集合
        ///
        public object ListParams
        {
            set
            {
                RemoveParams();

                if (value is List Parameters)
                {
                    AddParams(Parameters);
                }
            }
        }

        ///

        /// 移除参数
        ///
        public void RemoveParams()
        {
            foreach (Control item in this.tableLayoutPanel1.Controls)
            {
                if (item is ucTextSetting ctrText)
                {
                    CommonMethods.RemoveControl(CommonMethods.DicSetControl, ctrText.Address);// 移除集合
                }
            }

            this.tableLayoutPanel1.Controls.Clear(); // 移除控件
        }

        ///

        /// 添加参数
        ///

        void AddParams(List objParams)
        {
            var pamramCount = objParams.Count;
            var pamrammIndex = 0;
            for (int columnIndex = 0; columnIndex < tableLayoutPanel1.ColumnCount; columnIndex++)
            {
                for (int rowIndex = 0; rowIndex < tableLayoutPanel1.RowCount; rowIndex++)
                {
                    if (pamramCount > pamrammIndex)
                    {
                        var common = objParams[pamrammIndex];
                        var address = common.PLCAddress;
                        ucTextSetting ucLbText = new ucTextSetting();
                        ucLbText.Anchor = ((((AnchorStyles.Top | AnchorStyles.Bottom) | AnchorStyles.Left)));
                        ucLbText.ParamModel = common;
                        ucLbText.Address = address;
                        CommonMethods.AddControl(CommonMethods.DicSetControl, address, ucLbText);// 添加集合
                        tableLayoutPanel1.Controls.Add(ucLbText, columnIndex, rowIndex);// 添加控件
                        pamrammIndex++;
                    }
                }
            }
        }

        private void TableLayoutPanel1_CellPaint(object sender, TableLayoutCellPaintEventArgs e)
        {
            if (e.Row % 2 == 1)
                e.Graphics.FillRectangle(Brushes.White, e.CellBounds);
            else
                e.Graphics.FillRectangle(new SolidBrush(Color.FromArgb(192, 224, 248)), e.CellBounds);
        }
    }
}

注意事项：
1. 字典类型
Data字典：ConcurrentDictionary DicBoolData；ConcurrentDictionary DicWordData；Word：byte1，byte2
UI字典：ConcurrentDictionary> DicHomeControl；ConcurrentDictionary> DicSetControl
2. bool类型只占1位，数据有变化直接通知
3. word类型数据位(short:2,int/float:4,long/double:8)，所以要先读取全部的数据，再通知变化
4. 自定义控件继承ITransferUI类（属性：ParamModel，方法：NoticeChange），赋值属性ParamModel，其中PLCValue get:通过不同的数据类型，获取字典中的word数据，并拼接合成相应的数据类型;set:传入地址(写入时格式化地址，如:40101->101)及类型
