Spring系列文章：Spring6集成MyBatis3.5

1、引入依赖

<dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-contextartifactId>
            <version>6.0.2version>
        dependency>
        <dependency>
            <groupId>org.mybatisgroupId>
            <artifactId>mybatisartifactId>
            <version>3.5.11version>
        dependency>
        <dependency>
        <groupId>org.mybatisgroupId>
            <artifactId>mybatis-springartifactId>
            <version>2.0.7version>
        dependency>

        <dependency>
            <groupId>mysqlgroupId>
            <artifactId>mysql-connector-javaartifactId>
            <version>8.0.30version>
        dependency>
        <dependency>
            <groupId>com.alibabagroupId>
            <artifactId>druidartifactId>
            <version>1.2.13version>
        dependency>

        <dependency>
            <groupId>junitgroupId>
            <artifactId>junitartifactId>
            <version>4.13.2version>
            <scope>testscope>
        dependency>

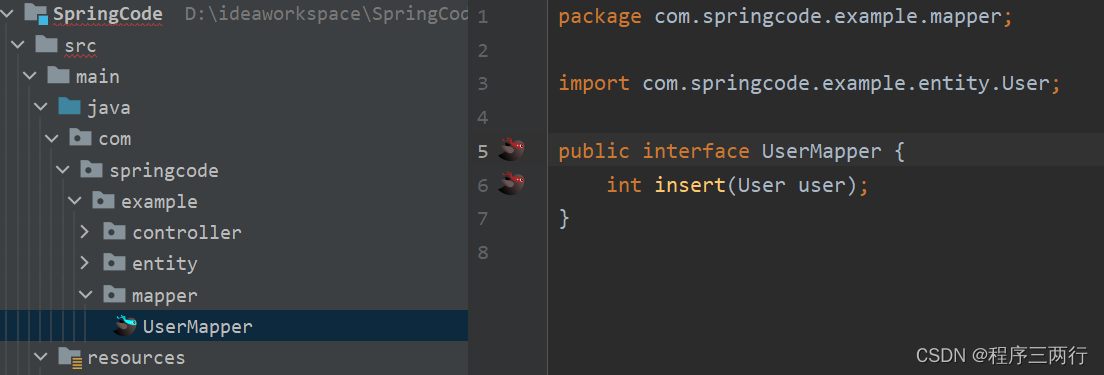

2、编写mapper接口

3、编写mapper配置文件

⼀定要注意，按照下图提示创建这个⽬录。注意是斜杠不是点⼉。在resources⽬录下新建。并且要和 Mapper接⼝包对应上

结构如下



如果接⼝叫做UserMapper，配置⽂件必须是UserMapper.xml

4、编写service接⼝和service接⼝实现类

注意编写的service实现类纳⼊IoC容器管理：

public interface UserService {
    int insert(User user);
}


@Service
public class UserServiceImpl implements UserService {
    @Autowired
    UserMapper userMapper;

    @Override
    public int insert(User user) {
        return userMapper.insert(user);
    }
}

5、编写jdbc.properties配置⽂件

放在类的根路径下

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/spring6
jdbc.username=root
jdbc.password=root

6、编写mybatis-config.xml配置⽂件

放在类的根路径下，只开启⽇志，其他配置到spring.xml中。

"1.0" encoding="UTF-8" ?>
configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <settings>
        <setting name="logImpl" value="STDOUT_LOGGING"/>
    settings>
configuration>

7、编写spring.xml配置⽂件

"1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">

    <context:component-scan base-package="com.springcode"/>


    <context:property-placeholder location="jdbc.properties"/>


    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${jdbc.driver}"/>
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    bean>


    <bean class="org.mybatis.spring.SqlSessionFactoryBean">

        <property name="configLocation" value="mybatis-config.xml"/>

        <property name="dataSource" ref="dataSource"/>

        <property name="typeAliasesPackage" value="com.springcode.example.entity.User"/>
    bean>


    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.springcode.example.mapper"/>
    bean>


    <bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    bean>

    <tx:annotation-driven transaction-manager="txManager"/>
beans>



8、测试

public class SpringTest {
    @Test
    public void testInsert(){
        ApplicationContext applicationContext = new ClassPathXmlApplicationContext("spring.xml");
        UserService userService = applicationContext.getBean("userService", UserService.class);
        userService.insert(new User(1,"abc"));
    }
}
