• QProcess 调用 ffmpeg来处理音频

    项目场景：

    在文章 qt 实现音视频的分贝检测系统中，实现的是边播放变解析音频数据来统计音频的分贝大小，并不满足实际项目的需求，有的视频声音正常，有的视频声音就偏低，即使放到最大音量声音也是比较小，本文的目的是直接通过对本地视频进行检测，拿出关键指标，来进行对音频处理

    关键依赖：ffmpeg

    因为依赖于ffmpeg的能力，所以第一步要安装ffmpeg环境，自行百度

    步骤1，检测max_volume 值是否小于0dB

     ffmpeg -i 1.mp3  -filter_complex volumedetect -c:v copy -f null /dev/null

    • 1

    在这里插入图片描述
    其中检测的关键指标就是 max_volume, 本次检测和处理的目标就是把 max_volume的值给提高到0dB;

    步骤2，如何区分是音频文件还是视频文件

    可以有多种方法，1可以通过后缀名来区分； 2 因为代码是用qt写的，可以用qt来实现，代码如下

    QFileInfo f(“1.mp3”);
if(f.completeSuffix() == "mp3" || f.completeSuffix() == "aac" ||
f.completeSuffix() == "amr" || f.completeSuffix() == "wav" || f.completeSuffix() == "wma" )

    • 1
    • 2
    • 3
    QMediaPlayer p;
p.audioAvailable()；

    • 1
    • 2

    步骤3，处理音频，使max_volume的值接近0dB

    音频文件用以下指令

    ffmpeg -i 1.mp3-af  "volume=5.8dB"  out.mp3

    • 1

    如果是视频文件，用以下指令：（保持视频信息不变，当然还设计到音频的编码格式）

    ffmpeg -i 1.mp3-af  "volume=5.8dB" -c:v copy -c:a aac out.mp3

    • 1

    输出如下
    在这里插入图片描述
    在这里插入图片描述

    程序设计思路

    通过QProcess 调用 ffmpeg指令，检测max_volume小于0的文件，拿到文件列表，再通过ffmpeg指令来提高音频。关键代码如下：

    dbdetectthread.h

    #ifndef DBDETECTTHREAD_H
#define DBDETECTTHREAD_H

#include
#include
#include
#include

class DbDetectThread : public QThread
{
    Q_OBJECT
public:
    explicit DbDetectThread(QObject *parent = nullptr);
    void setList(const QStringList &list);
    virtual void run();
signals:
    void sigPath(const QString &p, float db);
    void sigMsg(const QString &p);
    void sigEnd();

public slots:
    void readStandardOutput();
    void readStandardError();
    void processFinished(int exitCode, QProcess::ExitStatus exitStatus);
    void threadFinished(); //线程退出

private:
    QProcess *pCmdProcess;
    QStringList pathlist;
    QString curFile;
};

#endif // DBDETECTTHREAD_H

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33

    dbdetectthread.cpp

    #include "dbdetectthread.h"
#include
DbDetectThread::DbDetectThread(QObject *parent)
    : QThread{parent}
{
    qRegisterMetaType<QProcess::ExitStatus>("QProcess::ExitStatus");
}

void DbDetectThread::setList(const QStringList &list)
{
    pathlist = list;
}

//ffmpeg -i 2.wav -filter_complex volumedetect -c:v copy -f null /dev/null

//需要计算分贝相差值
//ffmpeg  -i 2.wav -filter:a "volume=80dB" output2.wav

void DbDetectThread::run()
{
    pCmdProcess = new QProcess();    //不要加this
    connect(pCmdProcess, &QProcess::readyReadStandardOutput, this, &DbDetectThread::readStandardOutput);
    connect(pCmdProcess, &QProcess::readyReadStandardError, this, &DbDetectThread::readStandardError);
    connect(pCmdProcess, QOverload<int , QProcess::ExitStatus >::of(&QProcess::finished), this, &DbDetectThread::processFinished);
    connect(this, &QThread::finished, this, &DbDetectThread::threadFinished);

    QStringList arguments;
    //arguments << "-i" << "C:/Users/wmm/Desktop/DbDetect/voice/input.mp4" << "-c:v" << "h264" << "-c:a" << "aac" << "C:/Users/wmm/Desktop/DbDetect/voice/output.mp4";
    //arguments << "-i" << "input.mp4" << "-c:v" << "h264" << "-c:a" << "aac" << "output.mp4";
    //arguments << "-i" << p << "-filter_complex"<< "volumedetect" <<  "-c:v" << "copy" << "-f" << "null" << "/dev/null";
    //QString cmd = QString("ffmpeg -i %1 -filter_complex volumedetect -c:v copy -f null /dev/null").arg(p);

    //QString cmd = QString("ffmpeg -i C:/Users/wmm/Desktop/DbDetect/voice/input.mp4 -filter_complex volumedetect -c:v copy -f null /dev/null");
    //QString cmd = "ping www.baidu.com -w 500";
    //QString result;
    foreach(auto p, pathlist)
    {
        curFile = p;
        qDebug() << "start detect " << curFile;
        QString cmd = QString("ffmpeg -i %1 -filter_complex volumedetect -c:v copy -f null /dev/null").arg(p);
        pCmdProcess->start(cmd/*,arguments*/);
        pCmdProcess->waitForFinished();
        sleep(1);
    }

}

void DbDetectThread::readStandardOutput() {
    qDebug() << "Standard output: " << pCmdProcess->readAllStandardOutput();
}

void DbDetectThread::readStandardError() {
    QString errorMessage = QString::fromUtf8(pCmdProcess->readAllStandardError());
    QStringList errlist = errorMessage.split("\r\n");
    //qDebug() << errlist.size();
    //qDebug() << errlist;

//    float num = 3.1415926;
//    QString str = QString::number(num, 'f', 2);

    foreach (auto p, errlist) {
        if(p.contains("max_volume"))
        {
            qDebug() << p;
            int pos = p.indexOf("max_volume");
            int pos2 = p.indexOf("dB",pos);
            QString val = p.mid(pos+11,pos2-11-pos);

            qDebug() <<val;
            float fval = val.toFloat();
            qDebug() << fval;

            if(fval <0)
            {
                qDebug() << "小于0";
                emit sigPath(curFile,fval);
            }
            else
            {
                qDebug() << "不小于0";
            }
        }
    }
        // 对 errorMessage 进行解析和处理...
    //qDebug() << "Standard error: " << pCmdProcess->readAllStandardError();
}

void DbDetectThread::processFinished(int exitCode, QProcess::ExitStatus exitStatus) {
    qDebug() << "Process finished with exit code" << exitCode << "and exit status" << exitStatus << ((QProcess*)QObject::sender())->arguments();
    emit sigMsg(QString("%1 检测完成，exitCode = %2, exitStatus = %3 ").arg(curFile).arg(exitCode).arg(exitStatus));
}

void DbDetectThread::threadFinished()
{
    qDebug() << __func__;
    emit sigEnd();
    pCmdProcess->deleteLater();
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98

    dbprocessthread.h

    #ifndef DBPROCESSTHREAD_H
#define DBPROCESSTHREAD_H

#include
#include
#include
#include
#include
class DbProcessThread : public QThread
{
    Q_OBJECT
public:
    explicit DbProcessThread(QObject *parent = nullptr);

    void setOutputDir(const QString &dir);
    void setMap(const QMap<QString,float> &map);
    virtual void run();
signals:
    void sigPath(const QString &p, float db);
    void sigMsg(const QString &p);
    void sigEnd();

public slots:
    void readStandardOutput();
    void readStandardError();
    void processFinished(int exitCode, QProcess::ExitStatus exitStatus);
    void threadFinished(); //线程退出

private:
    QProcess *pCmdProcess;
    QMediaPlayer  mediaPlayer;
    QMap<QString,float> m_needProcessMap;
    QString m_outputDir;
    QString m_curSrcFile;
    QString m_curDesFile;
};

#endif // DBPROCESSTHREAD_H

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38

    dbprocessthread.cpp

    #include "dbprocessthread.h"
#include
#include
DbProcessThread::DbProcessThread(QObject *parent)
    : QThread{parent}
{

}

void DbProcessThread::setOutputDir(const QString &dir)
{
    m_outputDir = dir;
}

void DbProcessThread::setMap(const QMap<QString, float> &map)
{
    m_needProcessMap = map;
}

void DbProcessThread::run()
{
    pCmdProcess = new QProcess();    //不要加this
    connect(pCmdProcess, &QProcess::readyReadStandardOutput, this, &DbProcessThread::readStandardOutput);
    connect(pCmdProcess, &QProcess::readyReadStandardError, this, &DbProcessThread::readStandardError);
    connect(pCmdProcess, QOverload<int , QProcess::ExitStatus >::of(&QProcess::finished), this, &DbProcessThread::processFinished);
    connect(this, &QThread::finished, this, &DbProcessThread::threadFinished);

    QMapIterator<QString, float> i(m_needProcessMap);
    while (i.hasNext()) {
        i.next();
        QFileInfo f(i.key());
        qDebug() << f.fileName() << m_outputDir+"/" + f.fileName();
        m_curSrcFile = i.key();
        m_curDesFile = m_outputDir+"/" + f.fileName();
        QStringList arguments;
        //arguments << "-i" << i.key() << "-c:v" << "h264" << "-c:a" << "aac" << m_outputDir+"/" + f.fileName();
        arguments << "-i" << i.key() << "-af" << QString("volume=%1dB").arg(qAbs(i.value())) << "-c:v copy" << " -c:a aac "  << m_outputDir+"/" + f.fileName();
        qDebug() << arguments;
        emit sigMsg(QString("正在处理...%1").arg(m_curSrcFile));

        if(f.completeSuffix() == "mp3" || f.completeSuffix() == "aac" || f.completeSuffix() == "amr" || f.completeSuffix() == "wav"\
                 || f.completeSuffix() == "wma" )
        {
            pCmdProcess->start(QString("ffmpeg -i %1 -af \"volume=%2dB\"  %3").arg(i.key()).arg(qAbs(i.value())).arg(m_outputDir+"/" + f.fileName())/*,arguments*/);
        }
        else {
            pCmdProcess->start(QString("ffmpeg -i %1 -af \"volume=%2dB\" -c:v copy  %3").arg(i.key()).arg(qAbs(i.value())).arg(m_outputDir+"/" + f.fileName())/*,arguments*/);
        }

        //pCmdProcess->start(QString("ffmpeg -i %1 -af \"volume=%2dB\" -c:v copy -c:a aac %3").arg(i.key()).arg(qAbs(i.value())).arg(m_outputDir+"/" + f.fileName())/*,arguments*/);
        pCmdProcess->waitForFinished();
        msleep(500);
    }

}

void DbProcessThread::readStandardOutput() {
    qDebug() << "Standard output: " << pCmdProcess->readAllStandardOutput();
}

void DbProcessThread::readStandardError() {
    qDebug() << "Standard error: " << pCmdProcess->readAllStandardError();
}

void DbProcessThread::processFinished(int exitCode, QProcess::ExitStatus exitStatus) {
    qDebug() << "Process finished with exit code" << exitCode << "and exit status" << exitStatus << ((QProcess*)QObject::sender())->arguments();
    emit sigMsg(QString("%1 处理完成,文件保存为%2，exitCode = %3, exitStatus = %4 ").arg(m_curSrcFile).arg(m_curDesFile).arg(exitCode).arg(exitStatus));
}

void DbProcessThread::threadFinished()
{
    qDebug() << __func__;
    emit sigEnd();
    pCmdProcess->deleteLater();
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75

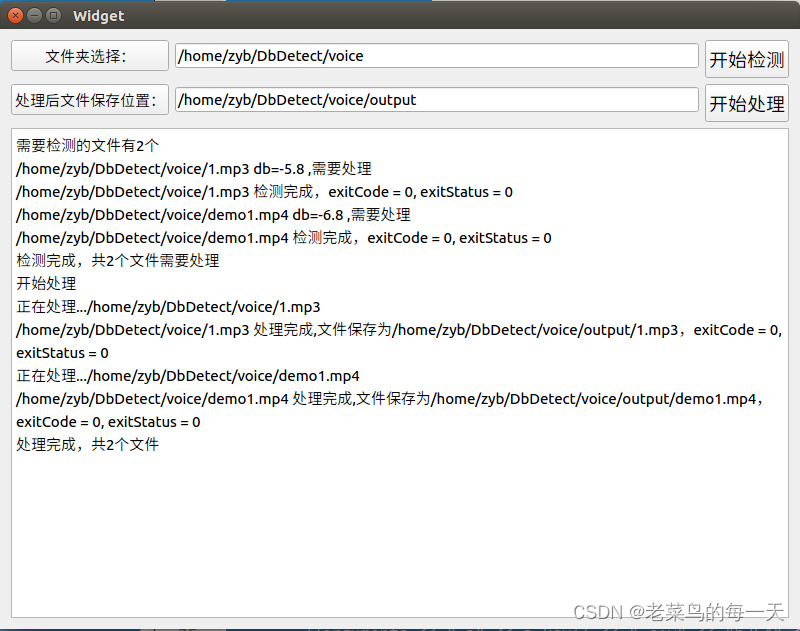

    效果如图：
    在这里插入图片描述
    代码上传到此 https://download.csdn.net/download/u011942101/88299291
