基于Sa-Token实现微服务之前的单点登录

修改配置文件，准备好四个域名

127.0.0.1  auth.server.com
127.0.0.1  user.server.com
127.0.0.1  third.server.com
127.0.0.1  eureka.server.com

注册中心：eureka-server服务

pom依赖

        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-netflix-eureka-serverartifactId>
            <version>3.1.1version>
        dependency>

        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
            <version>${spring-boot-start-version}version>
        dependency>
        <dependency>
            <groupId>org.webjarsgroupId>
            <artifactId>jqueryartifactId>
            <version>3.5.0version>
        dependency>

配置web项目启动类

/**
 * @description: Eureka 服务端注册中心:剔除数据源操作
 * @author: GuoTong
 * @createTime: 2023-06-26 21:50
 * @since JDK 1.8 OR 11
 **/
@SpringBootApplication(exclude = {DataSourceAutoConfiguration.class})
@EnableEurekaServer
public class EurekaApplication {

    public static void main(String[] args) {
        SpringApplication.run(EurekaApplication.class, args);
    }
}

配置跨域支持和静态资源过滤

/**
 * @description: SpringBoot-Web配置
 * @author: GuoTong
 * @createTime: 2023-06-05 15:37
 * @since JDK 1.8 OR 11
 **/
@Configuration
public class SpringBootConfig implements WebMvcConfigurer {

    /**
     * Description:  添加全局跨域CORS处理
     */
    @Override
    public void addCorsMappings(CorsRegistry registry) {
        // 设置允许跨域的路径
        registry.addMapping("/**")
                //设置允许跨域请求的域名
                .allowedOriginPatterns("*")
                // 是否允许证书
                .allowCredentials(true)
                // 设置允许的方法
                .allowedMethods("GET", "POST", "DELETE", "PUT")
                // 设置允许的header属性
                .allowedHeaders("*")
                // 跨域允许时间
                .maxAge(3600);
    }


    /**
     * Description: 静态资源过滤
     */
    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        //ClassPath:/Static/** 静态资源释放
        registry.addResourceHandler("/**").addResourceLocations("classpath:/static/");
        //释放swagger
        registry.addResourceHandler("doc.html").addResourceLocations("classpath:/META-INF/resources/");
        //释放webjars
        registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");
    }

}

配置文件基础配置

server:
  port: 10086
spring:
  application:
    name: eureka-server
  security:
    user:
      name: eureka
      password: eureka
  mvc:
    static-path-pattern: classpath:/static/**
eureka:
  client:
    service-url:
      defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka
    register-with-eureka: false #自己不向注册中心注册自己
    fetch-registry: false  # 自己是注册中心
  instance:
    hostname: 127.0.0.1
    prefer-ip-address: true

启动注册中心验证

准备Sa-Token认证中心server

https://sa-token.cc/doc.html#/ 可以自己参考官方网站定制

引入依赖

knife4j / mysql / mybatis / sa-token / commons / thymeleaf / loadbalancer / bootstrap /eureka-client / lombok

 <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
        dependency>


        <dependency>
            <groupId>com.github.xiaoymingroupId>
            <artifactId>knife4j-spring-boot-starterartifactId>
            <version>${knife4j.version}version>
        dependency>


        <dependency>
            <groupId>mysqlgroupId>
            <artifactId>mysql-connector-javaartifactId>
            <version>${mysql-version}version>
        dependency>



        <dependency>
            <groupId>com.baomidougroupId>
            <artifactId>mybatis-plus-boot-starterartifactId>
            <version>${mybatisplus.verison}version>
        dependency>

        <dependency>
            <groupId>com.baomidougroupId>
            <artifactId>mybatis-plusartifactId>
            <version>${mybatisplus.verison}version>
        dependency>


        <dependency>
            <groupId>cn.dev33groupId>
            <artifactId>sa-token-spring-boot-starterartifactId>
            <version>1.33.0version>
        dependency>


        <dependency>
            <groupId>cn.dev33groupId>
            <artifactId>sa-token-ssoartifactId>
            <version>1.33.0version>
        dependency>


        <dependency>
            <groupId>cn.dev33groupId>
            <artifactId>sa-token-dao-redis-jacksonartifactId>
            <version>1.33.0version>
        dependency>

        <dependency>
            <groupId>org.apache.commonsgroupId>
            <artifactId>commons-pool2artifactId>
        dependency>


        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-thymeleafartifactId>
        dependency>


        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-loadbalancerartifactId>
            <version>${spring-cloud-starter-version}version>
        dependency>


        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-bootstrapartifactId>
            <version>${spring-cloud-starter-version}version>
        dependency>

        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-netflix-eureka-clientartifactId>
            <version>3.1.1version>
        dependency>

核心Sa-Token的接口

/**
 * @description: 统一认证中心 SSO-Server用于对外开放接口：
 * @author: GuoTong
 * @createTime: 2022-11-26 23:03
 * @since JDK 1.8 OR 11
 **/
@RestController
public class SsoServerController {


    private AuthLoginUserService authLoginUserService;

    /**
     * Description: 构造器注入
     */
    public SsoServerController(AuthLoginUserService authLoginUserService) {
        this.authLoginUserService = authLoginUserService;
    }


    /*
     * /*
     * SSO-Server端：处理所有SSO相关请求

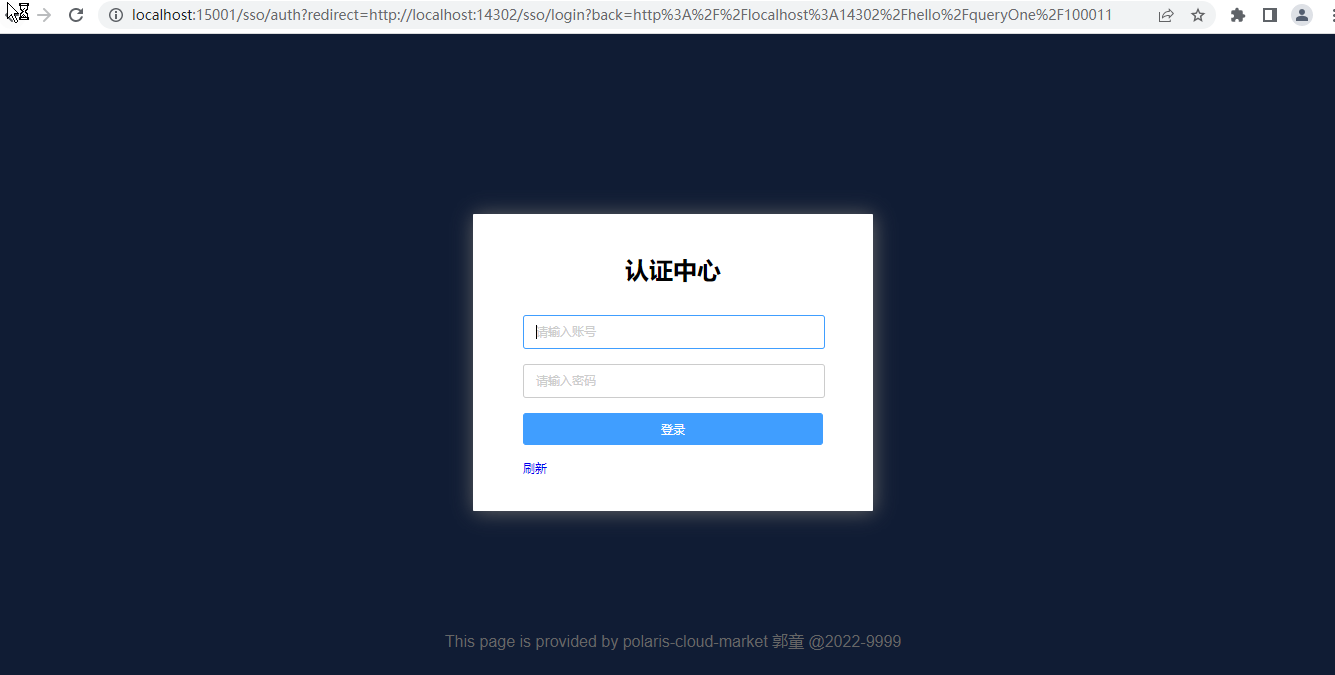

     * 		http://{host}:{port}/sso/auth			-- 单点登录授权地址，接受参数：redirect=授权重定向地址
     * 		http://{host}:{port}/sso/doLogin		-- 账号密码登录接口，接受参数：name、pwd
     * 		http://{host}:{port}/sso/checkTicket	-- Ticket校验接口（isHttp=true时打开），接受参数：ticket=ticket码、ssoLogoutCall=单点注销回调地址 [可选]
     * 		http://{host}:{port}/sso/signout		-- 单点注销地址（isSlo=true时打开），接受参数：loginId=账号id、secretkey=接口调用秘钥
     */
    @RequestMapping("/sso/*")
    public Object ssoRequest() {
        return SaSsoProcessor.instance.serverDister();
    }

    /**
     * 配置SSO相关参数
     */
    @Autowired
    private void configSso(SaSsoConfig sso) {
        // 配置：未登录时返回的View
        sso.setNotLoginView(() -> new ModelAndView("sa-login.html"));

        // 配置：登录处理函数
        sso.setDoLoginHandle((name, pwd) -> {
            QueryWrapper queryWrapper = new QueryWrapper<>();
            queryWrapper.eq("username", name);
            queryWrapper.eq("password", pwd);
            AuthLoginUser user = authLoginUserService.getOne(queryWrapper);
            if (user != null) {
                StpUtil.login(user.getId());
                return SaResult.ok("登录成功！").setData(StpUtil.getTokenValue());
            }
            return SaResult.error("登录失败！");
        });

    }
}

Http对外接口--简单几个示例

/**
 * 前后台分离架构下集成SSO所需的代码 （SSO-Server端）
 *
（注：如果不需要前后端分离架构下集成SSO，可删除此包下所有代码）
 *
 * @author kong
 */
@RestController
public class H5Controller {

    @Autowired
    private AuthLoginUserService authLoginUserService;

    /**
     * 获取 redirectUrl
     */
    @RequestMapping("/sso/getRedirectUrl")
    private Object getRedirectUrl(String redirect, String mode) {
        // 未登录情况下，返回 code=401
        if (StpUtil.isLogin() == false) {
            return SaResult.code(401);
        }
        // 已登录情况下，构建 redirectUrl
        if (SaSsoConsts.MODE_SIMPLE.equals(mode)) {
            // 模式一
            SaSsoUtil.checkRedirectUrl(SaFoxUtil.decoderUrl(redirect));
            return SaResult.data(redirect);
        } else {
            // 模式二或模式三
            String redirectUrl = SaSsoUtil.buildRedirectUrl(StpUtil.getLoginId(), redirect);
            return SaResult.data(redirectUrl);
        }
    }


    @RequestMapping("doLogin")
    public SaResult doLogin(String name, String pwd) {
        return authLoginUserService.queryUserNameAndPassword(name, pwd);
    }

    @RequestMapping(value = "isLogin", method = RequestMethod.GET)
    public SaResult isLogin() {
        return SaResult.ok("是否登录：" + StpUtil.isLogin());
    }

    @RequestMapping(value = "tokenInfo", method = RequestMethod.GET)
    public SaResult tokenInfo() {
        return SaResult.data(StpUtil.getTokenInfo());
    }

    @RequestMapping(value = "logout", method = RequestMethod.GET)
    public SaResult logout() {
        StpUtil.logout();
        return SaResult.ok();
    }

}

Sa-Token的拦截器，权限

/**
 * @description: 获取当前账号权限码集合
 * @author: GuoTong
 * @createTime: 2022-11-29 20:24
 * @since JDK 1.8 OR 11
 **/
@Component
@Slf4j
public class StpInterfaceImpl implements StpInterface {

    @Autowired
    private AuthLoginUserService authLoginUserService;

    /**
     * 返回一个账号所拥有的权限码集合
     */
    @Override
    public List getPermissionList(Object loginId, String loginType) {
        AuthLoginUser user = null;
        try {
            user = authLoginUserService.getById(loginId.toString());
        } catch (Exception e) {
            log.info("Id无效--->{}", loginId);
        }
        assert user != null;
        String rule = user.getRule();
        return Collections.singletonList(rule);
    }

    /**
     * 返回一个账号所拥有的角色标识集合 (权限与角色可分开校验)
     */
    @Override
    public List getRoleList(Object loginId, String loginType) {
        AuthLoginUser user = null;
        try {
            user = authLoginUserService.getById(loginId.toString());
        } catch (Exception e) {
            log.info("Id无效--->{}", loginId);
        }
        assert user != null;
        String rule = user.getRule();
        return Collections.singletonList(rule);
    }

}

自定义拦截器，校验Sa-Token登录

/**
 * @description: 授权认证：HandlerInterceptor需要注册拦截地址哦！！！
 * @author: GuoTong
 * @createTime: 2022-11-05 15:40
 * @since JDK 1.8 OR 11
 **/
@Component
public class AuthenticationInterceptor implements HandlerInterceptor {

    @Override
    public boolean preHandle(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, Object object) throws Exception {
        //  获取当前会话是否已经登录，返回true=已登录，false=未登录
        String requestURI = httpServletRequest.getRequestURI();
        // 判断是否是认证中心对外认证接口
        if (requestURI.contains("/sso")) {
            return true;
        }

        // 如果不是映射到方法直接通过
        if (!(object instanceof HandlerMethod)) {
            return true;
        }
        HandlerMethod handlerMethod = (HandlerMethod) object;
        Method method = handlerMethod.getMethod();
        //检查是否有SkipTokenByJWT注释，有则跳过认证
        if (method.isAnnotationPresent(SkipTokenByJWT.class)) {
            SkipTokenByJWT SkipTokenByJWT = method.getAnnotation(SkipTokenByJWT.class);
            if (SkipTokenByJWT.required()) {
                return true;
            }
        }
        // 否则需要登陆
        if (!StpUtil.isLogin()) {
            throw new NotLoginException(ContextCommonMsg.ERROR_MSG_4);
        }
        //检查有没有需要用户权限的注解
        if (method.isAnnotationPresent(NeedTokenByJWT.class)) {
            NeedTokenByJWT needTokenByJWT = method.getAnnotation(NeedTokenByJWT.class);
            if (needTokenByJWT.required()) {
                List permissionList = StpUtil.getPermissionList();
                // 查看当前用户是否包含当前接口的权限
                if (!permissionList.contains(needTokenByJWT.rule())) {
                    throw new NotLoginException(ContextCommonMsg.ERROR_MSG_3);
                }
            }
        }
        return true;
    }


    @Override
    public void postHandle(HttpServletRequest httpServletRequest,
                           HttpServletResponse httpServletResponse,
                           Object o, ModelAndView modelAndView) throws Exception {

    }

    @Override
    public void afterCompletion(HttpServletRequest httpServletRequest,
                                HttpServletResponse httpServletResponse,
                                Object o, Exception e) throws Exception {
    }

}

全局异常捕获

/**
 * @description: 全局异常处理：
 * @author: GuoTong
 * @createTime: 2022-11-27 11:17
 * @since JDK 1.8 OR 11
 **/
@RestControllerAdvice
@Slf4j
public class GlobalExceptionHandler {

    // 全局异常拦截
    @ExceptionHandler
    public SaResult handlerException(Exception e) {
        e.printStackTrace();
        log.error("服务执行异常---->{}", e.getMessage());
        return SaResult.error(e.getMessage());
    }

    @ExceptionHandler(value = NotLoginException.class)
    public SaResult handlerException(NotLoginException e) {
        log.error("没有登陆---->{}", e.getMessage());
        return SaResult.error(e.getMessage());
    }

    @ExceptionHandler(value = SQLException.class)
    public SaResult msgMySQLExecuteError(Exception e) {
        e.printStackTrace();
        log.error("Mysql执行异常");
        String message = e.getMessage();
        return SaResult.error(message);
    }

    @ExceptionHandler(value = HttpMessageNotReadableException.class)
    public SaResult msgNotFind(Exception e) {
        e.printStackTrace();
        log.error("请求错误");
        String message = e.getMessage();
        return SaResult.error("请求内容未传递" + message);
    }
}

Springboot配置-跨域-注册拦截器-配置静态资源过滤-RestTemplate负载均衡

/**
 * @description: SpringBoot-Web配置
 * @author: GuoTong
 * @createTime: 2023-06-05 15:37
 * @since JDK 1.8 OR 11
 **/
@Configuration
public class SpringBootConfig implements WebMvcConfigurer {


    /**
     * Description: 增加拦截器
     *
     * @param registry
     * @author: GuoTong
     * @date: 2022-11-30 13:56:44
     * @return:void
     */
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(new AuthenticationInterceptor()).addPathPatterns("/authLoginUser/**");
    }

    @Bean
    @LoadBalanced
    public RestTemplate restTemplate() {
        return new RestTemplate();
    }


    /**
     * Description:  添加全局跨域CORS处理
     */
    @Override
    public void addCorsMappings(CorsRegistry registry) {
        // 设置允许跨域的路径
        registry.addMapping("/**")
                //设置允许跨域请求的域名
                .allowedOriginPatterns("*")
                // 是否允许证书
                .allowCredentials(true)
                // 设置允许的方法
                .allowedMethods("GET", "POST", "DELETE", "PUT")
                // 设置允许的header属性
                .allowedHeaders("*")
                // 跨域允许时间
                .maxAge(3600);
    }


    /**
     * Description: 静态资源过滤
     */
    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        //ClassPath:/Static/** 静态资源释放
        registry.addResourceHandler("/**").addResourceLocations("classpath:/static/");
        //释放swagger
        registry.addResourceHandler("doc.html").addResourceLocations("classpath:/META-INF/resources/");
        //释放webjars
        registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");
    }
}

。。。。其余的东西详见项目。。。。。
https://gitee.com/gtnotgod/sa-token-sso-system.git

演示

认证中心登录页地址

接口管理认证中心用户

A系统USER-SERVICE

依赖


        <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
        dependency>


        <dependency>
            <groupId>cn.dev33groupId>
            <artifactId>sa-token-spring-boot-starterartifactId>
            <version>${Sa-Token-version}version>
        dependency>

        <dependency>
            <groupId>cn.dev33groupId>
            <artifactId>sa-token-ssoartifactId>
            <version>${Sa-Token-version}version>
        dependency>


        <dependency>
            <groupId>cn.dev33groupId>
            <artifactId>sa-token-dao-redis-jacksonartifactId>
            <version>${Sa-Token-version}version>
        dependency>


        <dependency>
            <groupId>cn.dev33groupId>
            <artifactId>sa-token-alone-redisartifactId>
            <version>${Sa-Token-version}version>
        dependency>


        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-openfeignartifactId>
            <version>${spring-cloud-starter-version}version>
        dependency>


        <dependency>
            <groupId>io.github.openfeigngroupId>
            <artifactId>feign-okhttpartifactId>
            <version>${feign-okhttp-version}version>
        dependency>

        <dependency>
            <groupId>com.alibaba.fastjson2groupId>
            <artifactId>fastjson2artifactId>
            <version>${fastJson-version}version>
        dependency>

        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
            <version>${spring-boot-start-version}version>
        dependency>

        <dependency>
            <groupId>com.github.xiaoymingroupId>
            <artifactId>knife4j-spring-boot-starterartifactId>
            <version>${knife4j.version}version>
        dependency>


        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-bootstrapartifactId>
            <version>${spring-cloud-starter-version}version>
        dependency>

        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-netflix-eureka-clientartifactId>
            <version>3.1.1version>
        dependency>

        <dependency>
            <groupId>org.apache.commonsgroupId>
            <artifactId>commons-pool2artifactId>
        dependency>

核心 SSO-Client 端认证接口

/**
 * @description: 创建 SSO-Client 端认证接口
 * @author: GuoTong
 * @createTime: 2022-11-27 15:32
 * @since JDK 1.8 OR 11
 **/
@RestController
public class SSOClientController {


    /*
     * SSO-Client端：处理所有SSO相关请求
     *         http://{host}:{port}/sso/login          -- Client端登录地址，接受参数：back=登录后的跳转地址
     *         http://{host}:{port}/sso/logout         -- Client端单点注销地址（isSlo=true时打开），接受参数：back=注销后的跳转地址
     *         http://{host}:{port}/sso/logoutCall     -- Client端单点注销回调地址（isSlo=true时打开），此接口为框架回调，开发者无需关心
     */
    @RequestMapping("/sso/*")
    public Object ssoRequest() {
        return SaSsoProcessor.instance.clientDister();
    }


    // 首页
    @RequestMapping("/")
    public String index() {
        String str = "
Sa-Token SSO-Client
" +
                "
当前会话是否登录：" + StpUtil.isLogin() + "
" +
                "
Login " +
                "Logout
";
        return str;
    }
}

拦截器和认证中心的AuthenticationInterceptor一致

核心全局异常处理

 @ExceptionHandler(value = NotLoginException.class)
    public Resp handlerException(NotLoginException e,
                                 HttpServletRequest request,
                                 HttpServletResponse response) {
        log.error("没有登陆---->{}", e.getMessage());
        try {
            response.sendRedirect("/sso/login?back=" + request.getRequestURL());
        } catch (IOException ex) {
            log.error("转到认证中心失败---->{}", ex.getMessage());
        }
        return Resp.error(e.getMessage());
    }

核心配置

spring:
  redis:
    # Redis数据库索引（默认为0）
    database: 1
    # Redis服务器地址
    host: 127.0.0.1
    # Redis服务器连接端口
    port: 6379
    # Redis服务器连接密码（默认为空）
    password: 123456
    timeout: 10s
    lettuce:
      pool:
        # 连接池最大连接数
        max-active: 20
        # 连接池最大阻塞等待时间（使用负值表示没有限制）
        max-wait: 10000
        # 连接池中的最大空闲连接
        max-idle: 3
        # 连接池中的最小空闲连接
        min-idle: 0
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
  mvc:
    pathmatch:
      matching-strategy: ant_path_matcher  #Springboot2.6以上需要手动设置
    static-path-pattern: classpath:/static/**
  main:
    allow-bean-definition-overriding: true      # 重复定义bean的问题
logging:
  level:
    root: info
    org.springframework: info

# sa-token配置
sa-token:
  # SSO-相关配置
  sso:
    # SSO-Server端 统一认证地址
    auth-url: http://localhost:15001/sso/auth
    # 是否打开单点注销接口
    is-slo: true
  # 配置Sa-Token单独使用的Redis连接 （此处需要和SSO-Server端连接同一个Redis）
  alone-redis:
    # Redis数据库索引
    database: 1
    # Redis服务器地址
    host: 127.0.0.1
    # Redis服务器连接端口
    port: 6379
    # Redis服务器连接密码（默认为空）
    password: 123456
    # 连接超时时间
    timeout: 10s
    lettuce:
      pool:
        # 连接池最大连接数
        max-active: 200
        # 连接池最大阻塞等待时间（使用负值表示没有限制）
        max-wait: -1ms
        # 连接池中的最大空闲连接
        max-idle: 10
        # 连接池中的最小空闲连接
        min-idle: 0
forest:
  log-enabled: false   # 关闭 forest 请求日志打印

。。。。其余的东西详见项目。。。。。
https://gitee.com/gtnotgod/sa-token-sso-system.git

演示

输入测试接口：http://user.server.com:13601/hello/getOne1/100011

被重定向到认证中心去了

登录访问后

同理准备好B服务THIRD-PARTY-SERVICE

选择注销A服务和B服务的其中一个；前提是没有登录多个账号

注销A服务 http://user.server.com:13601/sso/logout
注销B服务http://third.server.com:14302/sso/logout

A服务feign调用B服务

具体接口代码：

 /**
     * 通过主键查询单条数据
     *
     * @param id 主键
     * @return 单条数据
     */
    @GetMapping("/queryOne/{id}")
    public Resp
