• 【云原生】Sqoop on k8s 讲解与实战操作

    文章目录

    一、概述

    Sqoop是一个在结构化数据和Hadoop之间进行批量数据迁移的工具，结构化数据可以是MySQL、Oracle等RDBMS。Sqoop底层用MapReduce程序实现抽取、转换、加载，MapReduce天生的特性保证了并行化和高容错率，而且相比Kettle等传统ETL工具，任务跑在Hadoop集群上，减少了ETL服务器资源的使用情况。在特定场景下，抽取过程会有很大的性能提升。

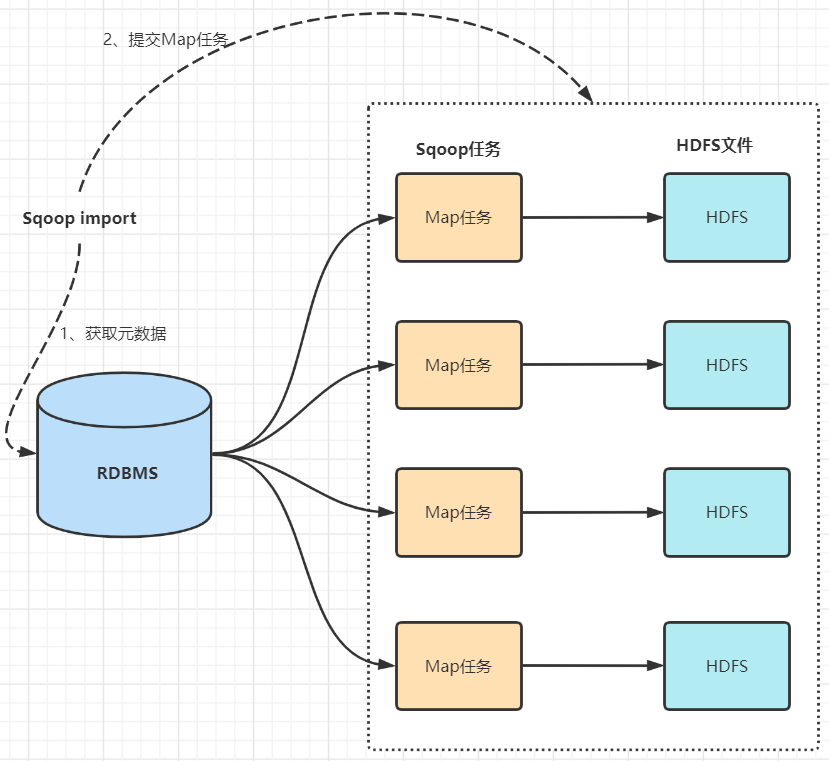

    Sqoop 架构：
    在这里插入图片描述

    二、开始编排部署

    1）下载 Sqoop 部署包

    下载地址：http://archive.apache.org/dist/sqoop/

    wget http://archive.apache.org/dist/sqoop/1.99.7/sqoop-1.99.7-bin-hadoop200.tar.gz
tar -xf sqoop-1.99.7-bin-hadoop200.tar.gz

    • 1
    • 2

    2）构建镜像

    Dockerfile

    FROM myharbor.com/bigdata/centos:7.9.2009
RUN rm -f /etc/localtime && ln -sv /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && echo "Asia/Shanghai" > /etc/timezone
ENV LANG=zh_CN.UTF-8

RUN groupadd --system --gid=10000 admin && useradd --system --home-dir /home/admin --uid=10000 --gid=admin -m admin

### install tools
RUN yum install -y vim tar wget curl less telnet net-tools lsof mysql

RUN mkdir -p /opt/apache

COPY docker-entrypoint.sh /opt/apache/
RUN chmod +x /opt/apache/docker-entrypoint.sh

### JDK
ADD jdk-8u212-linux-x64.tar.gz  /opt/apache/
ENV JAVA_HOME /opt/apache/jdk1.8.0_212
ENV PATH=$JAVA_HOME/bin:$PATH

### Sqoop
ADD sqoop-1.99.7-bin-hadoop200.tar.gz /opt/apache/
# 配置环境变量
ENV SQOOP_HOME=/opt/apache/sqoop
ENV PATH=$SQOOP_HOME/bin:$PATH
ENV SQOOP_SERVER_EXTRA_LIB=$SQOOP_HOME/lib
RUN ln -s /opt/apache/sqoop-1.99.7-bin-hadoop200 $SQOOP_HOME
ENV PATH=$SQOOP_HOME/bin:$PATH

# sqoop hadoop环境配置
ADD hadoop-3.3.2.tar.gz /opt/apache/
ENV HADOOP_HOME=/opt/apache/hadoop
RUN ln -s /opt/apache/hadoop-3.3.2 $HADOOP_HOME
ENV HADOOP_CONF_DIR=${HADOOP_HOME}/etc/hadoop
ENV PATH=${HADOOP_HOME}/bin:$PATH

# mysql JDBC driver
# wget https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.30/mysql-connector-java-8.0.30.jar
COPY mysql-connector-java-8.0.30.jar $SQOOP_HOME/lib/

# chown
RUN chown -R admin:admin /opt/apache

#设置的工作目录
WORKDIR $SQOOP_HOME

# 执行脚本，构建镜像时不执行，运行实例才会执行
ENTRYPOINT ["/opt/apache/docker-entrypoint.sh"]

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47

    开始构建镜像

    docker build -t myharbor.com/bigdata/sqoop:sqoop-1.99.7-bin-hadoop200 . --no-cache

# 上传镜像
docker push myharbor.com/bigdata/sqoop:sqoop-1.99.7-bin-hadoop200

# 删除镜像
docker rmi myharbor.com/bigdata/sqoop:sqoop-1.99.7-bin-hadoop200
crictl rmi myharbor.com/bigdata/sqoop:sqoop-1.99.7-bin-hadoop200

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8

    3）创建sqoop chart模板

    helm create sqoop

    • 1

    4）修改yaml编排

    • sqoop/values.yaml
    image:
  repository: myharbor.com/bigdata/sqoop
  pullPolicy: IfNotPresent
  # Overrides the image tag whose default is the chart appVersion.
  tag: "sqoop-1.99.7-bin-hadoop200"

securityContext:
  runAsUser: 10000
  runAsGroup: 10000
  privileged: true

service:
  type: ClusterIP
  port: 12000

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • sqoop/templates/configmap.yaml
    apiVersion: v1
kind: ConfigMap
metadata:
  name: {{ include "sqoop.fullname" . }}
  labels:
    {{- include "sqoop.labels" . | nindent 4 }}
data:
  sqoop.properties: |-
    # Sqoop configuration.
    #
    org.apache.sqoop.log4j.debug=false
    org.apache.sqoop.log4j.rootLogger=INFO, file
    org.apache.sqoop.log4j.category.org.apache.sqoop=INFO
    org.apache.sqoop.log4j.appender.file=org.apache.log4j.RollingFileAppender
    org.apache.sqoop.log4j.appender.file.File=@LOGDIR@/sqoop.log
    org.apache.sqoop.log4j.appender.file.MaxFileSize=25MB
    org.apache.sqoop.log4j.appender.file.MaxBackupIndex=5
    org.apache.sqoop.log4j.appender.file.layout=org.apache.log4j.PatternLayout
    org.apache.sqoop.log4j.appender.file.layout.ConversionPattern=%d{ISO8601} %-5p [%l] %m%n
    # Audit logger for default configuration of FileAuditLogger
    org.apache.sqoop.log4j.logger.audit=INFO, audit
    org.apache.sqoop.log4j.appender.audit=org.apache.log4j.RollingFileAppender
    org.apache.sqoop.log4j.appender.audit.File=@LOGDIR@/audit.log
    org.apache.sqoop.log4j.appender.audit.MaxFileSize=25MB
    org.apache.sqoop.log4j.appender.audit.MaxBackupIndex=5
    org.apache.sqoop.log4j.appender.audit.layout=org.apache.log4j.PatternLayout
    org.apache.sqoop.log4j.appender.audit.layout.ConversionPattern=%d{ISO8601} %-5p [%l] %m%n

    #
    # Audit Loggers Configuration
    # Multiple audit loggers could be given here. To specify an
    # audit logger, you should at least add org.apache.sqoop.
    # auditlogger.[LoggerName].class. You could also provide
    # more configuration options by using org.apache.sqoop.
    # auditlogger.[LoggerName] prefix, then all these options
    # are parsed to the logger class.
    #
    org.apache.sqoop.auditlogger.default.class=org.apache.sqoop.audit.FileAuditLogger
    org.apache.sqoop.auditlogger.default.logger=audit

    #
    # Repository configuration
    # The Repository subsystem provides the special prefix which
    # is "org.apache.sqoop.repository.sysprop". Any property that
    # is specified with this prefix is parsed out and set as a
    # system property. For example, if the built in Derby repository
    # is being used, the sysprop prefixed properties can be used
    # to affect Derby configuration at startup time by setting
    # the appropriate system properties.
    #

    # Repository provider
    org.apache.sqoop.repository.provider=org.apache.sqoop.repository.JdbcRepositoryProvider

    # Repository upgrade
    # If set to true, it will not upgrade the sqoop respository schema, by default it will iniate the upgrade on server start-up
    org.apache.sqoop.repository.schema.immutable=false

    # JDBC repository provider configuration
    org.apache.sqoop.repository.jdbc.handler=org.apache.sqoop.repository.derby.DerbyRepositoryHandler
    org.apache.sqoop.repository.jdbc.transaction.isolation=READ_COMMITTED
    org.apache.sqoop.repository.jdbc.maximum.connections=10
    org.apache.sqoop.repository.jdbc.url=jdbc:derby:@BASEDIR@/repository/db;create=true
    org.apache.sqoop.repository.jdbc.driver=org.apache.derby.jdbc.EmbeddedDriver
    org.apache.sqoop.repository.jdbc.user=sa
    org.apache.sqoop.repository.jdbc.password=

    # System properties for embedded Derby configuration
    org.apache.sqoop.repository.sysprop.derby.stream.error.file=@LOGDIR@/derbyrepo.log

    #
    # Sqoop Connector configuration
    # If set to true will initiate Connectors config upgrade during server startup
    #
    org.apache.sqoop.connector.autoupgrade=false

    #
    # Sqoop Driver configuration
    # If set to true will initiate the Driver config upgrade during server startup
    #
    org.apache.sqoop.driver.autoupgrade=false

    # Sleeping period for reloading configuration file (once a minute)
    org.apache.sqoop.core.configuration.provider.properties.sleep=60000

    #
    # Submission engine configuration
    #

    # Submission engine class
    org.apache.sqoop.submission.engine=org.apache.sqoop.submission.mapreduce.MapreduceSubmissionEngine

    # Number of milliseconds, submissions created before this limit will be removed, default is one day
    #org.apache.sqoop.submission.purge.threshold=

    # Number of milliseconds for purge thread to sleep, by default one day
    #org.apache.sqoop.submission.purge.sleep=

    # Number of milliseconds for update thread to sleep, by default 5 minutes
    #org.apache.sqoop.submission.update.sleep=

    # Hadoop configuration directory
    org.apache.sqoop.submission.engine.mapreduce.configuration.directory=/opt/apache/hadoop/etc/hadoop/

    # Log level for Sqoop Mapper/Reducer
    org.apache.sqoop.submission.engine.mapreduce.configuration.loglevel=INFO

    #
    # Execution engine configuration
    #
    org.apache.sqoop.execution.engine=org.apache.sqoop.execution.mapreduce.MapreduceExecutionEngine

    #
    # Authentication configuration
    #
    #org.apache.sqoop.security.authentication.type=SIMPLE
    #org.apache.sqoop.security.authentication.handler=org.apache.sqoop.security.authentication.SimpleAuthenticationHandler
    #org.apache.sqoop.security.authentication.anonymous=true
    #org.apache.sqoop.security.authentication.type=KERBEROS
    #org.apache.sqoop.security.authentication.handler=org.apache.sqoop.security.authentication.KerberosAuthenticationHandler
    #org.apache.sqoop.security.authentication.kerberos.principal=sqoop/_HOST@NOVALOCAL
    #org.apache.sqoop.security.authentication.kerberos.keytab=/home/kerberos/sqoop.keytab
    #org.apache.sqoop.security.authentication.kerberos.http.principal=HTTP/_HOST@NOVALOCAL
    #org.apache.sqoop.security.authentication.kerberos.http.keytab=/home/kerberos/sqoop.keytab
    #org.apache.sqoop.security.authentication.enable.doAs=true
    #org.apache.sqoop.security.authentication.proxyuser.#USER#.users=*
    #org.apache.sqoop.security.authentication.proxyuser.#USER#.groups=*
    #org.apache.sqoop.security.authentication.proxyuser.#USER#.hosts=*

    # Default user, default value is "sqoop.anonymous.user"
    #org.apache.sqoop.security.authentication.default.user=

    #
    # Authorization configuration
    #
    #org.apache.sqoop.security.authorization.handler=org.apache.sqoop.security.authorization.DefaultAuthorizationHandler
    #org.apache.sqoop.security.authorization.access_controller=org.apache.sqoop.security.authorization.DefaultAuthorizationAccessController
    #org.apache.sqoop.security.authorization.validator=org.apache.sqoop.security.authorization.DefaultAuthorizationValidator
    #org.apache.sqoop.security.authorization.authentication_provider=org.apache.sqoop.security.authorization.DefaultAuthenticationProvider
    #org.apache.sqoop.security.authorization.server_name=SqoopServer1

    #
    # SSL/TLS configuration
    #
    #org.apache.sqoop.security.tls.enabled=false
    #org.apache.sqoop.security.tls.protocol="TLSv1.2"
    #org.apache.sqoop.security.tls.keystore=
    #org.apache.sqoop.security.tls.keystore_password=

    #
    # Repository Encryption
    #

    #org.apache.sqoop.security.repo_encryption.enabled=true
    #org.apache.sqoop.security.repo_encryption.password=
    #org.apache.sqoop.security.repo_encryption.password_generator=
    #org.apache.sqoop.security.repo_encryption.hmac_algorithm=HmacSHA256
    #org.apache.sqoop.security.repo_encryption.cipher_algorithm=AES
    #org.apache.sqoop.security.repo_encryption.cipher_key_size=16
    #org.apache.sqoop.security.repo_encryption.cipher_spec=AES/CBC/PKCS5Padding
    #org.apache.sqoop.security.repo_encryption.initialization_vector_size=16
    #org.apache.sqoop.security.repo_encryption.pbkdf2_algorithm=PBKDF2WithHmacSHA1
    #org.apache.sqoop.security.repo_encryption.pbkdf2_rounds=4000


    # External connectors load path
    # "/path/to/external/connectors/": Add all the connector JARs in the specified folder
    #
    org.apache.sqoop.connector.external.loadpath=

    # Sqoop application classpath
    # ":" separated list of jars to be included in sqoop.
    #
    org.apache.sqoop.classpath.extra=

    # Sqoop extra classpath to be included with all jobs
    # ":" separated list of jars to be included in map job classpath.
    #
    org.apache.sqoop.classpath.job=

    #
    # Jetty Server configuration
    #
    #org.apache.sqoop.jetty.thread.pool.worker.max=500
    #org.apache.sqoop.jetty.thread.pool.worker.min=5
    #org.apache.sqoop.jetty.thread.pool.worker.alive.time=60
    org.apache.sqoop.jetty.port={{ .Values.service.port }}

    # Blacklisted Connectors
    # ":" separated list of connector names as specified in their
    # sqoopconnector.properties file
    org.apache.sqoop.connector.blacklist=

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99
    • 100
    • 101
    • 102
    • 103
    • 104
    • 105
    • 106
    • 107
    • 108
    • 109
    • 110
    • 111
    • 112
    • 113
    • 114
    • 115
    • 116
    • 117
    • 118
    • 119
    • 120
    • 121
    • 122
    • 123
    • 124
    • 125
    • 126
    • 127
    • 128
    • 129
    • 130
    • 131
    • 132
    • 133
    • 134
    • 135
    • 136
    • 137
    • 138
    • 139
    • 140
    • 141
    • 142
    • 143
    • 144
    • 145
    • 146
    • 147
    • 148
    • 149
    • 150
    • 151
    • 152
    • 153
    • 154
    • 155
    • 156
    • 157
    • 158
    • 159
    • 160
    • 161
    • 162
    • 163
    • 164
    • 165
    • 166
    • 167
    • 168
    • 169
    • 170
    • 171
    • 172
    • 173
    • 174
    • 175
    • 176
    • 177
    • 178
    • 179
    • 180
    • 181
    • 182
    • 183
    • 184
    • 185
    • 186
    • 187
    • 188
    • 189
    • 190
    • 191
    • 192
    • sqoop/templates/statefulset.yaml
    apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: {{ include "sqoop.fullname" . }}
  labels:
    {{- include "sqoop.labels" . | nindent 4 }}
spec:
  serviceName: {{ include "sqoop.fullname" . }}
  {{- if not .Values.autoscaling.enabled }}
  replicas: {{ .Values.replicaCount }}
  {{- end }}
  selector:
    matchLabels:
      {{- include "sqoop.selectorLabels" . | nindent 6 }}
  template:
    metadata:
      {{- with .Values.podAnnotations }}
      annotations:
        {{- toYaml . | nindent 8 }}
      {{- end }}
      labels:
        {{- include "sqoop.selectorLabels" . | nindent 8 }}
    spec:
      {{- with .Values.imagePullSecrets }}
      imagePullSecrets:
        {{- toYaml . | nindent 8 }}
      {{- end }}
      serviceAccountName: {{ include "sqoop.serviceAccountName" . }}
      securityContext:
        {{- toYaml .Values.podSecurityContext | nindent 8 }}
      containers:
        - name: {{ .Chart.Name }}
          securityContext:
            {{- toYaml .Values.securityContext | nindent 12 }}
          image: "{{ .Values.image.repository }}:{{ .Values.image.tag | default .Chart.AppVersion }}"
          imagePullPolicy: {{ .Values.image.pullPolicy }}
          ports:
            - name: sqoop
              containerPort: {{ .Values.service.port }}
              protocol: TCP
          volumeMounts:
            - name: {{ .Release.Name }}-conf
              mountPath: /opt/apache/sqoop/conf/sqoop.properties
              subPath: sqoop.properties
          livenessProbe:
            tcpSocket:
              port: sqoop
          readinessProbe:
            tcpSocket:
              port: sqoop
          resources:
            {{- toYaml .Values.resources | nindent 12 }}
      {{- with .Values.nodeSelector }}
      nodeSelector:
        {{- toYaml . | nindent 8 }}
      {{- end }}
      {{- with .Values.affinity }}
      affinity:
        {{- toYaml . | nindent 8 }}
      {{- end }}
      {{- with .Values.tolerations }}
      tolerations:
        {{- toYaml . | nindent 8 }}
      {{- end }}
      volumes:
        - name: {{ .Release.Name }}-conf
          configMap:
            name: {{ template "sqoop.fullname" . }}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68

    5）开始部署

    helm install sqoop ./sqoop -n sqoop --create-namespace
kubectl get pods,svc -n sqoop -owide

    • 1
    • 2

    在这里插入图片描述

    6）测试验证

    1、数据从MYSQL导入到HDFS（Import）

    在这里插入图片描述

    【1】 创建JDBC连接

$ kubectl exec -it `kubectl get pods -n sqoop|awk 'NR>1{print $1}'|head -1` -n sqoop -- sqoop2-shell

sqoop:000> set server --host sqoop-0.sqoop.sqoop --port 12000 --webapp sqoop
#sqoop:000> set server --url http://sqoop-0.sqoop.sqoop:12000/sqoop
# 先查看connector
sqoop:000> show connector
# 创建mysql连接
sqoop:000> create link -connector generic-jdbc-connector
Creating link for connector with name generic-jdbc-connector
Please fill following values to create new link object
Name: mysql-jdbc-link

Database connection

Driver class: com.mysql.cj.jdbc.Driver
Connection String: jdbc:mysql://mysql-primary.mysql:3306/sqoop?characterEncoding=utf8&useSSL=false&serverTimezone=UTC&rewriteBatchedStatements=true
Username: root
Password: ****** #MGSwjTorGj
Fetch Size:
Connection Properties:
There are currently 0 values in the map:
entry#

SQL Dialect

Identifier enclose:
New link was successfully created with validation status OK and name mysql-jdbc-link
sqoop:000>

sqoop:000> show link
# 删除
# sqoop:000> delete link --name mysql-jdbc-link

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33

    在这里插入图片描述

    【2】创建HDFS连接
    sqoop:000> create link -connector hdfs-connector
Creating link for connector with name hdfs-connector
Please fill following values to create new link object
Name: hdfs-link

HDFS cluster

URI: hdfs://myhdfs
#URI: hdfs://hadoop-ha-hadoop-hdfs-nn-0.hadoop-ha-hadoop-hdfs-nn.hadoop-ha.svc.cluster.local:8082
Conf directory: /opt/apache/hadoop/etc/hadoop
Additional configs::
There are currently 0 values in the map:
entry#
New link was successfully created with validation status OK and name hdfs-link

sqoop:000> show link

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16

    在这里插入图片描述

    【3】创建Job任务

    首先先创建HDFS存储目录

    hadoop fs -mkdir -p /user/admin/sqoop/output/

    • 1

    再执行数据转换

    $ kubectl exec -it `kubectl get pods -n sqoop|awk 'NR>1{print $1}'|head -1` -n sqoop -- sqoop2-shell

sqoop:000> set server --url http://sqoop-0.sqoop.sqoop:12000/sqoop

sqoop:000> create job -f "mysql-jdbc-link" -t "hdfs-link"
Creating job for links with from name mysql-jdbc-link and to name hdfs-link
Please fill following values to create new job object
Name: mysql2hdfs

Database source

Schema name: sqoop
Table name: test1
SQL statement:
Column names:
There are currently 0 values in the list:
element#
Partition column:
Partition column nullable:
Boundary query:

Incremental read

Check column:
Last value:

Target configuration

Override null value:
Null value:
File format:
  0 : TEXT_FILE
  1 : SEQUENCE_FILE
  2 : PARQUET_FILE
Choose: 0

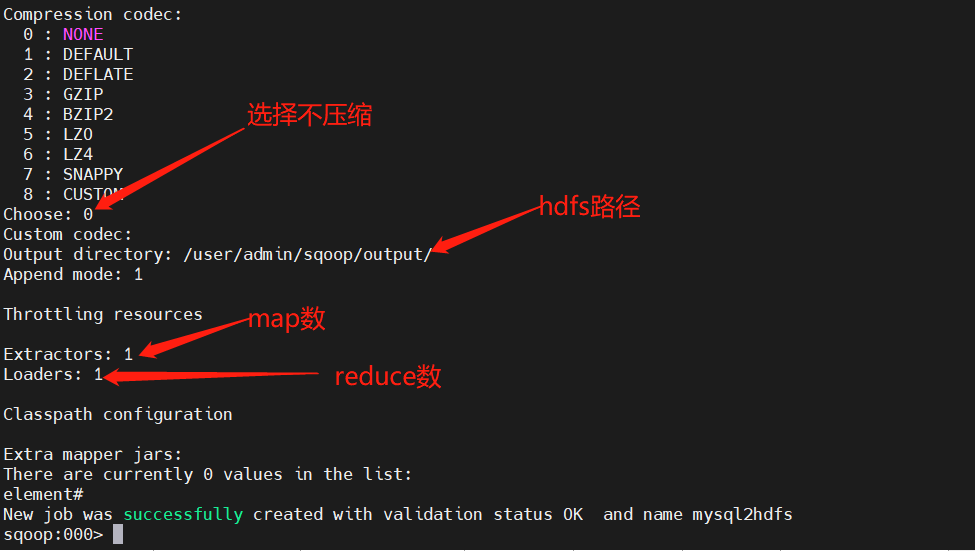

Compression codec:
  0 : NONE
  1 : DEFAULT
  2 : DEFLATE
  3 : GZIP
  4 : BZIP2
  5 : LZO
  6 : LZ4
  7 : SNAPPY
  8 : CUSTOM
Choose: 0
Custom codec:
Output directory: /user/admin/sqoop/output
Append mode: 1

Throttling resources

Extractors: 1
Loaders: 1

Classpath configuration

Extra mapper jars:
There are currently 0 values in the list:
element#
New job was successfully created with validation status OK  and name mysql2hdfs
sqoop:000> show job
+----+------------+------------------------------------------+----------------------------+---------+
| Id |    Name    |              From Connector              |        To Connector        | Enabled |
+----+------------+------------------------------------------+----------------------------+---------+
| 2  | mysql2hdfs | mysql-jdbc-link (generic-jdbc-connector) | hdfs-link (hdfs-connector) | true    |
+----+------------+------------------------------------------+----------------------------+---------+
sqoop:000>

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68

    在这里插入图片描述
    在这里插入图片描述

    【4】执行Job
    sqoop:000> show job
sqoop:000> start job -n mysql2hdfs

    • 1
    • 2

    在这里插入图片描述
    显示持久的作业提交对象

    show submission
show submission --j jobName
show submission --job jobName --detail

    • 1
    • 2
    • 3
    2、数据导出（Haoop->RDBMS）

    在这里插入图片描述
    这个示例演示可以参考我这篇文章：大数据Hadoop之——数据同步工具Sqoop

    7）卸载

    helm uninstall sqoop -n sqoop
kubectl delete ns sqoop --force

    • 1
    • 2

    git地址：https://gitee.com/hadoop-bigdata/sqoop-on-k8s

    Sqoop on k8s 讲解与实战操作就先到这里了，有任何疑问欢迎留言或者私信，后续会持续更新【云原生+大数据】相关的文章，请小伙伴耐心等待~

  • 相关阅读:
    C++实现KNN和K-Means
    HTML CSS JS 网页设计作业「我的家乡吉林」
    ELK【elasticsearch+logstash+kibana】企业级日志分析系统
    MeterSphere | 在接口自动化场景中，设置全局Token方法
    C#开发五子棋游戏：从新手到高手的编程之旅
    【Proteus仿真】【STM32单片机】汽车倒车报警系统设计
    【实战技能】非技术背景经理的技术管理
    Unity/C# 舍入的五种写法
    ​力扣解法汇总946-验证栈序列
    美国经济危机历史与展望
  • 原文地址：https://blog.csdn.net/qq_35745940/article/details/127829478
