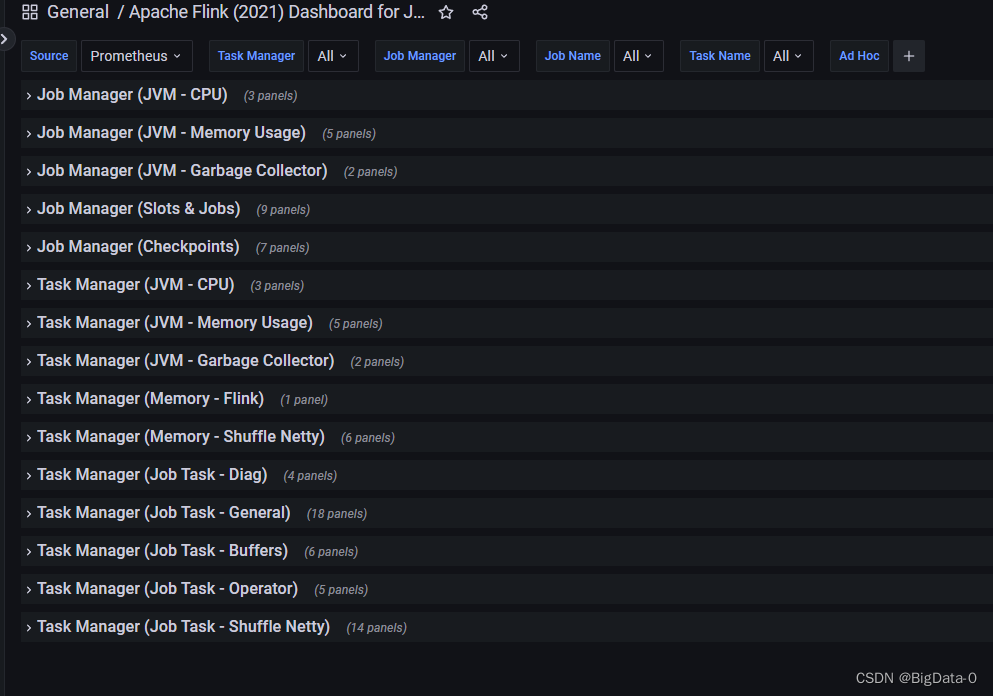

集群节点状态监控和flink作业监控

架构：yarn+flink+supervisor+pushgateway+prometheus+node_exporter+grafana

下载如下离线包，安装

grafana-enterprise-9.2.3.linux-amd64.tar.gz
node_exporter-1.4.0.linux-amd64.tar.gz
prometheus-2.39.1.linux-amd64.tar.gz
pushgateway-1.4.3.linux-amd64.tar.gz

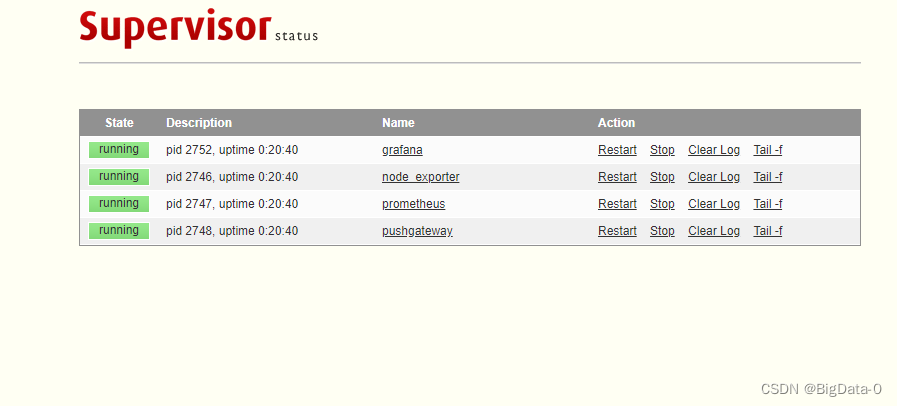

在supervisor中配置上面组件的启动文件

[baiyun@hadoop102 supervisord.d]$ ll
总用量 16
-rw-rw-r–. 1 baiyun baiyun 371 11月 2 23:32 grafana.ini
-rw-rw-r–. 1 baiyun baiyun 276 11月 3 00:57 node_exporter.ini
-rw-rw-r–. 1 baiyun baiyun 448 11月 3 00:02 prometheus.ini
-rw-rw-r–. 1 baiyun baiyun 293 11月 3 00:01 pushgateway.ini

grafana.ini

[baiyun@hadoop102 supervisord.d]$ cat grafana.ini
[program:grafana]
command=/home/baiyun/my_soft/grafana/bin/grafana-server --homepath /home/baiyun/my_soft/grafana web
user=root
autostart=true
autorestart=true
startsecs=10
exitcodes=0
redirect_stderr=true
stdout_logfile=/home/baiyun/my_soft/grafana/log/grafana.log
stdout_logfile_backups=5
1
2
3
4
5
6
7
8
9
10
11

node_exporter.ini

[baiyun@hadoop102 supervisord.d]$ cat node_exporter.ini
[program:node_exporter]
command=/home/baiyun/my_soft/node_exporter/node_exporter
user=root
autostart=true
autorestart=true
startsecs=10
exitcodes=0
redirect_stderr=true
stdout_logfile=/home/baiyun/my_soft/node_exporter/log/node_exporter.log
stdout_logfile_backups=5
1
2
3
4
5
6
7
8
9
10
11

prometheus.ini

[baiyun@hadoop102 supervisord.d]$ cat prometheus.ini
[program:prometheus]
command=/home/baiyun/my_soft/prometheus/prometheus --config.file=/home/baiyun/my_soft/prometheus/prometheus.yml --storage.tsdb.path /home/baiyun/my_soft/prometheus/data --storage.tsdb.retention.time 1d --enable-feature=promql-at-modifier
user=root
autostart=true
autorestart=true
startsecs=10
exitcodes=0
redirect_stderr=true
stdout_logfile=/home/baiyun/my_soft/prometheus/log/prometheus.log
stdout_logfile_backups=5
1
2
3
4
5
6
7
8
9
10
11

pushgateway.ini

[baiyun@hadoop102 supervisord.d]$ cat pushgateway.ini
[program:pushgateway]
command=/home/baiyun/my_soft/pushgateway/pushgateway --web.listen-address :9091
user=root
autostart=true
autorestart=true
startsecs=10
exitcodes=0
redirect_stderr=true
stdout_logfile=/home/baiyun/my_soft/pushgateway/log/pushgateway.log
stdout_logfile_backups=5
1
2
3
4
5
6
7
8
9
10
11

supervisord.conf

[baiyun@hadoop102 my_etc]$ cat supervisord.conf
; Sample supervisor config file.
;
; For more information on the config file, please see:
; http://supervisord.org/configuration.html
;
; Notes:
;  - Shell expansion ("~" or "$HOME") is not supported.  Environment
;    variables can be expanded using this syntax: "%(ENV_HOME)s".
;  - Quotes around values are not supported, except in the case of
;    the environment= options as shown below.
;  - Comments must have a leading space: "a=b ;comment" not "a=b;comment".
;  - Command will be truncated if it looks like a config file comment, e.g.
;    "command=bash -c 'foo ; bar'" will truncate to "command=bash -c 'foo ".
;
; Warning:
;  Paths throughout this example file use /tmp because it is available on most
;  systems.  You will likely need to change these to locations more appropriate
;  for your system.  Some systems periodically delete older files in /tmp.
;  Notably, if the socket file defined in the [unix_http_server] section below
;  is deleted, supervisorctl will be unable to connect to supervisord.

[unix_http_server]
file=/var/run/supervisor/supervisor.sock    ; the path to the socket file
;chmod=0700                 ; socket file mode (default 0700)
;chown=nobody:nogroup       ; socket file uid:gid owner
;username=user              ; default is no username (open server)
;password=123               ; default is no password (open server)

; Security Warning:
;  The inet HTTP server is not enabled by default.  The inet HTTP server is
;  enabled by uncommenting the [inet_http_server] section below.  The inet
;  HTTP server is intended for use within a trusted environment only.  It
;  should only be bound to localhost or only accessible from within an
;  isolated, trusted network.  The inet HTTP server does not support any
;  form of encryption.  The inet HTTP server does not use authentication
;  by default (see the username= and password= options to add authentication).
;  Never expose the inet HTTP server to the public internet.

[inet_http_server]         ; inet (TCP) server disabled by default
port=0.0.0.0:9001        ; ip_address:port specifier, *:port for all iface
;username=user              ; default is no username (open server)
;password=123               ; default is no password (open server)

[supervisord]
logfile=/var/log/supervisor/supervisord.log ; main log file; default $CWD/supervisord.log
logfile_maxbytes=50MB        ; max main logfile bytes b4 rotation; default 50MB
logfile_backups=10           ; # of main logfile backups; 0 means none, default 10
loglevel=info                ; log level; default info; others: debug,warn,trace
pidfile=/var/run/supervisord.pid ; supervisord pidfile; default supervisord.pid
nodaemon=false               ; start in foreground if true; default false
silent=false                 ; no logs to stdout if true; default false
minfds=1024                  ; min. avail startup file descriptors; default 1024
minprocs=200                 ; min. avail process descriptors;default 200
;umask=022                   ; process file creation umask; default 022
;user=supervisord            ; setuid to this UNIX account at startup; recommended if root
;identifier=supervisor       ; supervisord identifier, default is 'supervisor'
;directory=/tmp              ; default is not to cd during start
;nocleanup=true              ; don't clean up tempfiles at start; default false
;childlogdir=/tmp            ; 'AUTO' child log dir, default $TEMP
;environment=KEY="value"     ; key value pairs to add to environment
;strip_ansi=false            ; strip ansi escape codes in logs; def. false

; The rpcinterface:supervisor section must remain in the config file for
; RPC (supervisorctl/web interface) to work.  Additional interfaces may be
; added by defining them in separate [rpcinterface:x] sections.

[rpcinterface:supervisor]
supervisor.rpcinterface_factory = supervisor.rpcinterface:make_main_rpcinterface

; The supervisorctl section configures how supervisorctl will connect to
; supervisord.  configure it match the settings in either the unix_http_server
; or inet_http_server section.

[supervisorctl]
serverurl=unix:///var/run/supervisor/supervisor.sock  ; use a unix:// URL  for a unix socket
;serverurl=http://127.0.0.1:9001 ; use an http:// url to specify an inet socket
;username=chris              ; should be same as in [*_http_server] if set
;password=123                ; should be same as in [*_http_server] if set
;prompt=mysupervisor         ; cmd line prompt (default "supervisor")
;history_file=~/.sc_history  ; use readline history if available

; The sample program section below shows all possible program subsection values.
; Create one or more 'real' program: sections to be able to control them under
; supervisor.

;[program:theprogramname]
;command=/bin/cat              ; the program (relative uses PATH, can take args)
;process_name=%(program_name)s ; process_name expr (default %(program_name)s)
;numprocs=1                    ; number of processes copies to start (def 1)
;directory=/tmp                ; directory to cwd to before exec (def no cwd)
;umask=022                     ; umask for process (default None)
;priority=999                  ; the relative start priority (default 999)
;autostart=true                ; start at supervisord start (default: true)
;startsecs=1                   ; # of secs prog must stay up to be running (def. 1)
;startretries=3                ; max # of serial start failures when starting (default 3)
;autorestart=unexpected        ; when to restart if exited after running (def: unexpected)
;exitcodes=0                   ; 'expected' exit codes used with autorestart (default 0)
;stopsignal=QUIT               ; signal used to kill process (default TERM)
;stopwaitsecs=10               ; max num secs to wait b4 SIGKILL (default 10)
;stopasgroup=false             ; send stop signal to the UNIX process group (default false)
;killasgroup=false             ; SIGKILL the UNIX process group (def false)
;user=chrism                   ; setuid to this UNIX account to run the program
;redirect_stderr=true          ; redirect proc stderr to stdout (default false)
;stdout_logfile=/a/path        ; stdout log path, NONE for none; default AUTO
;stdout_logfile_maxbytes=1MB   ; max # logfile bytes b4 rotation (default 50MB)
;stdout_logfile_backups=10     ; # of stdout logfile backups (0 means none, default 10)
;stdout_capture_maxbytes=1MB   ; number of bytes in 'capturemode' (default 0)
;stdout_events_enabled=false   ; emit events on stdout writes (default false)
;stdout_syslog=false           ; send stdout to syslog with process name (default false)
;stderr_logfile=/a/path        ; stderr log path, NONE for none; default AUTO
;stderr_logfile_maxbytes=1MB   ; max # logfile bytes b4 rotation (default 50MB)
;stderr_logfile_backups=10     ; # of stderr logfile backups (0 means none, default 10)
;stderr_capture_maxbytes=1MB   ; number of bytes in 'capturemode' (default 0)
;stderr_events_enabled=false   ; emit events on stderr writes (default false)
;stderr_syslog=false           ; send stderr to syslog with process name (default false)
;environment=A="1",B="2"       ; process environment additions (def no adds)
;serverurl=AUTO                ; override serverurl computation (childutils)

; The sample eventlistener section below shows all possible eventlistener
; subsection values.  Create one or more 'real' eventlistener: sections to be
; able to handle event notifications sent by supervisord.

;[eventlistener:theeventlistenername]
;command=/bin/eventlistener    ; the program (relative uses PATH, can take args)
;process_name=%(program_name)s ; process_name expr (default %(program_name)s)
;numprocs=1                    ; number of processes copies to start (def 1)
;events=EVENT                  ; event notif. types to subscribe to (req'd)
;buffer_size=10                ; event buffer queue size (default 10)
;directory=/tmp                ; directory to cwd to before exec (def no cwd)
;umask=022                     ; umask for process (default None)
;priority=-1                   ; the relative start priority (default -1)
;autostart=true                ; start at supervisord start (default: true)
;startsecs=1                   ; # of secs prog must stay up to be running (def. 1)
;startretries=3                ; max # of serial start failures when starting (default 3)
;autorestart=unexpected        ; autorestart if exited after running (def: unexpected)
;exitcodes=0                   ; 'expected' exit codes used with autorestart (default 0)
;stopsignal=QUIT               ; signal used to kill process (default TERM)
;stopwaitsecs=10               ; max num secs to wait b4 SIGKILL (default 10)
;stopasgroup=false             ; send stop signal to the UNIX process group (default false)
;killasgroup=false             ; SIGKILL the UNIX process group (def false)
;user=chrism                   ; setuid to this UNIX account to run the program
;redirect_stderr=false         ; redirect_stderr=true is not allowed for eventlisteners
;stdout_logfile=/a/path        ; stdout log path, NONE for none; default AUTO
;stdout_logfile_maxbytes=1MB   ; max # logfile bytes b4 rotation (default 50MB)
;stdout_logfile_backups=10     ; # of stdout logfile backups (0 means none, default 10)
;stdout_events_enabled=false   ; emit events on stdout writes (default false)
;stdout_syslog=false           ; send stdout to syslog with process name (default false)
;stderr_logfile=/a/path        ; stderr log path, NONE for none; default AUTO
;stderr_logfile_maxbytes=1MB   ; max # logfile bytes b4 rotation (default 50MB)
;stderr_logfile_backups=10     ; # of stderr logfile backups (0 means none, default 10)
;stderr_events_enabled=false   ; emit events on stderr writes (default false)
;stderr_syslog=false           ; send stderr to syslog with process name (default false)
;environment=A="1",B="2"       ; process environment additions
;serverurl=AUTO                ; override serverurl computation (childutils)

; The sample group section below shows all possible group values.  Create one
; or more 'real' group: sections to create "heterogeneous" process groups.

;[group:thegroupname]
;programs=progname1,progname2  ; each refers to 'x' in [program:x] definitions
;priority=999                  ; the relative start priority (default 999)

; The [include] section can just contain the "files" setting.  This
; setting can list multiple files (separated by whitespace or
; newlines).  It can also contain wildcards.  The filenames are
; interpreted as relative to this file.  Included files *cannot*
; include files themselves.

[include]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170

prometheus.yml

[baiyun@hadoop102 prometheus]$ cat prometheus.yml
# my global config
global:
  scrape_interval: 30s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

# Alertmanager configuration
alerting:
  alertmanagers:
    - static_configs:
        - targets:
          # - alertmanager:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
   - job_name: "prometheus"
     static_configs:
     - targets: ["localhost:9090"]

   - job_name: 'pushgateway'
     static_configs:
      - targets: ['localhost:9091']
        labels:
             instance: pushgateway

   - job_name: 'node exporter'
     static_configs:
      - targets: ['localhost:9100']
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

flink-conf.yaml

classloader.check-leaked-classloader: false
##### 与Prometheus集成配置 #####
metrics.reporter.promgateway.class: org.apache.flink.metrics.prometheus.PrometheusPushGatewayReporter
## PushGateway的主机名与端口号
metrics.reporter.promgateway.host: xxx
metrics.reporter.promgateway.port: 9091
## Flink metric在前端展示的标签（前缀）与随机后缀
metrics.reporter.promgateway.jobName: flink-metrics
metrics.reporter.promgateway.randomJobNameSuffix: true
metrics.reporter.promgateway.deleteOnShutdown: false
metrics.reporter.promgateway.interval: 30 SECONDS
1
2
3
4
5
6
7
8
9
10
11

webui

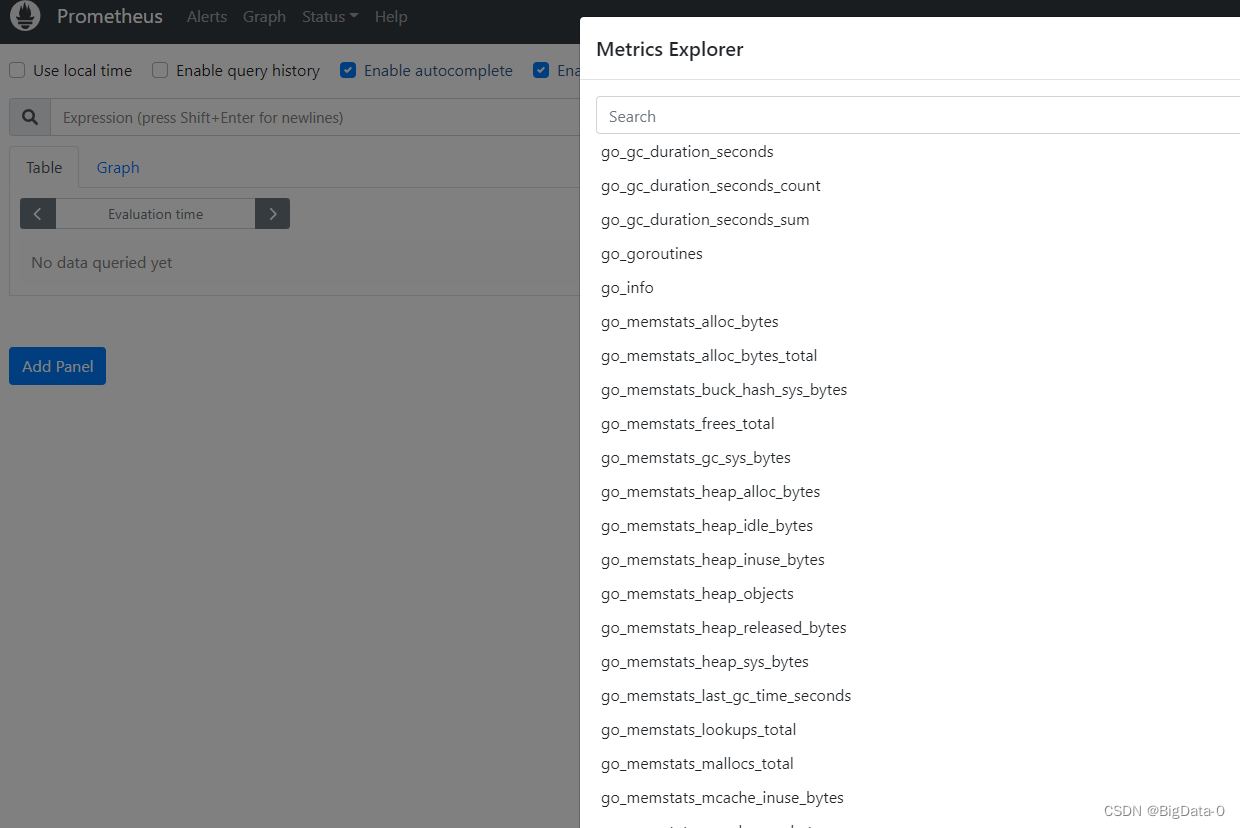

http://192.168.138.102:9090/

http://192.168.138.102:3000/

http://192.168.138.102:9001/
