ICMP报文

有关ICMP的内容在此不做阐述，仅说下ICMP报文何时会发送(ping除外)，ICMP报文中的数据又是什么，如何处理接收到的ICMP报文

何时产生ICMP

当发送一段udp报文到一个不可达的机器，或者ttl耗尽，或者MTU大于在某处路由的mtu，此时均会收到ICMP报文。上述所说均是常见例子，分别对应3，3；11，0；3，4

ICMP数据

携带的正是你发送的UDP数据，会将其原原本本的发送回来，其中会包含IP层的数据

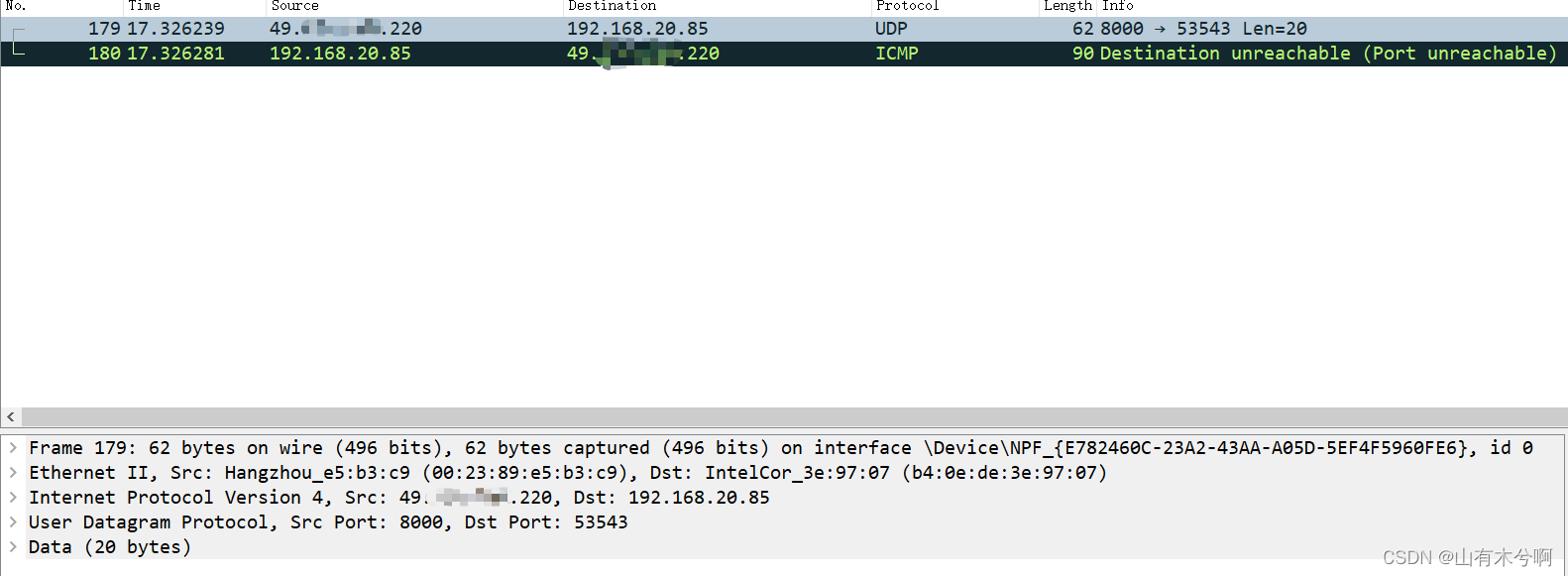

如下是通过wireshark捕获的3，3报文。此时由于客户端的突然关闭，但是路由链路还存在，故主机回收到此udp，然而程序退出，故回复了ICMP报文

下面分别是udp报文和ICMP报文

// udp数据
1f 40 d1 27 00 1c 2d 20
21 00 00 29 78 7e a0 a2 74 09 b9 7a 00 10 00 00 98 6a 48 23

// ICMP报文
03 03 96 ec 00 00 00 00 	// ICMP头部，以下是数据部分
45 68 00 30 7f 8b 40 00 35 11 2c 08 31 ** ** dc c0 a8 14 55 // IP头部 **是屏蔽了公网IP
1f 40 d1 27 00 1c 2d 20		// udp头部
21 00 00 29 78 7e a0 a2 74 09 b9 7a 00 10 00 00 98 6a 48 23 // udp数据
1
2
3
4
5
6
7
8
9

ICMP报文处理

1、设置套接字

int on = 1;
setsockopt(fd, SOL_IP, IP_RECVERR, &on, sizeof(on); // 仅限IPv4
1
2

2、通过poll/epoll返回 POLLERR/EPOLLERR后读取消息

unsigned char vec_buf[4096], ancillary_buf[4096];
struct iovec iov = {vec_buf, sizeof(vec_buf)};
struct sockaddr_in remote;
struct msghdr msg;
ssize_t len;
struct cmsghdr *cmsg;
struct sock_extended_err *e;
struct sockaddr *icmp_addr;
struct sockaddr_in *icmp_sin;

memset(&msg, 0, sizeof(msg));
msg.msg_name = &remote;
msg.msg_namelen = sizeof(remote);
msg.msg_iov = &iov;
msg.msg_iovlen = 1;
msg.msg_flags = 0;
msg.msg_control = ancillary_buf;
msg.msg_controllen = sizeof(ancillary_buf);

EINTR_LOOP(len, recvmsg(udpfd, &msg, MSG_ERRQUEUE | MSG_DONTWAIT));
if (len < 0) {
    if (errno != EAGAIN || errno != EWOULDBLOCK) {
        LOGE("recvmsg error. [%d,%s]", errno, strerror(errno));
    }
    break;
}
// 收到几个ICMP就循环几次。可通过man 3 cmsg查看详情
for (cmsg = CMSG_FIRSTHDR(&msg); cmsg; cmsg = CMSG_NXTHDR(&msg, cmsg)) {
    if (cmsg->cmsg_type != IP_RECVERR) {
        LOGD("Unhandled errqueue type: %d\n", cmsg->cmsg_type);
        continue;
    }

    if (cmsg->cmsg_level != SOL_IP) {
        LOGD("Unhandled errqueue level: %d\n", cmsg->cmsg_level);
        continue;
    }

    LOGD("errqueue: IP_RECVERR, SOL_IP, len %zd\n", cmsg->cmsg_len);

    if (remote.sin_family != AF_INET) {
        LOGD("Address family is %d, not AF_INET. Ignoring\n", remote.sin_family);
        continue;
    }

    LOGD("Remote host: %s:%d\n", inet_ntoa(remote.sin_addr), ntohs(remote.sin_port));

    e = (struct sock_extended_err *)CMSG_DATA(cmsg);
    if (!e) {
        LOGD("errqueue: sock_extended_err is NULL?\n");
        continue;
    }
    if (e->ee_origin != SO_EE_ORIGIN_ICMP) {
        LOGD("errqueue: Unexpected origin: %d\n", e->ee_origin);
        continue;
    }

    LOGD("    ee_errno:  %d\n", e->ee_errno);
    LOGD("    ee_origin: %d\n", e->ee_origin);
    LOGD("    ee_type:   %d\n", e->ee_type);
    LOGD("    ee_code:   %d\n", e->ee_code);
    LOGD("    ee_info:   %d\n", e->ee_info); // discovered MTU for EMSGSIZE errors
    LOGD("    ee_data:   %d\n", e->ee_data);

    // "Node that caused the error"
    // "Node that generated the error"
    icmp_addr = (struct sockaddr *)SO_EE_OFFENDER(e);
    icmp_sin = (struct sockaddr_in *)icmp_addr;

    if (icmp_addr->sa_family != AF_INET) {
        LOGD("ICMP's address family is %d, not AF_INET?\n", icmp_addr->sa_family);
        continue;
    }

    if (icmp_sin->sin_port != 0) {
        LOGD("ICMP's 'port' is not 0?\n");
        continue;
    }

    LOGD("msg_flags: 0x%x", msg.msg_flags);

    // if (msg.msg_flags & MSG_TRUNC)
    //     fprintf(stderr, " MSG_TRUNC");
    // if (msg.msg_flags & MSG_CTRUNC)
    //     fprintf(stderr, " MSG_CTRUNC");
    // if (msg.msg_flags & MSG_EOR)
    //     fprintf(stderr, " MSG_EOR");
    // if (msg.msg_flags & MSG_OOB)
    //     fprintf(stderr, " MSG_OOB");
    // if (msg.msg_flags & MSG_ERRQUEUE)
    //     fprintf(stderr, " MSG_ERRQUEUE");
    // fprintf(stderr, "\n");

    if (e->ee_type == 3 && e->ee_code == 4) { // utp猜测的MTU过大
        LOGD("ICMP: type 3, code 4: Fragmentation error, discovered MTU %d\n", e->ee_info);
        utp_process_icmp_fragmentation(m_utpContex, vec_buf, len, (struct sockaddr *)&remote, sizeof(remote), e->ee_info);
    } else {
        LOGD("ICMP: type %d, code %d\n", e->ee_type, e->ee_code);
        utp_process_icmp_error(m_utpContex, vec_buf, len, (struct sockaddr *)&remote, sizeof(remote));
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101

详看ICMP报文协议可至此
